General Electric IS200TRPGH2B Primary Trip Terminal Board

General Electric IS200TRPGH2B Primary Trip Terminal Board

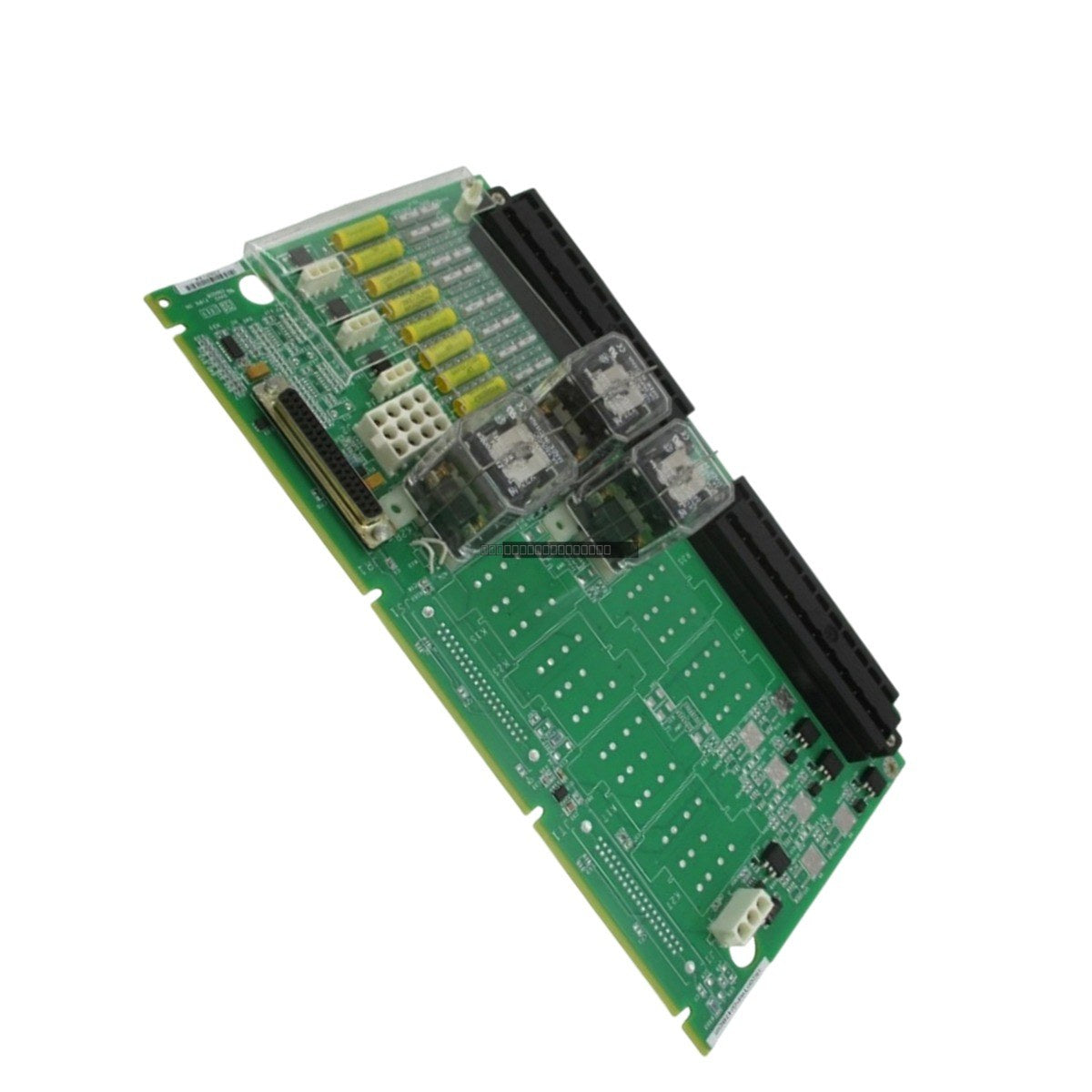

The General Electric IS200TRPGH2B is a Primary Trip Terminal Board designed for the Mark VI Speedtronic control system. This board functions as a simplex interface, providing essential control and monitoring...

28 la gente está viendo esto ahora mismo

Disponibilidad: En existencias

SKU: IS200TRPGH2B
Proveedora: General Electric
tipo: Terminal Board
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The General Electric IS200TRPGH2B is a Primary Trip Terminal Board designed for the Mark VI Speedtronic control system. This board functions as a simplex interface, providing essential control and monitoring for turbine protection solenoids. It is engineered to operate in conjunction with the TREG board to manage the primary and emergency sides of the interface to the Emergency Trip Devices (ETDs).

Features

  • Simplex version of the TRPG terminal board series.
  • Supports inputs from up to eight Geiger-Mueller flame detectors, suitable for gas turbine applications.
  • Integrated diagnostic monitoring for relay coil current and contact state feedback.
  • Tracks supply voltages (125 V DC) to ensure trip actuation power availability.
  • Pulse frequency counting for flame detection (40 ms interval).
  • Conformal PCB coating for enhanced environmental protection.

Technical Specifications

Model IS200TRPGH2B
Series Mark VI Speedtronic
Normal Operating Voltage 28 V DC
Output Contact Power 125 V DC @ 1 A or 24 V DC @ 3 A
Solenoid Voltage/Current 125 V DC @ 1 A per solenoid
Flame Input Range 0–5 V pulses
Weight 0.6 kg

Applications

  • Turbine machinery condition monitoring and fault prediction in the power industry.
  • Rotating equipment monitoring in oil extraction and pipeline compressor stations.
  • Control of large-scale turbine-driven compression units in petrochemical plants.
  • Redundant fault-tolerant control in blower systems for the metallurgical industry.

Installation Guidelines

  • Ensure the control system is powered down before installing or removing the module from the rack.
  • Handle the PCB by the edges to prevent electrostatic discharge (ESD) damage to sensitive components.
  • Verify that the board is securely seated in the designated Mark VI slot to ensure proper backplane communication.
  • Ensure all terminal block connections are tightened to the specified torque to prevent intermittent signal loss.
  • Maintain proper ventilation within the cabinet to prevent overheating of the terminal board components.

FAQ

What is the primary function of the IS200TRPGH2B?

The IS200TRPGH2B is a Primary Trip Terminal Board that manages the interface between the Mark VI control system and turbine protection solenoids, providing both control and diagnostic feedback.

How does this board handle flame detection?

It supports up to eight Geiger-Mueller flame detectors, measuring the frequency of incoming 0–5 V pulses over a 40 ms interval to determine flame status.

What is the difference between the H1 and H2 versions?

The H1 versions are typically used in Triple Modular Redundant (TMR) applications with voting logic, while the H2 versions, such as the IS200TRPGH2B, are designed for simplex applications.
