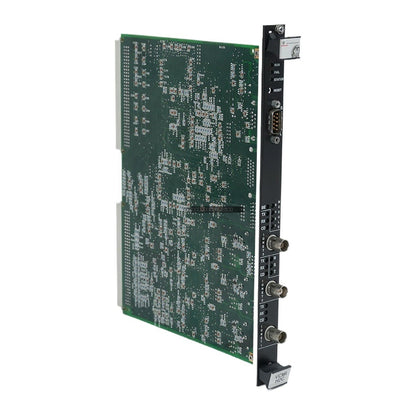

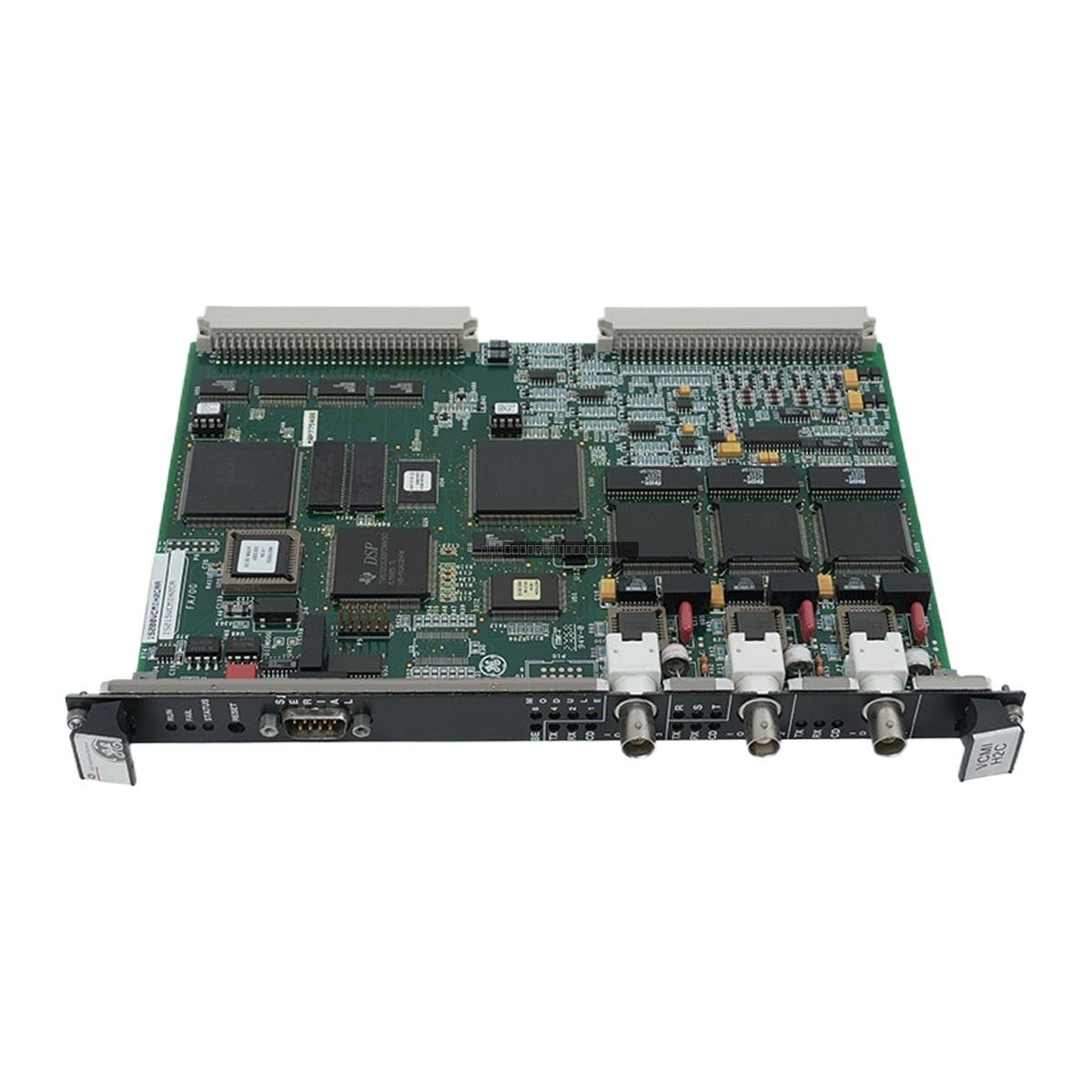

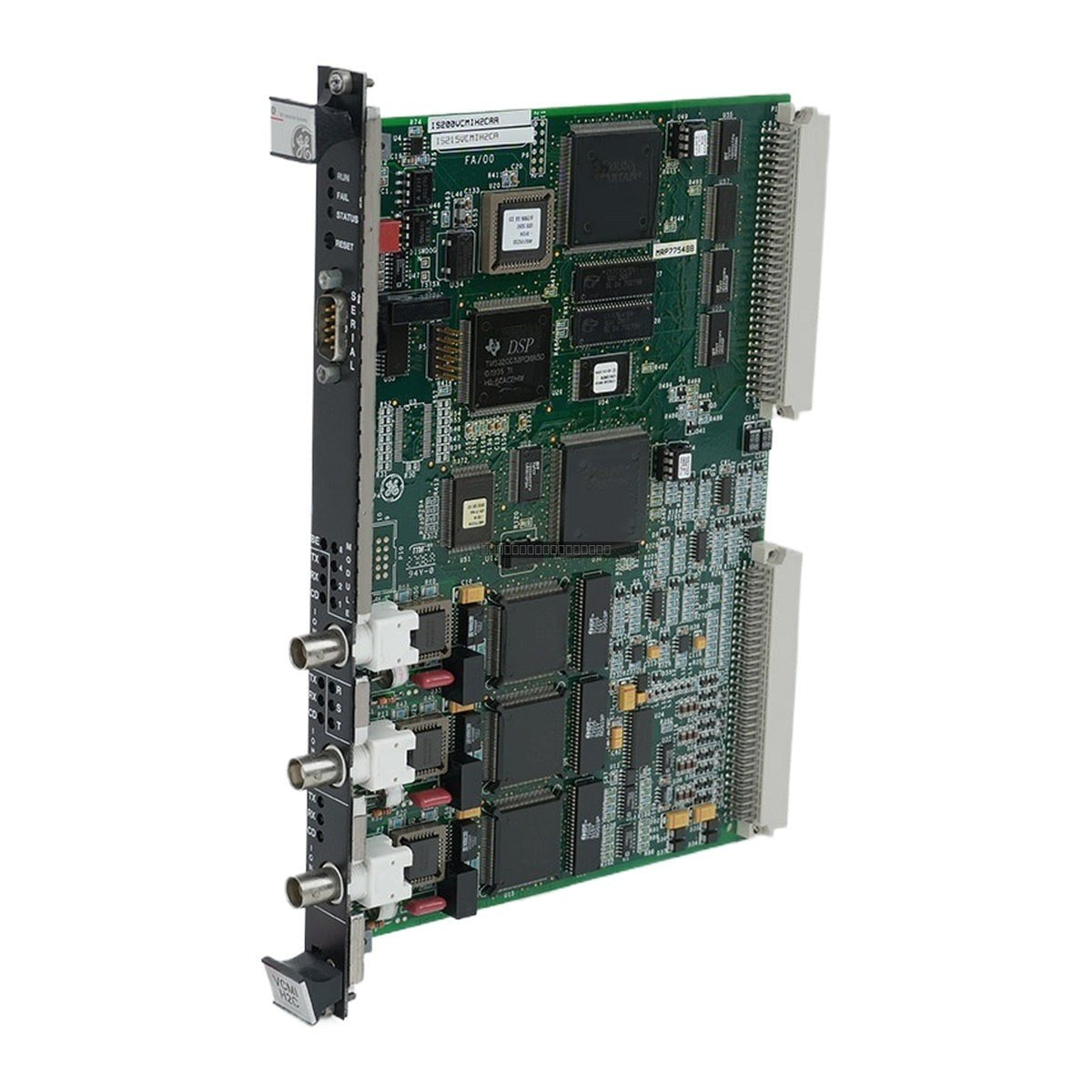

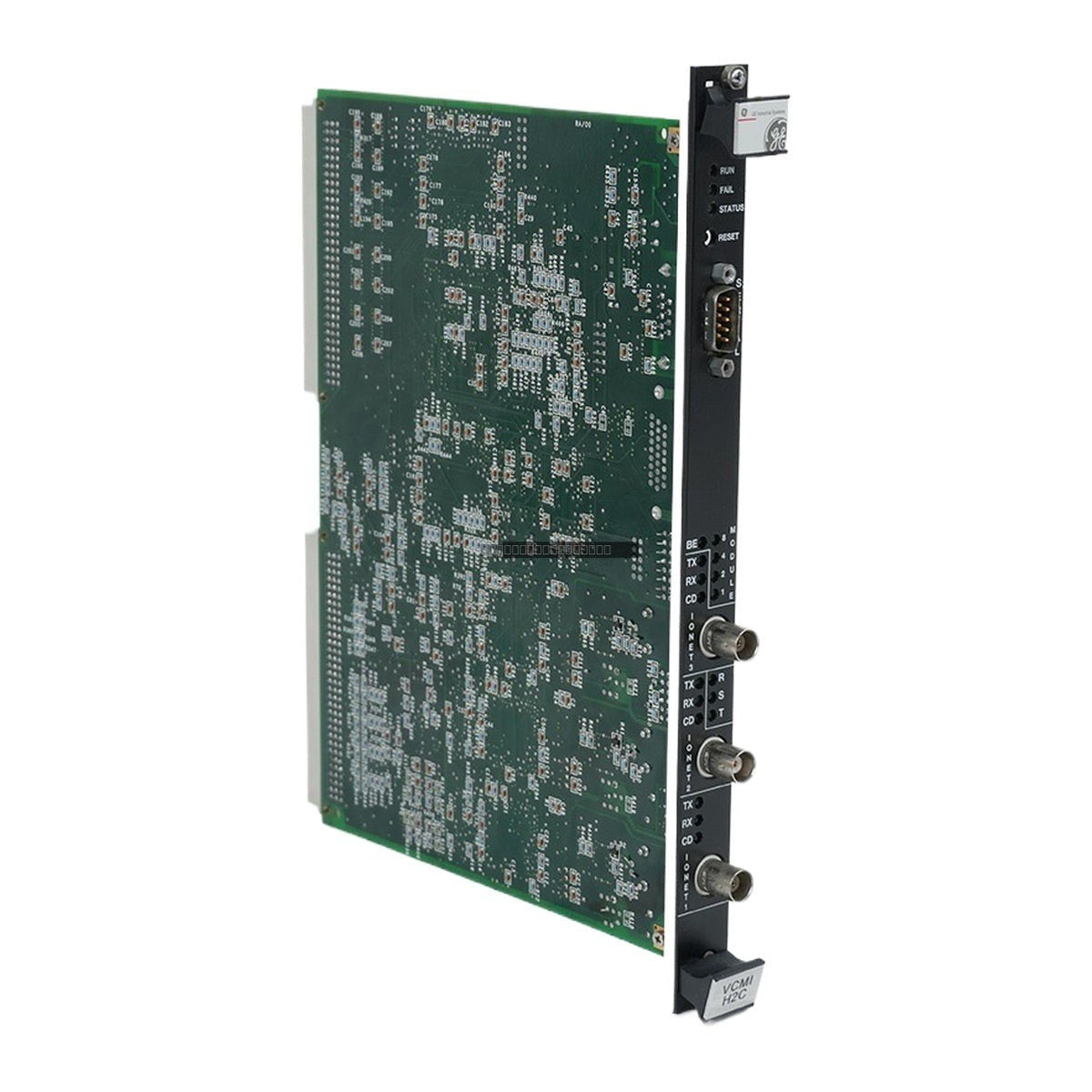

General Electric IS200VCMIH2CAA / IS215VCMIH2CA VME Communication Interface Card

General Electric IS200VCMIH2CAA / IS215VCMIH2CA VME Communication Interface Card

The General Electric IS200VCMIH2CAA and IS215VCMIH2CA serve as critical VME Communication Interface (VCMI) cards within the Speedtronic Mark VI gas turbine control system. This module acts as the primary bridge...

16 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 1

SKU: IS200VCMIH2CAA/IS215VCMIH2CA
Proveedora: General Electric
tipo: Communication Interface Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The General Electric IS200VCMIH2CAA and IS215VCMIH2CA serve as critical VME Communication Interface (VCMI) cards within the Speedtronic Mark VI gas turbine control system. This module acts as the primary bridge between I/O boards and the main controller, facilitating high-speed data exchange across the IONet system control network.

Features

  • Advanced VME Bus Master Controller architecture with 32-bit digital signal processing.
  • Integrated front faceplate connectivity featuring one RS-232C serial port and three 10Base2 Ethernet IONet ports.
  • Comprehensive LED diagnostic system providing real-time status, run, fail, and communication link monitoring.
  • High-frequency noise suppression via integrated inductor beads and robust circuit design.
  • Supports Triple Modular Redundant (TMR) system configurations.

Applications

  • Gas and steam turbine control in combined-cycle power plants.
  • Critical process monitoring for compressors, pumps, and rotating equipment in oil and gas refineries.
  • Large-scale automation for hydroelectric and wind power generation units.
  • Process control and coordination in petrochemical and water treatment facilities.

Technical Specifications

Model IS200VCMIH2CAA / IS215VCMIH2CA
Processor 32-bit DSP
Power Requirements +5 V dc, 6 A
Supply Voltage 28 V dc
Communication Ports 3x IONet (10Base2), 1x RS-232C
Mounting VME Rack / DIN-rail compatible

Installation Guidelines

  • Ensure the turbine control system is fully powered down before inserting or removing the VCMI module.
  • Always utilize an Electrostatic Discharge (ESD) protective wrist strap when handling the PCB to prevent damage to integrated circuits.
  • When performing a board replacement, ensure all PROM modules are carefully transferred from the original board to the new unit to maintain firmware consistency.
  • Align pins carefully when seating PROMs; use a flat-bladed screwdriver to gently lift components if necessary.
  • Slide the board into the designated VME rack slot, ensuring it is fully seated and securely locked into the backplane.

FAQs

What is the primary role of the IS215VCMIH2CA?

This module acts as the VME Communications Interface for the Mark VI system, managing network traffic on the IONet and linking I/O boards to the main controller.

How does the H2CA version differ from earlier models?

The H2CA variant is designed for enhanced connectivity, featuring three IONet ports compared to the single port found on the VCMIH1, making it the preferred choice for TMR systems.

What do the LEDs on the faceplate indicate?

The LEDs provide visual feedback for system status, run/fail conditions, and specific TX/RX/CD activity for each of the three IONet communication ports.
