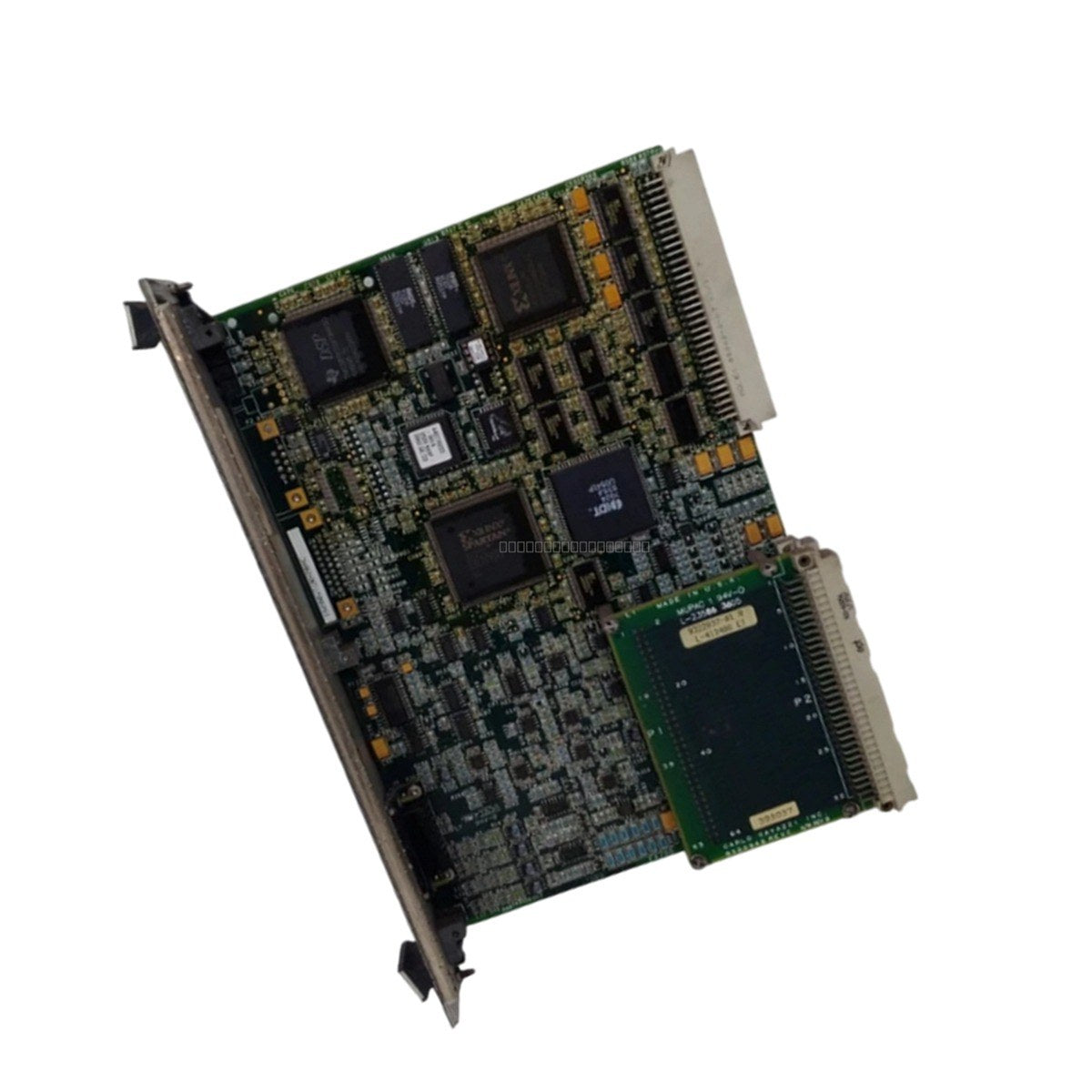

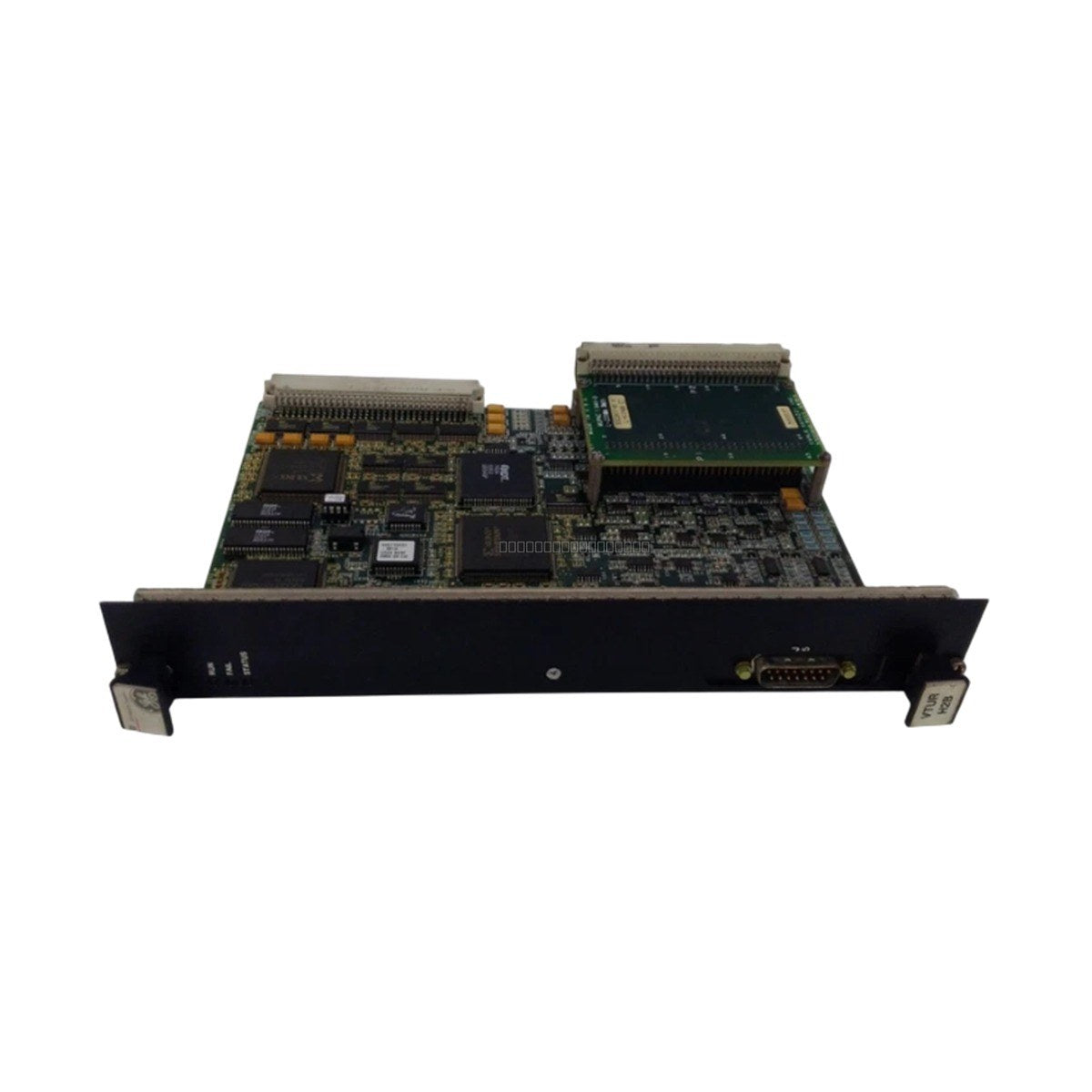

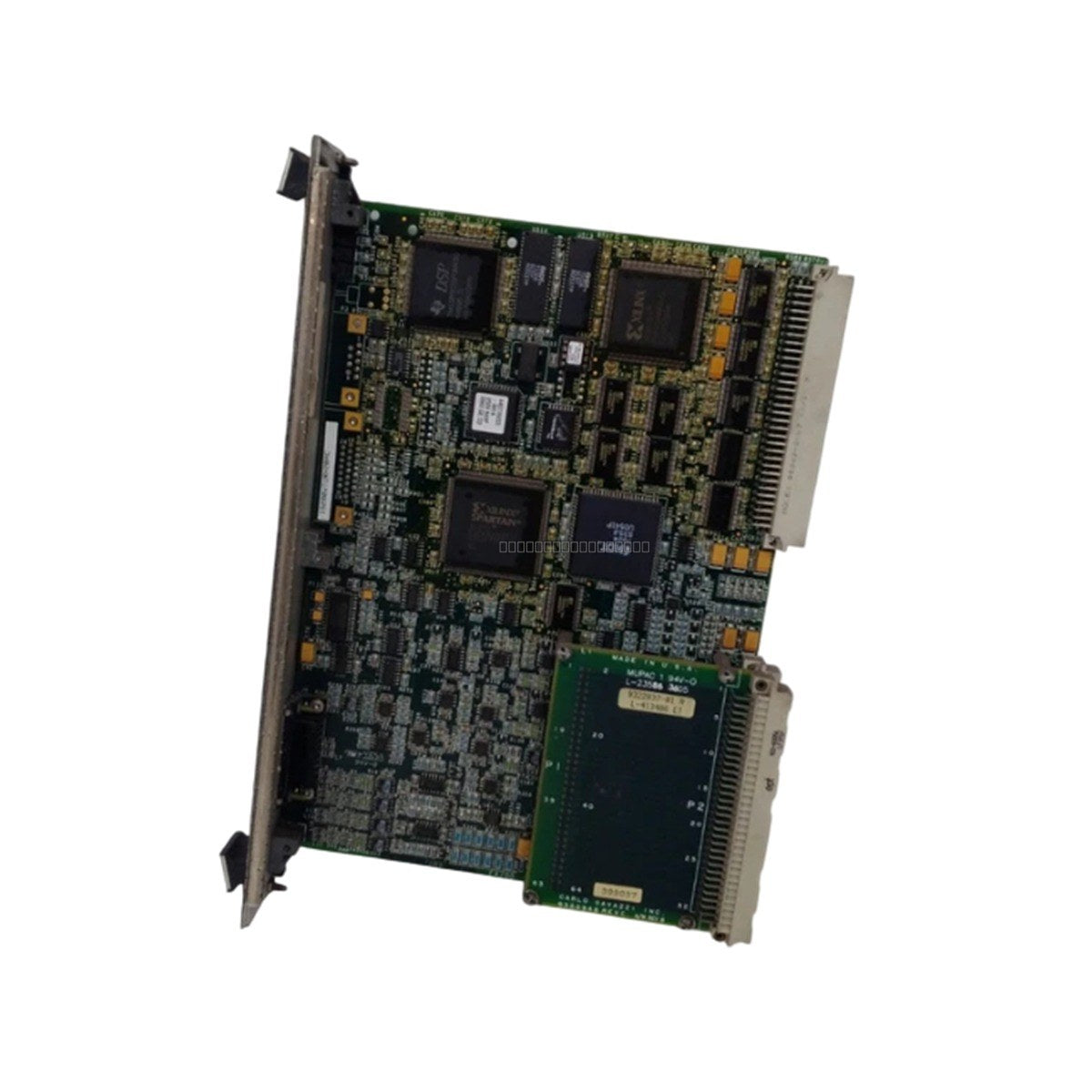

General Electric IS200VTURH2BAC Mark VIe Vibration Transducer Interface Module

General Electric IS200VTURH2BAC Mark VIe Vibration Transducer Interface Module

The General Electric IS200VTURH2BAC is a Vibration Transducer Interface Module designed for the Mark VIe control system. This module facilitates the acquisition and processing of vibration data from sensors, providing...

25 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 4

SKU: IS200VTURH2BAC
Proveedora: General Electric
tipo: Vibration Monitor Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The General Electric IS200VTURH2BAC is a Vibration Transducer Interface Module designed for the Mark VIe control system. This module facilitates the acquisition and processing of vibration data from sensors, providing critical monitoring capabilities for rotating machinery in industrial environments.

Features

  • Designed for high-precision vibration monitoring within the Mark VIe platform.
  • Supports multiple analog voltage input channels for versatile sensor connectivity.
  • Integrated proximity probe power supply with stable voltage output.
  • Robust channel-to-channel isolation to prevent signal interference and ensure measurement integrity.
  • Wide operating temperature range suitable for demanding industrial cabinet environments.

Applications

This module is primarily utilized in power generation and heavy industrial applications, including the monitoring of turbines, compressors, and large motors. It serves as a critical interface between field-mounted vibration transducers and the main control system, ensuring accurate data acquisition for predictive maintenance and operational safety.

Technical Specifications

Product Model IS200VTURH2BAC
Spare Model IS200VTURH2B
Input Channels 4 to 8 channels
Proximity Probe Input -18 V DC +/- 5% (250 mA max)
Analog Input Range +/- 10 V DC
Common Mode Voltage +/- 5 V
Channel Isolation >= 250 V AC
Operating Temperature -20 degC to +70 degC
Humidity 5% to 95% RH (non-condensing)

Installation Guidelines

  • Ensure the control system is powered down before inserting or removing the module from the rack.
  • Use appropriate ESD protection when handling the module to prevent damage to sensitive electronic components.
  • Ensure proper grounding of the module chassis to the system common to minimize noise and EMI.
  • Route signal cables away from high-voltage power lines to maintain signal fidelity.
  • Verify that the rack slot is clean and free of debris before installation to ensure reliable backplane connection.

FAQ

What is the primary function of the IS200VTURH2BAC?

This module acts as an interface for vibration transducers, converting field signals into a format compatible with the GE Mark VIe control system for monitoring and analysis.

Is this module compatible with the IS200VTURH2B?

Yes, the IS200VTURH2BAC is often considered a functional replacement or revision for the IS200VTURH2B model; however, always verify system revision requirements before installation.
