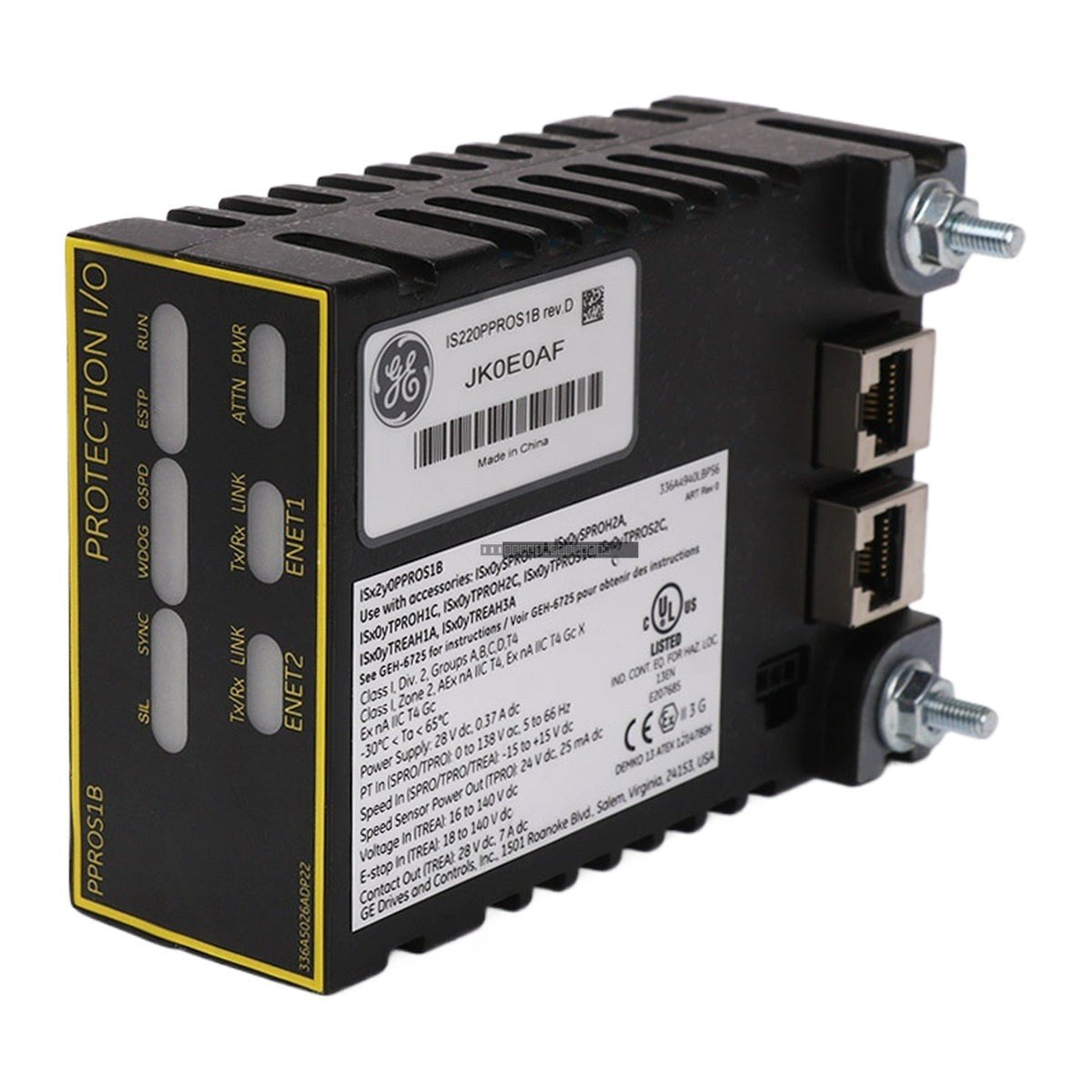

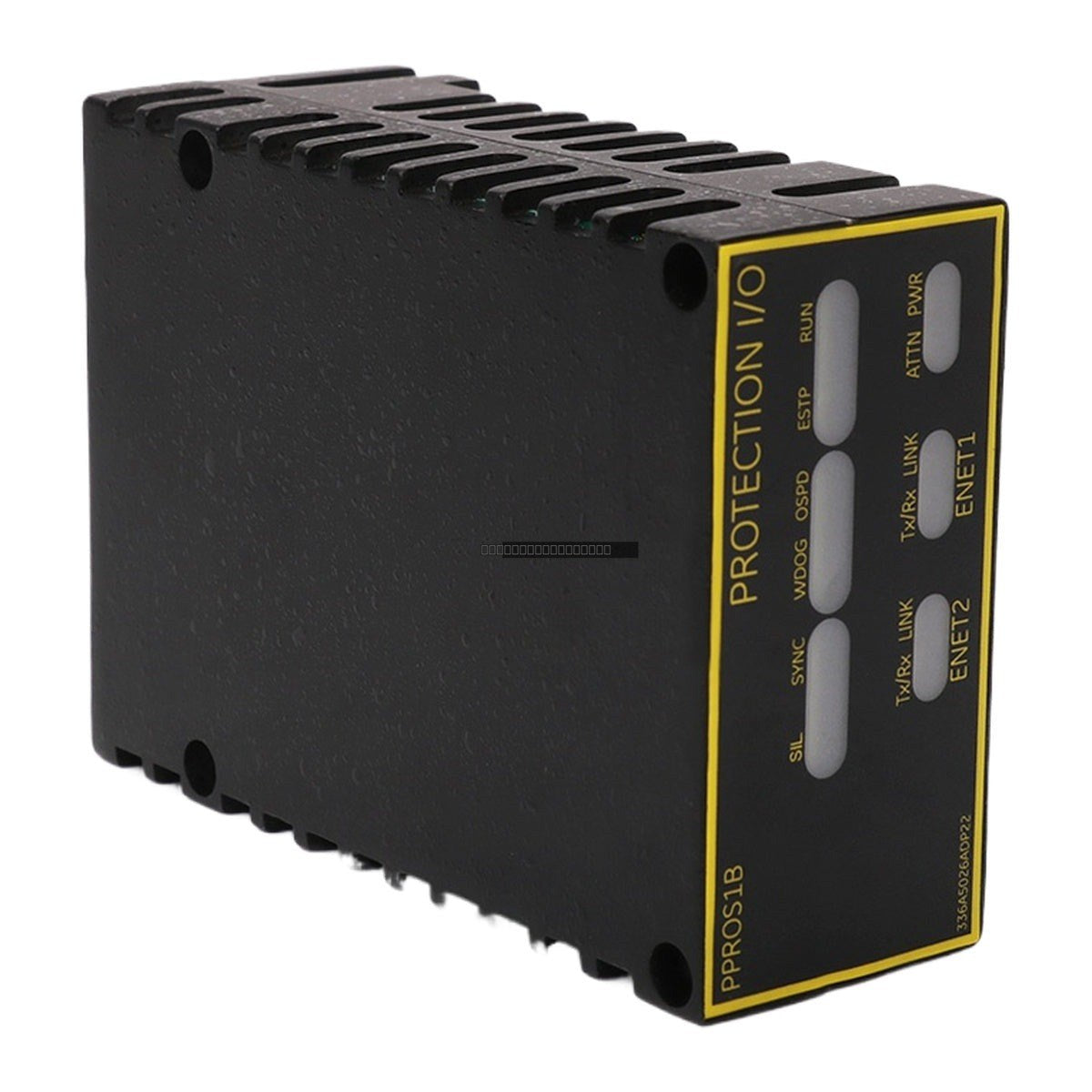

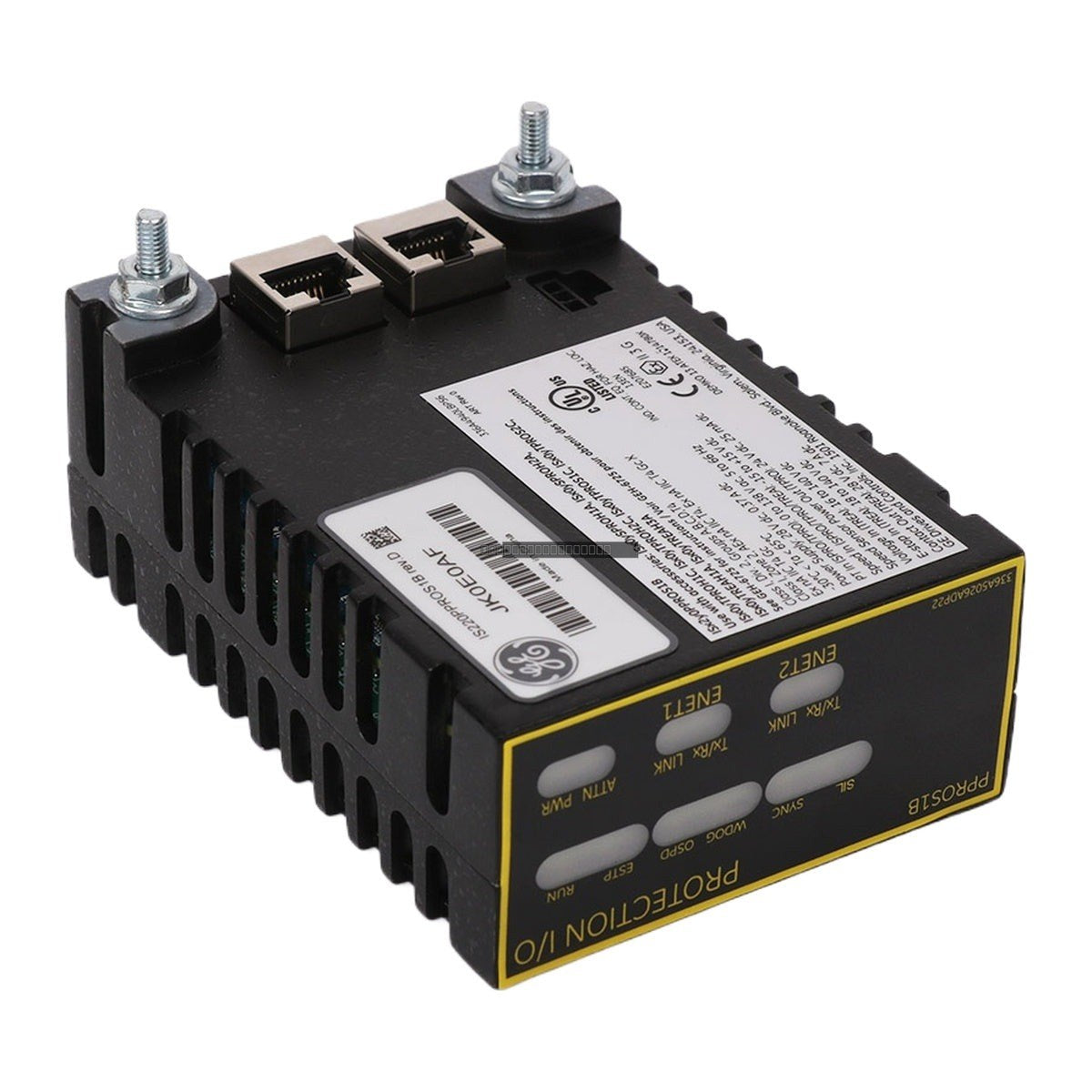

General Electric IS220PPROS1B Emergency Turbine Protection I/O Pack

General Electric IS220PPROS1B Emergency Turbine Protection I/O Pack

The General Electric IS220PPROS1B is an Emergency Turbine Protection I/O Pack designed for the Mark VIe control system. This module serves as an independent, high-reliability watchdog, providing backup overspeed protection...

25 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 8

SKU: IS220PPROS1B
Proveedora: General Electric
tipo: Turbine Protection I/O Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The General Electric IS220PPROS1B is an Emergency Turbine Protection I/O Pack designed for the Mark VIe control system. This module serves as an independent, high-reliability watchdog, providing backup overspeed protection for both gas and steam turbines. It continuously monitors the primary control system's performance and provides a secondary check for generator synchronization to the utility bus.

Features

  • Emergency turbine protection with integrated backup overspeed monitoring.
  • Triple Modular Redundant (TMR) architecture support for high-availability applications.
  • Hardware-implemented protection for acceleration, deceleration, and overspeed conditions.
  • Dual independent 10/100 Ethernet ports for IONet communication.
  • Soft-start input power circuitry with integrated current limiting.
  • Independent monitoring of trip board status via comprehensive feedback signals.

Applications

  • Gas and steam power generation plants for turbine failure prevention.
  • Hydroelectric power generation for turbine speed and grid synchronization.
  • Industrial cogeneration facilities requiring high-availability backup systems.
  • Hazardous environments requiring robust temperature tolerance and electrical isolation.

Technical Specifications

Model IS220PPROS1B
Series Mark VIe
Function Emergency Turbine Protection I/O Pack
Operating Temperature -40 degC to +70 degC
Storage Temperature -40 degC to +85 degC
Humidity 5% to 95% non-condensing
Ethernet Dual 10/100 Mbps ports
Memory 8 MB Flash, 16 MB RAM

Installation Guidelines

  • Ensure the system is powered down before inserting or removing the I/O pack from the terminal board.
  • In TMR configurations, ensure all three I/O packs are correctly seated on their respective SPRO terminal boards.
  • Connect Ethernet cables to the designated IONet ports; the module automatically manages network redundancy.
  • Use DC-37 pin cables for connections between the SPRO terminal board and the emergency trip board.
  • Maintain proper ventilation to ensure the module operates within its specified temperature range.
  • Configure the module parameters using the GE ToolboxST software suite.

FAQ

What is the primary purpose of the IS220PPROS1B?

It acts as an independent backup protection system that monitors primary turbine speed and the status of trip terminal boards, initiating a trip on the primary control if a fault is detected.

Can this module be used in TMR systems?

Yes, it is fully compatible with both Simplex and Triple Modular Redundant (TMR) systems. In TMR setups, three PPRO packs are typically mounted to separate SPRO terminal boards.

What communication interfaces are included?

The module features two independent 10/100 Ethernet ports used to link directly into the control module's internal IONet network.
