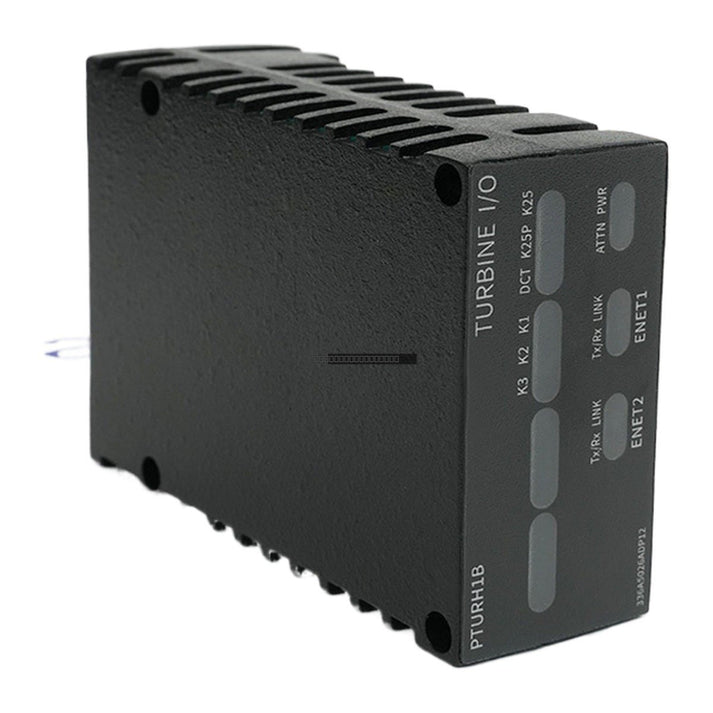

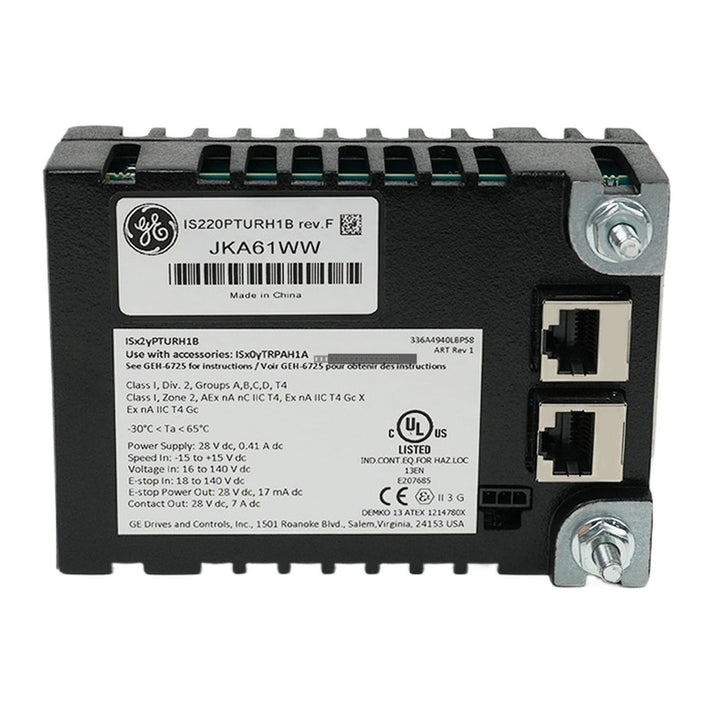

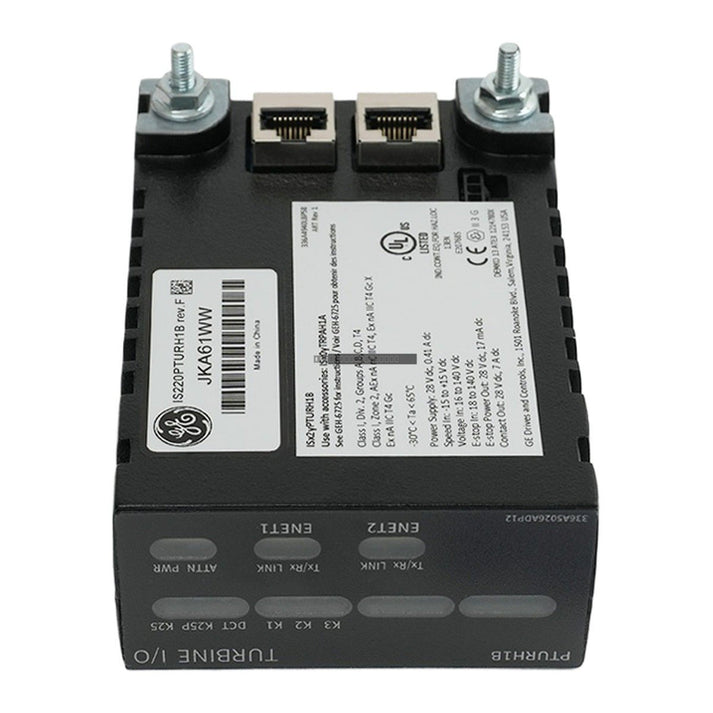

General Electric IS220PTURH1B Mark VIe Turbine I/O Pack

General Electric IS220PTURH1B Mark VIe Turbine I/O Pack

The General Electric IS220PTURH1B is a specialized I/O pack designed for the Mark VIe Speedtronic control system. This module is engineered for critical turbine protection and control applications, including the...

28 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 8

SKU: IS220PTURH1B
Proveedora: General Electric
tipo: I/O Pack
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The General Electric IS220PTURH1B is a specialized I/O pack designed for the Mark VIe Speedtronic control system. This module is engineered for critical turbine protection and control applications, including the regulation of Heat Recovery Steam Generator (HRSG) systems. It serves as a primary interface for turbine input and output signals, ensuring high-reliability performance in demanding power generation environments.

Features

  • Designed specifically for Mark VIe Speedtronic gas turbine control architectures.
  • Supports primary turbine protection functions.
  • Integrated I/O processing for HRSG and boiler regulation.
  • Robust construction suitable for extreme industrial temperature ranges.
  • High-isolation voltage rating to protect sensitive control circuitry.

Applications

This I/O pack is primarily utilized in power generation facilities, specifically within gas turbine control systems. It is essential for monitoring and managing turbine inputs and outputs, as well as coordinating the operational parameters of HRSG systems to maintain safe and efficient plant performance.

Technical Specifications

Product Model IS220PTURH1B
Manufacturer General Electric
Digital Inputs 8 x 24 V DC
Supply Voltage 28 V DC
Power Consumption 27 VA typical
Isolation 1500 V AC
Operating Temperature -40 to +70 degC (-40 to +158 degF)
Storage Temperature -55 to +85 degC
Humidity 5 to 95% RH (non-condensing)

Installation Guidelines

  • Ensure the control system is powered down before attempting to install or remove the I/O pack to prevent electrical damage.
  • Verify that the module is properly seated in the designated Mark VIe rack slot to ensure reliable backplane communication.
  • Maintain proper grounding practices to minimize electromagnetic interference (EMI) and protect against surge events.
  • Ensure adequate ventilation within the control cabinet to maintain operating temperatures within the specified -40 to +70 degC range.
  • Handle with care using ESD-safe procedures to prevent damage to internal electronic components.

FAQ

What is the primary function of the IS220PTURH1B?
The IS220PTURH1B is an I/O pack used in GE Mark VIe systems for turbine control, specifically handling turbine I/O and primary protection tasks, including HRSG regulation.

Can this module operate in freezing conditions?
Yes, the module is rated for an operating temperature range of -40 to +70 degC, making it suitable for harsh, unconditioned industrial environments.
