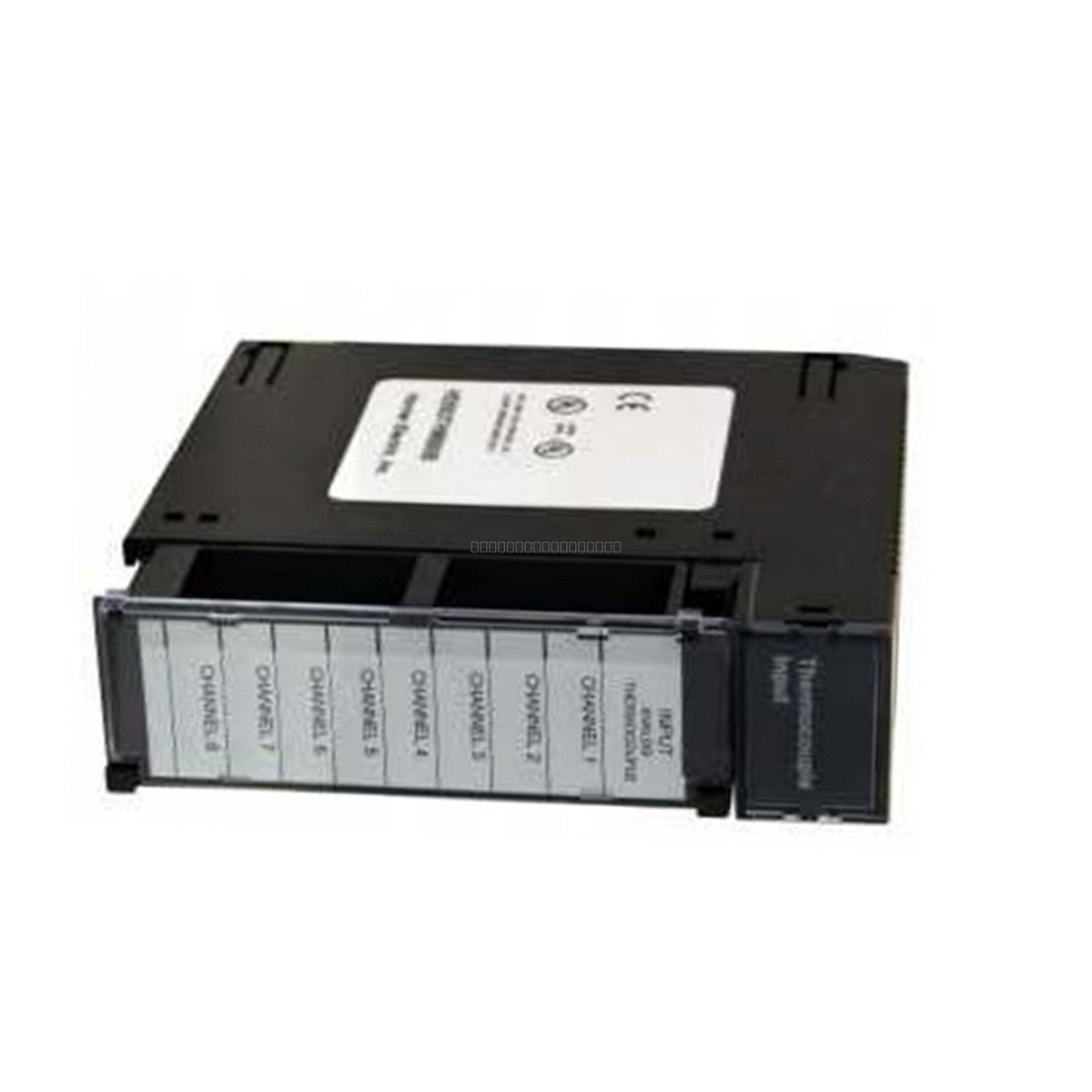

General Electric HE693THM889 Series 90-30 Thermocouple Input Module

General Electric HE693THM889 Series 90-30 Thermocouple Input Module

The General Electric HE693THM889 is a high-performance 8-channel thermocouple input module designed for integration with the Series 90-30 Programmable Logic Controller (PLC) systems. This module provides precise temperature monitoring capabilities,...

26 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 4

SKU: HE693THM889
Proveedora: General Electric
tipo: Thermocouple Input Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The General Electric HE693THM889 is a high-performance 8-channel thermocouple input module designed for integration with the Series 90-30 Programmable Logic Controller (PLC) systems. This module provides precise temperature monitoring capabilities, supporting a wide range of thermocouple types to suit diverse industrial process control requirements.

Features

  • 8-channel thermocouple input capacity.
  • Supports multiple thermocouple types: J, K, N, T, E, R, and S.
  • High input impedance (>20 Mohms) to minimize signal loading.
  • Fast A/D conversion time of 5 milliseconds.
  • Galvanic isolation between field-side signals and the PLC backplane to mitigate ground loops.
  • 0.5 degC resolution for accurate process feedback.

Applications

  • Multi-point temperature monitoring in chemical and pharmaceutical reaction vessels.
  • Food processing oven control, pasteurization, and osmotic probe monitoring.
  • Real-time temperature feedback for industrial furnaces, quenching tanks, and heat treatment lines.
  • Heating section control for injection molding machines and extruders.

Technical Specifications

Product Model HE693THM889
Manufacturer General Electric
Number of Channels 8
Supported Types J, K, N, T, E, R, S
Temperature Range -270 to +1768 degC
Resolution 0.5 degC
Accuracy +/- 0.5 degC (Typical Type J)
Power Consumption 70mA @ 5VDC; 60mA @ 24V Relay
Operating Temperature 0 to 60 degC
Relative Humidity 5% to 95% (non-condensing)

Installation Guidelines

  • Ensure the PLC system is powered down before inserting or removing the module from the rack.
  • Use shielded thermocouple extension wire to minimize electromagnetic interference (EMI) in industrial environments.
  • Maintain proper grounding practices for the thermocouple sensors to prevent ground loops, utilizing the module's galvanic isolation features.
  • Ensure adequate ventilation within the enclosure to maintain ambient temperatures within the 0 to 60 degC operating range.
  • Handle the module using ESD-safe practices to prevent damage to sensitive internal circuitry.

FAQ

What is the HE693THM889?

The HE693THM889 is a thermocouple input module designed for the GE Series 90-30 PLC platform, used to convert analog temperature signals into digital data for process control.

Does this module require external power?

The module consumes 70mA from the 5VDC backplane and 60mA from a 24V relay supply. Ensure the power supply budget of your Series 90-30 rack can accommodate these requirements.

What is the benefit of high input impedance?

The high input impedance (>20 Mohms) ensures that the module does not load the thermocouple signal, which is critical for maintaining measurement accuracy, especially when using long lead wires.
