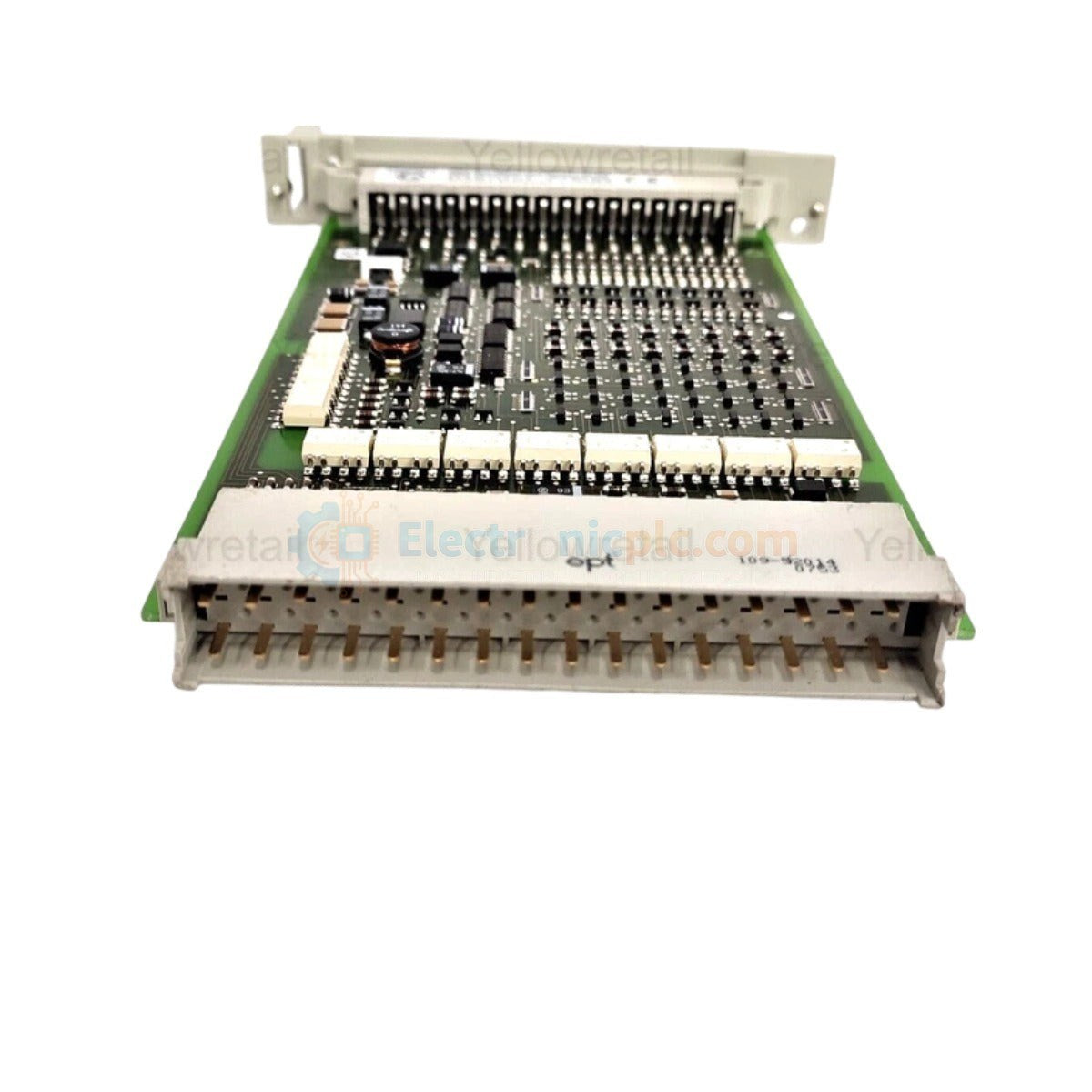

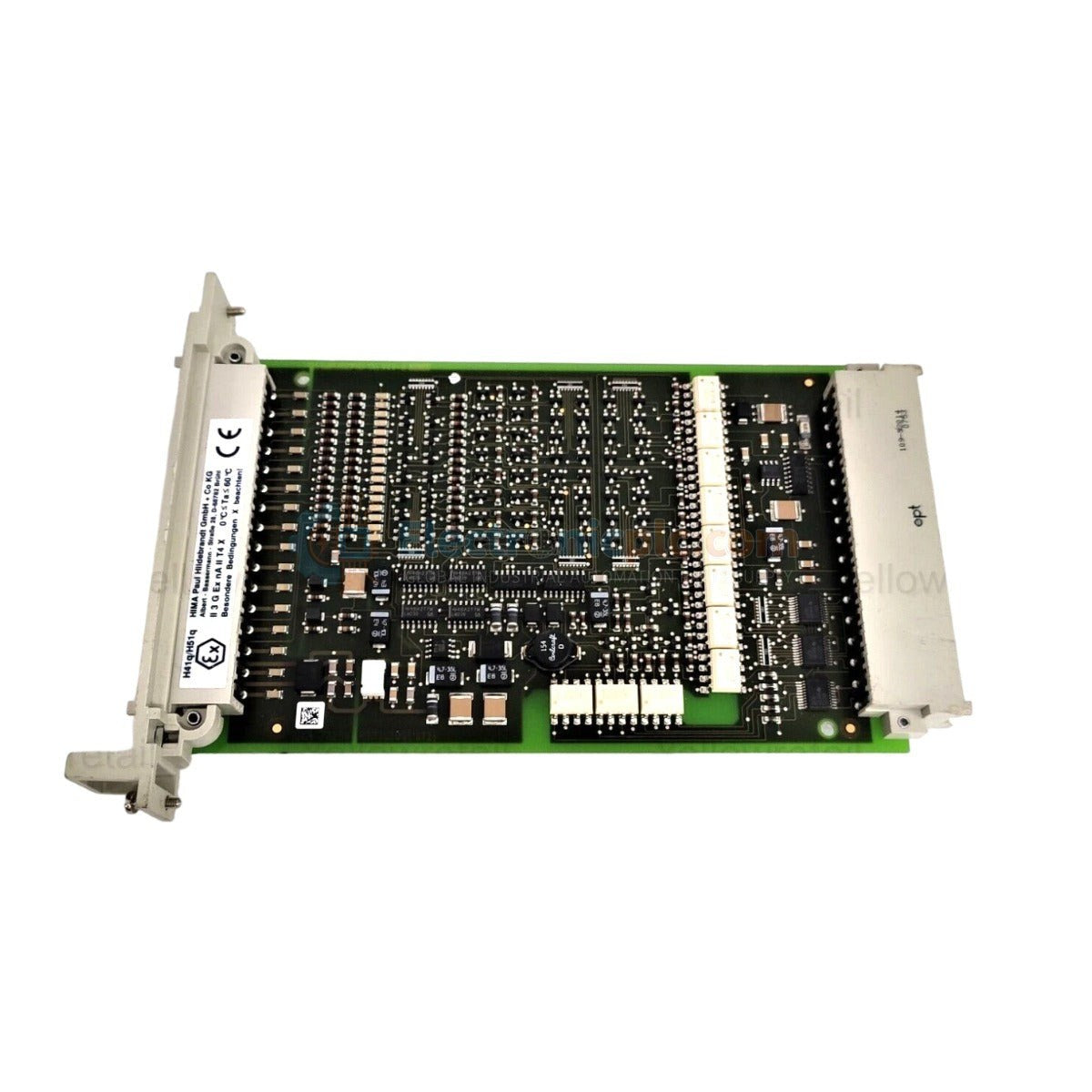

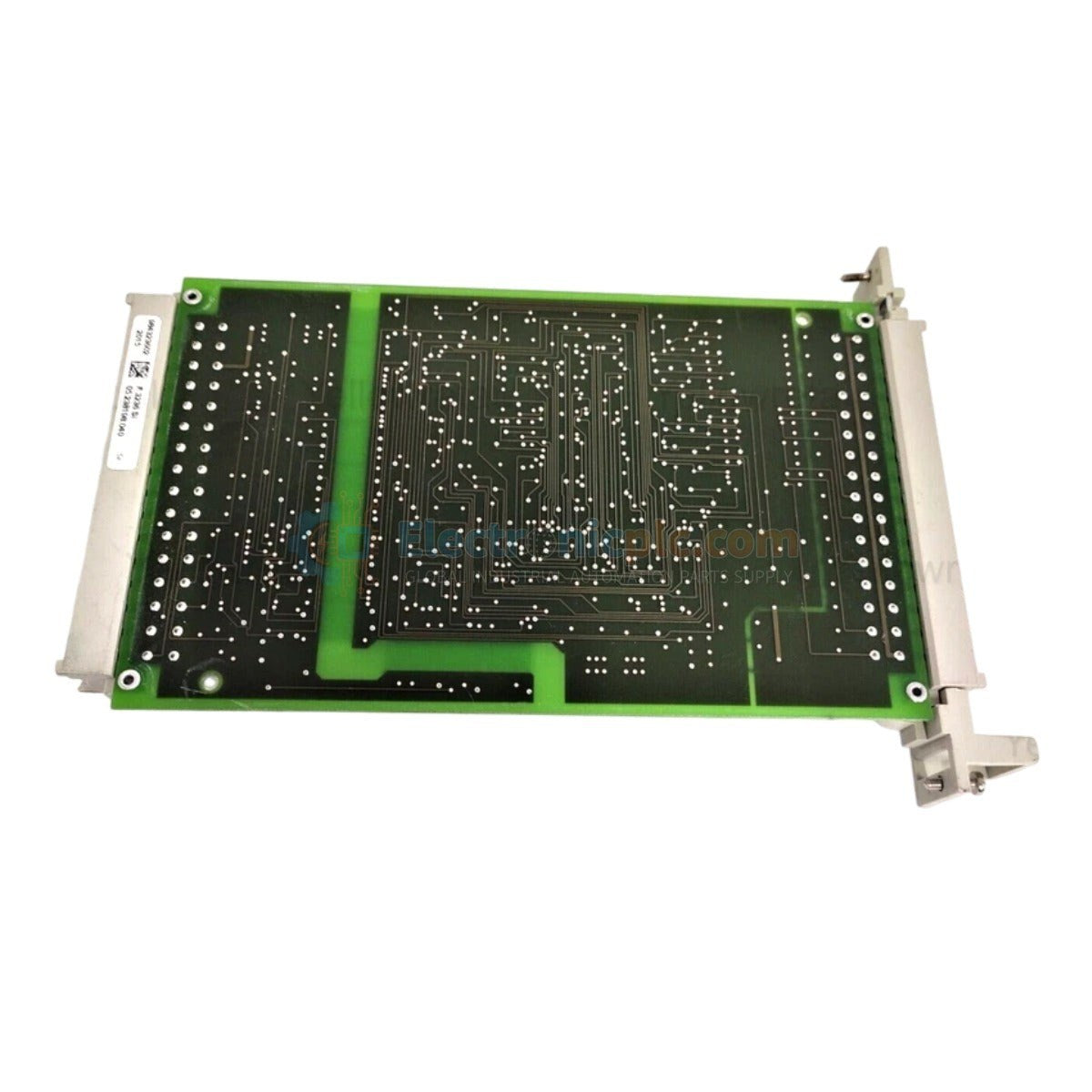

HIMA F 3236 16-Channel Digital Input Module (98 4323602)

HIMA F 3236 16-Channel Digital Input Module (98 4323602)

Description

The HIMA F 3236 (Part Number 98 4323602) is a high-density, 16-channel digital input module designed specifically for integration into HIMA safety-related control systems. This module is engineered to provide...

29 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 10

SKU: F 3236
Proveedora: HIMA
tipo: Digital Input Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The HIMA F 3236 (Part Number 98 4323602) is a high-density, 16-channel digital input module designed specifically for integration into HIMA safety-related control systems. This module is engineered to provide reliable signal acquisition for 24 VDC field devices, making it a critical component in safety-instrumented systems (SIS) within industrial environments such as power plants, refineries, and chemical processing facilities. It is designed to maintain SIL-rated safety loops while ensuring high system availability and fault tolerance.

Features

  • 16 independent digital input channels for high-density signal monitoring.
  • Galvanically isolated circuitry to ensure signal integrity and protection against field-side electrical interference.
  • Designed for 24 VDC discrete signal processing.
  • Compatible with standard HIMA rack-mount architectures for seamless integration into existing safety controller configurations.

Applications

The F 3236 module is typically deployed in safety-critical applications requiring discrete input monitoring, including emergency shutdown (ESD) systems, burner management systems (BMS), and general process safety monitoring where high reliability and galvanic isolation are required.

Technical Specifications

Brand HIMA
Model F 3236
Part Number 98 4323602
Input Channels 16
Input Voltage 24 VDC
Power Consumption Max 180 mA
Operating Temperature 0 to 60 deg C

Installation Guidelines

  • Ensure the system power is completely disconnected before inserting or removing the module from the HIMA rack.
  • Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal sensitive components.
  • Verify that the rack slot is clean and free of debris before seating the module.
  • Ensure all field wiring is routed correctly, keeping signal cables separated from high-voltage or high-EMI power lines to maintain signal accuracy.
  • Confirm that the 24 VDC supply voltage matches the module requirements before applying power.

FAQ

Is this module compatible with all HIMA safety systems?

The F 3236 is designed for specific HIMA safety-related architectures. Please verify your system controller compatibility and current rack configuration before installation.

Does this module require external power?

The module operates on the standard 24 VDC field supply provided through the HIMA rack backplane or field terminal interface. Refer to your system wiring diagram for specific connection requirements.
