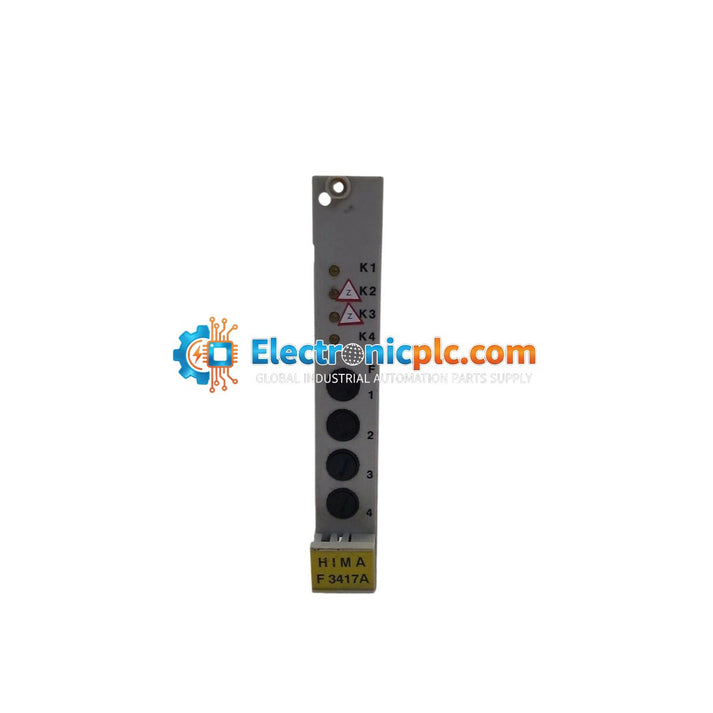

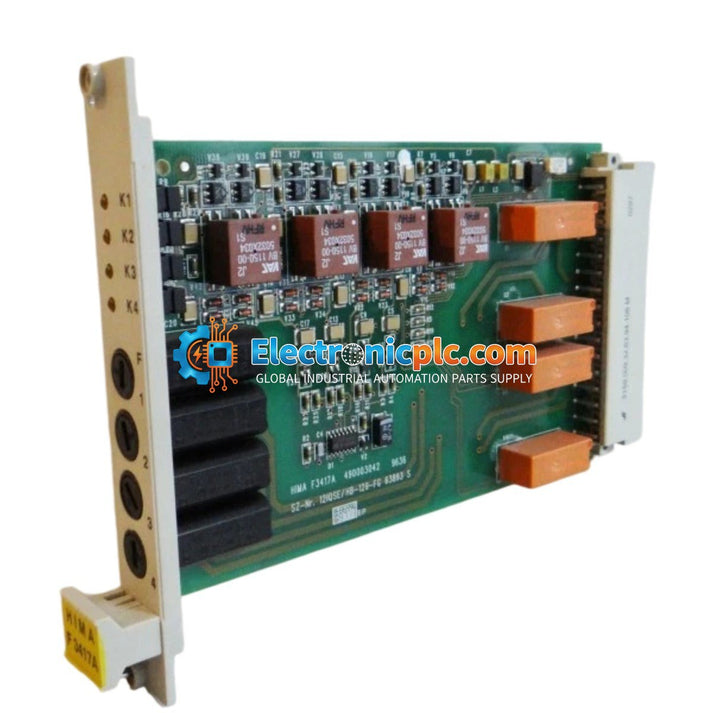

HIMA F 3417A 4-Fold Fail-Safe Relay Amplifier

HIMA F 3417A 4-Fold Fail-Safe Relay Amplifier

Description

The HIMA F 3417A is a 4-fold fail-safe relay amplifier designed for high-reliability industrial control applications. As a critical component in safety-related systems, this module provides reliable signal amplification and...

29 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 4

SKU: F 3417A
Proveedora: HIMA
tipo: Relay Amplifier Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The HIMA F 3417A is a 4-fold fail-safe relay amplifier designed for high-reliability industrial control applications. As a critical component in safety-related systems, this module provides reliable signal amplification and isolation, ensuring that safety functions are maintained even in the event of component failure. It is engineered to meet the rigorous demands of safety-critical environments where fail-safe operation is mandatory.

Features

  • 4-fold relay configuration for independent signal handling.
  • Fail-safe design architecture for enhanced safety integrity.
  • Galvanic isolation between contact and coil circuits.
  • Compact module design suitable for standard industrial rack mounting.
  • Low power consumption for efficient system integration.

Applications

This relay amplifier is typically utilized in safety-instrumented systems (SIS) and emergency shutdown systems (ESD) within process industries such as oil and gas, chemical manufacturing, and power generation. It is ideal for interfacing low-voltage control signals with higher-voltage field devices while maintaining strict safety standards.

Technical Specifications

Product Model F 3417A
Function 4-Fold Fail-Safe Relay Amplifier
Power Supply 24 V DC
Module Consumption 0.1 A @ 24 V
Contact Rating 1 A / 250 V AC
Response Time ≤ 20 ms
Isolation 1500 V AC (contact-to-coil)
Operating Temperature -20 degC to +60 degC
Storage Temperature -40 degC to +85 degC
Humidity 5 to 95 % RH (non-condensing)

Installation Guidelines

  • Ensure the system is powered down before inserting or removing the module from the rack.
  • Handle the module using ESD-safe practices to prevent damage to internal electronic components.
  • Verify that the supply voltage matches the 24 V DC specification before energizing.
  • Ensure proper grounding of the rack assembly to maintain electromagnetic compatibility (EMC).
  • Route signal cables away from high-voltage power lines and sources of significant electromagnetic interference (EMI).
  • Maintain adequate ventilation around the module to ensure operation within the specified temperature range.

FAQ

What is the primary function of the F 3417A?

The F 3417A acts as a fail-safe relay amplifier, allowing a low-power PLC output to safely control a higher-power field device while providing electrical isolation and ensuring the system defaults to a safe state upon failure.

Is this module suitable for safety-critical applications?

Yes, the HIMA F 3417A is specifically designed for fail-safe operation, making it a standard choice for safety-instrumented systems requiring high reliability.
