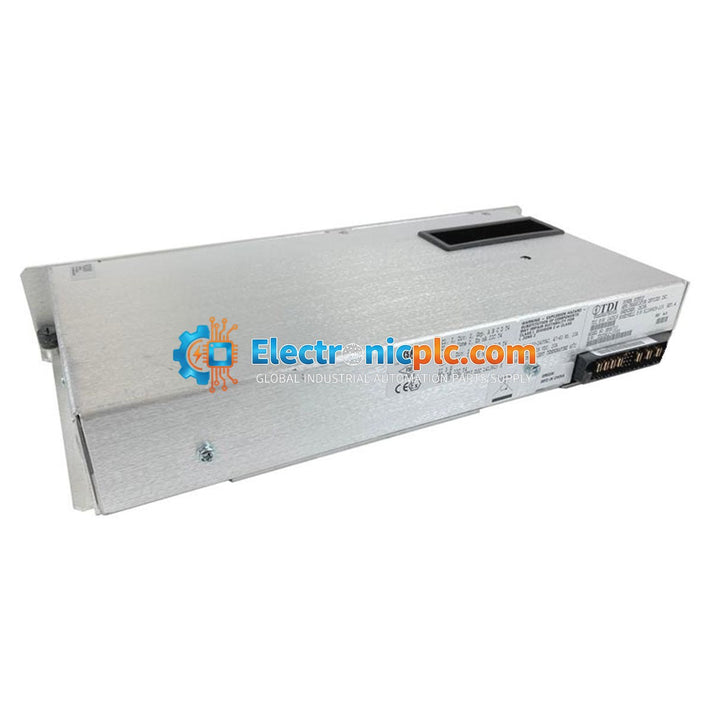

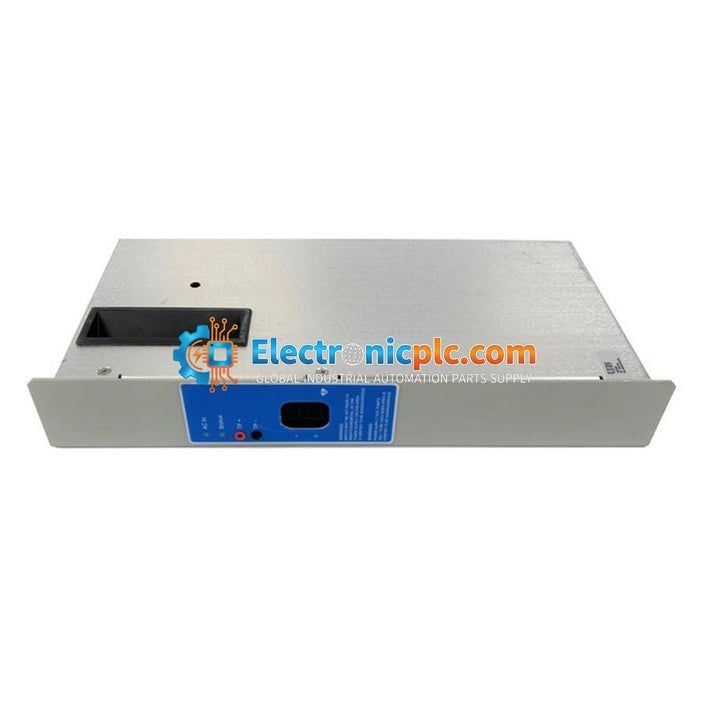

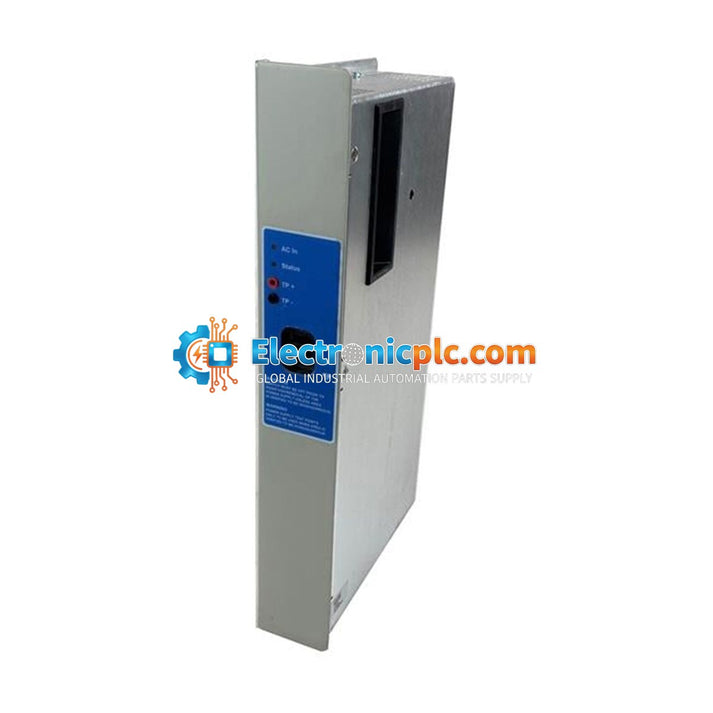

Honeywell 51199929-100 SPS5710 Power Supply Module

Honeywell 51199929-100 SPS5710 Power Supply Module

Description

The Honeywell 51199929-100 (SPS5710) is a robust industrial power supply module engineered for reliable AC to DC power conversion in process automation control systems. This unit provides a stable, regulated...

18 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 8

SKU: 51199929-100
Proveedora: Honeywell
tipo: Power Supply Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Honeywell 51199929-100 (SPS5710) is a robust industrial power supply module engineered for reliable AC to DC power conversion in process automation control systems. This unit provides a stable, regulated 24 to 26 VDC output, essential for maintaining the operational integrity of PLC racks, I/O subsystems, and distributed control hardware in demanding industrial environments.

Features

  • High-Capacity Output: Delivers up to 20 A of regulated DC power to support extensive control system loads.
  • Universal Input Range: Supports 100 to 240 VAC input at 47 to 63 Hz, ensuring compatibility with diverse global industrial power grids.
  • Hazardous Area Rated: Designed for deployment in Class I Division 2 and Zone 2 hazardous locations.
  • Integrated Protection: Features internal circuitry for overload, overvoltage, and thermal stress management to safeguard connected components.
  • Industrial Durability: Built with reinforced insulation and high-grade components for continuous duty in harsh electrical environments.

Applications

This power supply is specifically designed for critical infrastructure, including oil and gas facilities, power generation plants, and large-scale manufacturing systems where consistent power distribution is required to minimize control system downtime.

Technical Specifications

Model 51199929-100
Series SPS5710
Input Voltage 100 to 240 VAC
Input Frequency 47 to 63 Hz
Input Current 10 A
Output Voltage 24 to 26 VDC
Output Current 20 A
Operating Temperature 0 to 60 deg C
Certifications Class I Division 2, Zone 2

Installation Guidelines

  • Power-Down: Always disconnect the main AC power source before installing or removing the module from the rack.
  • Mounting: Ensure the module is securely seated in the designated chassis slot to maintain proper electrical contact and structural stability.
  • Cooling: Maintain adequate clearance around the module to allow for natural convection cooling; avoid blocking ventilation paths.
  • Grounding: Follow standard industrial grounding practices for the control cabinet to minimize EMI and ensure safety.
  • Wiring: Use appropriate wire gauges for the input and output connections to handle the 10 A input and 20 A output current ratings safely.

FAQ

What is the primary function of the Honeywell 51199929-100?

This module serves as a high-efficiency AC to DC power supply, converting standard industrial AC voltages into a regulated 24-26 VDC output for powering automation control hardware.

Is this module suitable for hazardous locations?

Yes, the 51199929-100 is rated for Class I Division 2 and Zone 2 hazardous area environments, making it suitable for use in facilities with potential explosive atmospheres.

What is the maximum output current for this power supply?

The module is rated for a continuous output current of up to 20 A under standard operating conditions.
