Honeywell 51304754-150 High Level Analog Input Processor

Honeywell 51304754-150 High Level Analog Input Processor

Description

The Honeywell 51304754-150 is a 16-channel High Level Analog Input Processor designed for integration into distributed process control systems. This module provides high-accuracy signal conditioning and reliable field data conversion...

28 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 7

SKU: 51304754-150
Proveedora: Honeywell
tipo: Analog Input Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

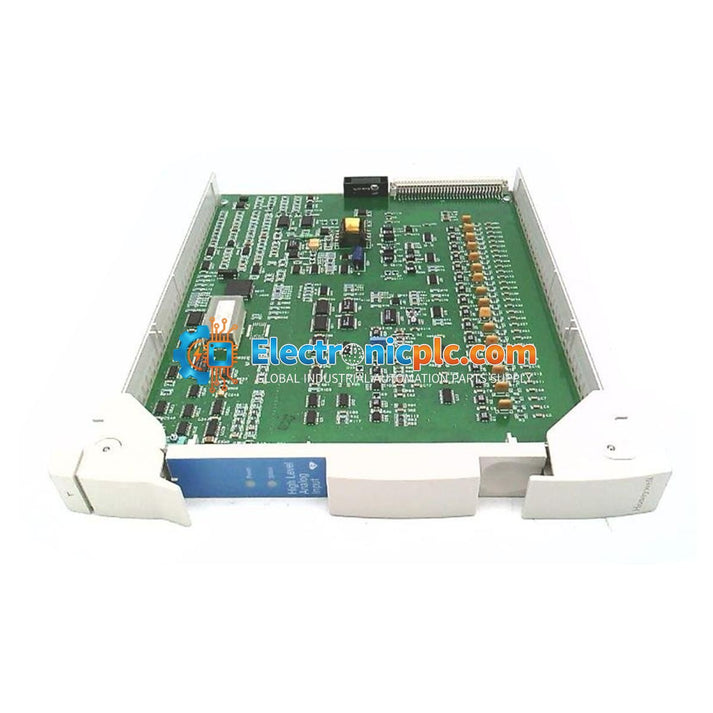

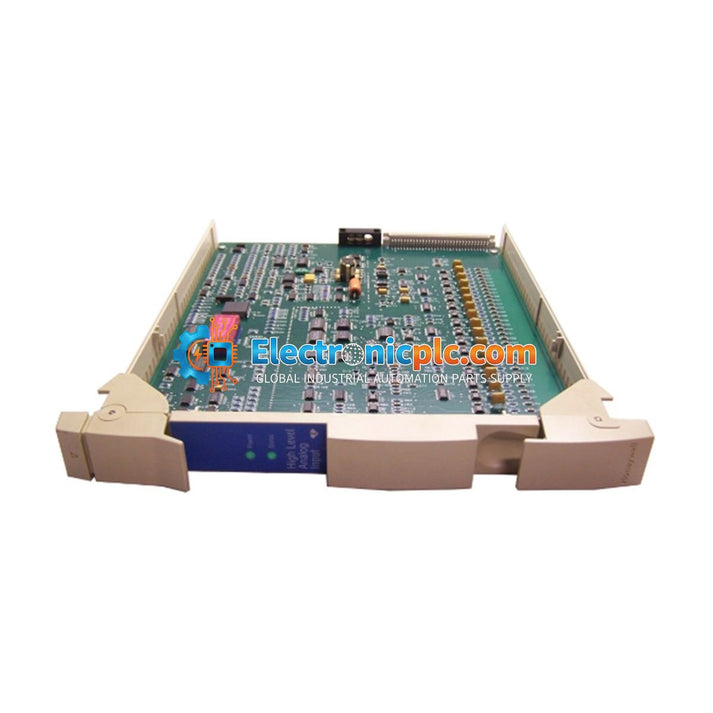

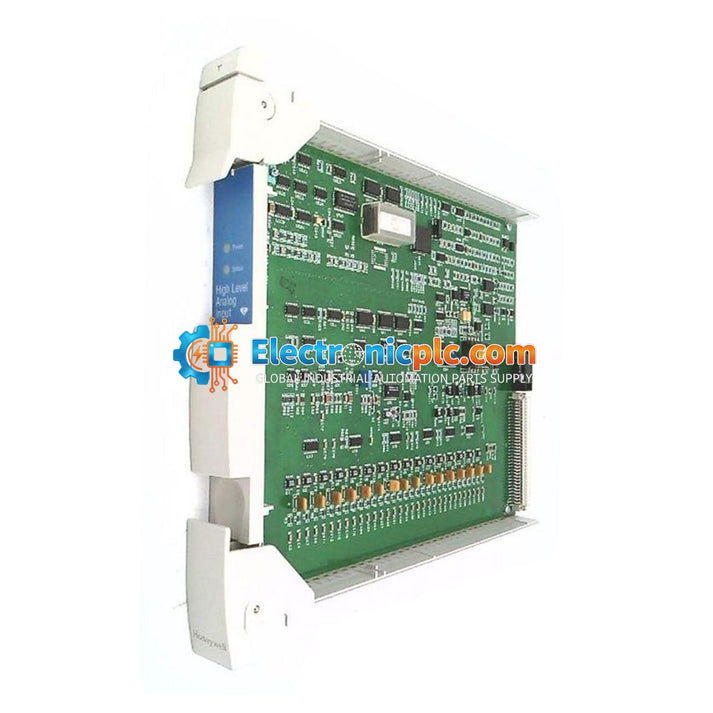

The Honeywell 51304754-150 is a 16-channel High Level Analog Input Processor designed for integration into distributed process control systems. This module provides high-accuracy signal conditioning and reliable field data conversion for critical industrial applications, including refineries, power plants, and chemical processing facilities. It is engineered to accept voltage and current inputs from both 2-wire and self-powered transmitters, converting these process signals into high-resolution digital data for controller processing. The module's robust architecture minimizes signal distortion and ensures stable operation in electrically noisy industrial environments.

Features

  • 16 differential input channels with independent signal conditioning.
  • High common mode rejection (70 dB) for superior noise immunity.
  • 16-bit A/D conversion with 14-bit effective resolution.
  • Synchronized channel scanning with a 250 ms update window.
  • Integrated single-pole RC filtering with a -3 dB cutoff at 1 Hz.
  • Surge protection compliant with ANSI/IEEE C37.90.1-1978 standards.

Applications

This processor is suitable for continuous process control loops where stable analog measurement is required. It is commonly utilized in data acquisition systems for monitoring pressure, flow, temperature, and level transmitters in heavy industrial automation environments.

Technical Specifications

Model 51304754-150
Input Channels 16 Differential
Input Ranges 0-5 V, 1-5 V, 0.4-2 V, 4-20 mA
A/D Resolution 16-bit (14-bit effective)
Input Impedance > 10 M ohm (voltage)
Scan Rate 4 samples/sec per channel (250 ms window)
Accuracy +/- 0.075% FS (ref), +/- 0.15% FS (0-50 deg C)
FTA Compatibility MU-TAIH02, TAIH12, TAIH52, TAIH03, TAIH13, TAIH23, TAIH53, TAIH22, TAIH62
Operating Temperature 0 to 50 deg C

Installation Guidelines

  • Ensure the system power is disconnected before installing or removing the module from the rack.
  • Use appropriate ESD protection when handling the module to prevent damage to internal electronic components.
  • Ensure proper grounding of the Field Termination Assembly (FTA) to maintain signal integrity and safety.
  • Route signal cables away from high-voltage power lines and sources of high EMI to minimize noise interference.
  • Verify that all field wiring is properly terminated and that current loop resistors are correctly installed for 4-20 mA inputs.

FAQ

What is the primary function of the 51304754-150 module?

The module acts as a high-level analog input processor that converts analog signals from field transmitters into digital data for use in Honeywell distributed control systems.

Does this module support 4-20 mA inputs?

Yes, the module supports 4-20 mA current loops when used with an external 250 ohm resistor for signal conversion.

What is the required operating temperature range?

The module is rated for operation between 0 and 50 deg C, with peak accuracy maintained at 23.5 +/- 2 deg C.
