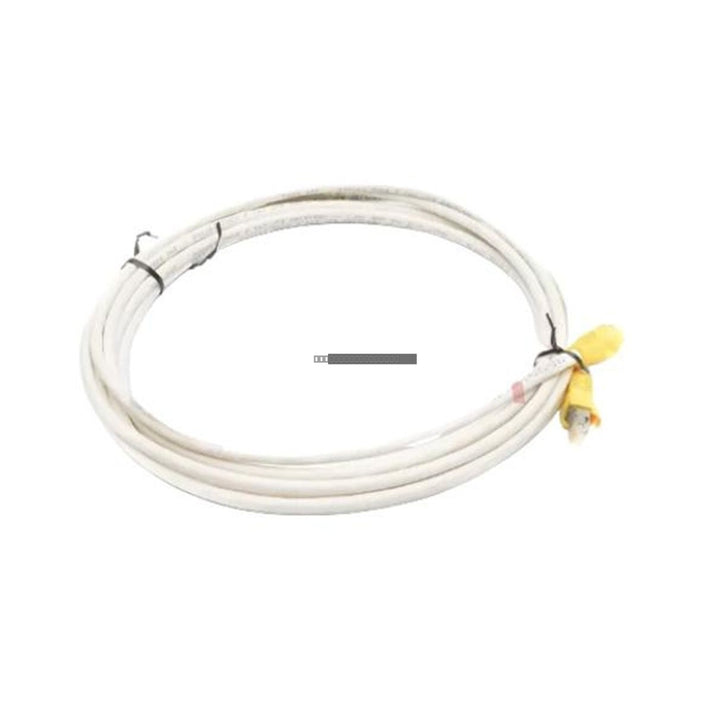

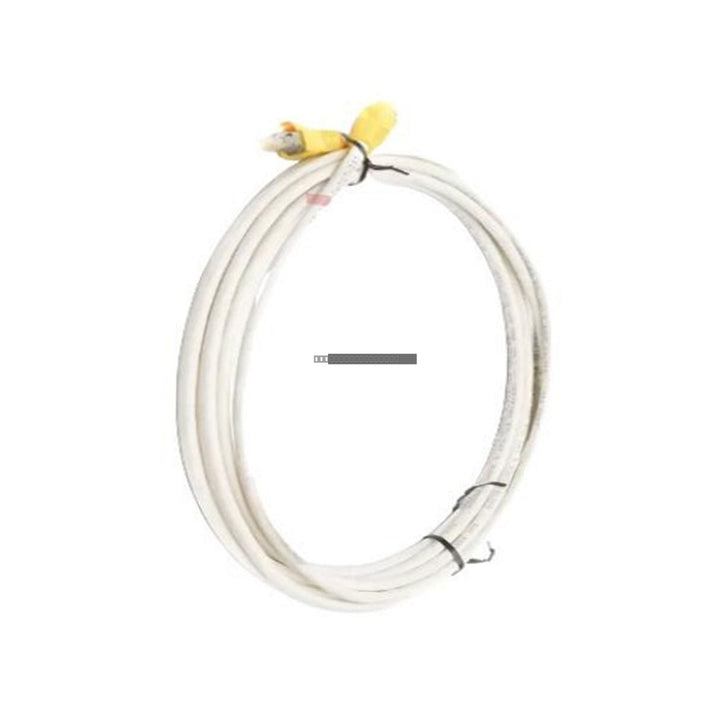

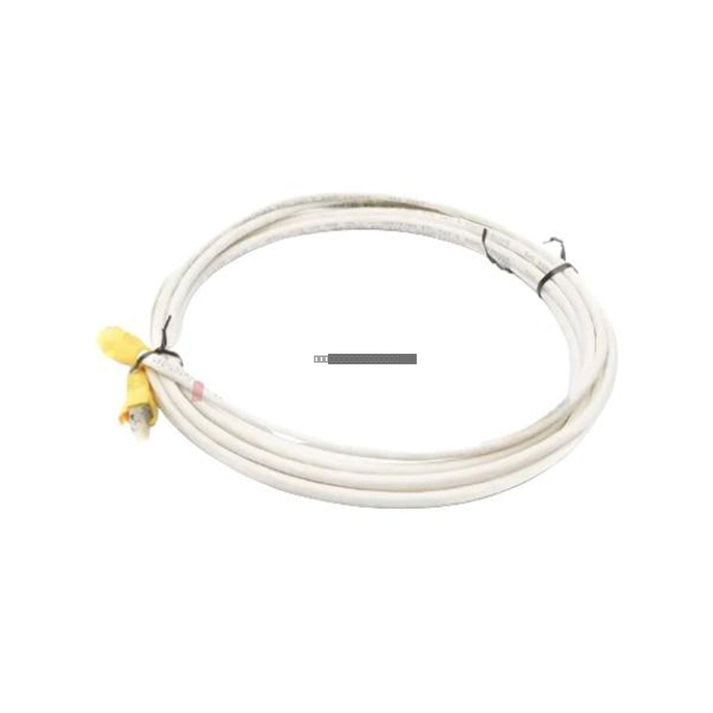

The Honeywell 51305482-110 is a specialized 10-meter (33 ft) 100-Base-T Ethernet cable designed for reliable data communication within the Experion LX control system environment. Engineered to meet stringent industrial networking requirements, this cable ensures consistent signal integrity for critical control and monitoring applications.

Features

• Optimized for 100Mbps data transmission rates.
• Robust construction with a characteristic impedance of 100Ω ±15%.
• High durability rating, tested for at least 750 mating cycles.
• Designed for stable performance in industrial temperature ranges.
• Low DC resistance and controlled capacitance for signal stability.

Technical Specifications

Installation Guidelines

• Ensure proper cable routing to avoid high-EMI sources, such as power lines or large motors, to prevent signal interference.
• Observe the maximum tensile strength of ≤25N during installation to prevent damage to the internal conductors.
• Ensure all connectors are fully seated and locked to maintain environmental integrity and contact reliability.
• Maintain the minimum bend radius during installation to preserve the electrical characteristics of the cable.
• Inspect connectors for debris or damage before mating to ensure a secure connection.

FAQ

Is this cable suitable for high-vibration environments?
Yes, this cable is designed for industrial use; however, ensure it is properly secured with cable ties or conduits to prevent mechanical stress on the RJ45 connectors.

What is the maximum data speed supported by this cable?
The 51305482-110 is rated for 100Mbps (100-Base-T) operation, making it ideal for standard Experion LX network segments.
