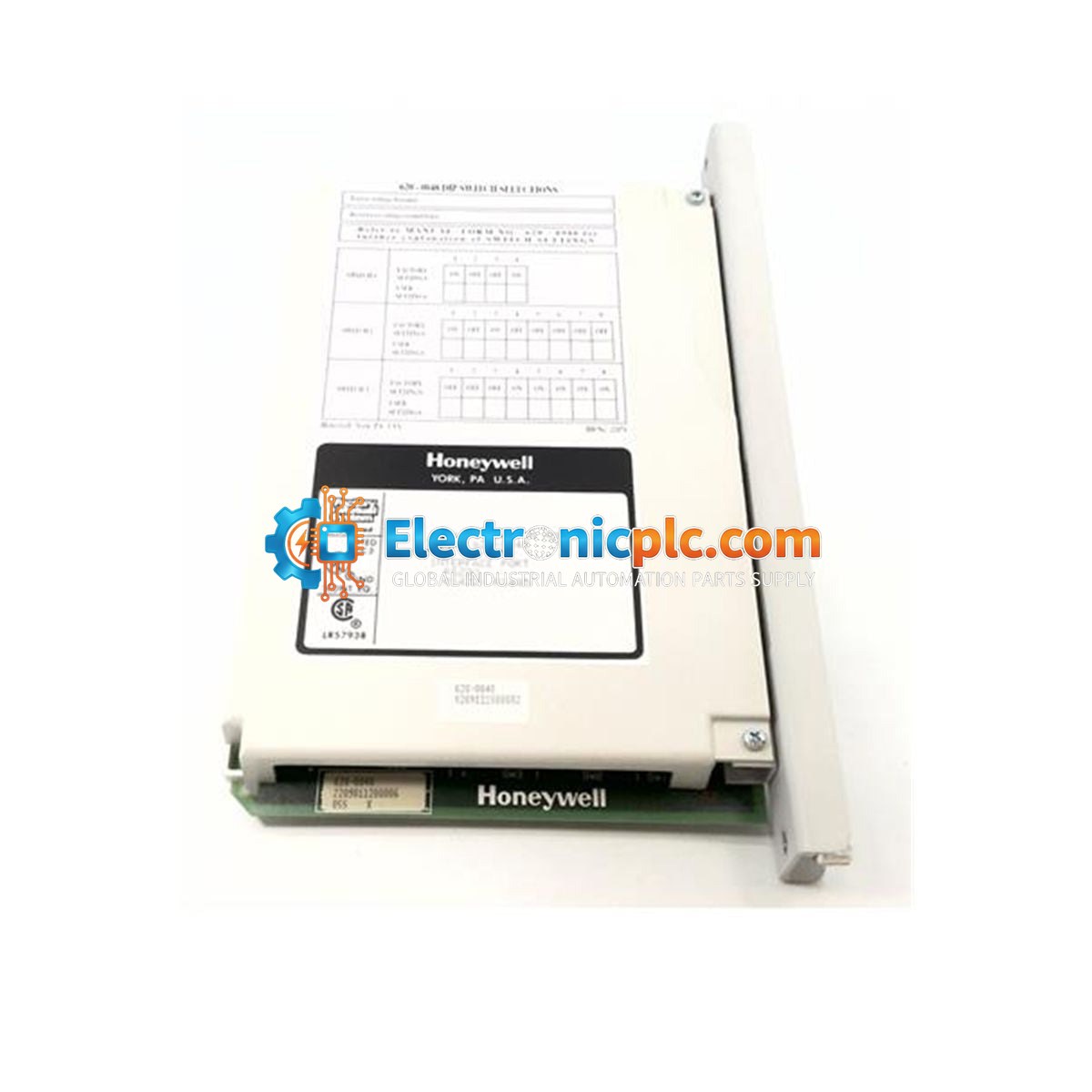

Honeywell 620-0048 620 Series Data Collection Module

Honeywell 620-0048 620 Series Data Collection Module

Description

The Honeywell 620-0048 (6200048) is a dedicated data collection module for the 620 Series industrial control and process automation platforms. This PC board-based module serves as a critical interface for...

20 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 5

SKU: 620-0048
Proveedora: Honeywell
tipo: Data Collection Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

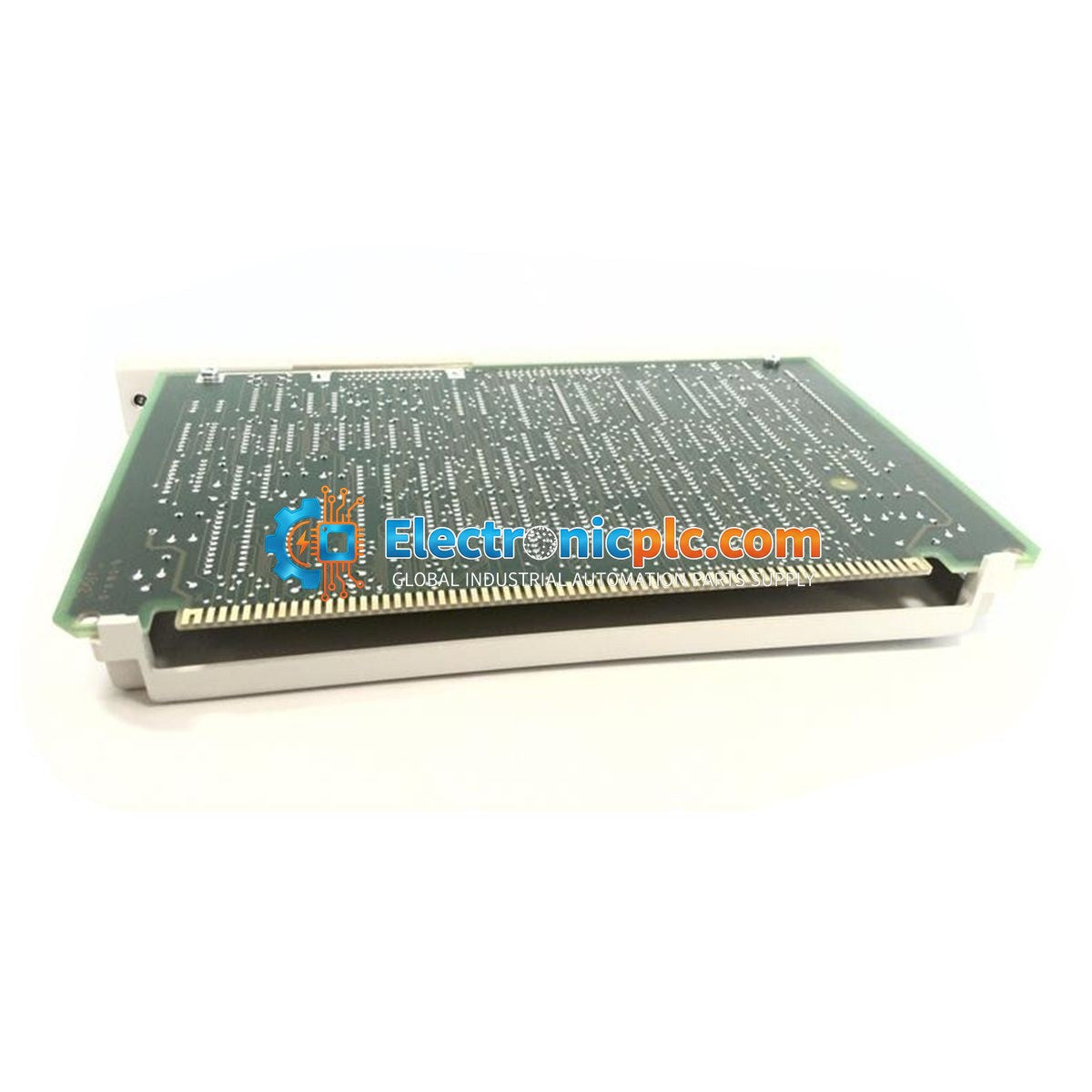

The Honeywell 620-0048 (6200048) is a dedicated data collection module for the 620 Series industrial control and process automation platforms. This PC board-based module serves as a critical interface for field data acquisition, ensuring reliable signal aggregation and transmission between field wiring and the control system backplane. It is engineered to maintain data integrity in demanding industrial environments, including refinery control cabinets and power plant auxiliary systems.

Features

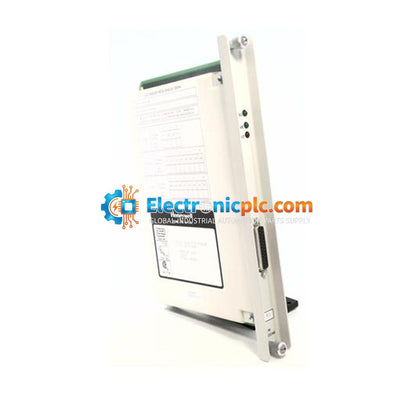

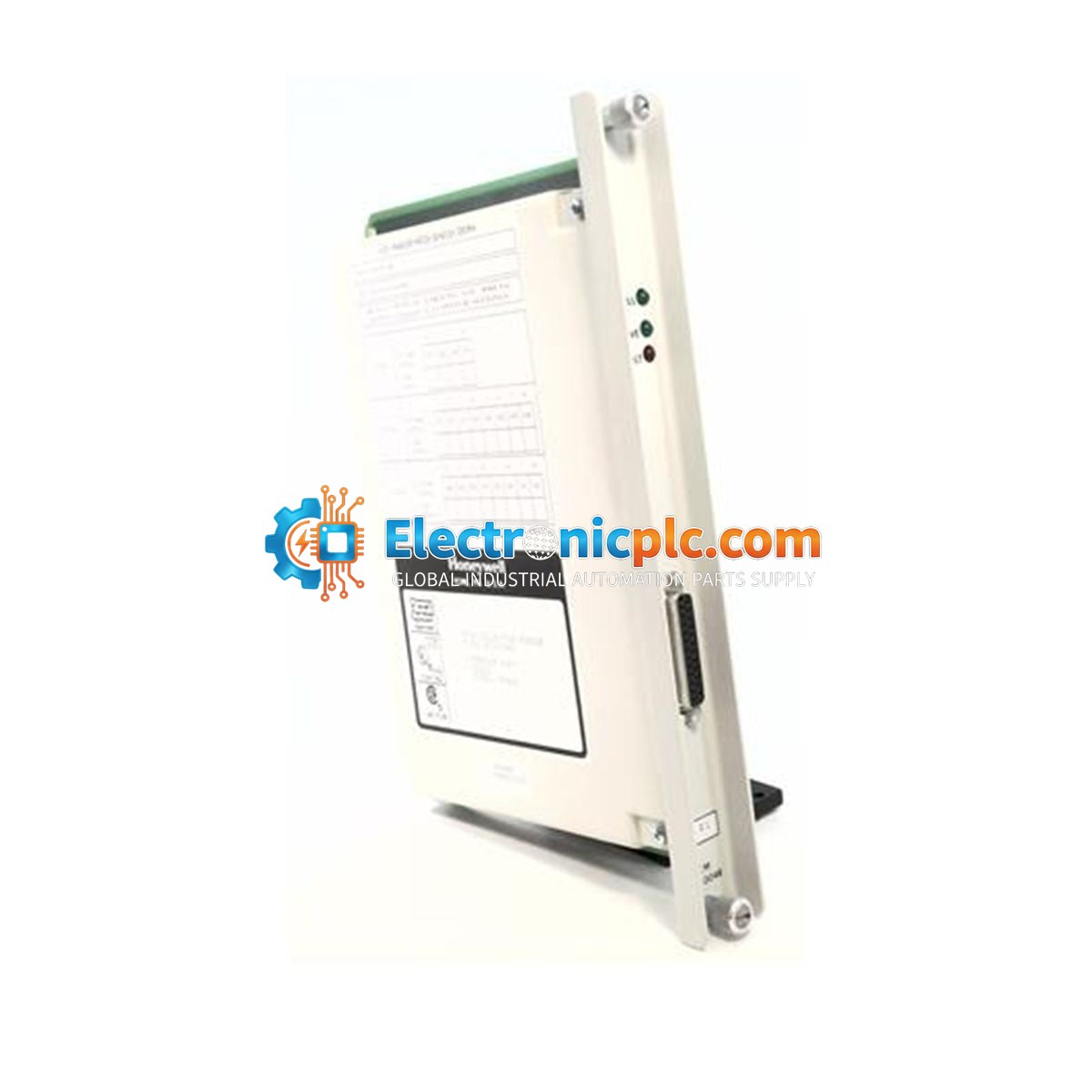

  • Interface Connectivity: Equipped with a standard 25-pin Sub-D connector for secure field wiring termination.
  • Diagnostic Indicators: Integrated status LEDs provide real-time monitoring of power and communication activity, facilitating rapid troubleshooting.
  • System Integration: Designed for seamless installation within 620 Series modular control environments.
  • Operational Reliability: Optimized for deterministic signal transfer to minimize latency and system downtime.

Applications

This module is widely utilized in distributed control systems (DCS) and industrial automation architectures, specifically for:

  • Refinery and petrochemical process control cabinets.
  • Power plant auxiliary control and monitoring systems.
  • Manufacturing automation lines requiring high-density signal aggregation.
  • General-purpose field I/O interfacing for 620 Series controllers.

Technical Specifications

Model 620-0048 (6200048)
Series 620 Series
Product Type Data Collection Module / PC Board
Interface 25-pin Sub-D Connector
Diagnostics Status LEDs (Power/Communication)
Operating Temperature 0 to 60 deg C
Power Consumption Less than 8 W

Installation Guidelines

  • ESD Protection: Always handle the module using proper electrostatic discharge (ESD) precautions to prevent damage to sensitive internal circuitry.
  • Power Status: Ensure the control system backplane is powered down before inserting or removing the module to prevent electrical arcing or configuration errors.
  • Wiring: Use shielded cabling for the 25-pin Sub-D interface to minimize electromagnetic interference (EMI) in high-noise industrial environments.
  • Mounting: Ensure the module is fully seated in the rack slot to guarantee proper connection with the backplane bus.
  • Environment: Maintain the operating environment within the specified 0 to 60 deg C range and ensure adequate ventilation within the control cabinet.

FAQ

What is the primary function of the 620-0048 module?

The 620-0048 acts as a data collection and signal aggregation interface, allowing field signals to be reliably transmitted into the Honeywell 620 Series control backplane.

How do I troubleshoot communication issues with this module?

The module features onboard status LEDs that indicate power and communication activity. If the LEDs are not in the expected state, check the 25-pin Sub-D connection and verify that the field wiring is properly terminated.

Is this module compatible with other Honeywell series?

The 620-0048 is specifically designed for the Honeywell 620 Series. It is not intended for use in other product families unless explicitly specified by Honeywell documentation.
