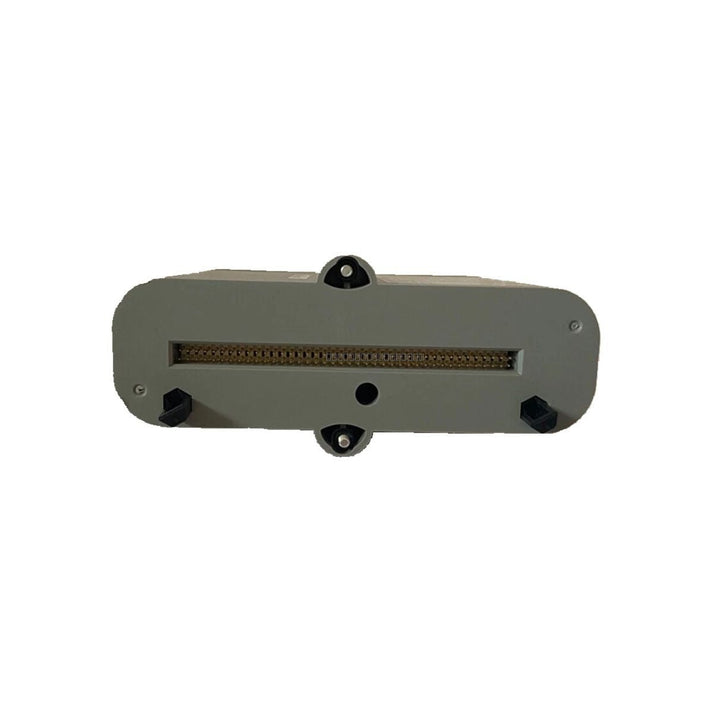

Honeywell 8U-PDISA1 Digital Input Sequence of Events Module

Honeywell 8U-PDISA1 Digital Input Sequence of Events Module

Description

The Honeywell 8U-PDISA1 is a high-performance 32-channel digital input module engineered for Sequence of Events (SOE) recording in critical industrial automation environments. This module provides high-speed signal monitoring with 1...

26 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 10

SKU: 8U-PDISA1
Proveedora: Honeywell
tipo: Digital Input Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Honeywell 8U-PDISA1 is a high-performance 32-channel digital input module engineered for Sequence of Events (SOE) recording in critical industrial automation environments. This module provides high-speed signal monitoring with 1 ms resolution, enabling precise timestamping of field events for root-cause analysis and operational diagnostics in power generation, oil and gas, and complex process control applications.

Features

  • 32 discrete input channels supporting 24 VDC industrial signals.
  • Sequence of Events (SOE) capability with 1 ms resolution for accurate event logging.
  • Dual scanning modes: 20 ms normal scan cycle and 5 ms fast scan cycle for high-priority signals.
  • Integrated optical isolation providing 1000 VAC RMS or ±1000 VDC galvanic separation.
  • Hot-swappable design allowing for module replacement without interrupting system operation.
  • Robust electrical protection against ground potential differences and transient surges.

Applications

This module is designed for use in systems requiring detailed event sequence tracking, such as turbine control, emergency shutdown systems (ESD), and complex process monitoring where millisecond-level accuracy is required to analyze process disturbances and equipment trips.

Technical Specifications

Model 8U-PDISA1
Input Channels 32 discrete inputs
Input Voltage Range 18 to 30 VDC
Nominal Voltage 24 VDC
SOE Resolution 1 ms
Scan Time 20 ms (normal) / 5 ms (fast)
Isolation 1000 VAC RMS / ±1000 VDC
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 85 deg C
Current Consumption 95 mA

Installation Guidelines

  • Ensure the system power is managed according to site safety protocols before installing or removing the module, although the unit supports hot-swapping.
  • Verify that field wiring is correctly terminated to the appropriate terminal blocks before seating the module into the I/O rack.
  • Maintain proper grounding practices to ensure the effectiveness of the module's galvanic isolation.
  • Ensure adequate ventilation in the cabinet to maintain ambient temperatures within the specified 0 to 60 deg C range.
  • Handle with care to prevent electrostatic discharge (ESD) damage to the module's internal circuitry.

FAQ

Does this module support hot-swapping?

Yes, the 8U-PDISA1 is designed to support removal and insertion under power (hot-swap), which helps minimize downtime during maintenance in continuous process environments.

What is the primary purpose of the SOE functionality?

The Sequence of Events (SOE) functionality allows the system to capture and timestamp field signal transitions with 1 ms resolution, which is essential for post-incident analysis and troubleshooting complex process disturbances.
