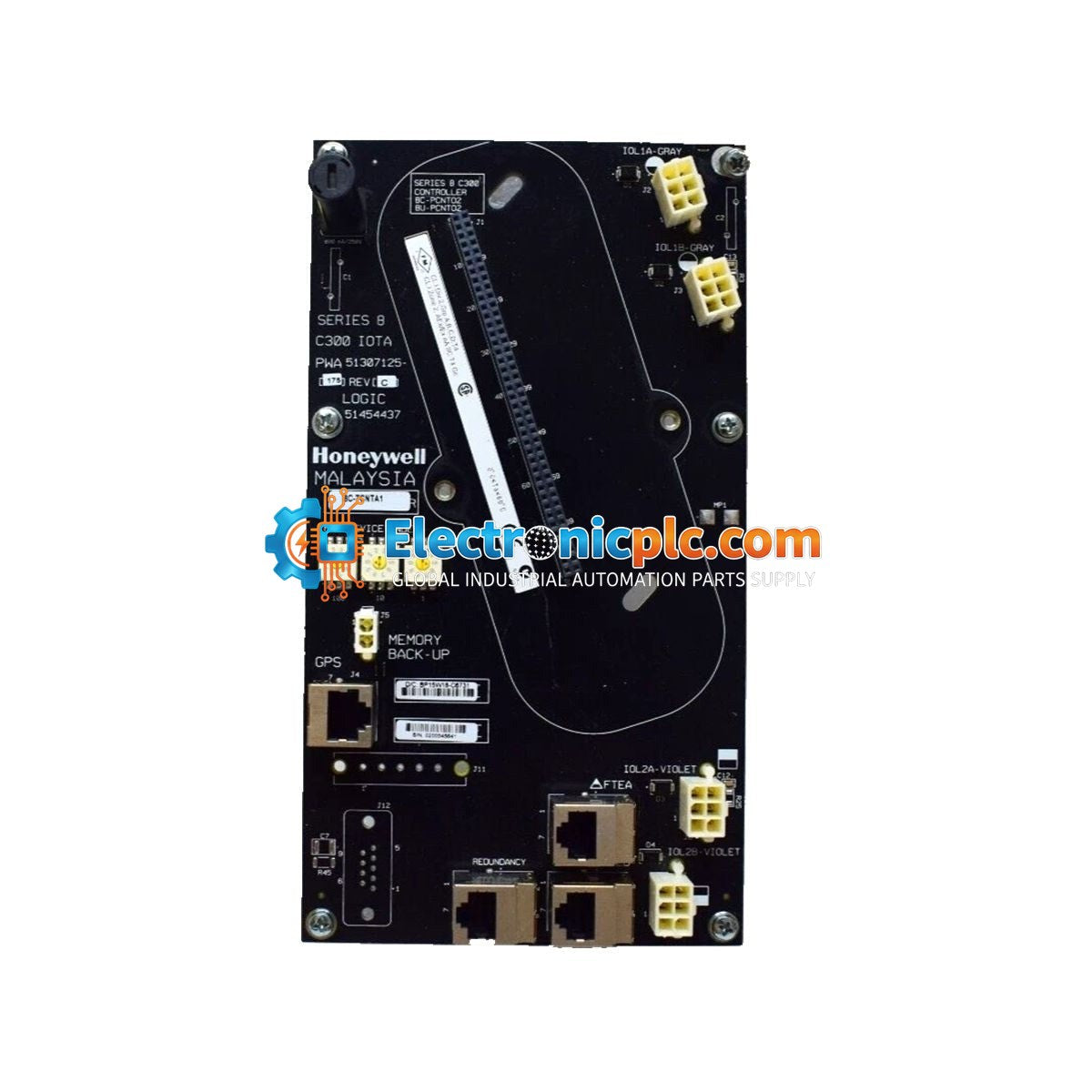

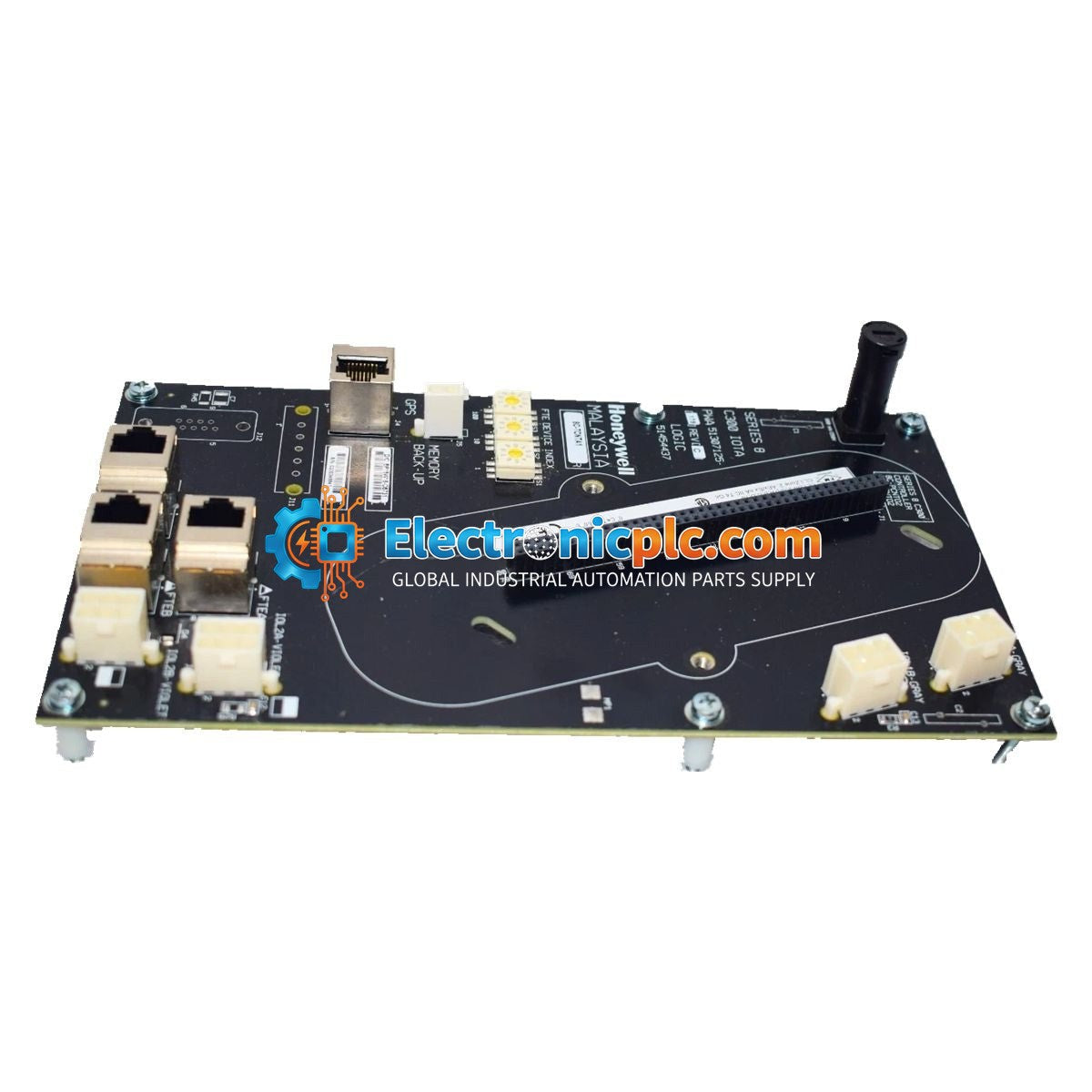

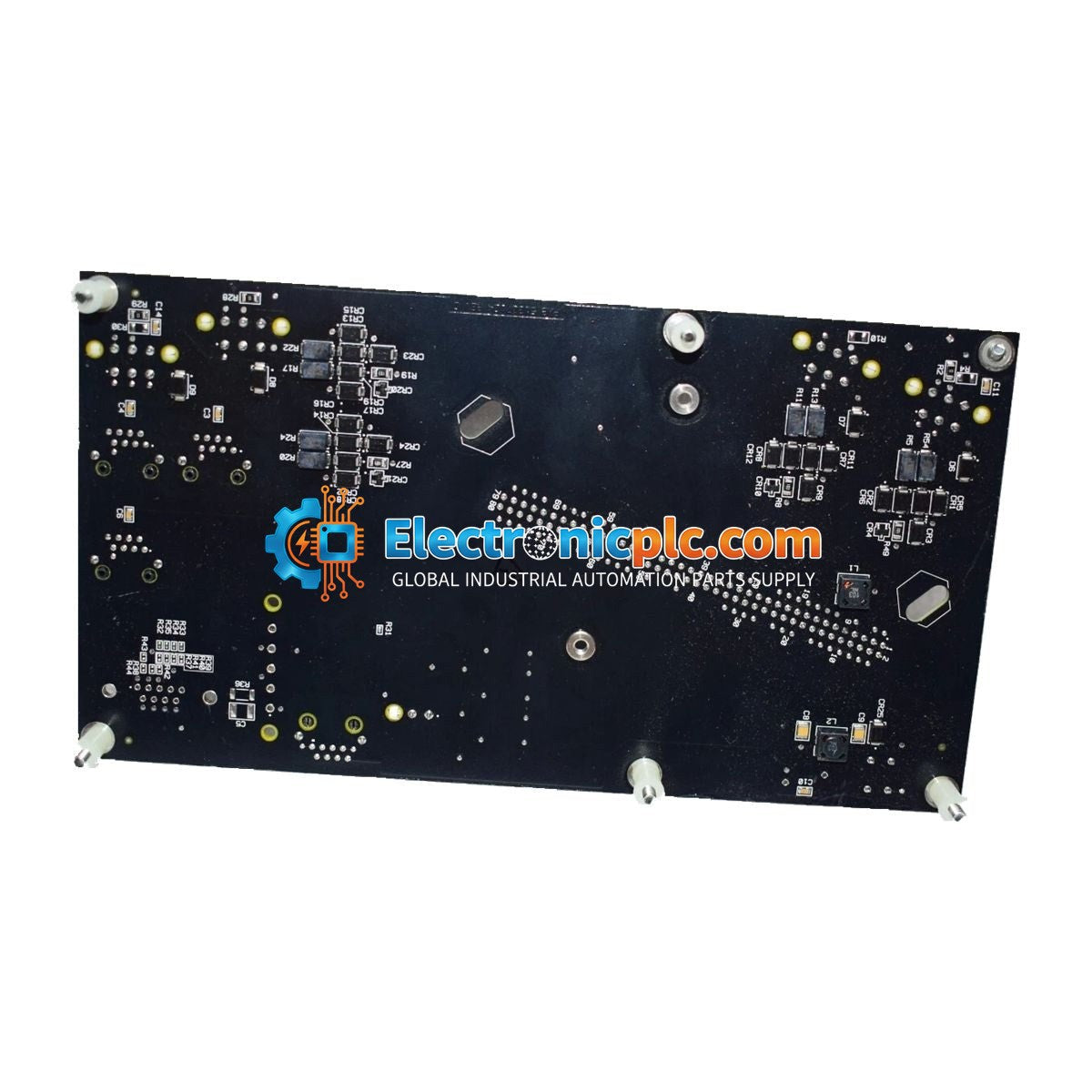

Honeywell 8U-TCNTA1 Series 8 I/O Termination Assembly (IOTA)

Honeywell 8U-TCNTA1 Series 8 I/O Termination Assembly (IOTA)

Description

The Honeywell 8U-TCNTA1 is an I/O Termination Assembly (IOTA) specifically engineered for the Series 8 C300 controller architecture. This component serves as the essential physical interface between field instrumentation wiring...

27 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 2

SKU: 8U-TCNTA1
Proveedora: Honeywell
tipo: I/O Termination Assembly
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Honeywell 8U-TCNTA1 is an I/O Termination Assembly (IOTA) specifically engineered for the Series 8 C300 controller architecture. This component serves as the essential physical interface between field instrumentation wiring and the I/O modules, facilitating structured signal termination, power distribution, and signal conditioning. By providing a clean, organized connection point, the 8U-TCNTA1 enhances wiring efficiency and simplifies maintenance within complex control systems such as those found in oil and gas, power generation, and chemical processing facilities.

Features

  • Designed for seamless integration with Honeywell Series 8 C300 controller platforms.
  • Provides robust 24 VDC field power distribution to connected I/O modules.
  • Supports high-density wiring configurations to optimize cabinet space.
  • Facilitates organized cable management, reducing installation errors and troubleshooting time.
  • Uncoated design suitable for standard industrial environments.
  • Flexible mounting options including standard DIN rail or panel mounting.

Applications

The 8U-TCNTA1 is utilized in mission-critical process automation environments where reliable signal transmission is required. It is commonly deployed in distributed control systems (DCS) to bridge field devices with the C300 controller, ensuring stable operation in continuous process industries.

Technical Specifications

Model 8U-TCNTA1
Series Series 8
Type I/O Termination Assembly (IOTA)
Controller Compatibility C300
Input Voltage 24 VDC
Power Consumption 10 W (typical)
Operating Temperature -20 to 70 deg C
Humidity 0 to 95 percent (non-condensing)
Mounting DIN rail or panel mount

Installation Guidelines

  • Ensure the control system is powered down before installing or removing the IOTA or associated I/O modules.
  • Mount the assembly securely on a standard DIN rail or via panel mounting points as specified in the system cabinet layout.
  • Maintain proper grounding practices to minimize electromagnetic interference (EMI) and ensure signal integrity.
  • Verify that all field wiring connections are tightened to the specified torque to prevent intermittent signal loss.
  • Ensure adequate ventilation within the cabinet to maintain the operating temperature within the -20 to 70 deg C range.
  • Handle with care to avoid electrostatic discharge (ESD) damage to the module interface pins.

FAQ

What is the primary function of the 8U-TCNTA1?

The 8U-TCNTA1 acts as a termination interface that connects field wiring to the Series 8 I/O modules, allowing for efficient signal routing and power distribution within the C300 control system.

Is this model conformal coated?

No, the 8U-TCNTA1 is an uncoated version intended for use in standard industrial environments where specialized coating is not required.

Can this IOTA be used with non-Honeywell controllers?

No, this assembly is specifically designed for the Honeywell Series 8 architecture and is intended for use with C300 controller platforms.
