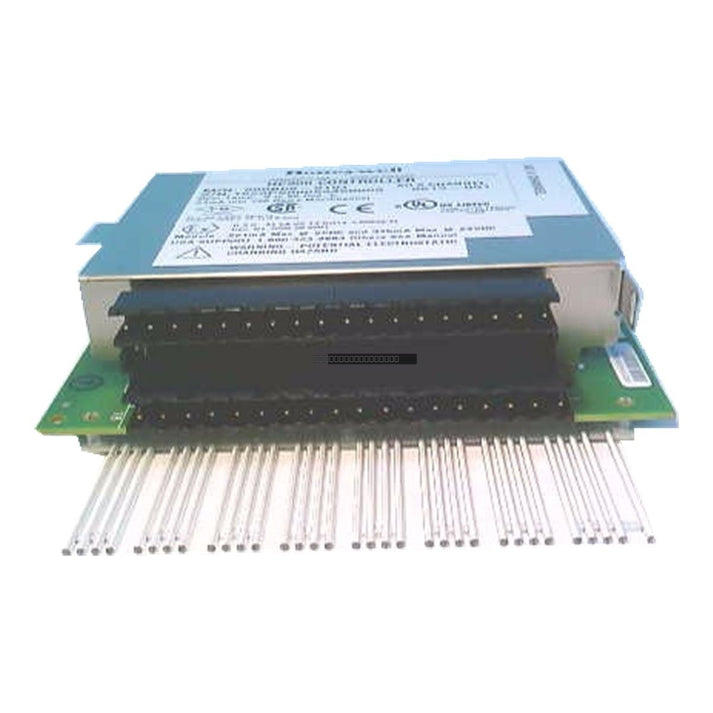

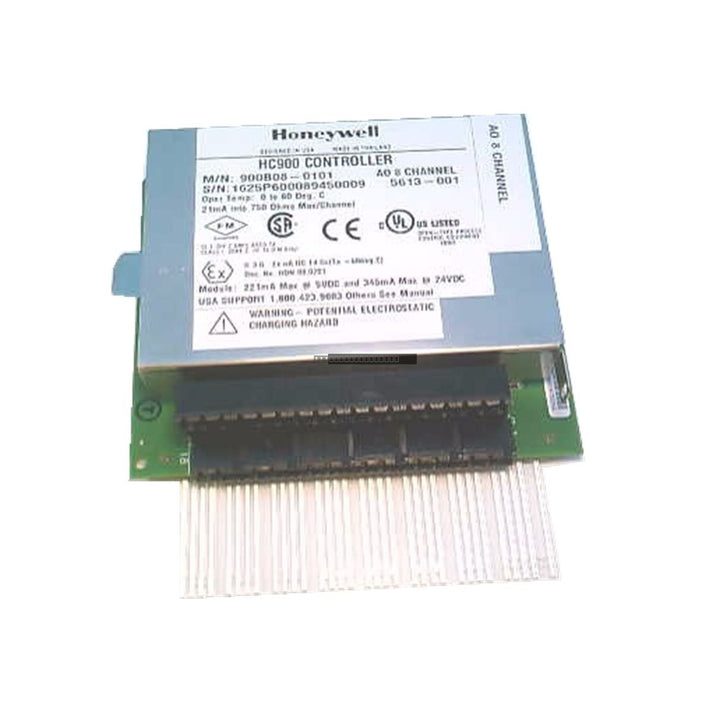

The Honeywell 900B08-0101 is an 8-channel analog input module engineered for integration within the HC900 hybrid control system. This module is designed to interface with standard field instrumentation, providing reliable data acquisition for various process control applications including flow, pressure, level, and temperature monitoring. It is a critical component for maintaining high-precision measurement in demanding industrial environments such as chemical processing, power generation, and water management facilities.

Features

• Eight isolated analog input channels supporting 0-20 mA signals.
• High-accuracy analog-to-digital conversion with built-in noise filtering for signal integrity.
• Direct communication interface via the HC900 system backplane for real-time process data transfer.
• High-density design suitable for efficient cabinet space utilization.
• Robust construction designed for stable operation in continuous industrial duty cycles.

Applications

The 900B08-0101 module is widely utilized in distributed control systems (DCS) where precise current-loop monitoring is required. Typical applications include the acquisition of data from process sensors, transmitters, and various loop-powered instrumentation, ensuring that the controller receives accurate feedback for process loop stability.

Technical Specifications

Installation Guidelines

• Ensure the control system power is disconnected before installing or removing the module from the backplane.
• Mount the module in a clean, dry environment within an enclosure rated for the local industrial conditions.
• Maintain proper grounding practices to minimize potential EMI interference on the analog signal lines.
• Use shielded twisted-pair cabling for field inputs to reduce noise coupling in high-EMI environments.
• Verify that all field wiring is securely terminated and conforms to local electrical codes.
• Handle the module using ESD-safe procedures to prevent damage to internal electronic components.

FAQ

What is the primary function of the 900B08-0101 module?
This module serves as an 8-channel analog input interface for the Honeywell HC900 system, converting 0-20 mA field signals into digital data for process monitoring and control.

Is the 900B08-0101 compatible with other Honeywell series?
This module is specifically designed for the HC900 hybrid control system platform. It is not intended for use with other Honeywell controller series unless explicitly specified in the system documentation.
