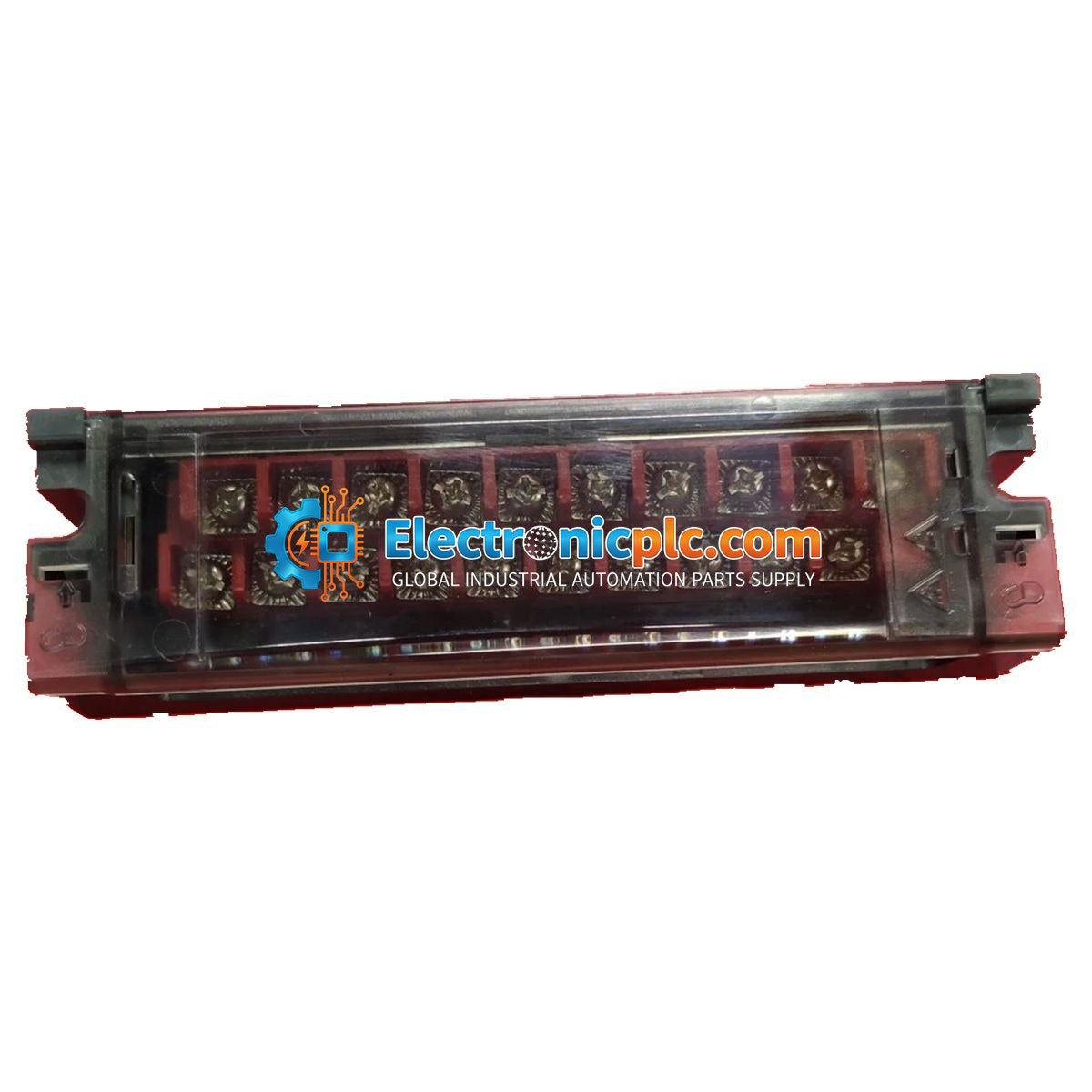

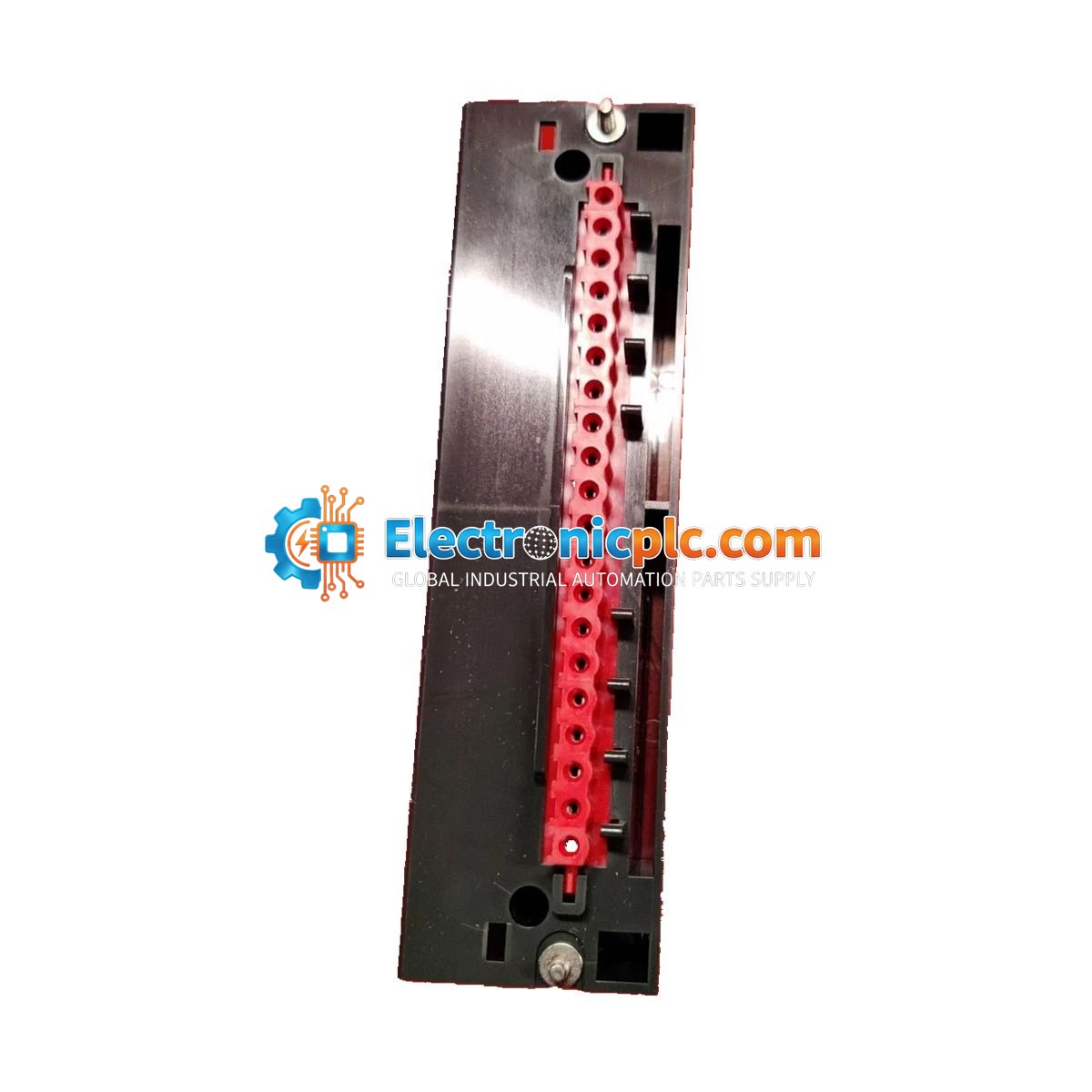

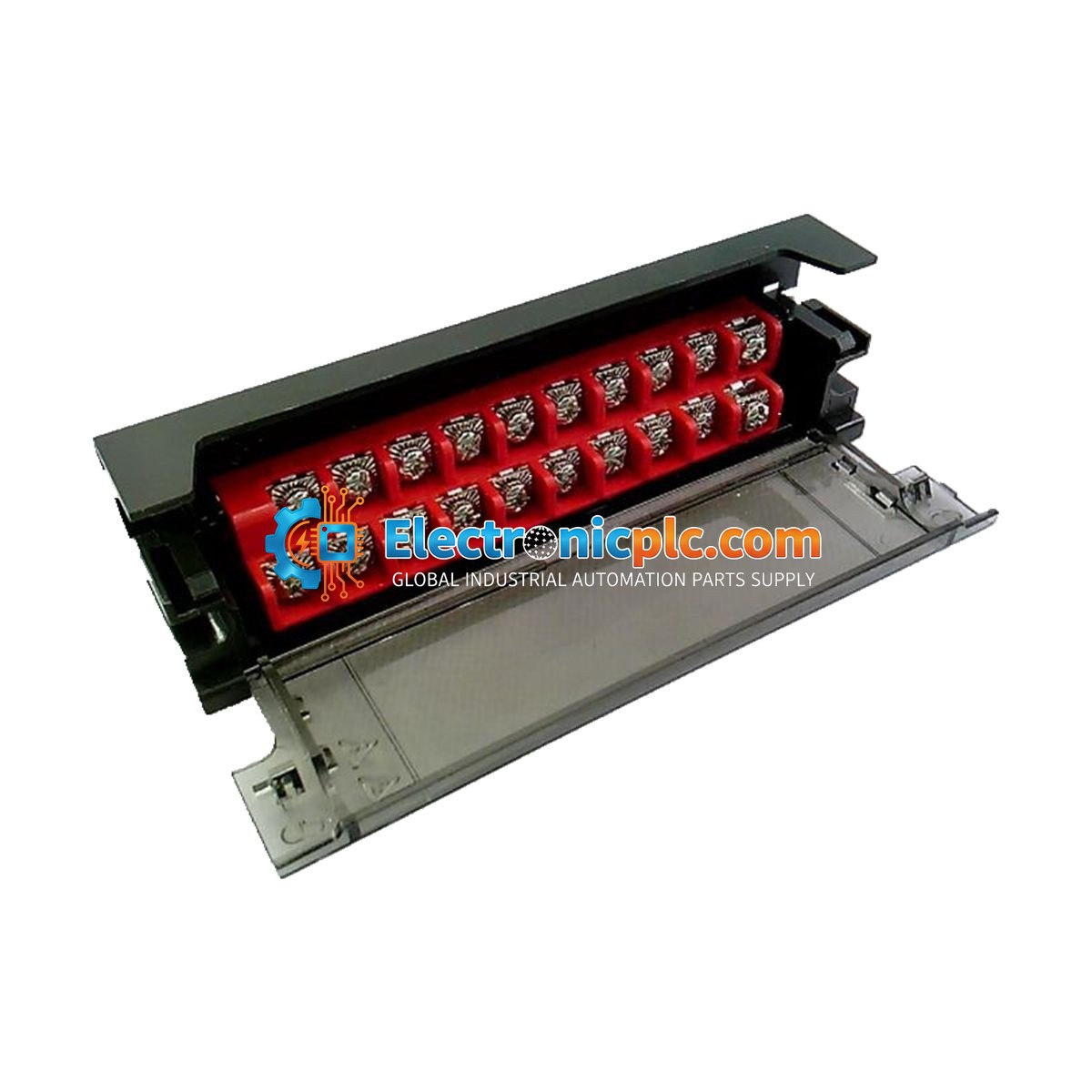

Honeywell 900TBR-0001 20-Position Barrier Terminal Block

Honeywell 900TBR-0001 20-Position Barrier Terminal Block

Description

The Honeywell 900TBR-0001 is a 20-position, high-voltage barrier-style terminal block designed specifically for the HC900 process automation platform. This component serves as a critical interface for field wiring, providing secure,...

18 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 4

SKU: 900TBR-0001
Proveedora: Honeywell
tipo: Terminal Block
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Honeywell 900TBR-0001 is a 20-position, high-voltage barrier-style terminal block designed specifically for the HC900 process automation platform. This component serves as a critical interface for field wiring, providing secure, electrically isolated terminations between the controller I/O modules and external field devices. The barrier architecture is engineered to prevent accidental short circuits, ensuring robust separation between adjacent connections in high-voltage industrial environments.

Features

  • High-Density Termination: Features 20 independent positions for efficient field wiring in control cabinets.
  • Barrier Design: Integrated insulating partitions enhance safety and prevent cross-connection or accidental shorts.
  • Secure Connectivity: Utilizes reliable screw-clamp terminations to maintain electrical integrity under conditions of thermal expansion and mechanical vibration.
  • Passive Operation: As a passive wiring component, it requires no power and offers high reliability with no active electronic failure points.
  • HC900 Compatibility: Designed for seamless integration with the HC900 rack and I/O assembly ecosystem.

Applications

The 900TBR-0001 is widely utilized in process-critical industries including power generation, oil and gas, and chemical processing. It is ideal for applications requiring structured, high-voltage signal routing where maintenance safety and troubleshooting efficiency are prioritized.

Technical Specifications

Model 900TBR-0001
Brand Honeywell
Positions 20
Terminal Type Screw clamp barrier style
Operating Temperature -20 to 70 deg C
Power Consumption 0 W (Passive)
Mounting HC900 Rack/Panel Integrated

Installation Guidelines

  • Power Down: Always ensure the associated I/O module and controller power are disconnected before installing or removing terminal blocks.
  • Wiring Integrity: Ensure wires are properly stripped and fully seated within the screw clamp to prevent high-resistance connections or overheating.
  • Torque: Tighten screw terminals to the manufacturer's recommended torque specifications to ensure long-term contact stability.
  • Environment: Install in a clean, dry environment within the specified temperature range to maintain the dielectric properties of the insulating material.
  • Cable Management: Utilize the integrated structure to organize field wiring, ensuring that cables are not under tension and are routed to avoid sharp edges.

FAQ

Is this terminal block compatible with all HC900 modules?

The 900TBR-0001 is designed for the HC900 system. Please verify your specific I/O module's datasheet to ensure it requires the 20-position high-voltage barrier block configuration.

Does this module require any configuration or software setup?

No, the 900TBR-0001 is a passive hardware component. It requires no software configuration or external power supply.
