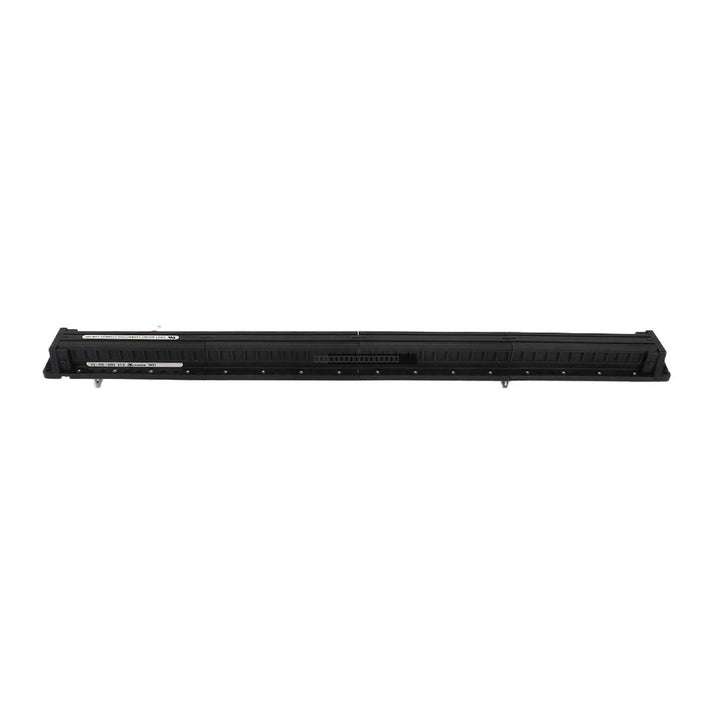

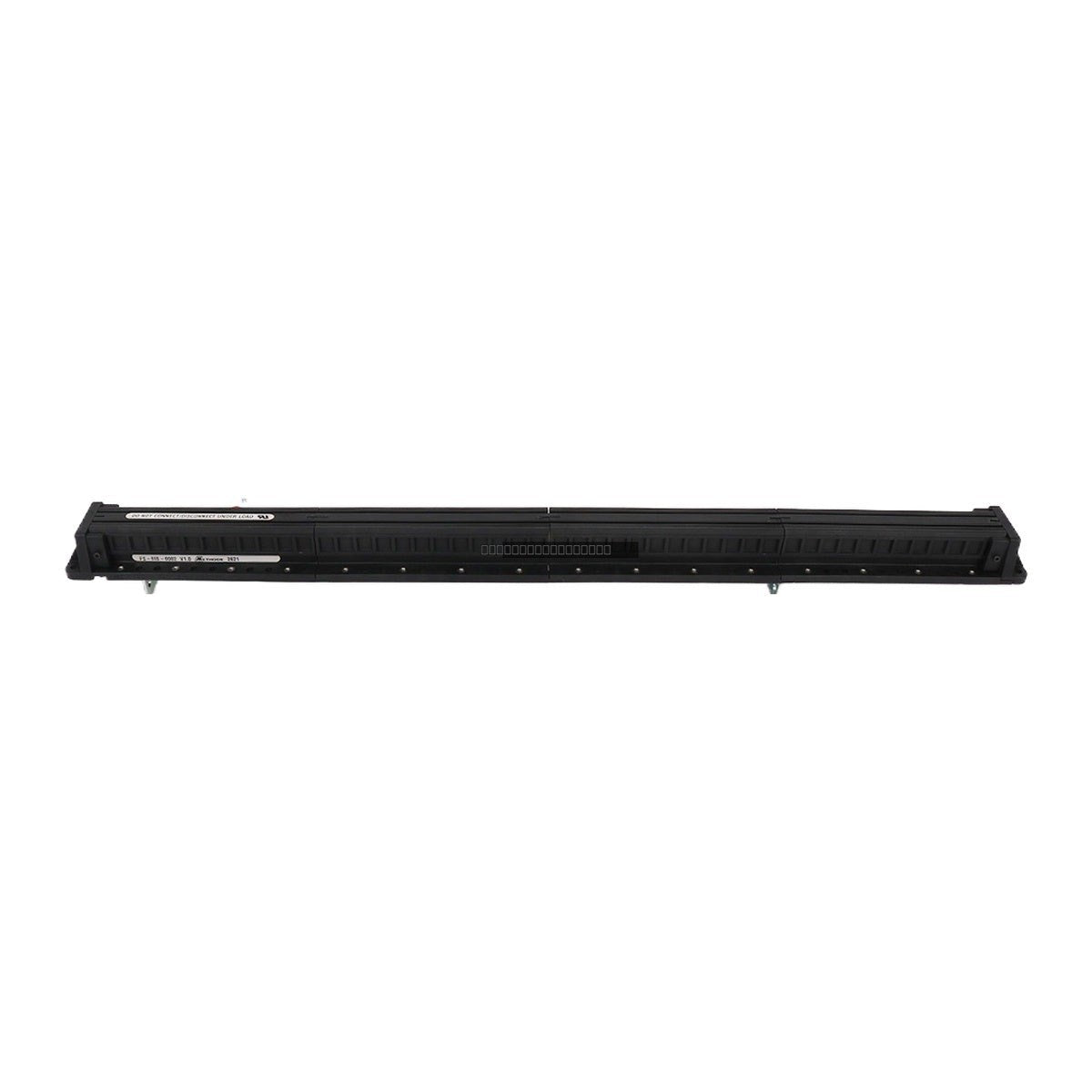

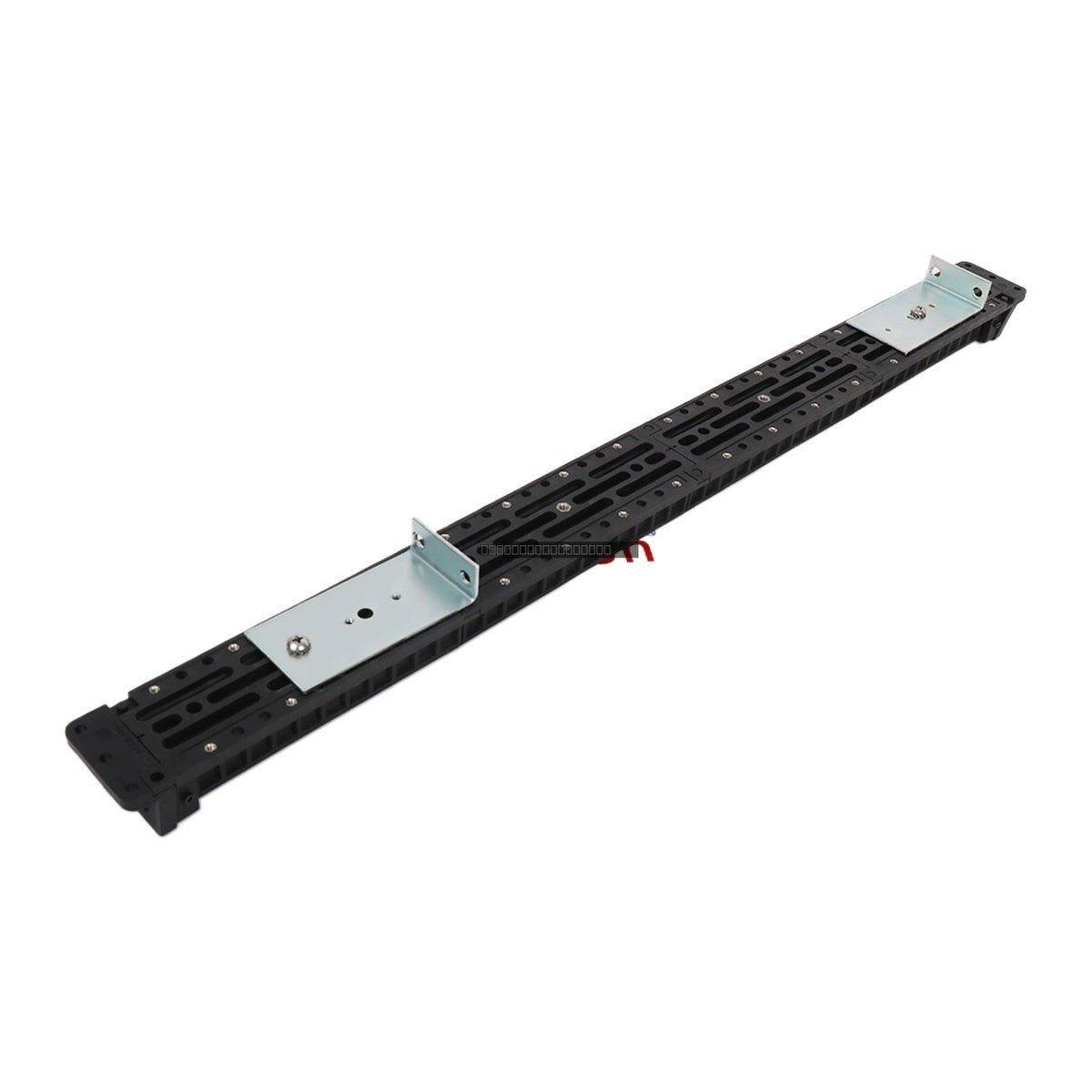

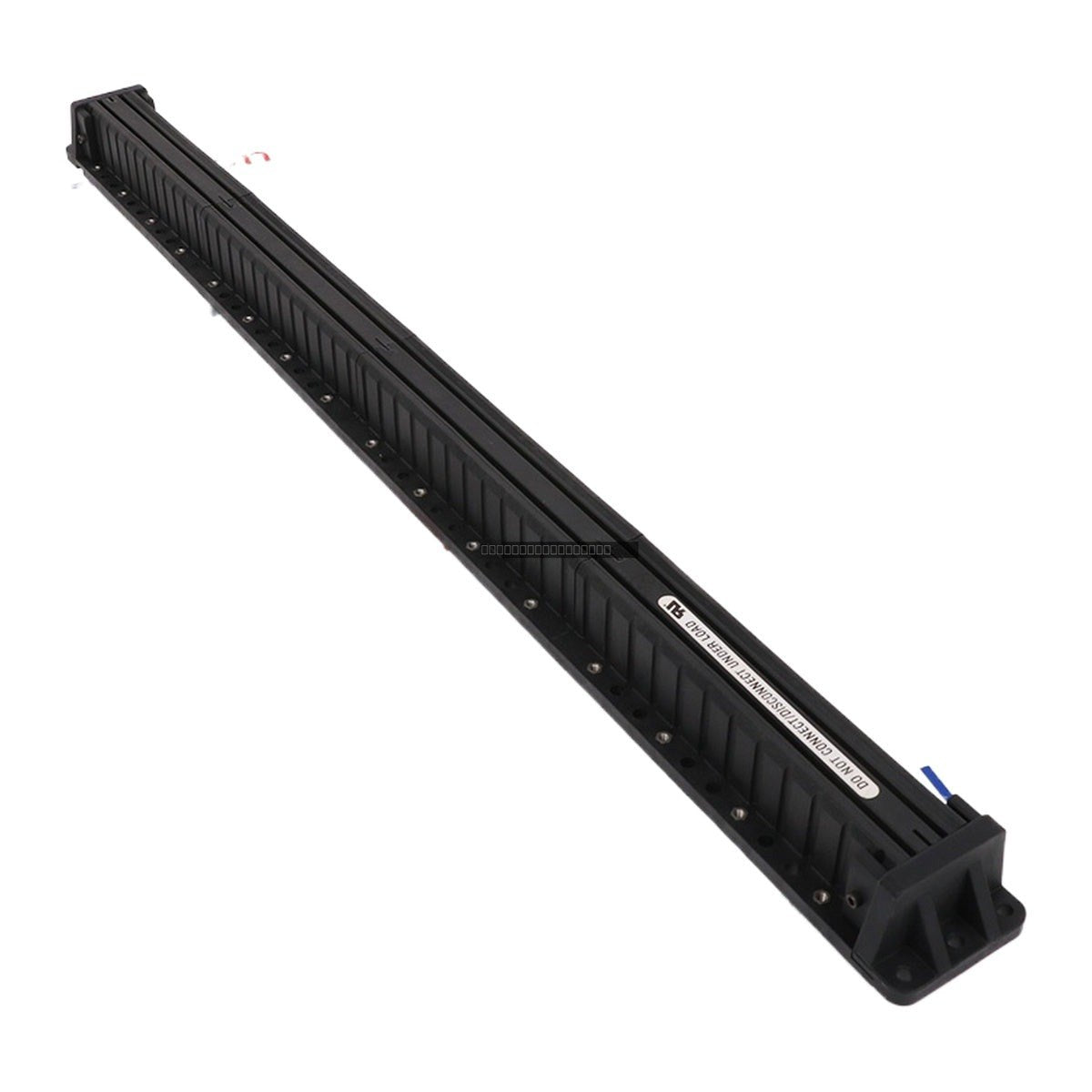

Honeywell FS-MB-0002 Safety Manager Mains Power Rail

Honeywell FS-MB-0002 Safety Manager Mains Power Rail

The Honeywell FS-MB-0002 is a high-capacity mains power rail engineered for the distribution of DC voltage within Safety Manager systems. It is designed to facilitate reliable power delivery from redundant...

18 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 8

SKU: FS-MB-0002
Proveedora: Honeywell
tipo: Power Distribution Rail
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Honeywell FS-MB-0002 is a high-capacity mains power rail engineered for the distribution of DC voltage within Safety Manager systems. It is designed to facilitate reliable power delivery from redundant power supply sources to various controllers, I/O modules, and field devices in industrial automation and safety-critical environments.

Features

  • Supports DC voltage distribution from 24Vdc to 110Vdc.
  • High-capacity design supporting up to 200 Amps continuous current.
  • Features 48 total connection points across four 6-inch sections.
  • Flexible connector compatibility: Supports Jackscrew (JCK) connectors for high-current applications and Squeeze-To-Release (STR) connectors for standard wiring.
  • Constructed with dual copper rails for optimal conductivity and reliability.
  • Integrated over-current and short-circuit protection for downstream device safety.

Applications

  • Safety Instrumented Systems (SIS) and Fire & Life Safety installations.
  • Power distribution for PLC I/O modules, sensors, and actuators in process control.
  • Critical power management in oil and gas, petrochemical, and power generation facilities.
  • Distributed control systems requiring robust, redundant power backbones.

Technical Specifications

Model FS-MB-0002
Manufacturer Honeywell
Voltage Rating 24Vdc to 110Vdc
Current Capacity Up to 200A
Connection Points 48
Operating Temperature -25 degC to +75 degC
Connector Temp (JCK) Max 125 degC
Connector Temp (STR) Max 105 degC

Installation Guidelines

  • Safety First: Ensure all upstream power sources are locked out and tagged out (LOTO) before performing any installation or wiring tasks.
  • Grounding: The rail housing must be securely bonded to the main enclosure structural earth ground prior to energizing the system.
  • Mounting: Can be installed using the M5 center rear mounting hole (152.4mm interval) or via 4.5mm diameter holes on the rail sides and end caps.
  • Wiring: Use appropriate heavy-gauge cabling to accommodate the 200A maximum load rating. Ensure all terminal connections are tightened to specification.
  • Environment: Ensure adequate clearance for heat dissipation, particularly when operating near maximum current capacities.

FAQ

Is this product compatible with redundant power supplies?

Yes, the FS-MB-0002 is specifically designed to support redundant power inputs from multiple sources to enhance overall system reliability.

What are the maximum current ratings for the connectors?

JCK connectors support up to 55A when used with AWG 8 wire, while STR connectors support up to 25A when used with AWG 12 wire.

How many connection points does the rail provide?

The unit features 48 connection points, organized into four sections of twelve positions each.
