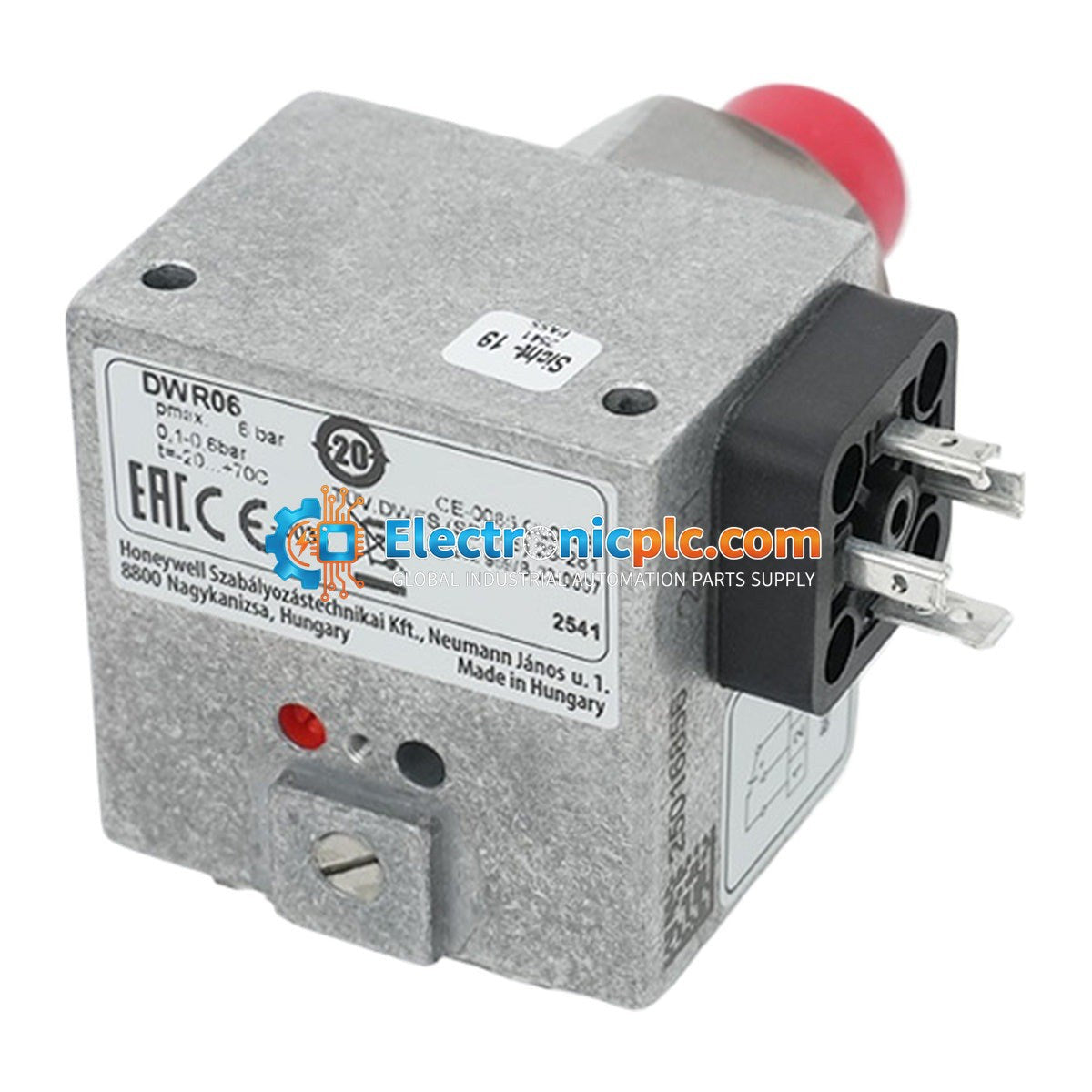

Honeywell DWR06 785-DWR06 Differential Pressure Sensor

Honeywell DWR06 785-DWR06 Differential Pressure Sensor

Description

The Honeywell DWR06 (FEMA) is a high-precision mechanical differential pressure switch/limiter designed for critical monitoring of overpressure in industrial systems. It is engineered for applications involving hot water, steam, fuel...

21 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 5

SKU: DWR06 785-DWR06
Proveedora: Honeywell
tipo: Pressure Sensor
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Honeywell DWR06 (FEMA) is a high-precision mechanical differential pressure switch/limiter designed for critical monitoring of overpressure in industrial systems. It is engineered for applications involving hot water, steam, fuel gases, and liquid fuels. This device is classified as a pressure limiter of special construction (DBS), meaning it is designed to fail to a safe state in the event of mechanical breakage or leakage, ensuring the system responds as if the maximum pressure limit has been exceeded.

Features

  • Self-monitoring sensor design for enhanced safety.
  • Equipped with positive opening microswitches.
  • Gold-plated contacts for reliable signal transmission.
  • Tested for up to 2 million operating cycles.
  • Seawater-resistant die-cast aluminum housing suitable for harsh environments.
  • Certified for component safety via TÜV and DVGW.

Applications

  • Steam and Hot Water Systems: Acts as a pressure limiter for boilers, compliant with DIN EN 12828 and EN 12952-11.
  • Fuel and Gas Monitoring: Suitable for monitoring burnable gases (DVGW G 260) and liquid fuels such as fuel oil.
  • Industrial Process Engineering: High-precision max/min pressure monitoring for critical thermal installations.
  • Hazardous Areas: Can be used in Ex-zones (0, 1, 2, 20, 21, 22) when paired with an appropriate isolating amplifier for line break and short-circuit monitoring.

Technical Specifications

Model DWR06 785-DWR06
Pressure Type Differential
Operating Pressure 0.1 bar to 0.6 bar
Accuracy 1%
Port Size G 1/2, G 1/4
Mounting Style Panel Mount
Operating Voltage 250 VAC
Operating Current 8 A
Max Operating Temperature +70 degC
Bursting Pressure ≥ 100 bar

Installation Guidelines

  • Ensure the device is installed by qualified personnel familiar with pressure-limiting safety requirements.
  • For Ex-zone applications, the isolating amplifier must be installed outside the hazardous area.
  • Monitor lines between the switch and the isolating amplifier for short circuits and line breaks to maintain safety integrity.
  • At ambient temperatures at or below 0 degC, ensure no condensation forms within the sensor or switching mechanism.
  • Always power down the system before performing wiring or maintenance on the sensor.

FAQ

What is the Honeywell DWR06?

It is a FEMA mechanical pressure switch used to monitor maximum and minimum pressure, specifically designed for safety-critical applications like boilers and fuel lines.

What does DWR stand for?

The DWR series is calibrated for rising pressure, meaning the adjustable switching pressure on the scale corresponds to the switching point at rising pressure.

What is the bursting pressure?

The bursting pressure is ≥ 100 bar, as verified by TÜV testing.
