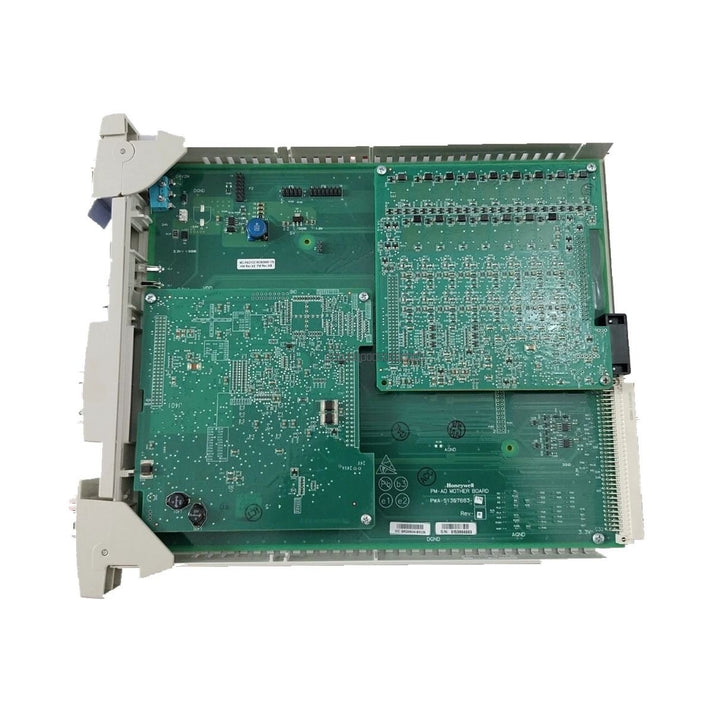

Honeywell MC-GAIH22 High Level Analog Input Module

Honeywell MC-GAIH22 High Level Analog Input Module

Description

The Honeywell MC-GAIH22 (MCGAIH22) is a high-level analog input module engineered for the precise acquisition of voltage and current signals within Honeywell distributed control systems. This module is designed to...

27 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 7

SKU: MC-GAIH22
Proveedora: Honeywell
tipo: Analog Input Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Honeywell MC-GAIH22 (MCGAIH22) is a high-level analog input module engineered for the precise acquisition of voltage and current signals within Honeywell distributed control systems. This module is designed to maintain signal integrity in demanding industrial environments, including chemical processing plants, power generation facilities, and offshore production platforms. Its robust architecture ensures reliable monitoring of critical process variables such as pressure, flow, temperature, and level.

Features

  • Supports high-level analog voltage and current signal acquisition.
  • Utilizes compression terminal connections for secure, vibration-resistant field wiring.
  • Integrated signal conditioning and filtering to suppress electrical interference from nearby power equipment.
  • Modular design facilitates efficient maintenance and system diagnostics.
  • Optimized for stable performance in high-noise industrial environments.

Applications

The MC-GAIH22 is suitable for integration into Honeywell DCS and process automation systems where dependable analog signal processing is required for continuous operation. It is commonly deployed in refinery control systems and large-scale industrial infrastructure.

Technical Specifications

Model MC-GAIH22
Input Type High-level analog voltage and current
Input Channels 16 Channels
Voltage Rating 24 VDC
Power Consumption 6 W (typical)
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 85 deg C
Relative Humidity 5 % to 95 % non-condensing
Mounting Method Rack or cabinet

Installation Guidelines

  • Ensure the control system is powered down before inserting or removing the module to prevent electrical damage.
  • Use shielded cabling for all analog signal inputs to minimize EMI/RFI interference.
  • Verify that all compression terminal connections are tightened to the specified torque to ensure mechanical stability under thermal cycling.
  • Maintain adequate ventilation within the cabinet to ensure the ambient temperature remains within the 0 to 60 deg C operating range.
  • Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal components or connectors.

FAQ

Is the MC-GAIH22 compatible with all Honeywell DCS platforms?

The MC-GAIH22 is designed for the Honeywell MC series. Please verify your specific controller revision and system documentation to ensure compatibility with your existing I/O rack configuration.

Does this module support hot-swapping?

The module supports hot replacement in many configurations; however, this is dependent on the specific controller and system software settings. Always consult your system manual before performing maintenance on a live system.
