Description

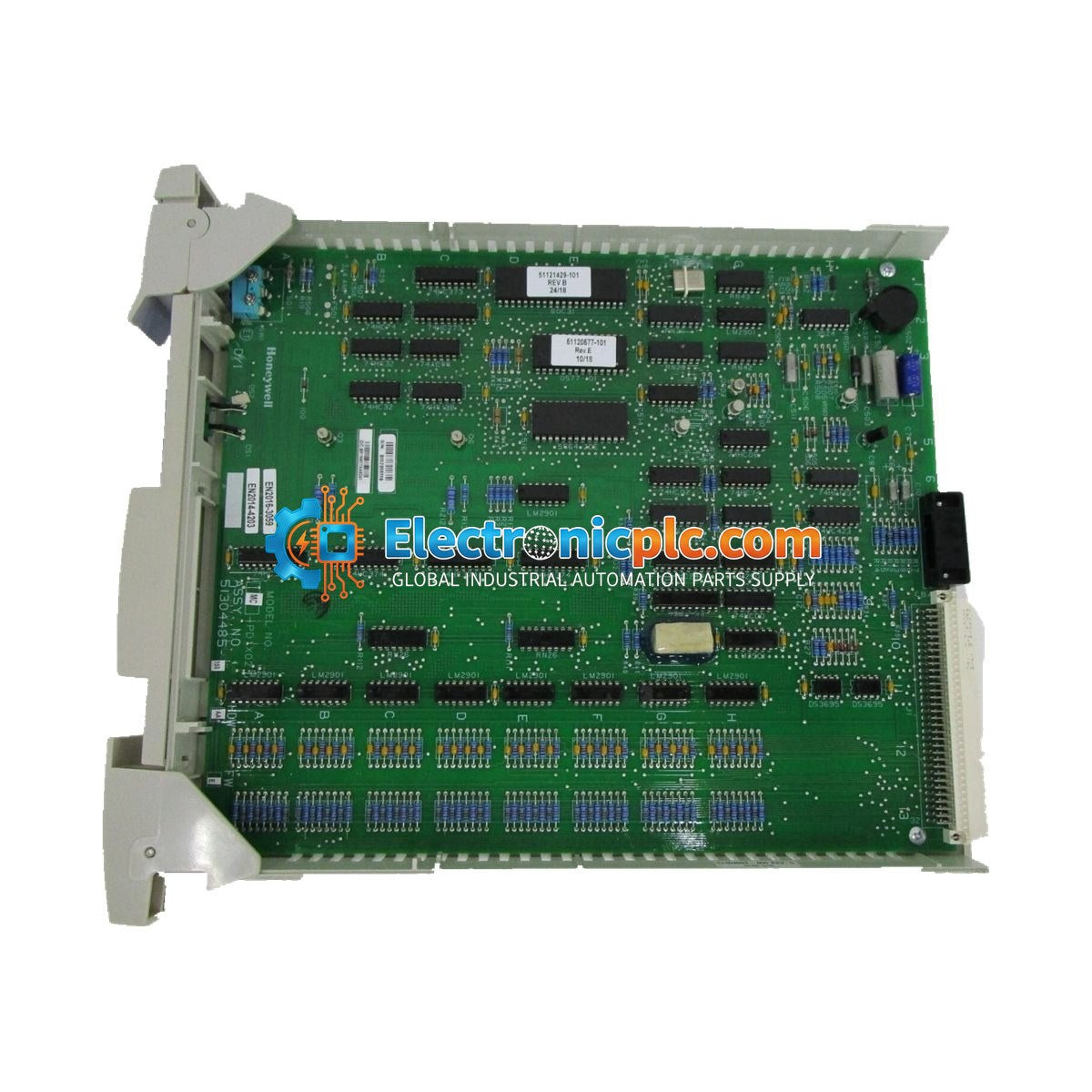

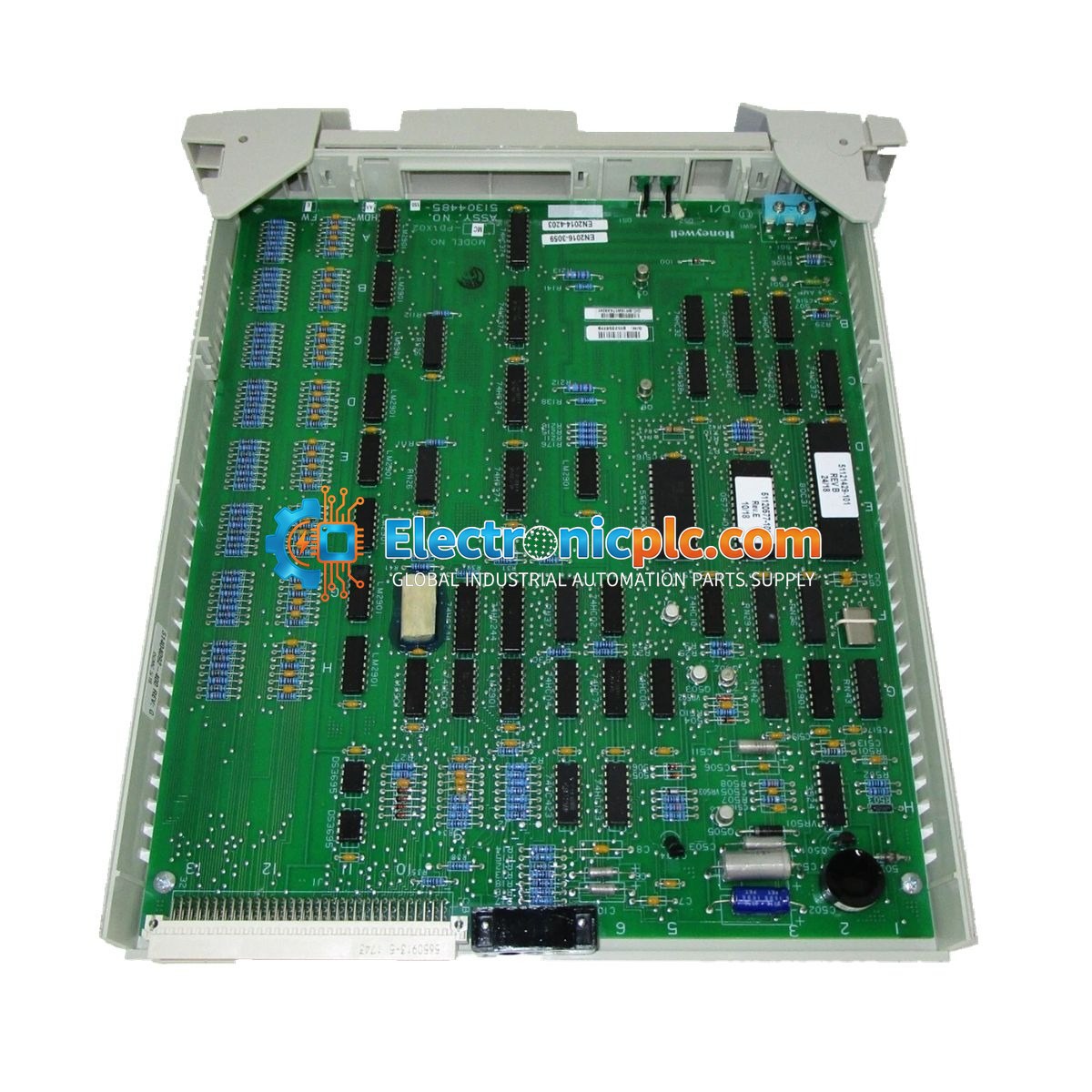

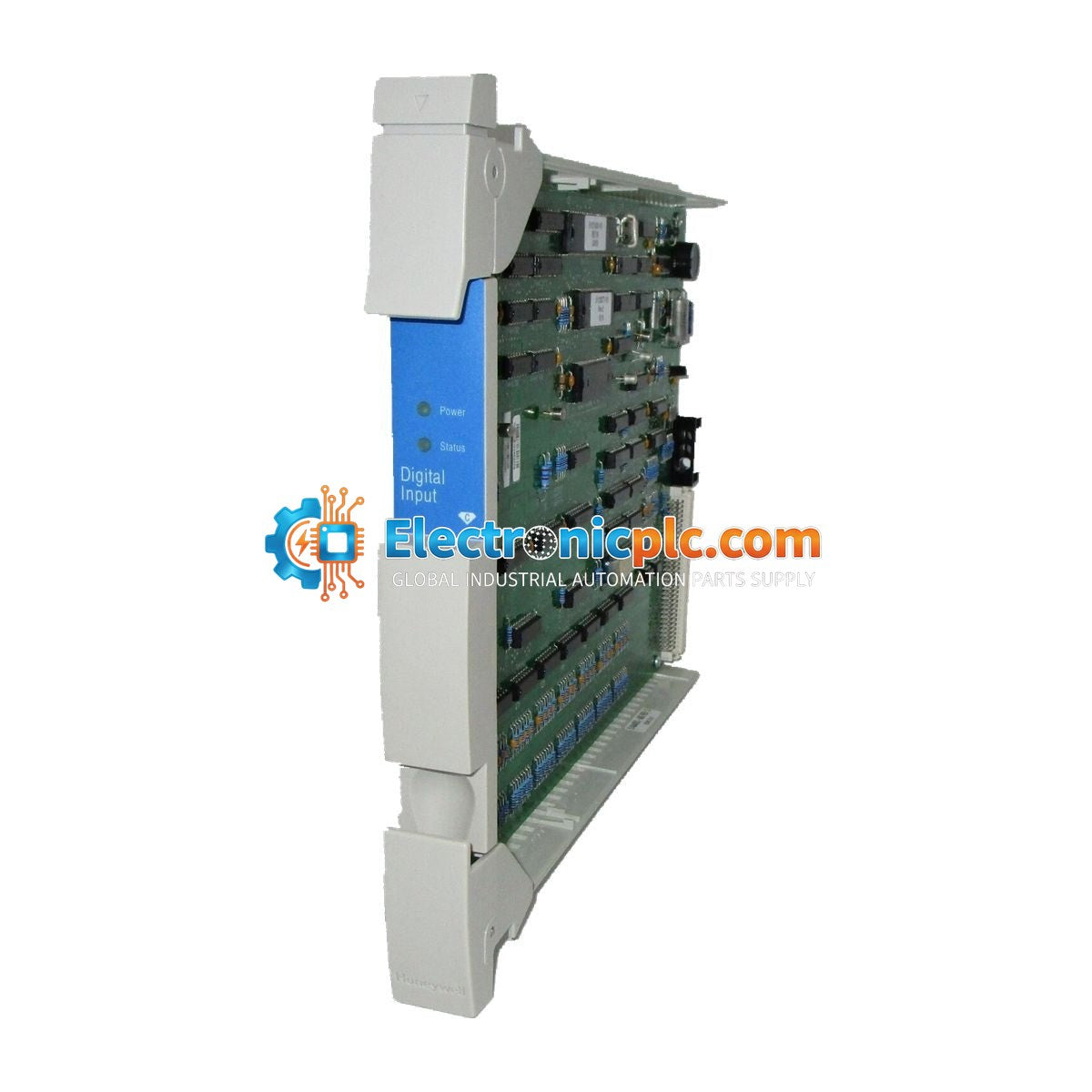

The Honeywell MC-PD1X02 (Part Number 51304485-150) is a high-performance digital input module and field termination assembly engineered for use within the Honeywell Experion PKS and TDC 3000 distributed control systems. This module provides 16 discrete input channels, facilitating the acquisition of critical field signals such as dry contacts, limit switches, and proximity sensors. By integrating signal conditioning and robust electrical isolation, the MC-PD1X02 ensures reliable data acquisition in demanding industrial environments, including power generation, oil and gas, and chemical processing facilities.

Features

• 16 discrete input channels for high-density signal monitoring.
• Supports standard 24 VDC digital inputs and dry contact configurations.
• Integrated signal conditioning with robust channel-to-channel and system isolation.
• Designed for direct field wiring termination, reducing the requirement for auxiliary relay panels.
• Optimized for fast response times, supporting real-time control requirements.
• Built-in protection against electrical noise, voltage spikes, and common wiring faults.

Applications

The MC-PD1X02 is designed for process automation environments requiring high-availability signal monitoring. Typical applications include:

• Monitoring of field-mounted limit switches and proximity sensors.
• Interface for discrete status signals in DCS-controlled process loops.
• Integration into redundant control architectures for critical safety or process monitoring.
• Refinery and power plant automation systems requiring reliable I/O density.

Technical Specifications

Installation Guidelines

• Power Down: Always ensure the control system power is disconnected before installing or removing the module from the rack or field assembly.
• ESD Protection: Use a grounded wrist strap and follow standard electrostatic discharge (ESD) precautions when handling the module to prevent damage to internal circuitry.
• Wiring: Ensure all field wiring is properly secured to the termination points. Use shielded cables where necessary to minimize EMI in high-noise environments.
• Mounting: Ensure the module is firmly seated in its designated slot to maintain proper backplane communication and grounding.
• Environment: Maintain the operating temperature within the specified 0 to 60 deg C range and ensure adequate ventilation within the control cabinet.

FAQ

What is the primary function of the MC-PD1X02?

The MC-PD1X02 acts as a 16-channel digital input module and field termination assembly for Honeywell Experion PKS and TDC 3000 systems, converting discrete field signals into logic states for the controller.

Does this module require external signal conditioning?

No, the MC-PD1X02 features integrated signal conditioning and isolation, allowing for direct connection to field devices such as dry contacts and 24 VDC sensors.
