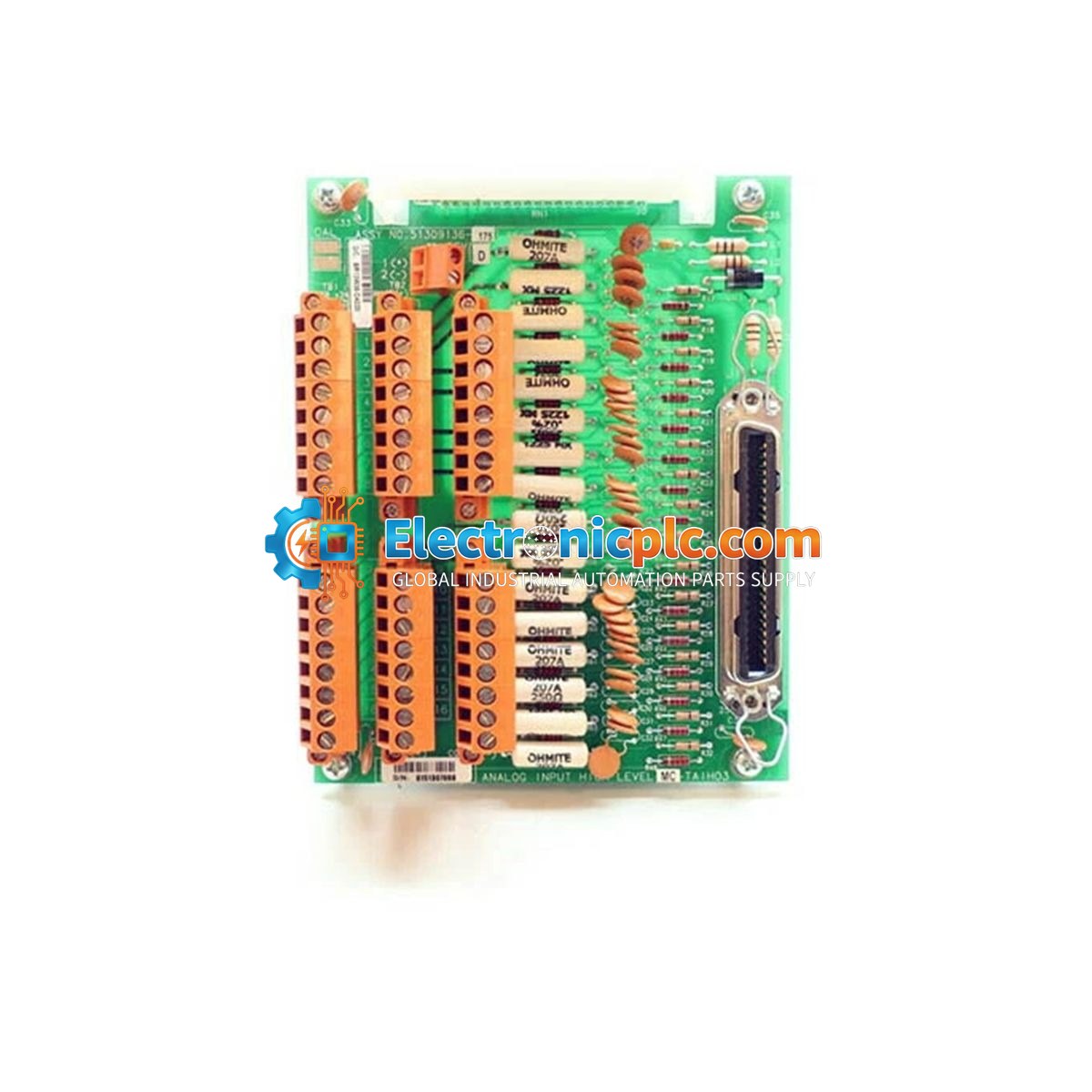

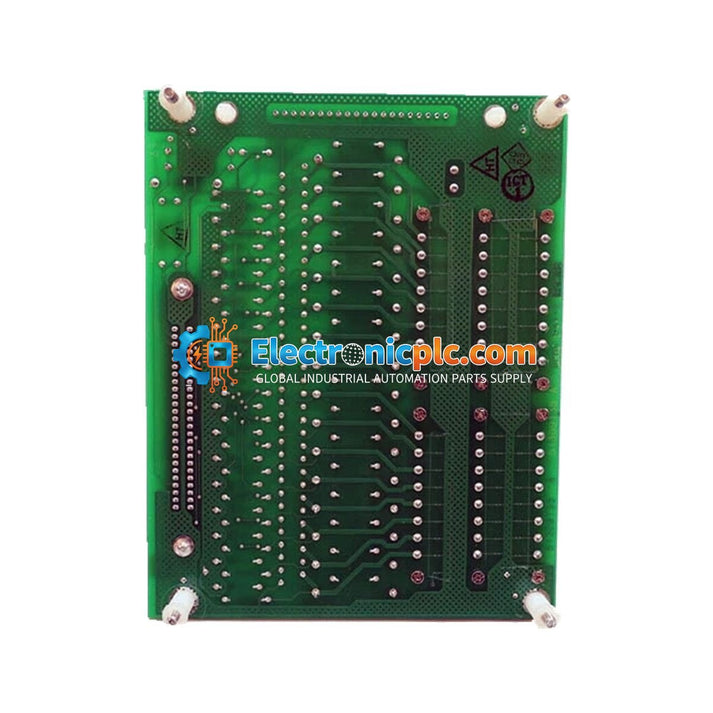

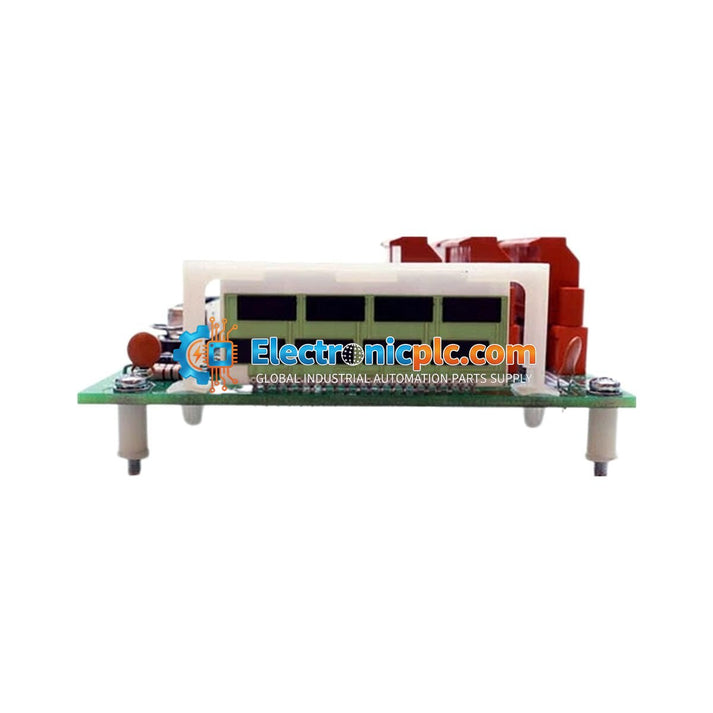

Honeywell MC-TAIH03 Analog Input FTA

Honeywell MC-TAIH03 Analog Input FTA

Description

The Honeywell MC-TAIH03 is a high-level analog input Field Termination Assembly (FTA) engineered to facilitate the interface between field instrumentation and Honeywell distributed control systems. This module serves as a...

17 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 10

SKU: MC-TAIH03
Proveedora: Honeywell
tipo: Analog Input FTA
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Honeywell MC-TAIH03 is a high-level analog input Field Termination Assembly (FTA) engineered to facilitate the interface between field instrumentation and Honeywell distributed control systems. This module serves as a centralized termination point for up to 16 analog input channels, streamlining the connection process between field sensors and control system I/O hardware. By providing a structured interface, the MC-TAIH03 reduces field wiring complexity, minimizes potential installation errors, and enhances overall system maintainability in demanding industrial environments.

Features

  • Supports 16 high-level analog input channels.
  • Consolidates field wiring to improve diagnostic efficiency and system reliability.
  • Designed for integration with Honeywell distributed control system architectures.
  • Provides a robust interface for signal routing under typical industrial electrical noise conditions.
  • Passive design requiring no internal active power consumption.
  • CE marked for compliance with industrial safety and electromagnetic compatibility standards.

Applications

The MC-TAIH03 is widely utilized in large-scale process industries, including refinery automation, power generation plants, chemical processing units, and heavy industrial monitoring systems where stable, high-integrity analog signal acquisition is required for process control.

Technical Specifications

Model MC-TAIH03
Brand Honeywell
Product Type Analog Input Field Termination Assembly
Input Channels 16
Signal Type High-level analog
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 85 deg C
Humidity Range 5 to 95 percent non-condensing
Mounting Cabinet or rack mounted
Termination Screw terminal

Installation Guidelines

  • Ensure the control system is powered down before installing or removing the FTA module.
  • Mount the assembly securely within the designated control cabinet or rack space, ensuring adequate clearance for cable routing.
  • Use shielded cabling for field instrumentation to maintain signal integrity and minimize EMI/RFI interference.
  • Verify all screw terminal connections are tightened to the specified torque to prevent intermittent signal loss.
  • Maintain proper grounding practices for the cabinet and signal shields to ensure compliance with system-level electrical isolation requirements.
  • Ensure the installation environment remains within the specified temperature and humidity ranges to prevent component degradation.

FAQ

What is the primary function of the MC-TAIH03?

The MC-TAIH03 acts as a field termination assembly that aggregates 16 analog input signals from field devices and routes them to the control system I/O modules, simplifying wiring and maintenance.

Does this module require external power?

No, the MC-TAIH03 is a passive field termination assembly and does not consume internal power.

Is this module compatible with all Honeywell systems?

The MC-TAIH03 is designed for specific Honeywell distributed control system architectures. Please verify your system's hardware compatibility documentation before installation.
