Description

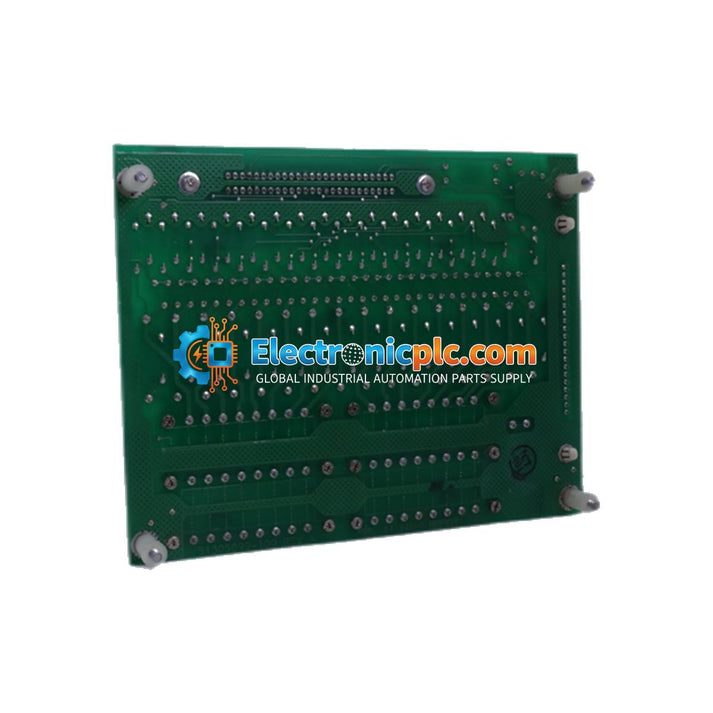

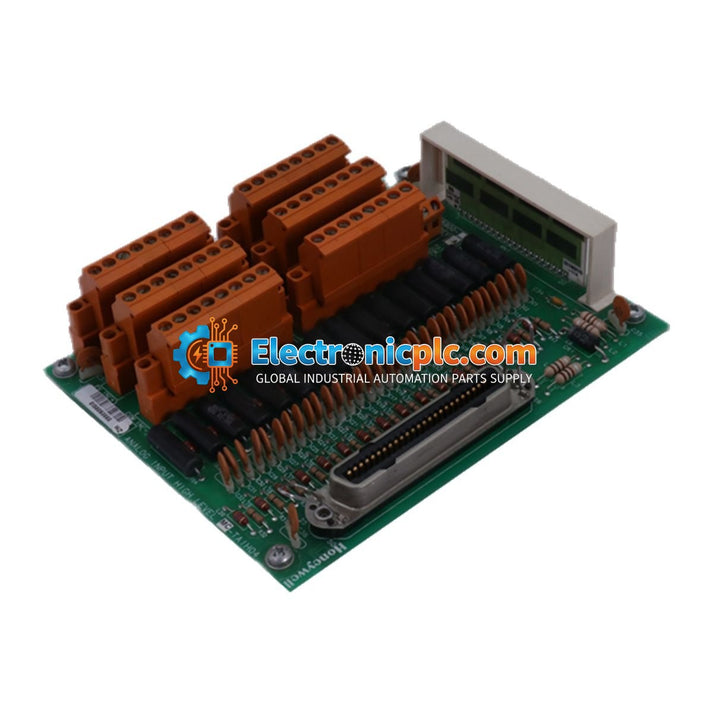

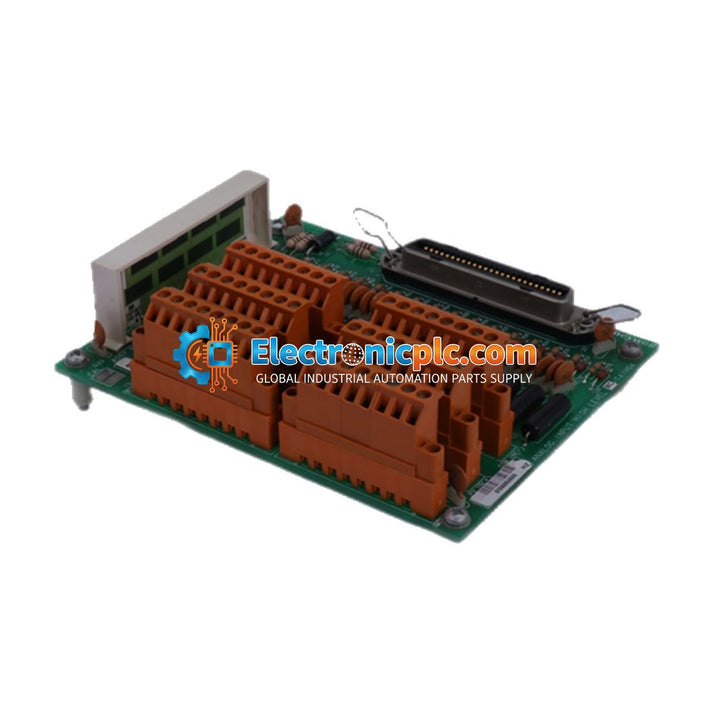

The Honeywell MC-TAIH04 (51305900-175) is a high-reliability analog input module engineered for precise signal acquisition within Honeywell distributed control systems. This module serves as a critical interface between field-mounted analog instrumentation and the central control architecture, ensuring accurate data conversion for process monitoring and control loops. It is designed to maintain signal integrity in demanding industrial environments, including chemical processing, power generation, and refinery operations.

Features

• High-precision analog signal acquisition and conditioning.
• Optimized for noise suppression in electrically harsh industrial environments.
• Designed for seamless integration with Honeywell distributed control system architectures.
• Supports continuous, real-time data conversion for process automation.
• Robust hardware construction for long-term reliability in rack-mounted configurations.

Applications

The MC-TAIH04 is suitable for a wide range of industrial process control applications, including:

• Refinery and petrochemical process monitoring.
• Power generation and utility automation.
• Continuous chemical processing and manufacturing.
• General industrial analog signal acquisition where high accuracy and stability are required.

Technical Specifications

Installation Guidelines

• Ensure the control system rack is powered down before inserting or removing the module to prevent electrical damage.
• Handle the module using proper ESD (Electrostatic Discharge) precautions to protect internal circuitry.
• Ensure the module is fully seated in the rack slot and secured according to system documentation.
• Route analog signal cabling away from high-voltage power lines and high-EMI sources to maintain signal integrity.
• Verify that the module is installed in an environment within the specified temperature and humidity ranges to ensure optimal performance and longevity.

FAQ

What is the primary function of the MC-TAIH04 module?

The MC-TAIH04 is an analog input module used to interface field analog transmitters with Honeywell control systems, converting process signals into digital data for real-time monitoring.

Is this module suitable for harsh industrial environments?

Yes, the module is engineered for industrial-grade operation, featuring internal architecture optimized for noise suppression and signal stability in demanding process control environments.

What are the storage requirements for this unit?

The module should be stored in a controlled environment within the temperature range of -40 to 85 deg C and kept free from moisture to prevent damage.
