Description

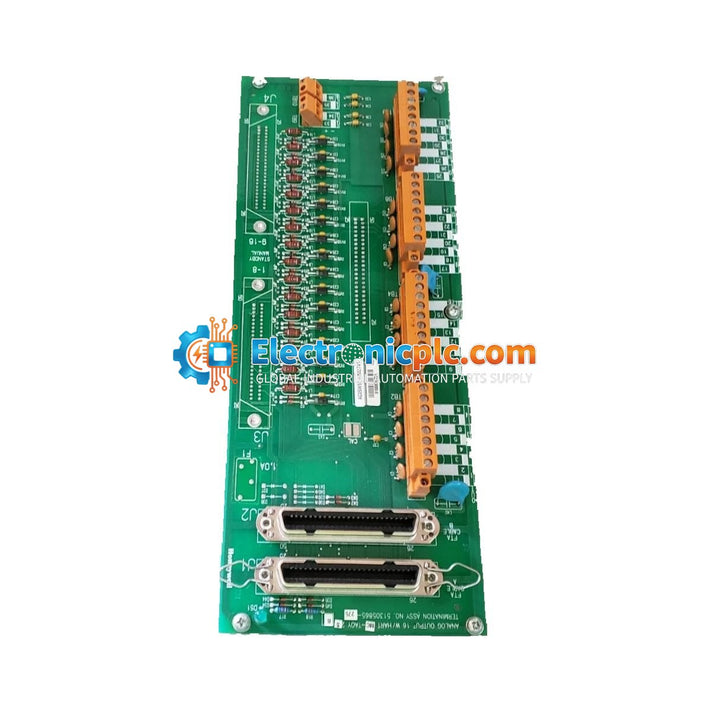

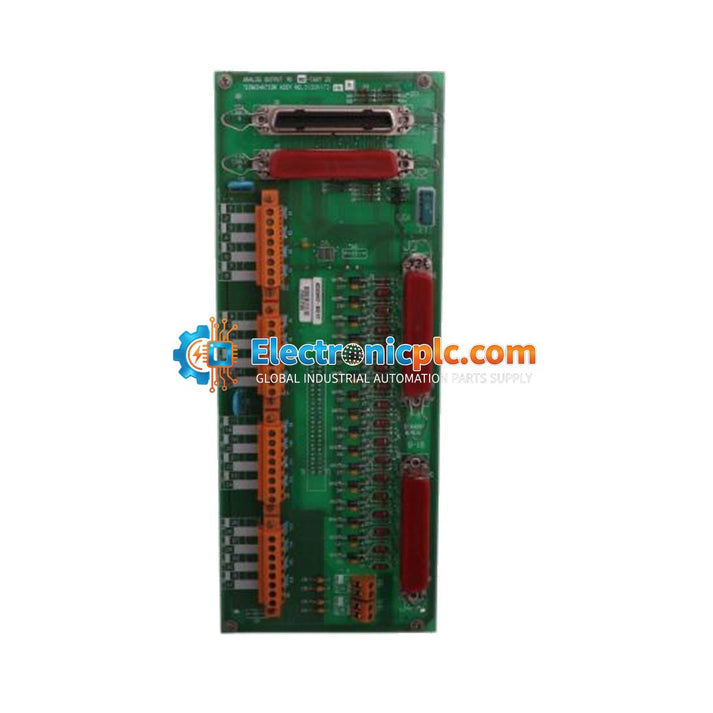

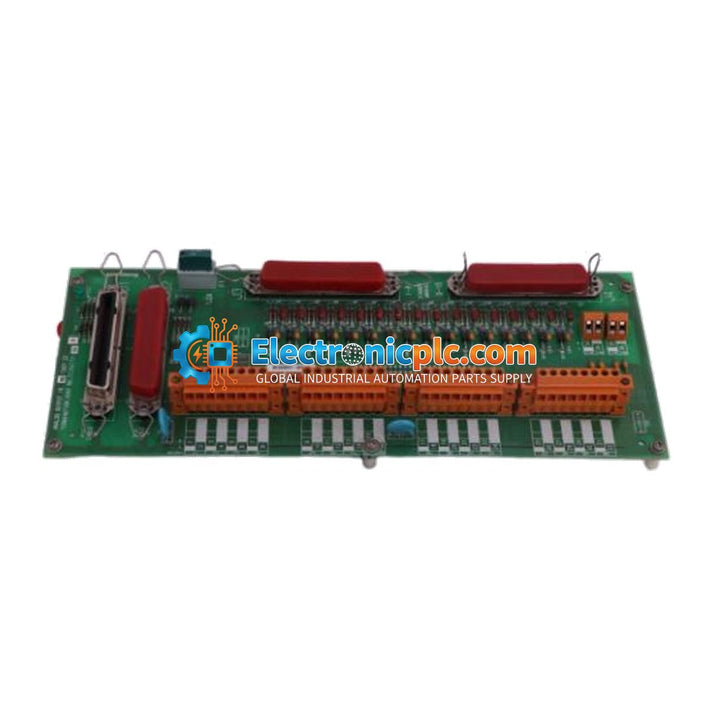

The Honeywell MC-TAOY25 (51305865-275) is a 16-channel analog output module engineered for integration within Honeywell Distributed Control System (DCS) platforms. This module provides precise analog signal control for field actuators, valves, and variable frequency drives. It features integrated HART communication capabilities, allowing for simultaneous analog control and bidirectional digital diagnostics with smart field devices. The module is built for demanding industrial environments, including oil and gas refineries, chemical processing, and power generation facilities.

Features

• 16 independent analog output channels with integrated HART protocol support.
• Bidirectional communication enables advanced device diagnostics and remote configuration.
• Conformal coating applied to internal circuitry for enhanced protection against moisture, dust, and corrosive atmospheres.
• Designed for use with Field Termination Assemblies (FTA) using secure compression terminals.
• Supports system-level redundancy and deterministic output performance within Honeywell DCS architectures.
• Built-in diagnostic monitoring for output status and communication integrity.

Applications

This module is primarily utilized in process control applications requiring high-density analog output and smart device integration. Common applications include the precise positioning of control valves, speed control for motor drives, and the management of auxiliary process actuators where HART-based device management is required for predictive maintenance.

Technical Specifications

Installation Guidelines

• Ensure the system power is disconnected before installing or removing the module from the FTA.
• The module is designed for mounting in standard Honeywell DCS cabinets; ensure proper alignment with the Size B FTA.
• Use shielded twisted-pair cabling for HART-enabled loops to minimize EMI/RFI interference.
• Maintain proper grounding practices for the cabinet and the I/O subsystem to ensure signal integrity.
• Handle the module using ESD-safe practices to prevent damage to internal electronic components.
• Verify that the ambient temperature remains within the 0 to 60 deg C range to ensure long-term reliability.

FAQ

What is the primary function of the HART communication in this module?

The HART communication allows the DCS to exchange digital data with smart field devices (such as valve positioners) while simultaneously transmitting the 4-20mA analog control signal. This enables real-time monitoring of device health, calibration status, and diagnostic alerts without requiring additional wiring.

Is this module compatible with all Honeywell DCS systems?

The MC-TAOY25 is designed for specific Honeywell DCS architectures that support the Size B FTA form factor. Please verify your specific system hardware revision and I/O card compatibility before installation.
