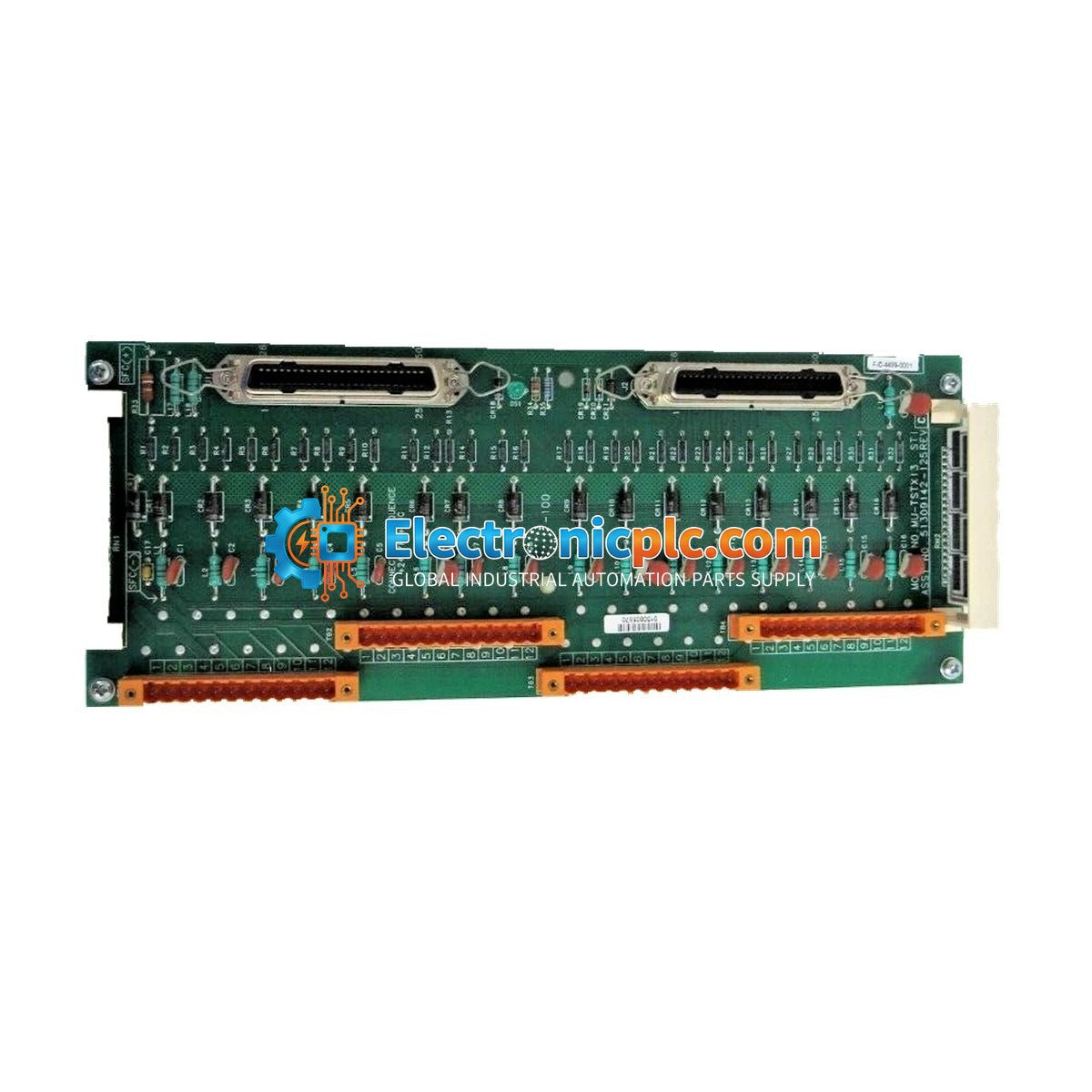

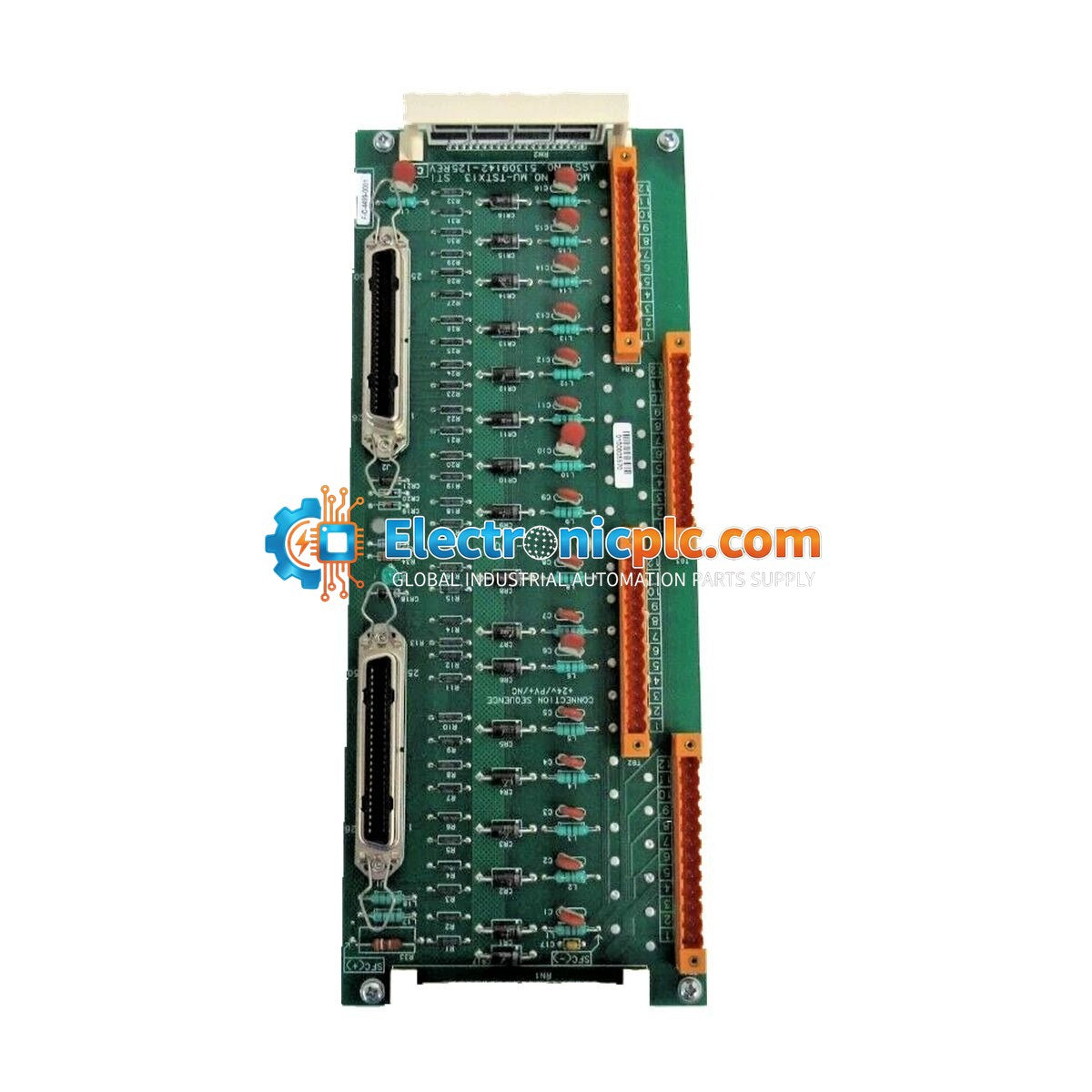

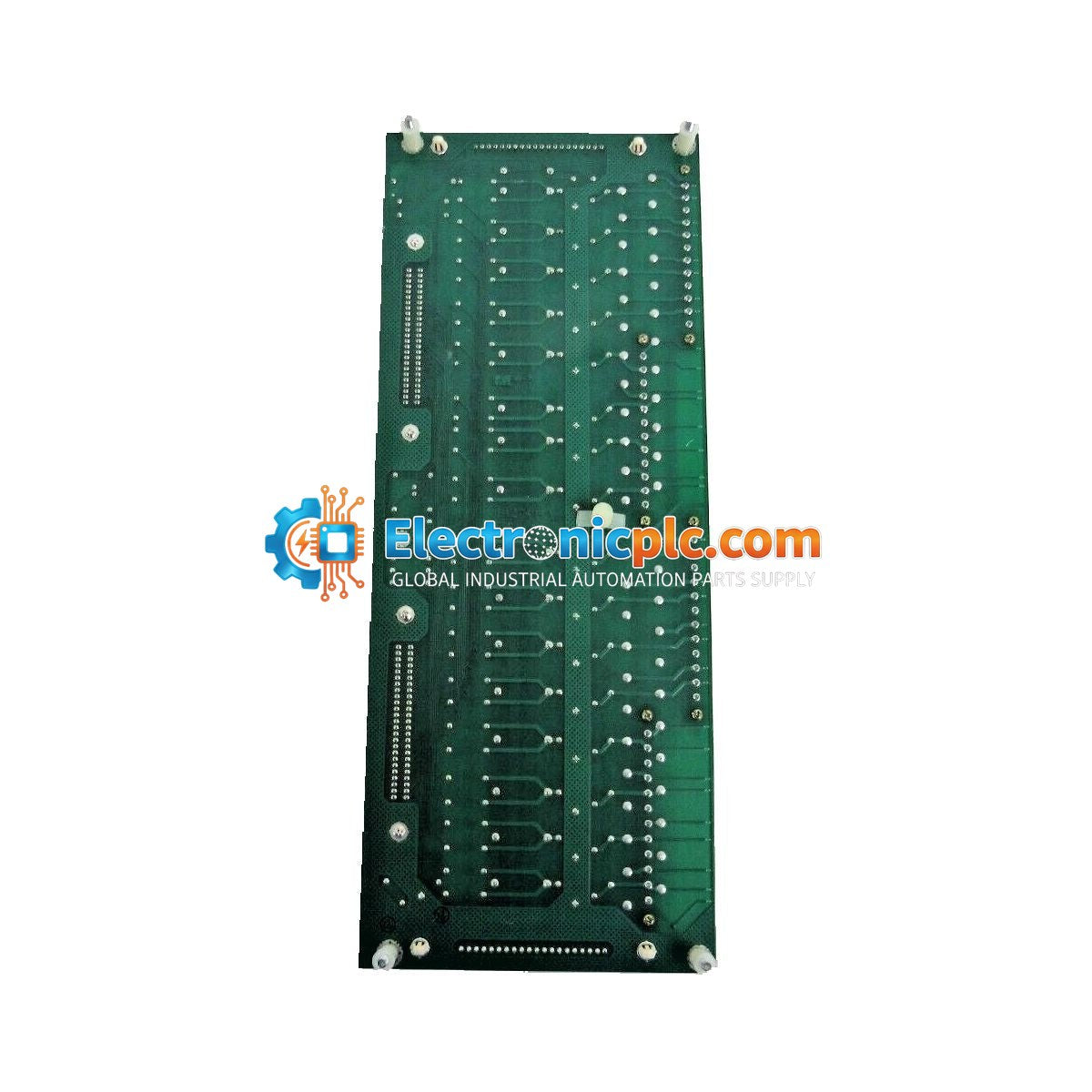

Honeywell MC-TSTX13 Smart Transmitter Interface FTA Module

Honeywell MC-TSTX13 Smart Transmitter Interface FTA Module

Description

The Honeywell MC-TSTX13 is a high-density Smart Transmitter Interface Field Termination Assembly (FTA) engineered for integration within Honeywell distributed control systems. This module serves as a critical interface layer, providing...

28 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 9

SKU: MC-TSTX13
Proveedora: Honeywell
tipo: Field Termination Assembly
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Honeywell MC-TSTX13 is a high-density Smart Transmitter Interface Field Termination Assembly (FTA) engineered for integration within Honeywell distributed control systems. This module serves as a critical interface layer, providing signal termination, conditioning, and routing for up to 16 analog input channels from smart field transmitters. Designed for mission-critical process environments, the MC-TSTX13 ensures signal integrity and reliable data acquisition between field instrumentation and control processors.

Features

  • Supports 16 individual input channels for smart transmitter connectivity.
  • Redundant input path configuration to enhance system availability and fault tolerance.
  • Integrated signal conditioning to minimize noise and eliminate ground loop interference.
  • Optimized for seamless integration with Honeywell control system I/O architectures.
  • Robust construction designed for industrial process control environments.

Applications

The MC-TSTX13 is widely utilized in large-scale industrial automation, including oil and gas refining, chemical processing, and power generation facilities. It is specifically suited for applications requiring high-density analog signal processing where system uptime and signal stability are paramount.

Technical Specifications

Model MC-TSTX13
Brand Honeywell
Module Type Smart Transmitter Interface FTA
Input Channels 16
Signal Type Smart transmitter analog input
Redundancy Supported (dual input path)
Operating Temperature 0 to 60 deg C
Certifications CE Mark

Installation Guidelines

  • Ensure the control system is powered down before installing or removing the FTA module to prevent electrical damage.
  • Mount the module in a clean, dry, and vibration-free environment within a standard control cabinet.
  • Use appropriate shielded cabling for all field instrument connections to maintain signal integrity and reduce EMI.
  • Ensure proper grounding of the FTA chassis to the cabinet ground bus to minimize noise and potential ground loops.
  • Verify that all terminal connections are secure and properly labeled according to the system wiring diagram.

FAQ

Does the MC-TSTX13 support redundant configurations?
Yes, the module is designed to support redundant input path configurations, allowing for improved reliability and uninterrupted signal processing in critical control loops.

What is the primary function of this FTA?
The MC-TSTX13 acts as a termination and conditioning interface, bridging the gap between field-mounted smart transmitters and the main control system I/O modules.
