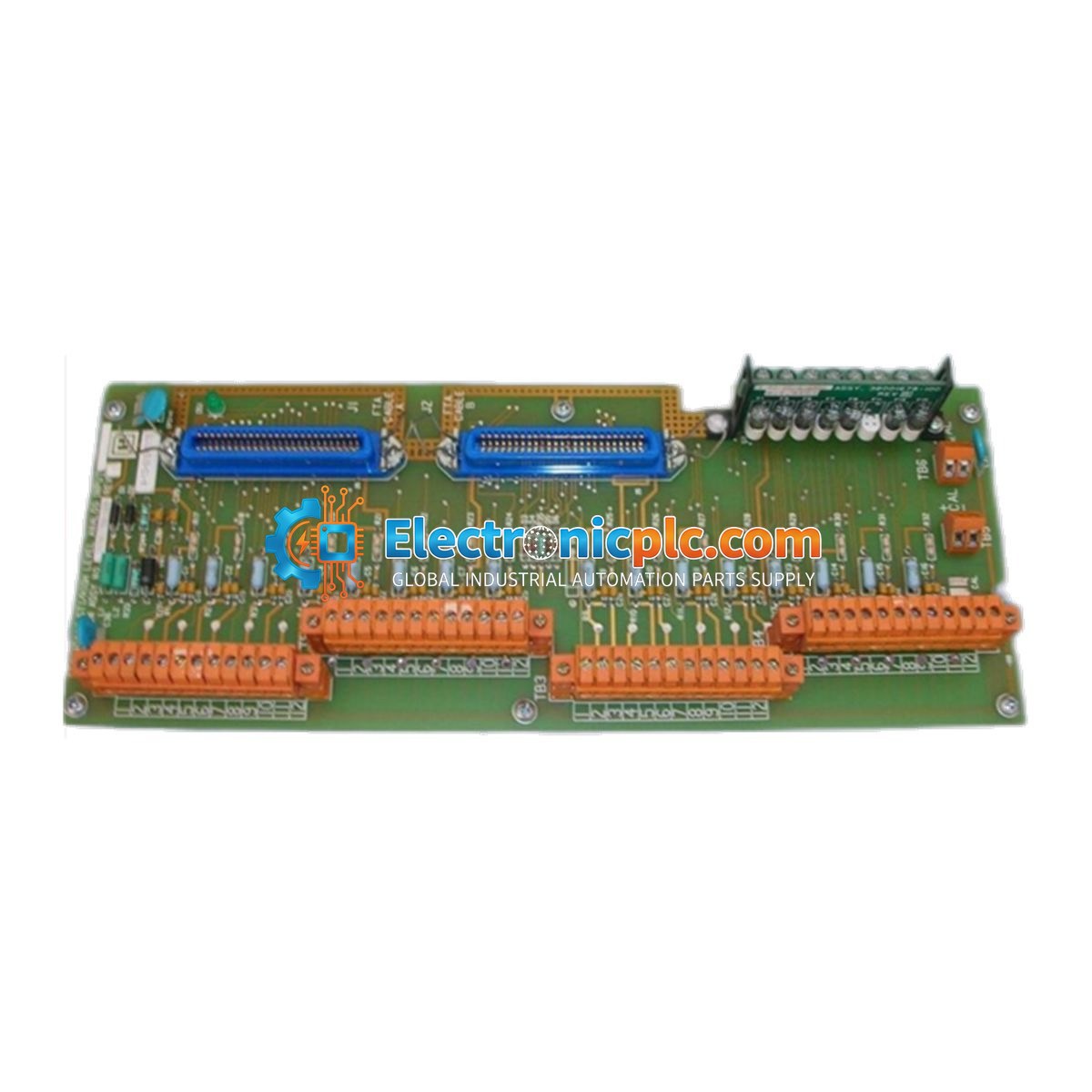

Honeywell MU-TAIH22 Enhanced Power High Level Analog Input STI FTA

Honeywell MU-TAIH22 Enhanced Power High Level Analog Input STI FTA

Description

The Honeywell MU-TAIH22 is an Enhanced Power High Level Analog Input and Smart Transmitter Interface (STI) Field Termination Assembly (FTA). Engineered for 16-channel process signal acquisition, this module serves as...

21 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 5

SKU: MU-TAIH22
Proveedora: Honeywell
tipo: Analog Input FTA
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Honeywell MU-TAIH22 is an Enhanced Power High Level Analog Input and Smart Transmitter Interface (STI) Field Termination Assembly (FTA). Engineered for 16-channel process signal acquisition, this module serves as a critical interface in industrial automation systems, facilitating the connection between field instrumentation and the control system. It is specifically designed to support high-level analog inputs while providing enhanced loop power distribution for connected transmitters, ensuring signal integrity and diagnostic capability in demanding process environments.

Features

  • 16-Channel Capacity: Supports high-density signal termination for up to 16 analog field devices.
  • STI Capability: Integrated Smart Transmitter Interface support allows for enhanced diagnostic data exchange and improved loop monitoring.
  • Enhanced Power Architecture: Provides regulated and stable loop excitation for field-mounted transmitters.
  • Signal Integrity: Designed to minimize inter-channel interference and ensure consistent signal transmission to the control subsystem.
  • Simplified Maintenance: The FTA architecture isolates field wiring from control electronics, facilitating easier troubleshooting and reducing fault propagation.

Applications

The MU-TAIH22 is widely utilized in high-availability process control environments, including:

  • Refinery and petrochemical processing units.
  • Power generation plant instrumentation.
  • Offshore oil and gas platforms.
  • Heavy industrial chemical processing facilities.

Technical Specifications

Model MU-TAIH22
Brand Honeywell
Module Type Enhanced Power High Level Analog Input STI FTA
Input Channels 16
Signal Type High Level Analog Input with STI support
Operating Temperature -20 to 60 deg C
Power Architecture Enhanced loop power distribution

Installation Guidelines

  • ESD Precautions: Always follow standard electrostatic discharge (ESD) procedures when handling the module to prevent damage to sensitive electronic components.
  • Wiring: Ensure all field wiring is properly secured to the terminal blocks. Use shielded cabling where required to maintain signal integrity and reduce EMI.
  • Power Down: Always disconnect power to the FTA and associated I/O subsystem before installing or removing the module from the rack or cabinet.
  • Environment: Ensure the installation location provides adequate ventilation and remains within the specified operating temperature range of -20 to 60 deg C.
  • Grounding: Verify that the FTA chassis is properly grounded according to the site-specific control system grounding standards to ensure safety and noise immunity.

FAQ

What is the primary function of the MU-TAIH22?
The MU-TAIH22 acts as a field termination assembly that connects 16 analog field devices to a Honeywell control system, providing signal conditioning and enhanced loop power for smart transmitters.

Does this module require external power?
The module is designed for passive termination with system-supplied loop power, utilizing its enhanced power architecture to distribute excitation to field devices.
