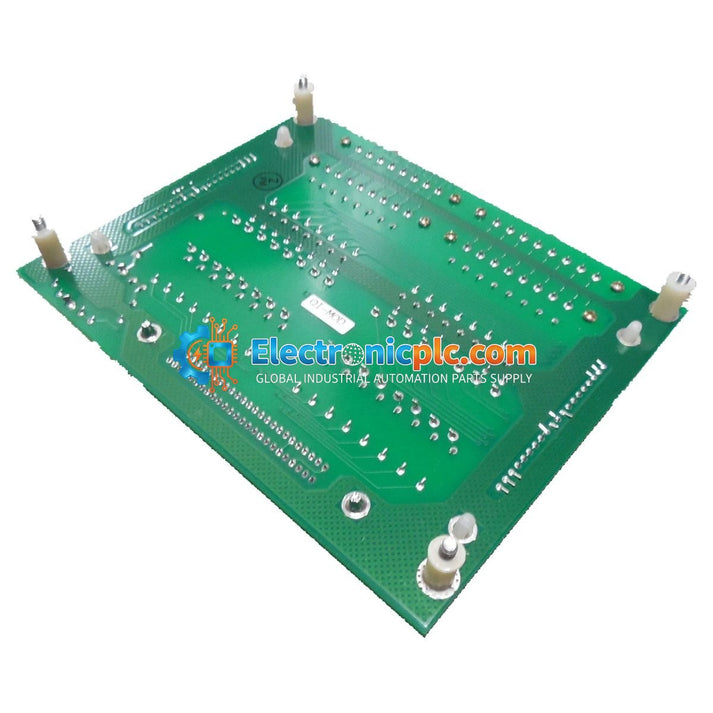

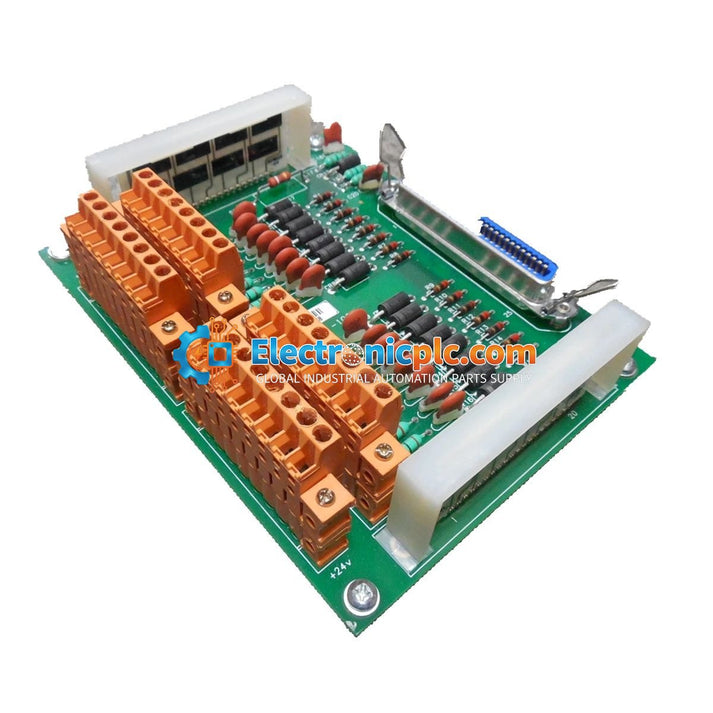

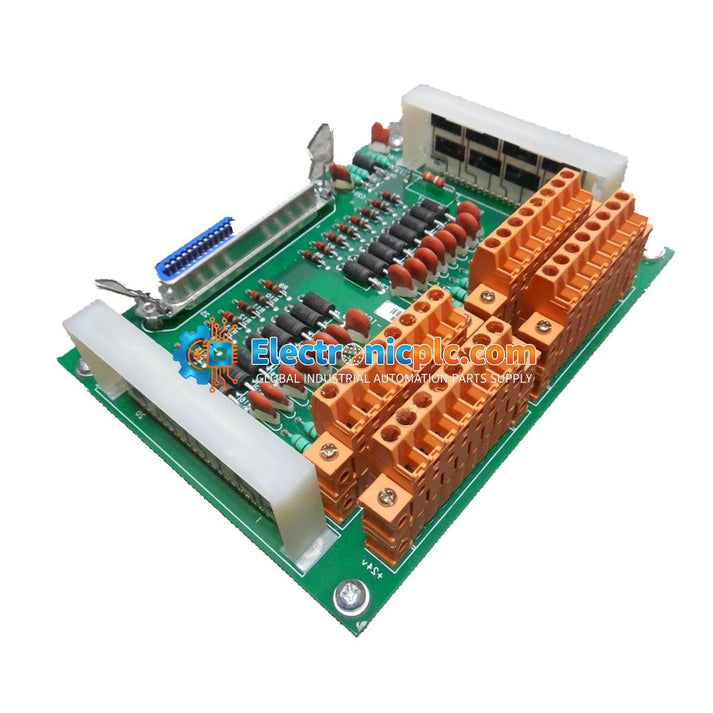

Honeywell MU-TSTX03 Smart Transmitter Interface FTA

Honeywell MU-TSTX03 Smart Transmitter Interface FTA

Description

The Honeywell MU-TSTX03 is a Smart Transmitter Interface Field Termination Assembly (FTA) engineered to facilitate robust communication between smart field transmitters and industrial control systems. This module serves as a...

15 la gente está viendo esto ahora mismo

Disponibilidad: En existencias

SKU: MU-TSTX03
Proveedora: Honeywell
tipo: Smart Transmitter Interface FTA
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Honeywell MU-TSTX03 is a Smart Transmitter Interface Field Termination Assembly (FTA) engineered to facilitate robust communication between smart field transmitters and industrial control systems. This module serves as a critical bridge in process automation, ensuring reliable signal conversion and transmission for process variables and diagnostic data.

Features

  • Supports RS-485 serial communication for high noise immunity and long-distance signal transmission.
  • High-speed data exchange capabilities reaching up to 1 Mbps.
  • Designed for high reliability in demanding industrial environments, including oil, gas, and power generation facilities.
  • Low power consumption design, operating efficiently at 5 VDC.
  • Wide operating temperature range for deployment in diverse field conditions.

Applications

The MU-TSTX03 is typically utilized in distributed control system (DCS) architectures where smart field instruments must communicate with host controllers. It is suitable for applications requiring high-integrity data acquisition, such as flow, pressure, and temperature monitoring in complex process loops.

Technical Specifications

Model MU-TSTX03
Brand Honeywell
Product Type Smart Transmitter Interface FTA
Communication Protocol RS-485
Data Transfer Rate Up to 1 Mbps
Operating Temperature -40 to 85 deg C
Power Supply 5 VDC
Power Consumption Less than 0.5 W

Installation Guidelines

  • Ensure the control system is powered down before installing or removing the FTA module to prevent electrical damage.
  • Mount the module in a clean, dry environment, preferably within a NEMA-rated enclosure to protect against dust and moisture.
  • Use shielded twisted-pair cabling for RS-485 connections to minimize electromagnetic interference (EMI).
  • Ensure proper grounding of the cable shields at the control cabinet end to maintain signal integrity.
  • Verify that all terminal connections are secure and free from oxidation before applying power.
  • Maintain adequate spacing around the module to allow for proper heat dissipation during operation.

FAQ

What is the primary function of the MU-TSTX03?
The MU-TSTX03 acts as a field termination assembly that interfaces smart transmitters with a control system via RS-485, ensuring stable and high-speed data transmission.

Can this module be used in outdoor environments?
Yes, the module is designed with a wide operating temperature range of -40 to 85 deg C, making it suitable for harsh industrial conditions, provided it is housed in an appropriate protective enclosure.
