Description

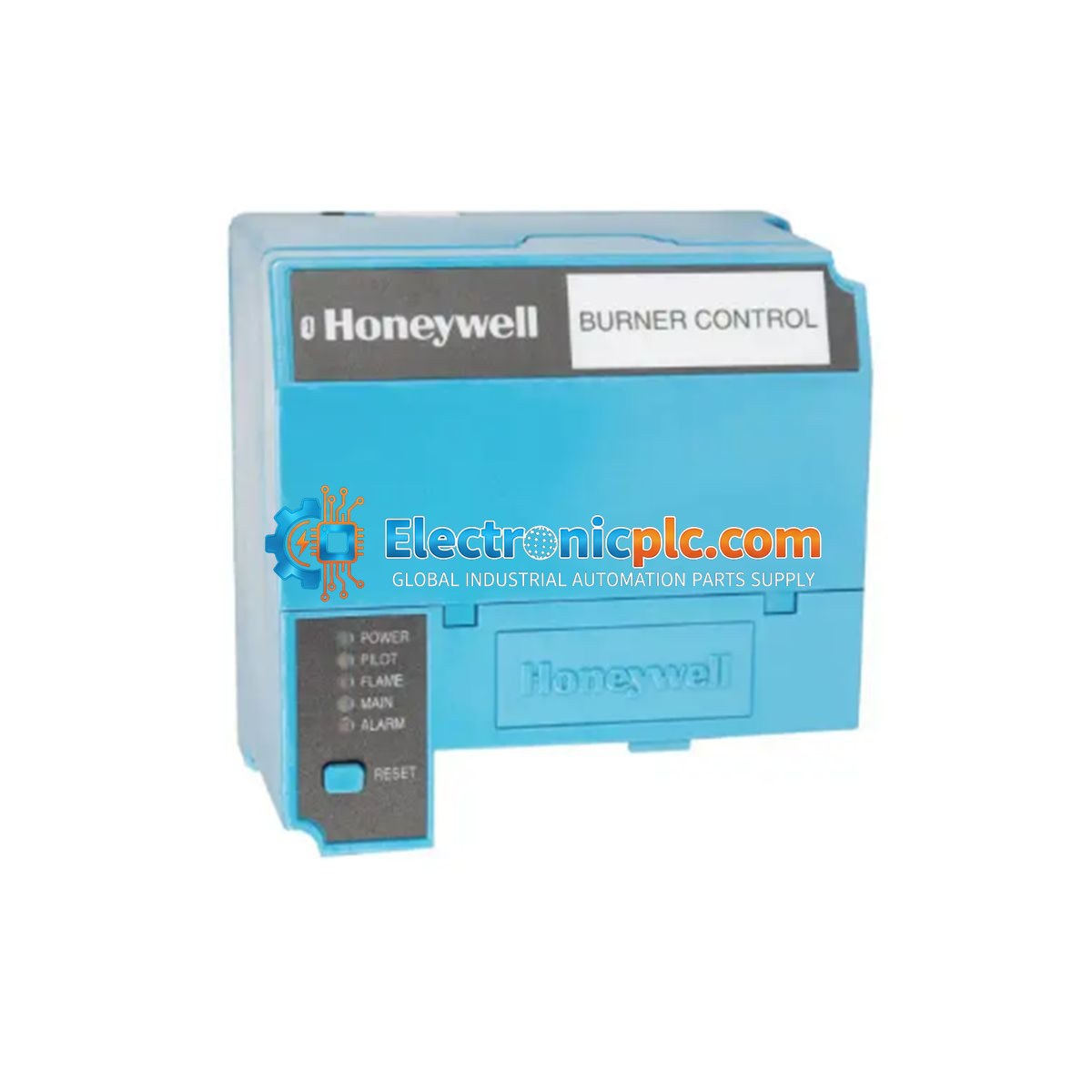

The Honeywell R7120M1001 is a high-reliability, microprocessor-based integrated burner control module engineered for industrial combustion management. This unit is designed to provide precise control logic for burner start-up, operation, and shutdown sequences, ensuring safety and efficiency in critical applications such as power generation boilers, refinery burners, and process heating systems. By automating ignition sequencing and providing continuous flame supervision, the R7120M1001 minimizes unplanned downtime and enhances overall system safety integrity.

Features

• Microprocessor-based sequencing for automated purge, ignition, and run cycles.
• Integrated safety interlocks and flame supervision logic for enhanced operational safety.
• Compatible with Fireye M series architectures for seamless integration into existing control ecosystems.
• Continuous duty design optimized for harsh industrial environments.
• Advanced internal diagnostics that monitor relay status, sensor feedback, and safety loop integrity.
• Compact enclosure design suitable for direct panel mounting.

Applications

• Industrial power generation boilers.
• Refinery burner management systems.
• Process heating and thermal management systems.
• Mission-critical combustion control environments requiring deterministic sequencing.

Technical Specifications

Installation Guidelines

• Ensure the control cabinet is properly grounded to prevent EMI interference with the microprocessor logic.
• Verify that the power supply is disconnected before installing or removing the module from the panel.
• Ensure adequate ventilation around the module to maintain stable thermal performance within the 0 to 60 deg C operating range.
• Route signal and sensor cables away from high-voltage power lines to maintain signal integrity for flame detection inputs.
• Follow all local safety codes and manufacturer wiring diagrams when connecting external limit switches and flame detectors.

FAQ

What is the primary function of the R7120M1001?

The R7120M1001 acts as the central control unit for managing burner ignition sequences, flame monitoring, and safety interlocks in industrial combustion systems.

Is this module compatible with Fireye systems?

Yes, the R7120M1001 is engineered for compatibility with Fireye M series style control architectures, allowing for structured burner management.

What are the environmental requirements for this module?

The module is designed for industrial use with an operating temperature range of 0 to 60 deg C. It should be installed in an environment protected from excessive moisture and extreme vibration.
