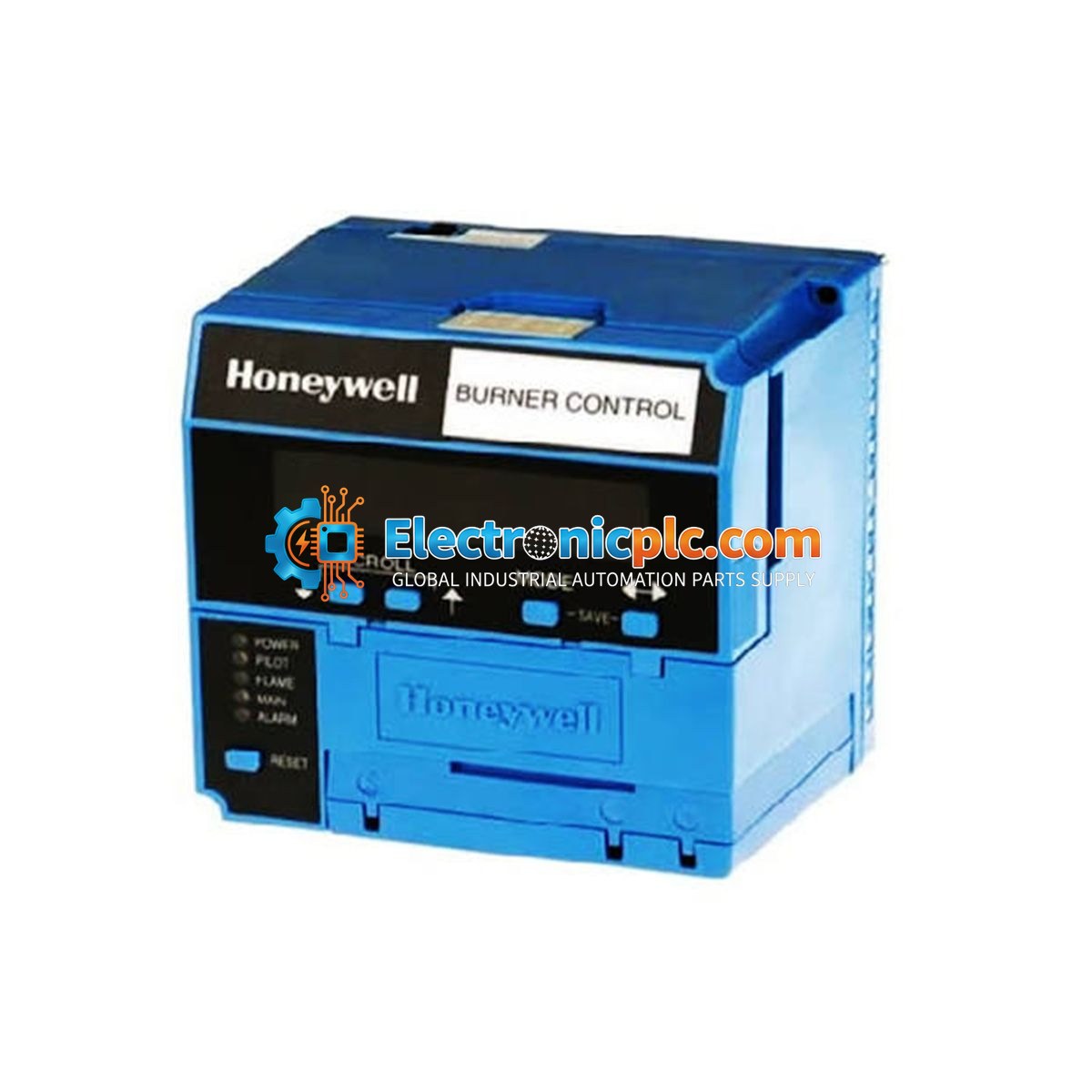

Honeywell RM7800L1079 7800 SERIES Burner Control Relay Module

Honeywell RM7800L1079 7800 SERIES Burner Control Relay Module

Description

The Honeywell RM7800L1079 is a microprocessor-based burner control relay module designed for industrial combustion safety and sequencing applications. As a core component of the 7800 SERIES architecture, this module provides...

18 la gente está viendo esto ahora mismo

Disponibilidad: En existencias

SKU: RM7800L1079
Proveedora: Honeywell
tipo: Burner Control Relay Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Honeywell RM7800L1079 is a microprocessor-based burner control relay module designed for industrial combustion safety and sequencing applications. As a core component of the 7800 SERIES architecture, this module provides reliable flame supervision, safe start-up/shutdown logic, and automated burner management. It is engineered for use in boiler systems, process heaters, and power generation burner management systems, ensuring deterministic control of ignition, purge, and run cycles.

Features

  • Microprocessor-based logic for precise burner sequencing and safety interlock management.
  • Integrated flame supervision capabilities for enhanced operational safety.
  • Modular plug-in design for rapid replacement and reduced system downtime.
  • Compatible with standard 7800 SERIES keyboard display modules for real-time status monitoring and configuration.
  • Supports automated programming sequences including pre-purge, ignition, and post-purge cycles.
  • Designed for 120 VAC control supply environments.

Applications

The RM7800L1079 is widely utilized in heavy industrial thermal systems, including:

  • Industrial boiler control systems.
  • Process heater management.
  • Power generation burner management systems.
  • Refinery and petrochemical combustion safety applications.

Technical Specifications

Model RM7800L1079
Brand Honeywell
Series 7800 SERIES
Product Type Burner Control Relay Module
Power Supply 120 VAC, 60 Hz
Power Consumption Approx 10 W
Operating Temperature 0 to 60 deg C
Mounting Plug-in rack configuration

Installation Guidelines

  • Ensure the system power is completely disconnected before inserting or removing the module from the chassis.
  • The module is designed for plug-in installation within a standard 7800 SERIES burner control chassis.
  • Verify that the chassis wiring matches the required configuration for the RM7800L1079 model.
  • Ensure proper grounding of the burner management cabinet to prevent electrical noise interference.
  • Handle the module with care to avoid damage to the connector pins on the rear of the unit.
  • After installation, perform a full system test to verify that all safety interlocks and sequencing logic are functioning as intended.

FAQ

What is the primary function of the RM7800L1079?

The RM7800L1079 serves as a burner control relay module that manages the safe sequencing of burner start-up, operation, and shutdown, while providing integrated flame supervision.

Is this module compatible with other 7800 SERIES components?

Yes, the RM7800L1079 is designed to integrate with standard 7800 SERIES keyboard display modules and auxiliary interface units for configuration and monitoring.

What power supply is required for this module?

This module is designed to operate on a 120 VAC, 60 Hz power supply.
