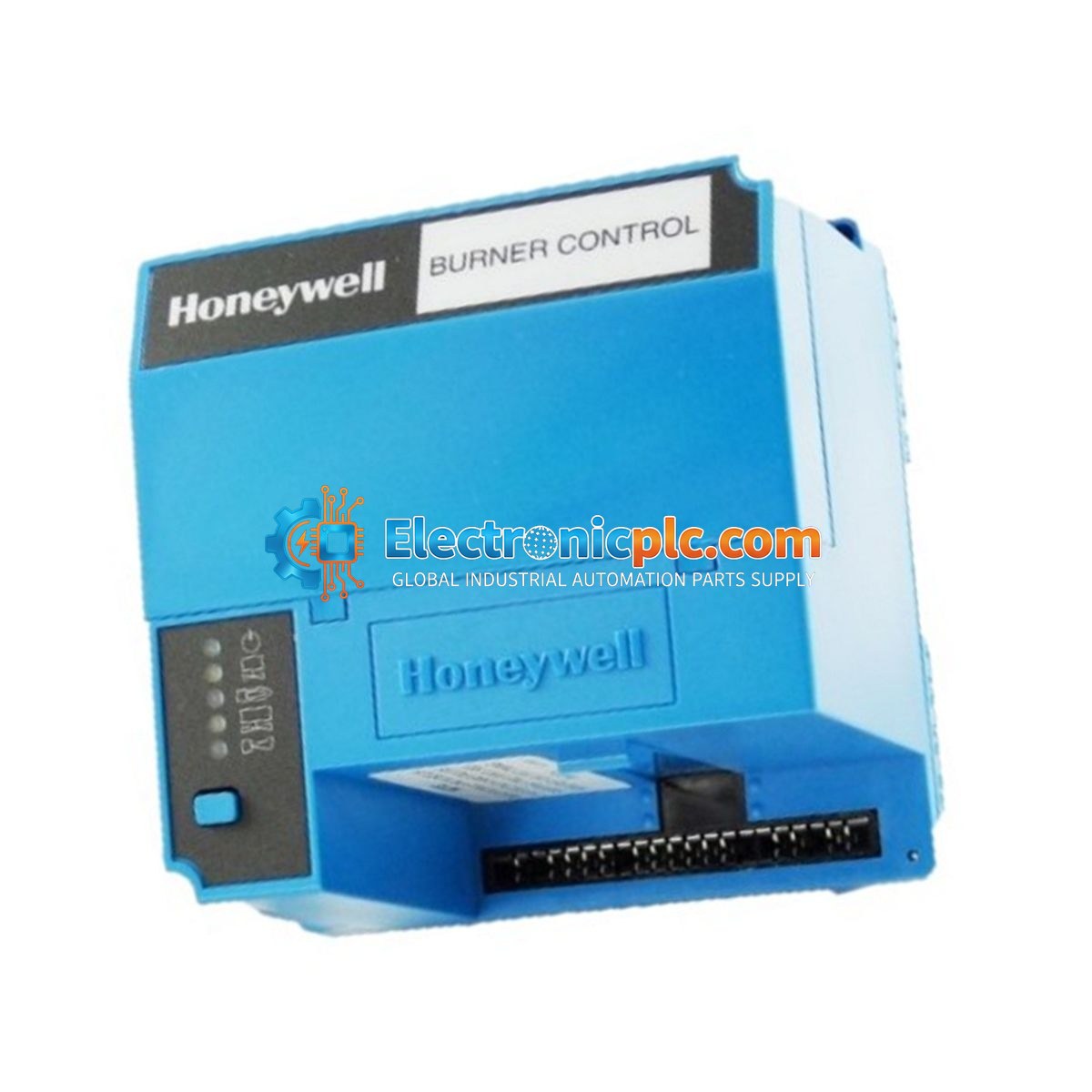

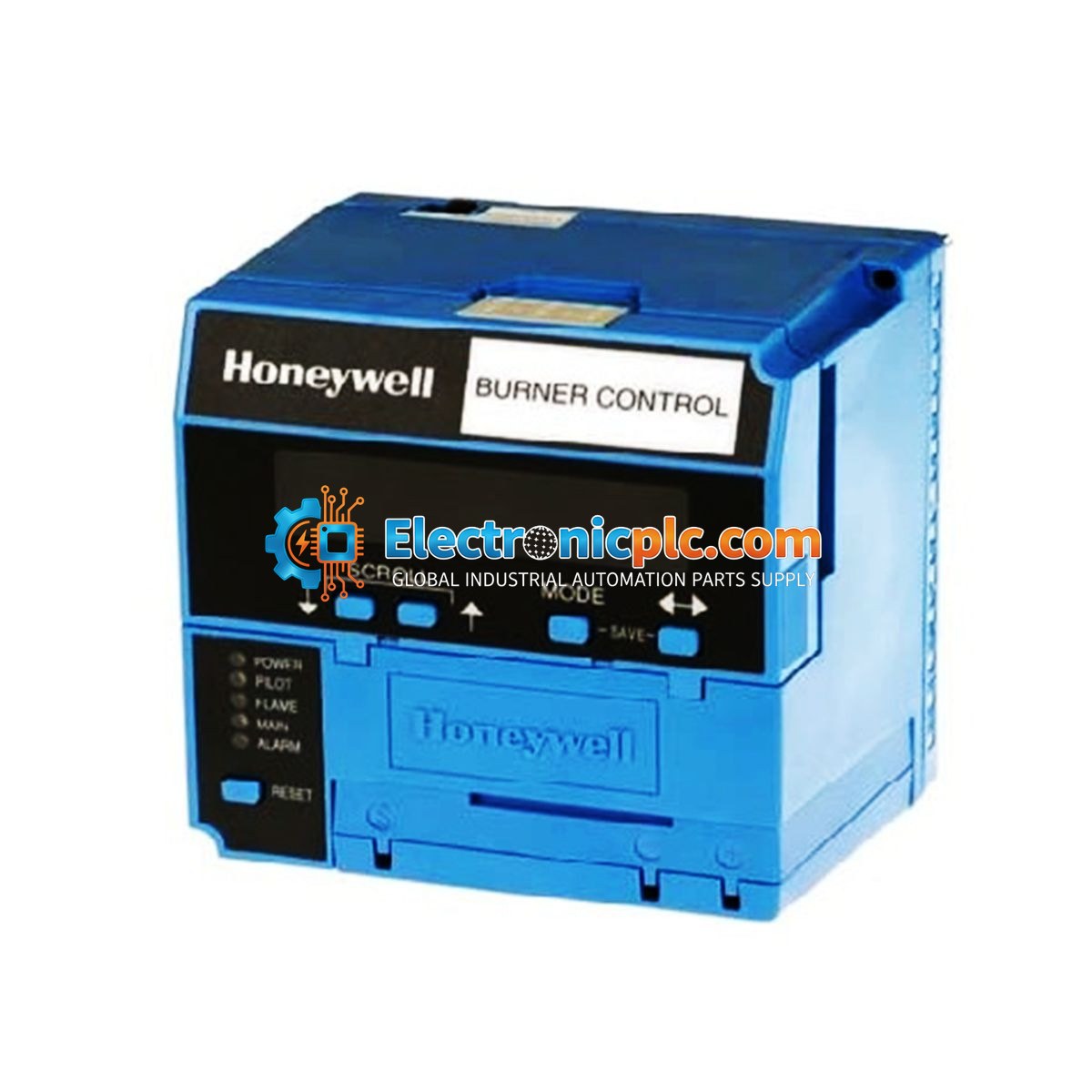

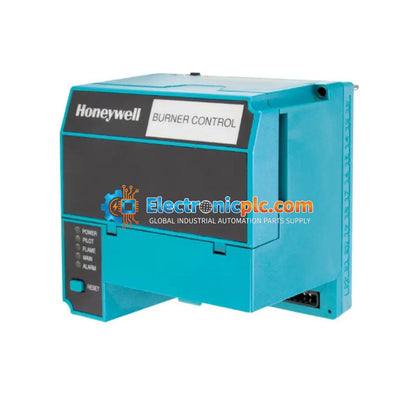

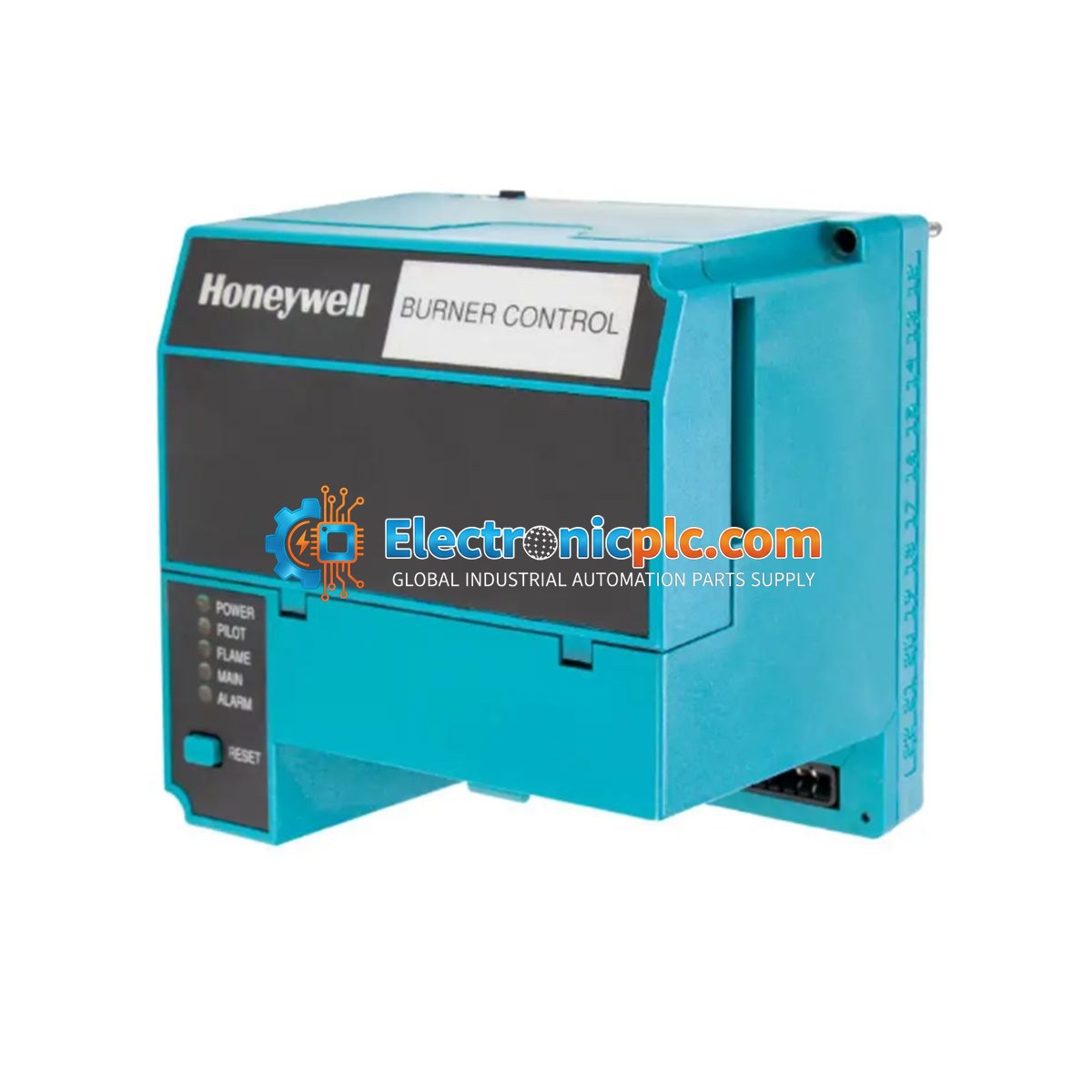

Honeywell RM7824A1006 Primary Control Module

Honeywell RM7824A1006 Primary Control Module

Description

The Honeywell RM7824A1006 is a microprocessor-based primary burner control module designed for 24 VDC combustion management systems within the Honeywell 7800 Series architecture. This controller provides automatic burner sequencing,...

19 la gente está viendo esto ahora mismo

Disponibilidad: En existencias

SKU: RM7824A1006
Proveedora: Honeywell
tipo: Burner Control Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Honeywell RM7824A1006 is a microprocessor-based primary burner control module designed for 24 VDC combustion management systems within the Honeywell 7800 Series architecture. This controller provides automatic burner sequencing, flame supervision, fault diagnostics, and safety shutdown functions for industrial burners, boilers, furnaces, and thermal processing equipment. It features integrated nonvolatile memory to preserve lockout history and operational records during power interruptions, facilitating efficient troubleshooting and maintenance.

Features

  • Microprocessor-based burner management for reliable sequencing and safety.
  • Five front-panel LED indicators for continuous sequence and status monitoring.
  • User-selectable recycle or lockout functionality for operational flexibility.
  • Nonvolatile memory for secure retention of fault and operational history.
  • Integrated shutter drive output to support dynamic self-check flame detection systems.
  • External voltage test access points for simplified commissioning.

Applications

The RM7824A1006 is engineered for critical combustion environments, including refineries, power generation facilities, petrochemical plants, and large-scale industrial heating systems where precise flame safeguard performance is required to minimize downtime and ensure safe operation.

Technical Specifications

Model RM7824A1006
Supply Voltage 24 VDC (+10%, -15%)
Pilot Type Intermittent
Pilot Flame Establishing Period 4 seconds or 10 seconds
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 60 deg C
Vibration Rating 0.5 G
Compatible Subbases Q7800A, Q7800B

Installation Guidelines

  • Ensure power is disconnected from the subbase before inserting or removing the module.
  • Mount the module onto a compatible Q7800A or Q7800B universal wiring subbase.
  • Verify that all wiring connections are secure and follow local electrical codes and the specific burner manufacturer's wiring diagrams.
  • Maintain proper grounding practices to minimize EMI interference.
  • Ensure the installation environment is within the specified temperature range (0 to 60 deg C) and free from excessive vibration beyond the 0.5 G rating.
  • Handle with standard ESD precautions to protect internal electronic components.

FAQ

What flame detectors are compatible with this module?

The RM7824A1006 supports several flame amplifiers and detectors, including R7824C (for C7024E/F), R7848A/B (for C7015A), R7851B (for C7927/C7962), and R7852A/B (for C7915).

Can the lockout history be retrieved after a power loss?

Yes, the module features nonvolatile memory that retains lockout history and operational records even during power interruptions.
