Description

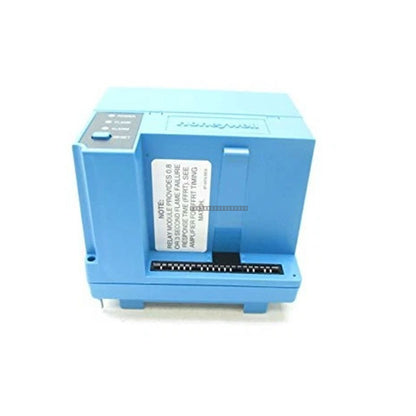

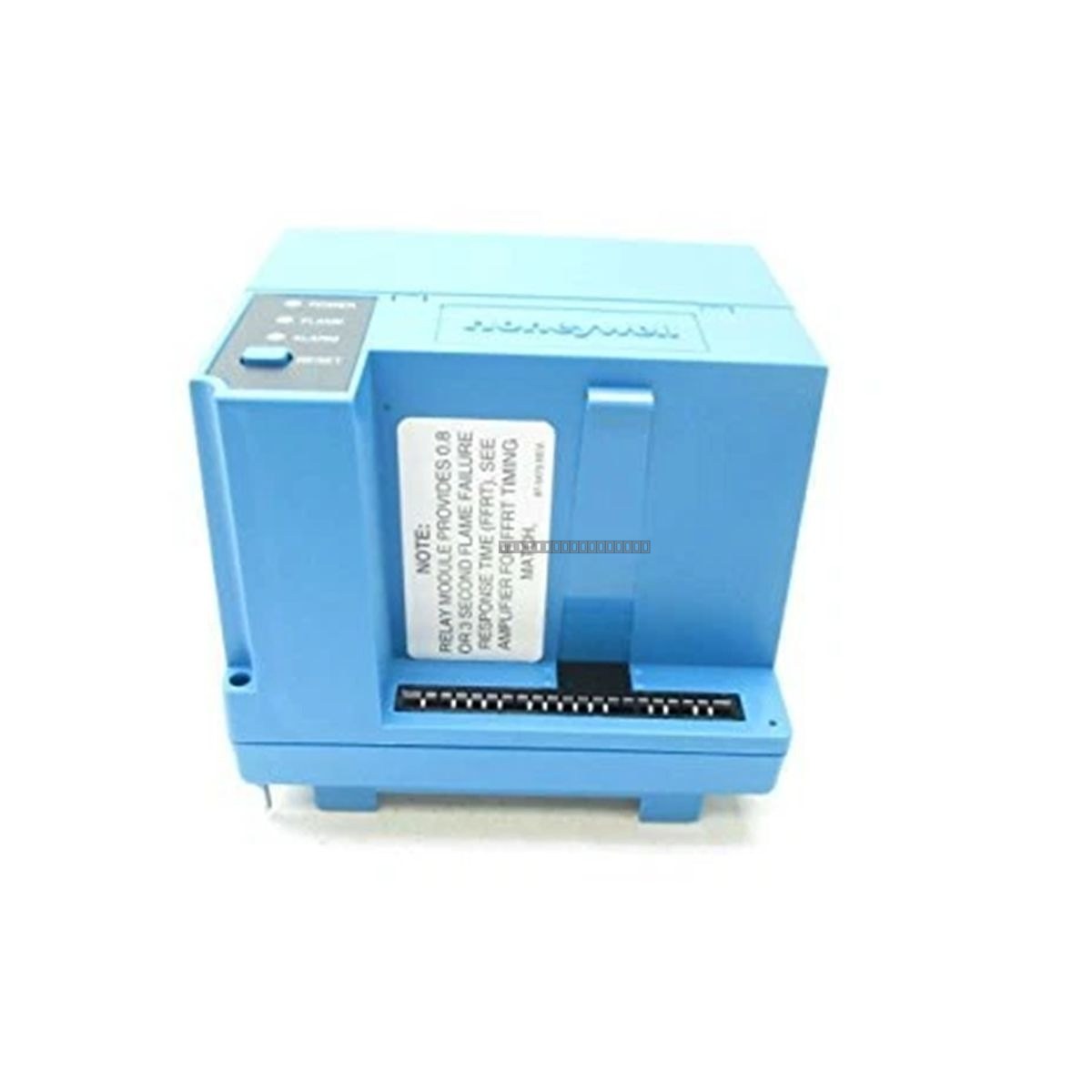

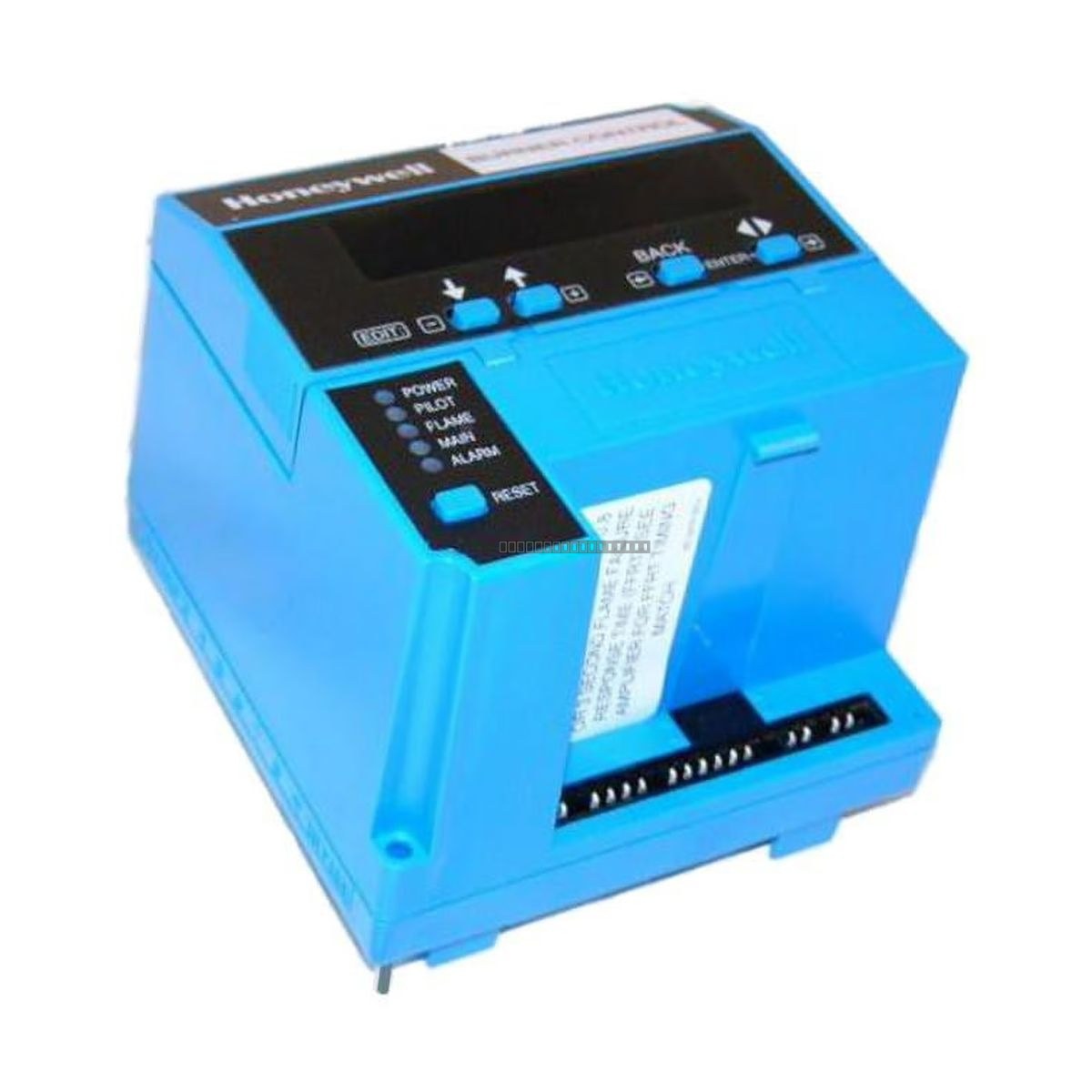

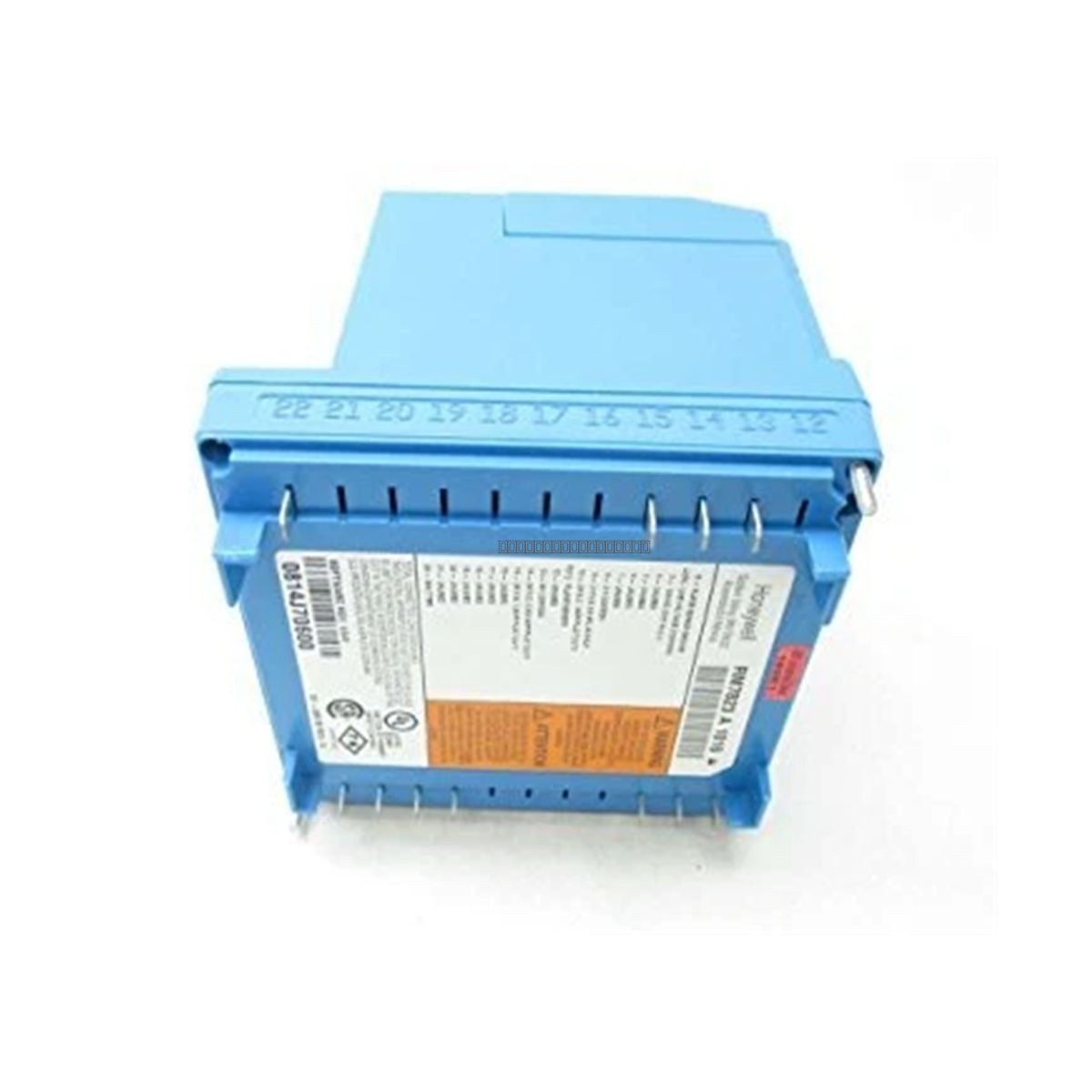

The RM7890A1015 is a Honeywell 7800 SERIES relay-based burner control unit designed for automated combustion sequencing in industrial heating systems. It is applied in boilers, HVAC combustion lines, and refinery burners where controlled ignition, pilot flame verification, and main flame establishment are required for safe operation. The module executes intermittent pilot and intermittent main flame sequences with fixed timing logic, ensuring repeatable start-up behavior under varying load conditions. It is commonly used in thermal process plants where ignition reliability directly impacts production continuity. The unit incorporates nonvolatile memory to retain configuration data during power loss, reducing restart errors after outages. Its plug-in rack architecture enables fast replacement, minimizing downtime in critical combustion control loops. It is a direct replacement for the RM7890A1007 and maintains backward compatibility within the 7800 SERIES platform.

Features

• Automated burner sequencing including purge, pilot ignition, flame proving, and main valve activation.
• Intermittent pilot and intermittent main flame establishing periods.
• Nonvolatile memory for configuration data retention during power loss.
• Five onboard LEDs for sequence status indication and fault diagnostics.
• Standardized backplane interface for compatibility with 7800 SERIES accessories, flame amplifiers, and display modules.
• Plug-in rack mount design for rapid field replacement.

Applications

This module is designed for use in industrial boiler controls, HVAC combustion systems, and burner management systems in refinery or thermal processing plants requiring automated, safe, and reliable ignition sequences.

Technical Specifications

Installation Guidelines

• Ensure the burner control chassis is properly grounded before installing the module.
• Power must be disconnected from the chassis before inserting or removing the RM7890A1015 module to prevent electrical damage or unexpected sequencing.
• Ensure the module is fully seated in the 7800 SERIES rack to maintain secure electrical contact with the backplane.
• Verify that all external flame sensors and ignition transformers are correctly wired to the chassis terminals according to the specific system wiring diagram.
• Keep signal cables away from high-voltage ignition leads to prevent EMI/RFI interference with flame signal detection.
• Perform a full safety checkout and flame signal verification after replacement to ensure proper operation.

FAQ

What is the primary function of the RM7890A1015?

The RM7890A1015 acts as an on-off primary burner control that manages the automated sequencing of burner ignition, pilot flame proving, and main flame establishment for industrial combustion systems.

Is this module compatible with the RM7890A1007?

Yes, the RM7890A1015 is a direct replacement for the RM7890A1007 and is fully compatible with the 7800 SERIES platform.

Does this module require external accessories?

Yes, it typically interfaces with 7800 SERIES accessories such as flame amplifiers and display modules to function within a complete burner management system.
