General Electric IC200MDL740 VersaMax Discrete Output Module

General Electric IC200MDL740 VersaMax Discrete Output Module

Description

The General Electric IC200MDL740 is a 16-point discrete output module designed for the VersaMax I/O system. This module provides 16 sourcing-type (positive logic) outputs, operating with a nominal 12/24 VDC...

15 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 9

SKU: IC200MDL740
Proveedora: General Electric
tipo: Discrete Output Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

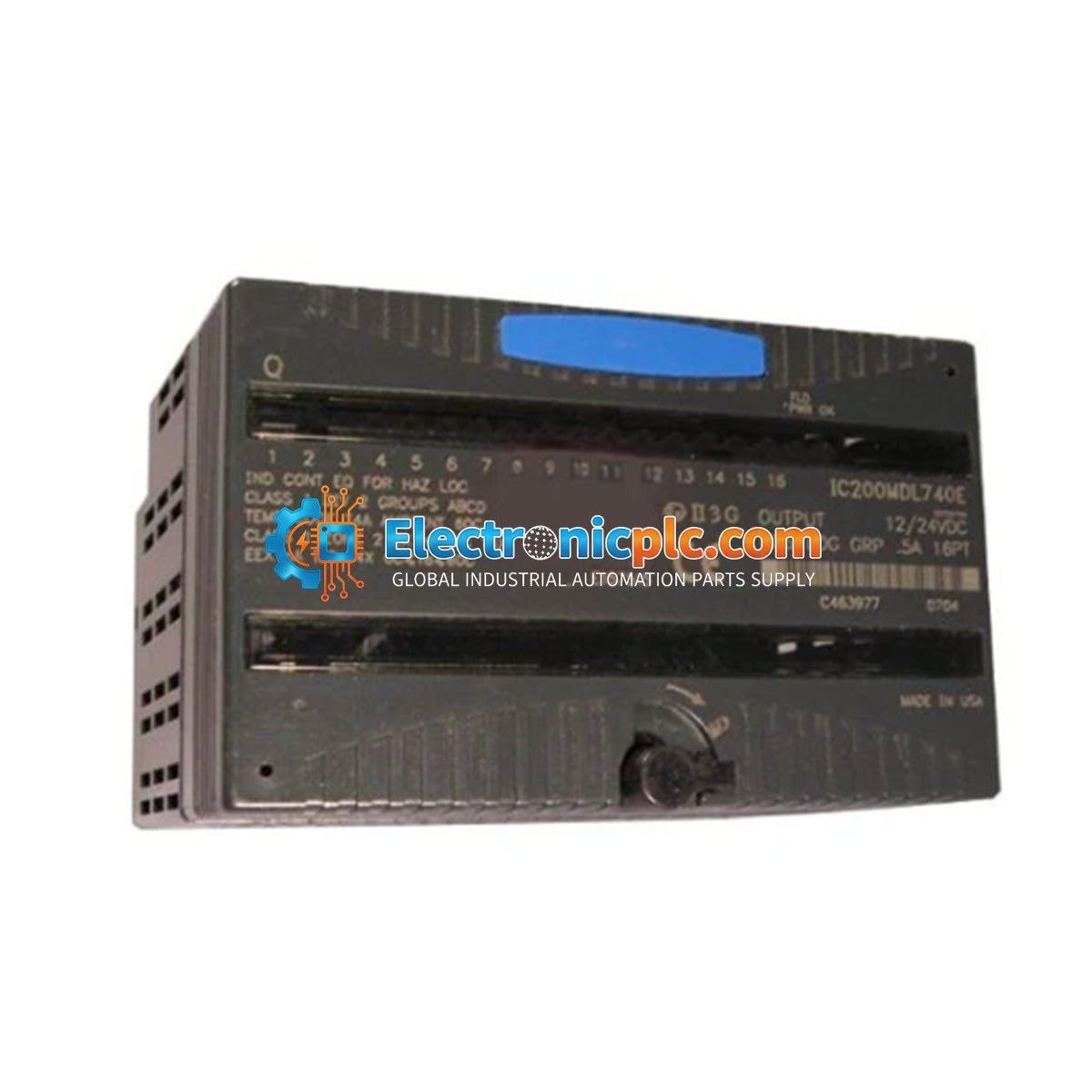

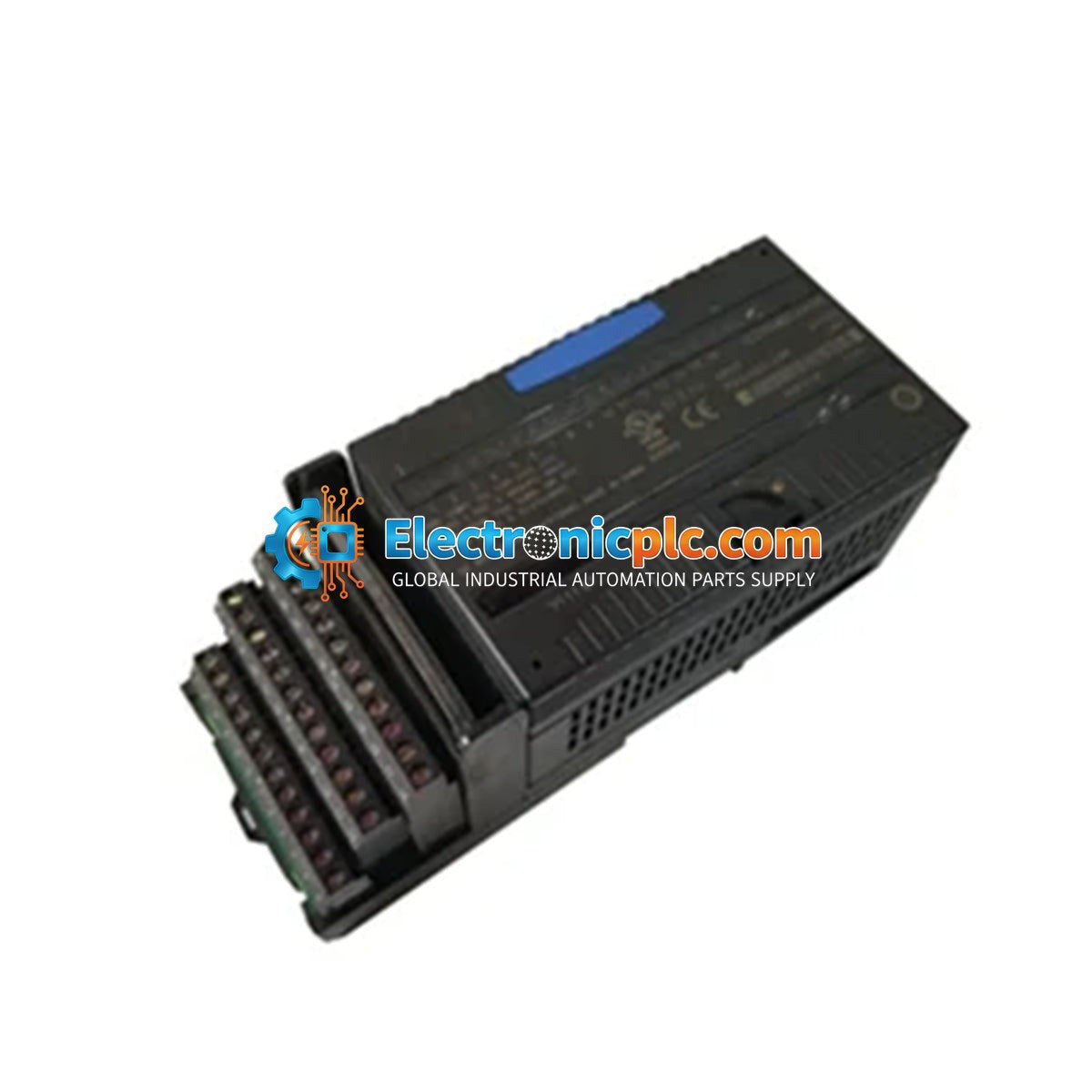

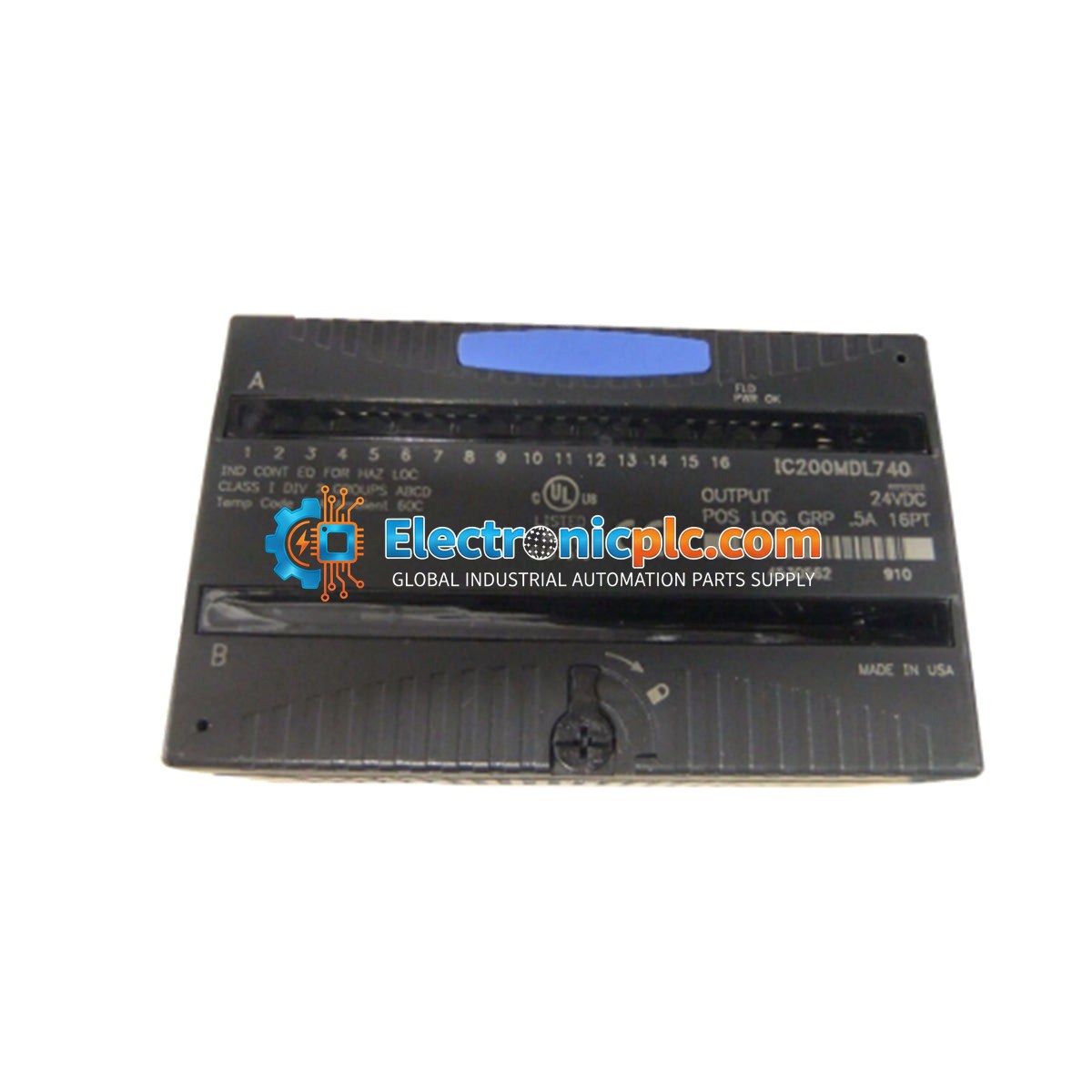

The General Electric IC200MDL740 is a 16-point discrete output module designed for the VersaMax I/O system. This module provides 16 sourcing-type (positive logic) outputs, operating with a nominal 12/24 VDC supply. It is engineered for industrial automation applications requiring reliable, high-speed switching of field devices such as solenoids, contactors, and indicators. The module features a compact, modular design that supports hot-swapping, allowing for maintenance and replacement without interrupting the backplane power or requiring extensive rewiring.

Features

  • 16-point sourcing (positive logic) discrete output configuration.
  • Supports 12/24 VDC nominal external power supply (10.2 to 30 VDC range).
  • 0.5 Amp per point output current capacity.
  • Fast response times: 0.2 ms maximum ON and 1.0 ms maximum OFF.
  • Integrated LED status indicators for real-time monitoring of each output point.
  • Hot-swappable design for reduced downtime during maintenance.
  • Optical isolation between the field side and the backplane.

Applications

  • Packaging and bottling lines for solenoid and actuator control.
  • Material handling systems, including conveyors, sorters, and palletizers.
  • Water and wastewater treatment facilities for valve and pump control.
  • Distributed I/O nodes in energy and oil/gas infrastructure.
  • General industrial and commercial automation control systems.

Technical Specifications

Model IC200MDL740
Output Type Discrete (Sourcing/Positive Logic)
Number of Points 16
Current per Point 0.5 A
External Power Supply 10.2 to 30 VDC
Backplane Current 45 mA at 5 VDC
Output Leakage Current 0.5 mA at 30 VDC (max)
Protection No internal fuses

Installation Guidelines

  • Mounting: The module is designed for rack-mounting using compatible VersaMax carriers. Ensure the carrier is securely fastened to the DIN rail or panel.
  • Wiring: Connect the positive side of the external DC supply to the DC+ terminal and the negative side to the DC- terminal.
  • Inductive Loads: When driving inductive loads such as solenoids or motor starters, external suppression circuits (e.g., flyback diodes) must be installed to protect the module from voltage spikes.
  • Hot-Swapping: The module supports hot insertion/removal; however, ensure proper ESD precautions are taken when handling the device.
  • Shorting Bars: If additional bussed terminals are required, use a shorting bar with a minimum 2A current-carrying capacity.

FAQ

What is the IC200MDL740 module?

It is a 16-point, 24VDC positive logic (sourcing) output module from the VersaMax family. It switches loads to the positive side of the DC supply.

What is the required power supply?

The module operates with a 24VDC nominal external power supply, with an operating range of 10.2 to 30VDC.

Does the IC200MDL740 provide isolation?

The IC200MDL740 provides optical isolation between the field side and the backplane.

What is the response time?

The output response time is 0.2 milliseconds maximum for "on" and 1.0 millisecond maximum for "off".

What is the backplane current consumption?

It consumes a maximum of 45mA from the 5V output power supply.
