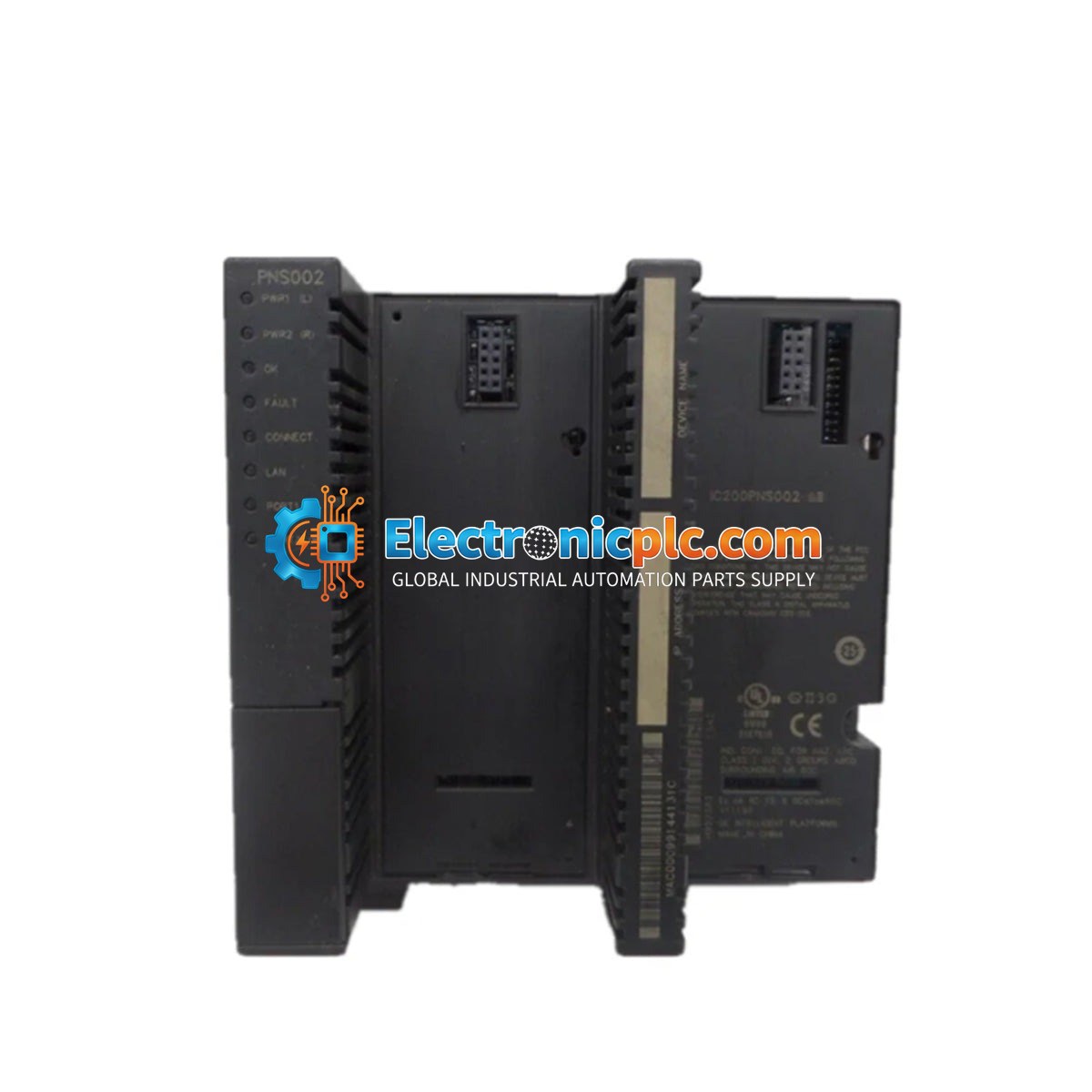

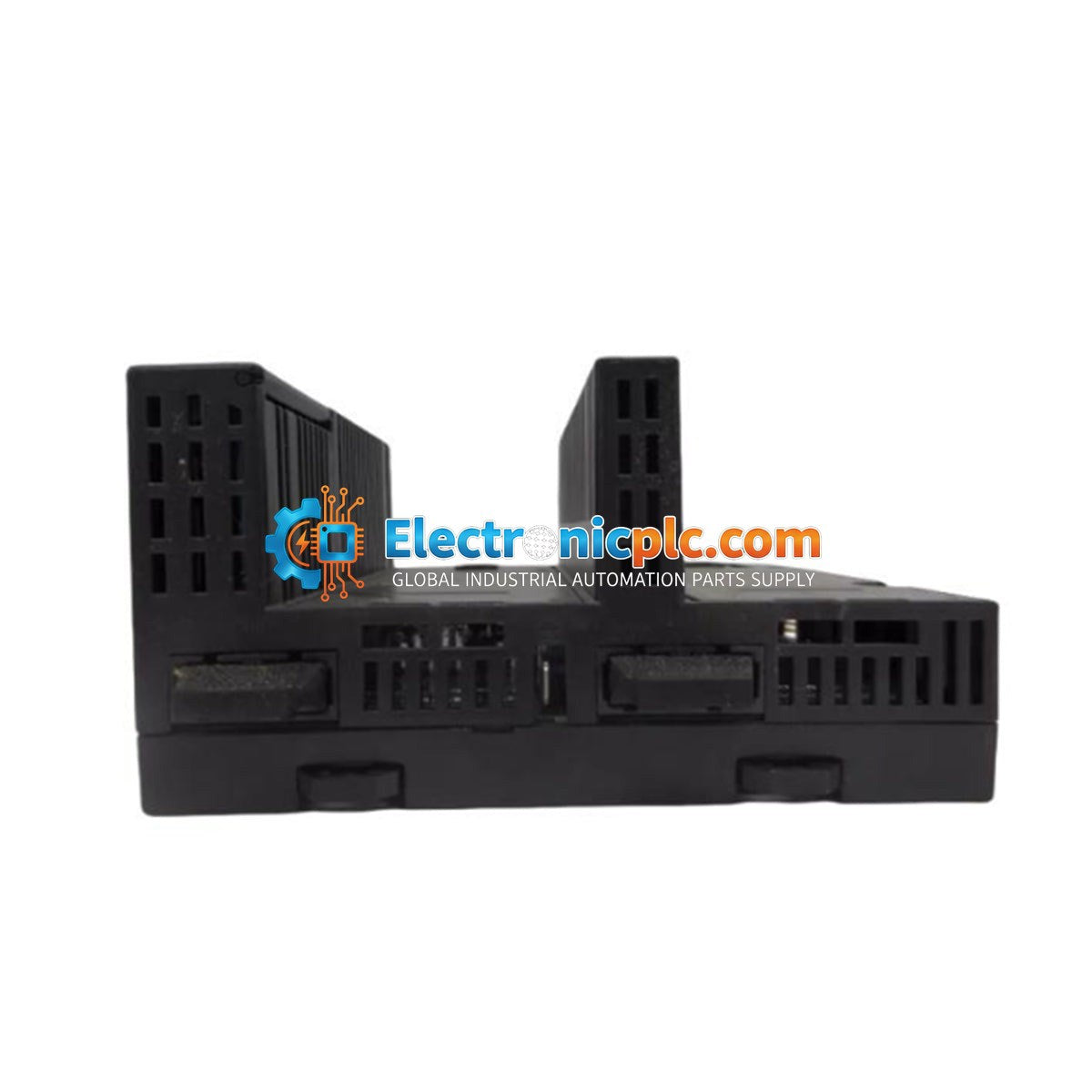

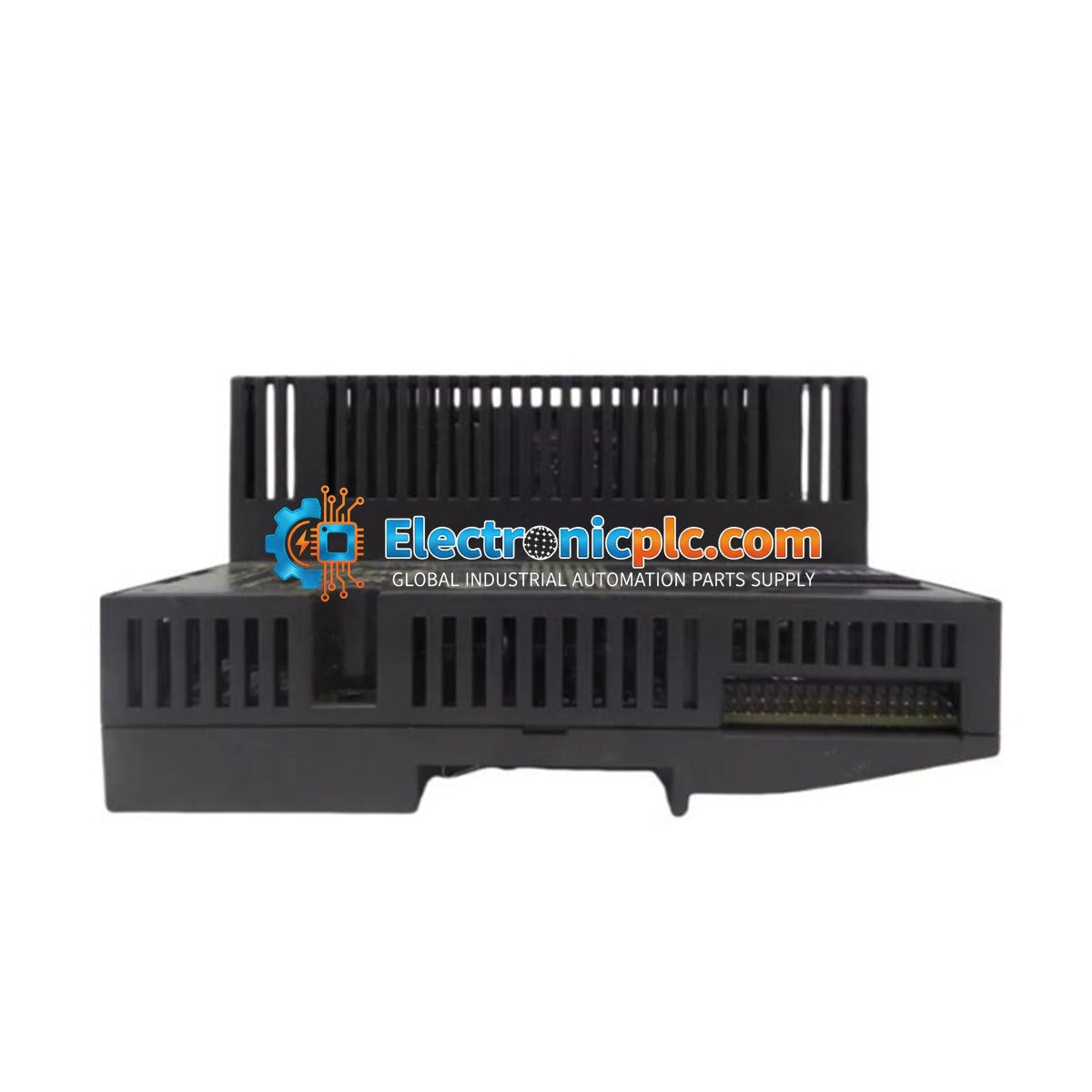

General Electric IC200PNS002 VersaMax PROFINET Scanner Module

General Electric IC200PNS002 VersaMax PROFINET Scanner Module

Description

The General Electric IC200PNS002 is a high-performance PROFINET Scanner (PNS) module within the VersaMax series. Designed for robust industrial communication, this module acts as a bridge between VersaMax I/O stations...

16 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 7

SKU: IC200PNS002
Proveedora: General Electric
tipo: PROFINET Scanner Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The General Electric IC200PNS002 is a high-performance PROFINET Scanner (PNS) module within the VersaMax series. Designed for robust industrial communication, this module acts as a bridge between VersaMax I/O stations and a PROFINET network. It features integrated fiber-optic connectivity and a built-in switch, making it ideal for environments requiring high immunity to electromagnetic interference (EMI). The module supports up to 2880 bytes of total I/O data and is compatible with various network topologies, including daisy-chain, star, and ring configurations.

Features

  • Dual 100 Mbps SC-Duplex Multi-Mode Fiber (MMF) ports.
  • Supports Media Redundancy Protocol (MRP) in client mode for ring topology reliability.
  • Integrated switch functionality for flexible network architecture.
  • Supports redundant power supplies with hot-swap capability for de-energized units.
  • Firmware field-upgradable via dedicated USB port.
  • Standard PROFINET alarm and diagnostic reporting for efficient troubleshooting.
  • Configuration support via Classless InterDomain Routing (CIDR).

Applications

  • Urban infrastructure including water supply, sewage treatment, and tunnel ventilation.
  • High-EMI environments such as power substations and large motor drive stations.
  • Petrochemical facilities requiring fiber-optic isolation in hazardous areas.
  • Long-distance I/O communication in paper and steel mills.

Technical Specifications

Model IC200PNS002
Manufacturer General Electric
Series VersaMax
Device Type PROFINET Scanner (PNS)
Network Ports 2 x SC-Duplex (Multi-Mode Fiber)
PROFINET Support Version 2.2 Class A IO-Device
Power Consumption 1.10A at 5VDC
Total I/O Data 2880 Bytes
Operating Temperature 0 to 60 degC

Installation Guidelines

  • Ensure the module is installed in a clean, dry environment within the specified temperature range.
  • The module features an integrated carrier; no external carrier is required for mounting.
  • Always power down the system before inserting or removing the module to prevent electrical damage.
  • Ensure fiber-optic cables are routed away from high-voltage power lines to maintain signal integrity.
  • Verify that the PROFINET device name is correctly assigned via the network port using a DCP-compliant tool.
  • Use shielded cables and proper grounding practices to minimize potential EMI/RFI impact on the control cabinet.

FAQs

What is the primary function of the IC200PNS002?

The IC200PNS002 serves as a PROFINET Scanner that connects VersaMax I/O modules to a PROFINET network via fiber-optic media.

Can the USB port be used for configuration?

No, the USB port on the IC200PNS002 is reserved exclusively for firmware updates. Network configuration and device naming must be performed through the fiber-optic ports using Proficy Machine Edition.

Does the module support redundant power?

Yes, the module supports redundant power supplies, and the secondary supply can be hot-swapped if it is de-energized.
