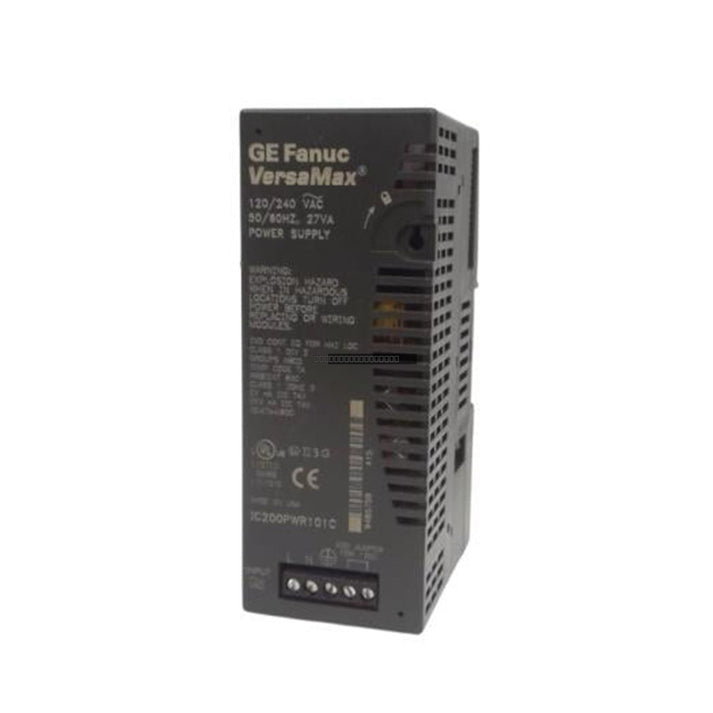

The General Electric IC200PWR101 is a standard 120/240 VAC input power supply module designed for the VersaMax PLC series. This unit provides essential backplane power to CPUs, Network Interface Units (NIUs), and various I/O modules within the rack system. It is engineered to function as either a primary station power supply or as a supplemental power source when installed on a Power Supply Booster Carrier.

Features

• Input voltage range: 120/240 VAC
• Dual output capability: 5 VDC and 3.3 VDC
• Maximum total output current: 1.5 Amps
• Integrated short-circuit and overload protection
• Holdup time: 20 ms
• Compact design for VersaMax backplane integration

Applications

This power supply is widely utilized in industrial automation environments, including:

• Energy and power generation turbine control systems
• Water and wastewater monitoring and pump control
• Automotive manufacturing and material handling conveyor systems
• Petrochemical and oil & gas process control
• HVAC and large-scale building automation

Technical Specifications

Installation Guidelines

• Ensure the system power is disconnected before installing or removing the module from the backplane.
• Verify the input voltage jumper setting matches the supply voltage to prevent equipment damage.
• Maintain adequate clearance around the module to ensure proper ventilation and cooling.
• Use shielded cables for I/O and communication to minimize EMI interference.
• Ensure the module is securely seated on the rack backplane to maintain proper electrical contact.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module.

FAQs

What is the primary function of the IC200PWR101?

The IC200PWR101 serves as a power supply module for the VersaMax PLC system, converting 120/240 VAC input into the 5 VDC and 3.3 VDC required by the backplane components.

Can this module be used as a supplemental power source?

Yes, when mounted on a Power Supply Booster Carrier, this module can function as a supplemental power source for the system.

What is the difference between the IC200PWR101 and the IC200PWR102?

The IC200PWR101 is the standard model, while the IC200PWR102 is an upgraded version that provides expanded 3.3 VDC power capacity for larger I/O configurations.

What happens if the input voltage is not set correctly?

The unit defaults to 240 VAC mode. Applying 120 VAC while the unit is set to 240 VAC may result in insufficient power or system failure; conversely, incorrect high-voltage settings can cause permanent damage.
