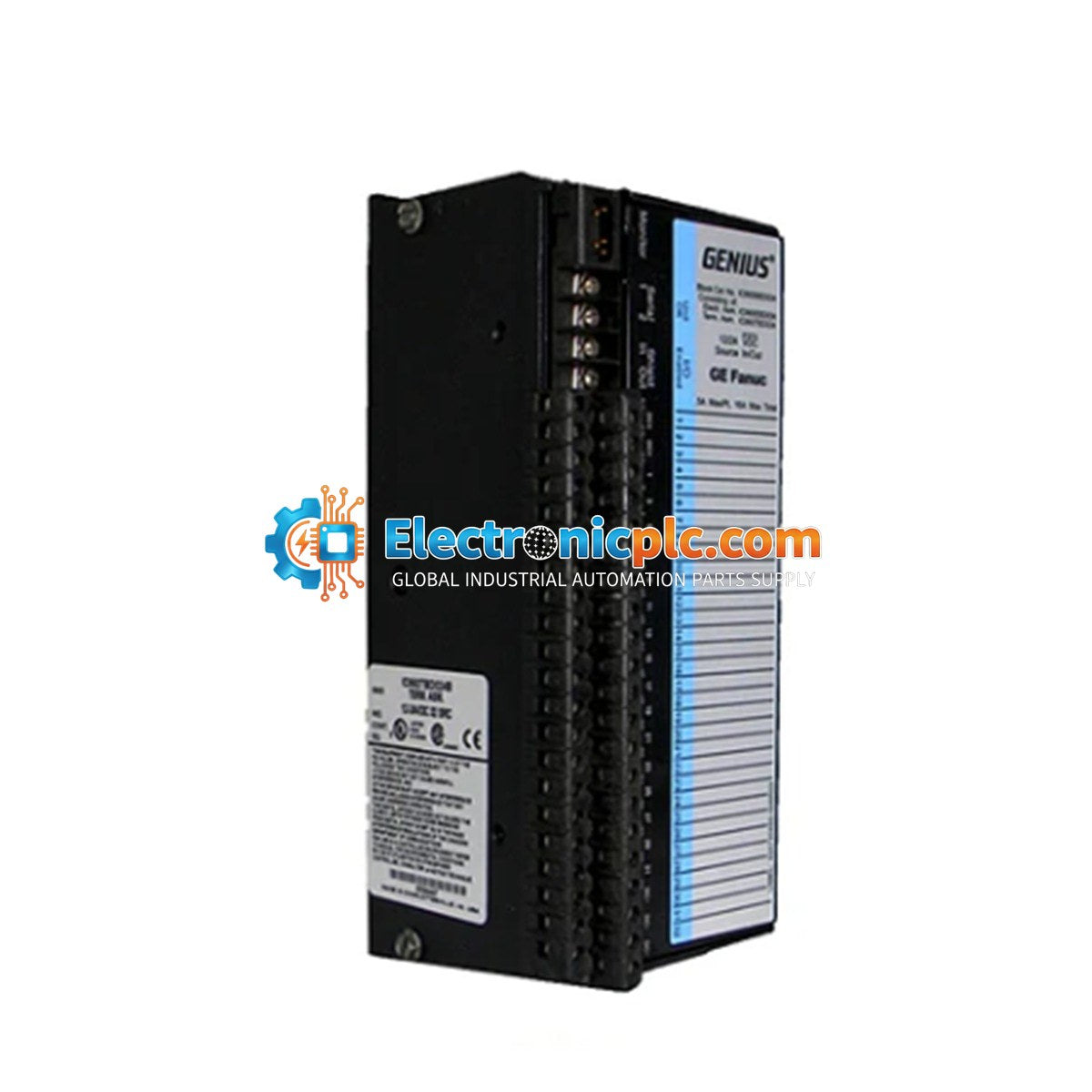

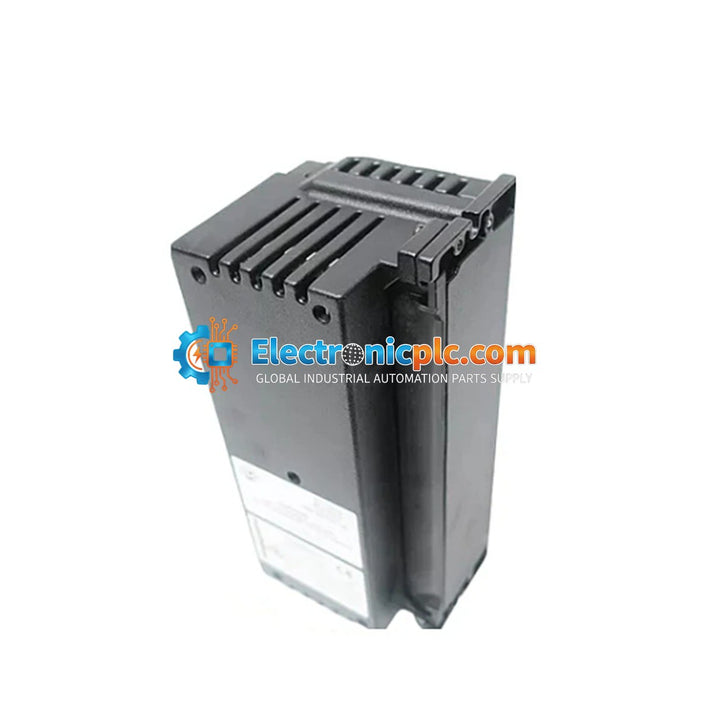

General Electric IC660BBD024 Genius I/O 32-Circuit Sourcing Block

General Electric IC660BBD024 Genius I/O 32-Circuit Sourcing Block

Description

The General Electric IC660BBD024 is an intelligent, high-density 32-point discrete sourcing I/O block from the Genius I/O product family. This versatile module is designed to interface controllers with field devices...

18 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 8

SKU: IC660BBD024
Proveedora: General Electric
tipo: Digital I/O Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The General Electric IC660BBD024 is an intelligent, high-density 32-point discrete sourcing I/O block from the Genius I/O product family. This versatile module is designed to interface controllers with field devices such as relays, contactors, and proximity switches. Each of the 32 circuits is software-configurable to function as an input, an output, or an output with feedback, providing significant flexibility for complex control applications.

Features

  • 32 configurable I/O circuits for mixed input/output operations
  • Sourcing I/O block design
  • Resettable self-protecting circuits for output channels
  • Advanced diagnostic capabilities including switch fault detection
  • Software-configurable filtering and operation parameters
  • LED indicators for block status, CPU communication, and individual circuit voltage presence

Applications

  • Turbine Control: High-density discrete I/O for legacy turbine control systems
  • Power Generation: Supports Genius Modular Redundancy for critical plant systems
  • Oil & Gas: Remote I/O block architecture to minimize long-distance field wiring
  • Industrial Automation: Interface for CNC machines, robotics, and assembly lines
  • Marine Technology: Onboard control and monitoring for shipboard electronics

Technical Specifications

Model IC660BBD024
Channels 32 (Configurable)
Input Voltage 12/24 VDC
Output Current (per circuit) 0.5 A (steady state)
Total Block Current 16 A
Input Processing Time 1.4 ms (plus selectable filter)
Isolation 850 V
Input Impedance 3.3 kOhms
Output Turn-on Delay 0.5 ms (max)

Installation Guidelines

  • Wiring: Terminal connections should utilize #12 AWG wire or two #14 AWG wires.
  • Power Disconnect: Wire the block to ensure block power and input power are disconnected simultaneously to prevent unexpected power-up during maintenance.
  • Grounding: Ensure mounting screws are connected to a reliable, low-impedance grounding system to protect equipment and personnel.
  • Handling: Standard ESD precautions should be observed when handling the module. Always power down the system before inserting or removing the block from the bus.

FAQs

Does the IC660BBD024 operate as an input or output device?

The IC660BBD024 is a 32-point module that can be configured on a per-channel basis as an input, an output, or an output with feedback.

What is the current rating per point when configured as an output?

The module is capable of delivering 0.5 Amperes per point when configured as an output, with a total block capacity of 16 Amperes.

What is the primary function of this module?

The GE IC660BBD024 is a 32-circuit DC source I/O block used to interface controllers with binary field devices such as sensors, relays, and contactors.
