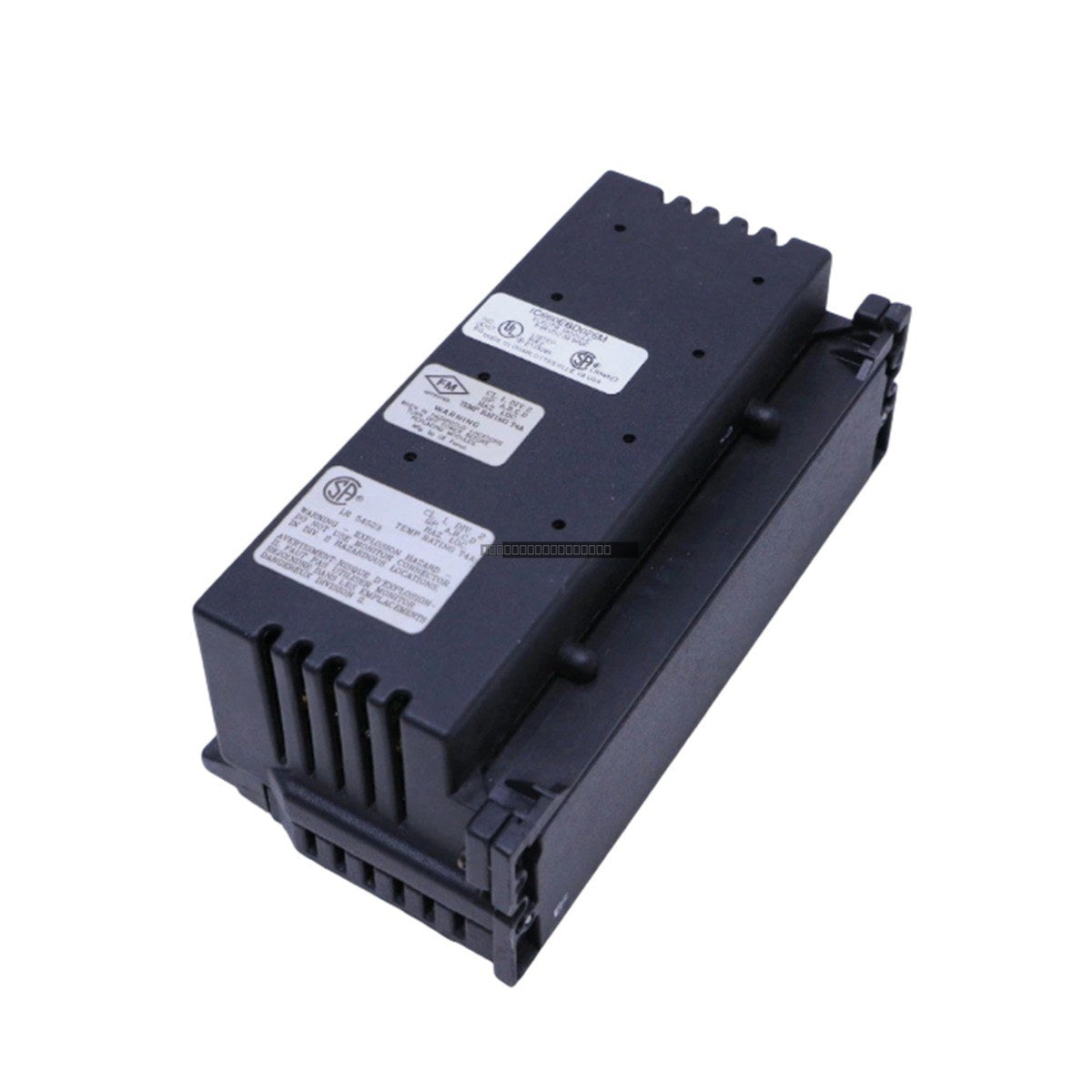

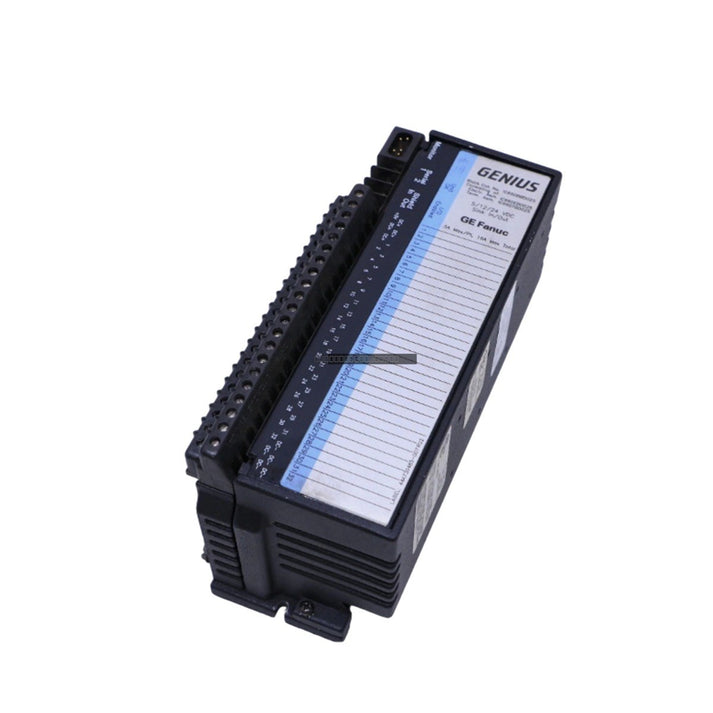

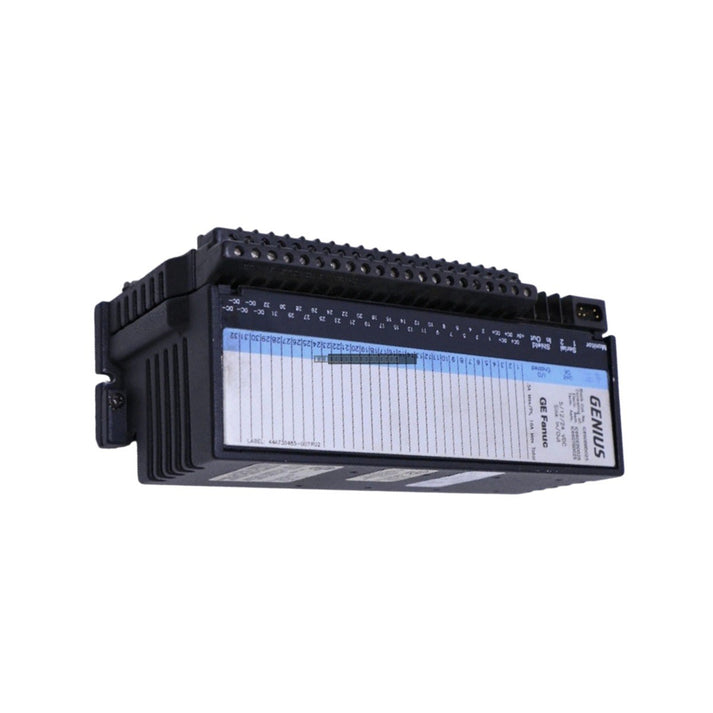

General Electric IC660BBD025 Genius Block I/O Module

General Electric IC660BBD025 Genius Block I/O Module

The General Electric IC660BBD025 is a 32-circuit Genius Block I/O module designed for flexible, high-density discrete signal processing. This sinking I/O block supports nominal voltage levels of 5V, 12V, and...

18 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 2

SKU: IC660BBD025
Proveedora: General Electric
tipo: Digital I/O Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The General Electric IC660BBD025 is a 32-circuit Genius Block I/O module designed for flexible, high-density discrete signal processing. This sinking I/O block supports nominal voltage levels of 5V, 12V, and 24VDC, making it highly adaptable for various industrial sensing and actuation requirements. The module is fully configurable, allowing each of its 32 circuits to function independently as an input, an output, or an output with feedback.

Features

  • Configurable I/O: 32 discrete circuits, each capable of being set as an input or output.
  • Versatile Voltage Compatibility: Supports 12/24VDC nominal operation and is compatible with 5V TTL signals.
  • Advanced Diagnostics: Features built-in switch fault detection and individual circuit LED status indicators.
  • Robust Protection: Equipped with resettable, self-protecting circuits to prevent damage from shorted loads or surges.
  • Genius Bus Connectivity: Includes a dedicated Genius I/O bus terminal and a port for a Hand-Held Monitor (HHM).

Applications

The IC660BBD025 is engineered for distributed control environments, including:

  • Power generation and turbine control systems.
  • Remote field sensor and actuator interfacing in hydrocarbon processing.
  • High-density discrete I/O for industrial robotics and CNC assembly lines.
  • Marine onboard automation and monitoring systems.

Technical Specifications

Model IC660BBD025
I/O Type Sinking
Circuits 32
Voltage Compatibility 5/12/24 VDC
Input Impedance 3.3K Ohms (typical)
Max Output Current 0.5A per circuit (16A total block current)
Max Inrush Current 4A (up to 10ms)
Operating Temp 0 to 60 degC
Isolation 850V (Block to block)

Installation Guidelines

  • Environment: Must be installed within a clean, protective industrial enclosure with adequate cooling airflow.
  • Mounting: Secure the module using 8-32 hardware; use star washers to ensure proper ground integrity.
  • Spacing: Maintain a minimum clearance of 2 inches between adjacent blocks for thermal management.
  • Handling: This module contains static-sensitive components. Always use a grounded ESD wrist strap and handle by the edges.
  • Power: Ensure the system is powered down before inserting or removing the module from the bus.

FAQ

What is the primary function of the IC660BBD025?

It is a 32-circuit sinking Genius I/O block that acts as an intelligent, software-configurable interface between a controller and field-level discrete devices.

Can the circuits be mixed?

Yes, each of the 32 circuits can be independently configured as an input, an output, or an output with feedback, allowing for maximum application flexibility.

What is the maximum communication distance?

The Genius I/O protocol utilized by this module supports communication distances of up to 7,500 feet.
