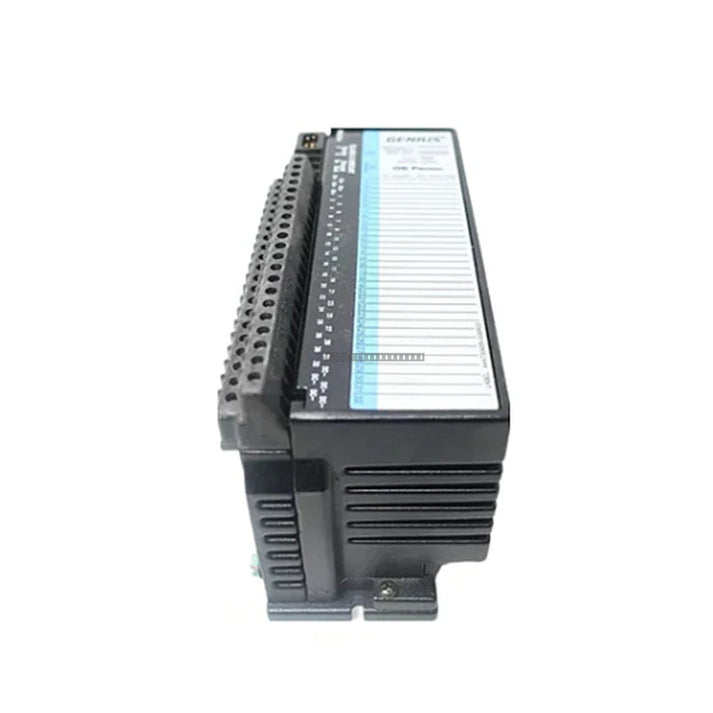

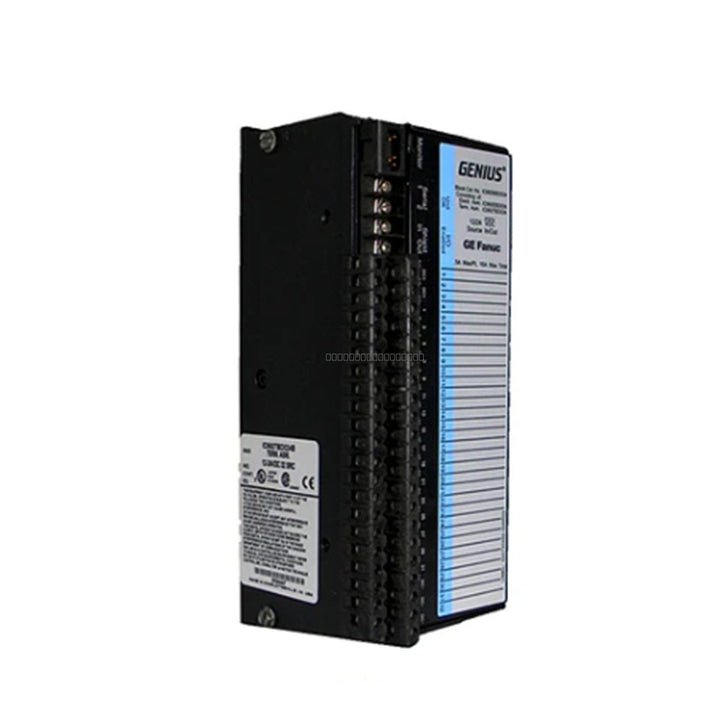

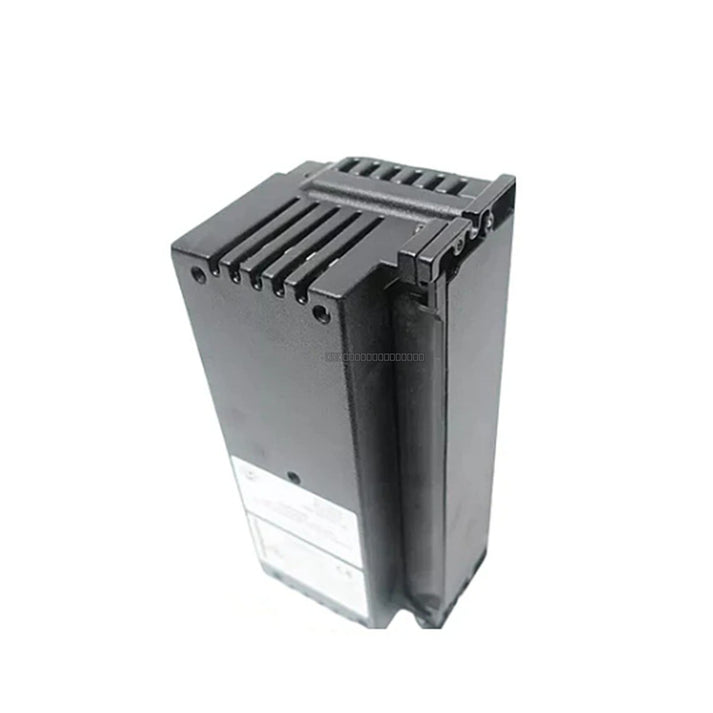

General Electric IC660BBD120 Genius High-Speed Counter I/O Block

General Electric IC660BBD120 Genius High-Speed Counter I/O Block

The IC660BBD120 is a high-speed counter module within the GE Genius I/O series. This block is designed for high-performance pulse processing and motion control applications, capable of operating independently of...

21 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 10

SKU: IC660BBD120
Proveedora: General Electric
tipo: I/O Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The IC660BBD120 is a high-speed counter module within the GE Genius I/O series. This block is designed for high-performance pulse processing and motion control applications, capable of operating independently of a CPU for rapid input sensing and output response. The module consists of two primary components: the terminal base assembly (IC660TBD120) and the electronics assembly (IC660EBD120).

Features

  • 12 discrete inputs (5V DC to 30V DC) supporting frequencies up to 200 kHz.
  • 4 output channels (4.75V DC to 5.25V DC at 200mA).
  • Configurable counter modes: supports 1, 2, or 4 counters of varying complexity.
  • Direct processing capability allows the block to sense inputs and trigger outputs without CPU intervention.
  • Built-in protection against power surges on outputs.
  • Software-configurable parameters and failed switch diagnostics.
  • Supports 115 VAC or 10-30 VDC block power, including backup battery operation.

Applications

  • Turbine Flowmeter monitoring and meter proving.
  • High-speed velocity measurement and motion control.
  • Automated material handling and logistics counting systems.
  • Industrial automation tasks requiring fast, stand-alone I/O processing.

Technical Specifications

Product Model IC660BBD120
Input Channels 12
Output Channels 4
Input Frequency Up to 200 kHz
Operating Voltage 93V to 132VAC / 10V to 30VDC
Frequency Range 47Hz to 63Hz
Operating Temperature 0 degC to 60 degC
Storage Temperature -40 degC to 100 degC
Humidity 5% to 95% (non-condensing)
Weight 1.8 kg

Installation Guidelines

  • The Genius I/O block is open-type equipment and must be mounted within a protective enclosure suitable for the industrial environment.
  • Ensure the installation area is clean and free of airborne contaminants.
  • Maintain adequate airflow for cooling; leave at least 2 inches of clearance between blocks.
  • The block may be mounted in any orientation (upright or inverted).
  • Secure the block using 8-32 screws/bolts; use star washers to ensure proper ground integrity.
  • Always disconnect power before installing or removing the electronics assembly from the terminal base.

FAQs

What is the IC660BBD120?

It is a configurable, self-contained high-speed counter block from the GE Genius I/O series, designed to directly process rapid pulse signals.

What are the main I/O specifications?

It features 12 discrete inputs supporting frequencies up to 200 kHz and 4 output channels.

What is the operating voltage?

This module can be powered by 115VAC or 10-30VDC. It supports mixed power configurations, allowing 115VAC as the main supply and 10-30VDC as a backup.
