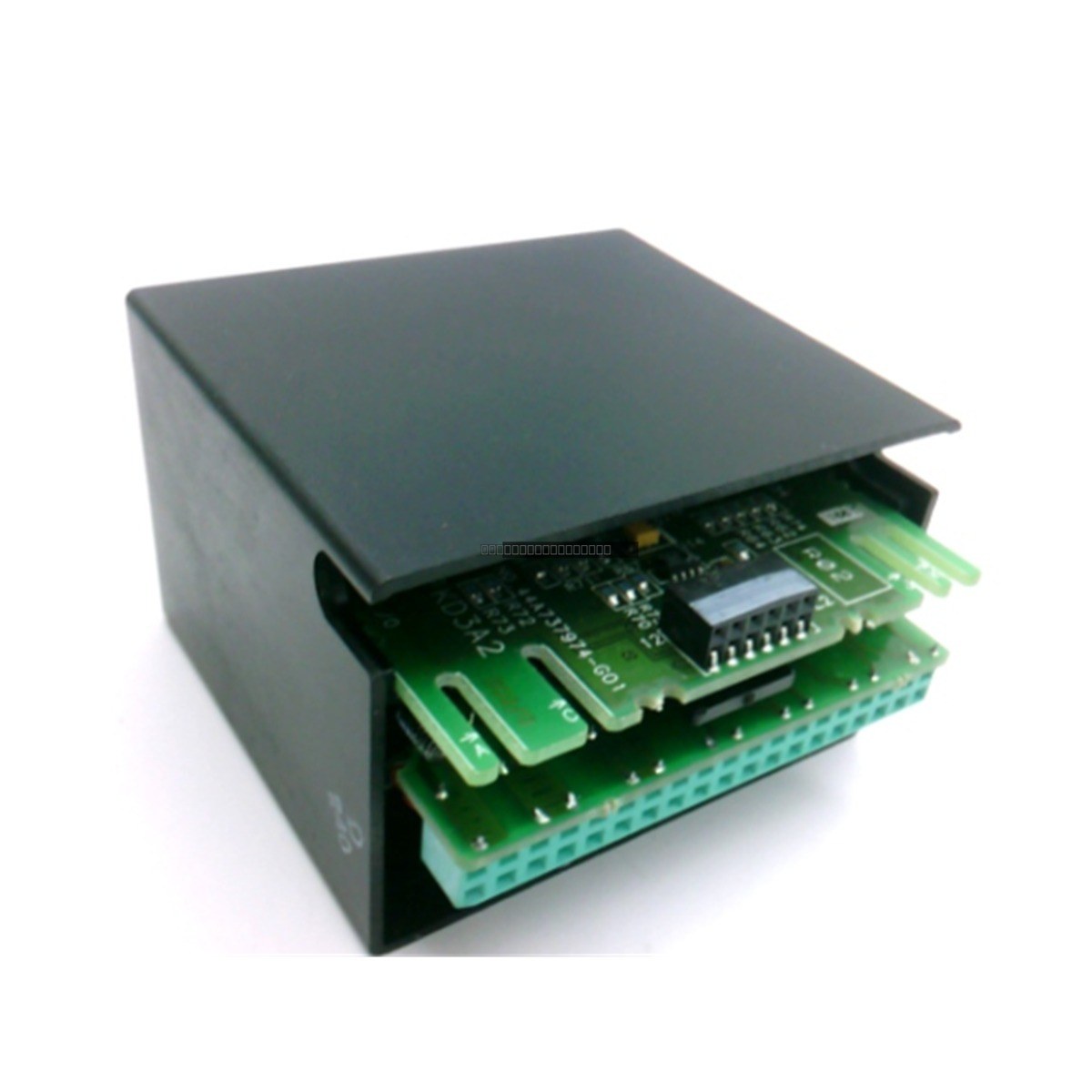

General Electric IC670MDL740 Field Control 16-Point Discrete Output Module

General Electric IC670MDL740 Field Control 16-Point Discrete Output Module

The General Electric IC670MDL740 is a 16-point discrete output module, engineered as part of the Field Control I/O series. This module provides 16 positive logic (sourcing) output channels, designed to...

28 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 2

SKU: IC670MDL740
Proveedora: General Electric
tipo: Discrete Output Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The General Electric IC670MDL740 is a 16-point discrete output module, engineered as part of the Field Control I/O series. This module provides 16 positive logic (sourcing) output channels, designed to interface with 24VDC control systems. It is optimized for distributed I/O applications, offering a compact footprint and reliable switching for industrial automation tasks.

Features

  • 16-point positive logic output configuration.
  • Operating voltage range: 10-30 VDC (24 VDC nominal).
  • Maximum load current capacity of 0.5 Amps per point.
  • Integrated status LED indicators for individual output channel monitoring.
  • Bus Interface Unit (BIU) compatible for modular expansion.
  • DIN-rail mountable design for efficient cabinet space utilization.
  • Integrated 25-terminal block supporting AWG #14 to #22 wire gauges.

Applications

  • Actuator and solenoid valve control in fluid or pneumatic systems.
  • Driving interposing relay coils for high-power load switching.
  • Powering pilot lamps and visual status indicators on control panels.
  • Integration into distributed I/O architectures for machine and process automation.

Technical Specifications

Model IC670MDL740
Output Type Discrete (Positive Logic)
Number of Points 16
Voltage Range 10-30 VDC
Current per Point 0.5 A Max
Total Module Current 4.0 A Max
Current Draw (from BIU) 111 mA
Response Time 200 microseconds (at 0.5 A resistive)
Isolation 1500 VAC (1 min) / 250 VAC (continuous)
Fuse Protection 5 A, 250 V (5x20mm) slow-acting

Installation Guidelines

  • Ensure the system power is disconnected before installing or removing the module from the DIN-rail.
  • Verify that the BIU power supply matches the 111 mA current draw requirement.
  • Use appropriate wire gauges (AWG #14-22); ensure terminal screws are tightened to secure connections.
  • Maintain proper clearance for ventilation to prevent overheating in dense rack configurations.
  • Follow standard ESD (Electrostatic Discharge) mitigation practices when handling the module circuitry.
  • Confirm the positive logic configuration matches your field device requirements before energizing.

FAQ

Is the IC670MDL740 still supported?

While this unit may be designated as End-of-Life (EOL) by the manufacturer, it remains a functional component in many legacy GE Field Control systems. We continue to provide access to these modules for maintenance and system support.

Can I use this module for AC loads?

No, the IC670MDL740 is specifically a DC output module (10-30 VDC). For applications requiring AC load switching, consider the IC670MDL930 relay module.

What should I do if my load exceeds 0.5A?

If your specific application requires higher current, please refer to the IC670MDL742 (1.0A per point) or the IC670MDL730 (2.0A per point) modules for compatibility.
