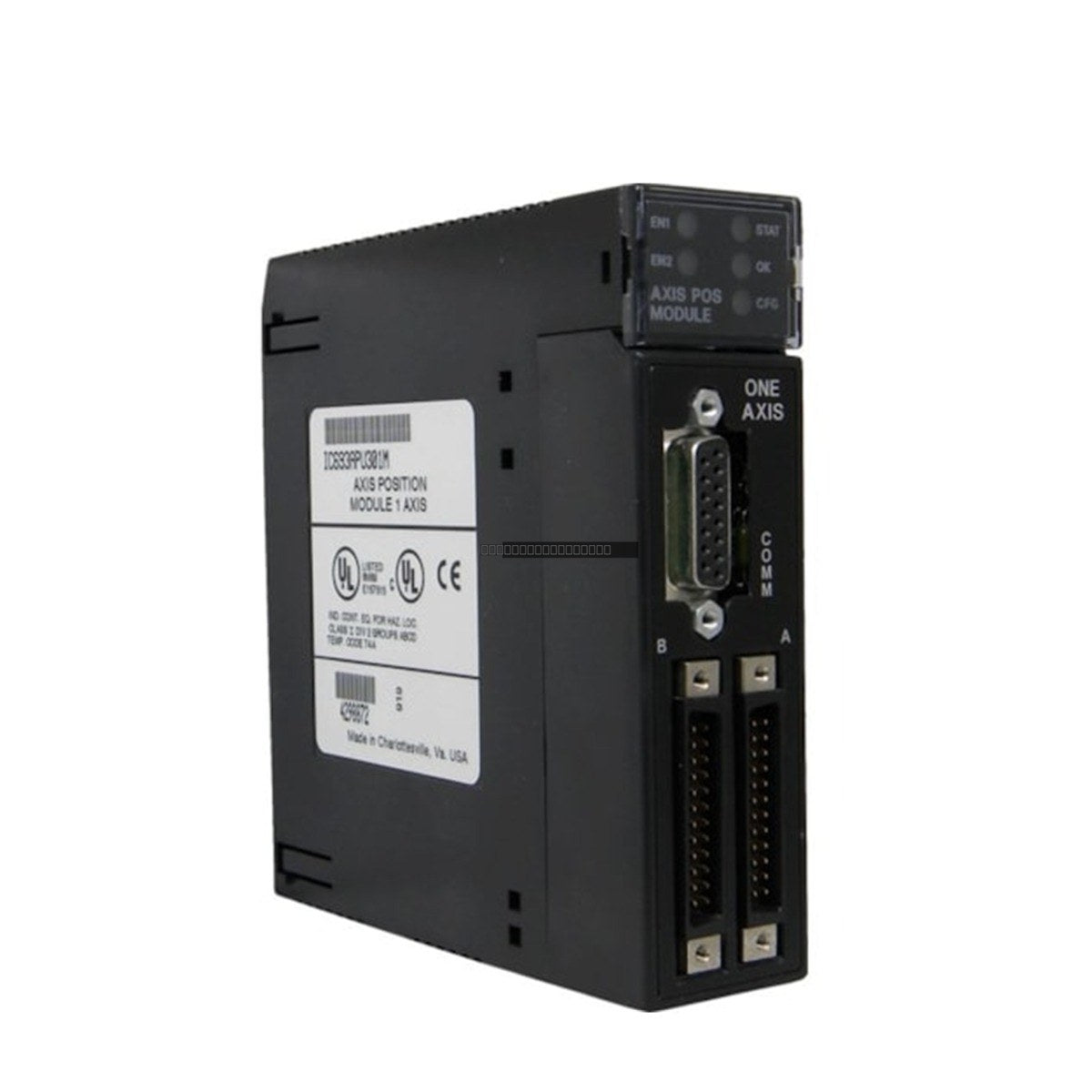

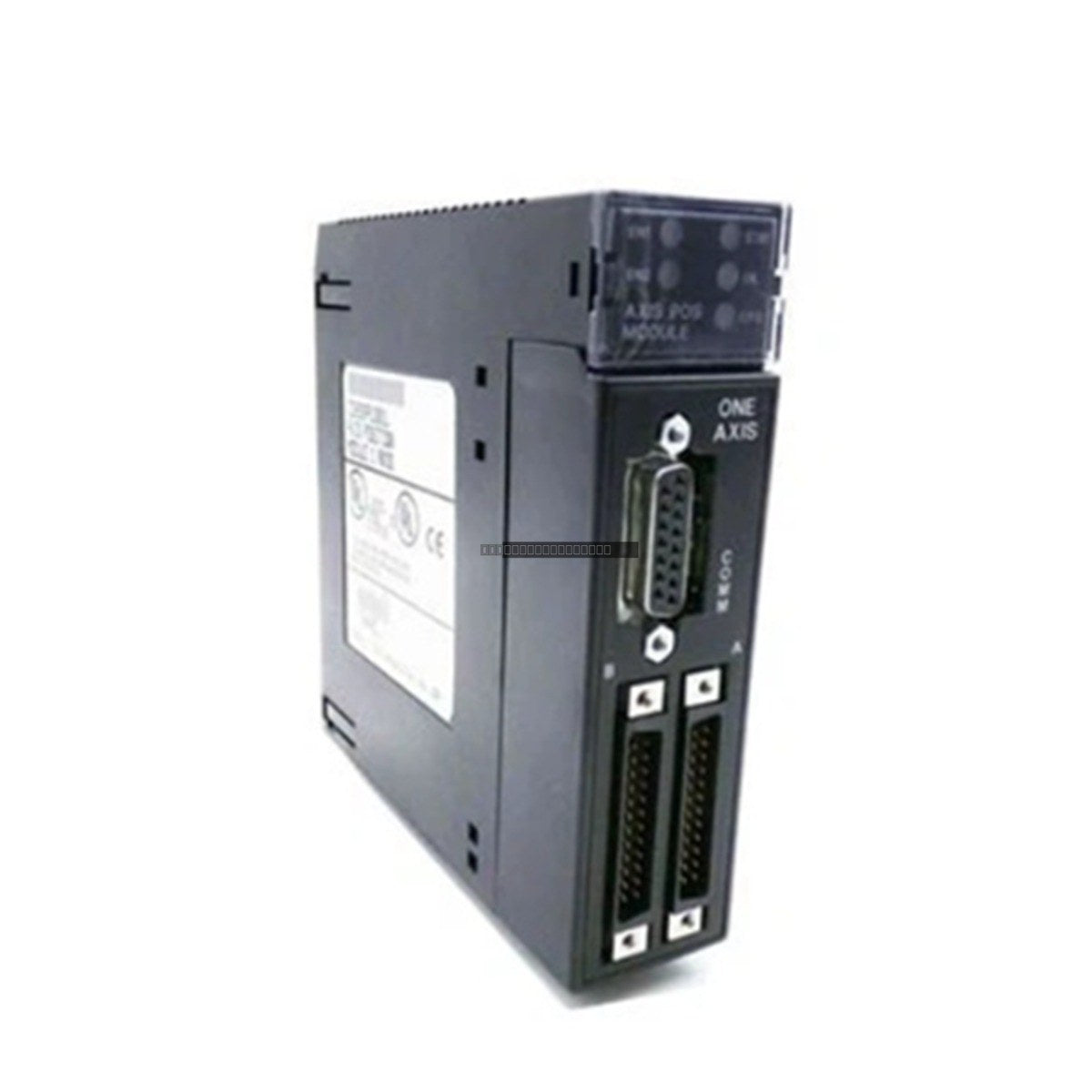

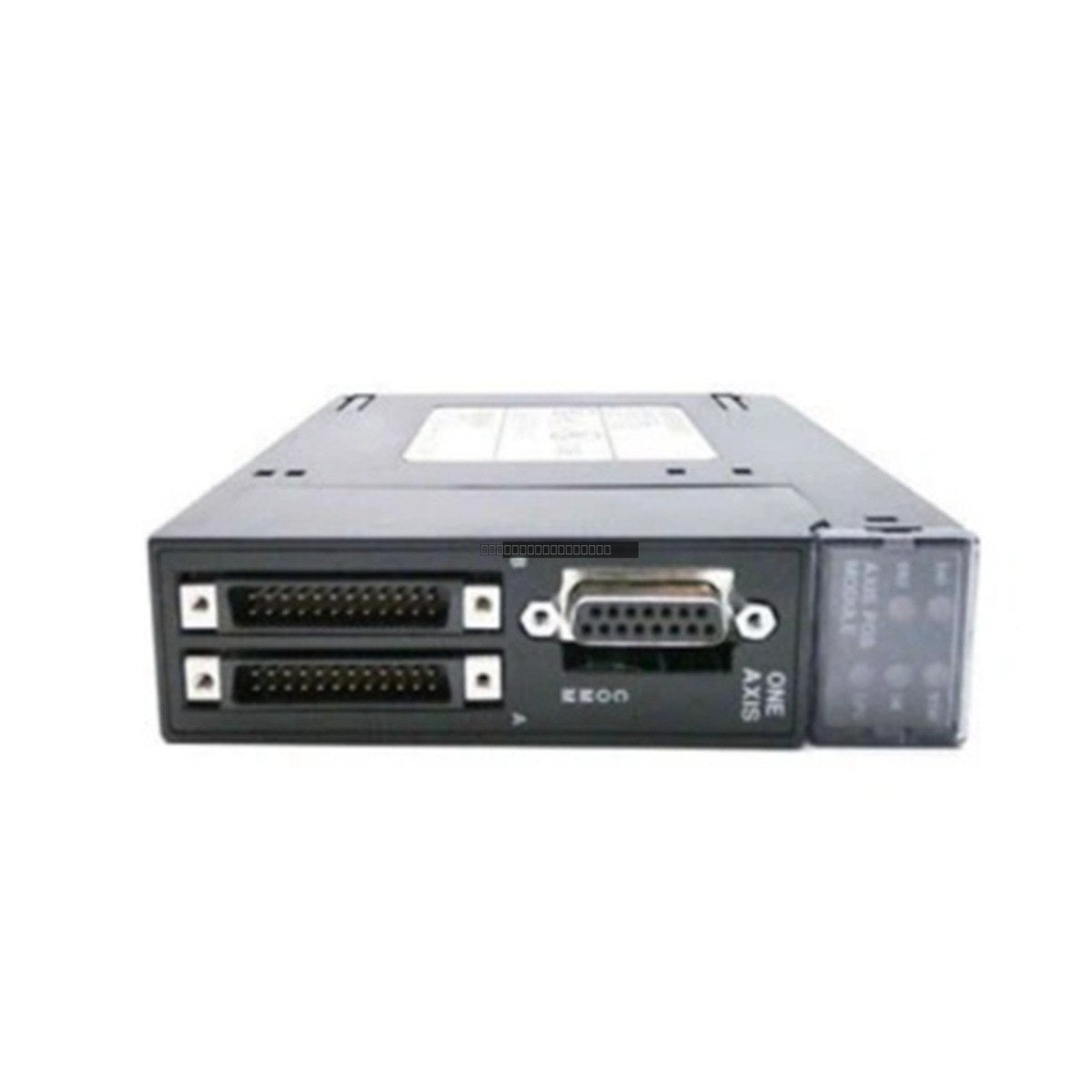

General Electric IC693APU301 Series 90-30 Motion Mate Axis Positioning Module

General Electric IC693APU301 Series 90-30 Motion Mate Axis Positioning Module

Description

The General Electric IC693APU301 is a single-axis Motion Mate Axis Positioning Module (APM) designed for the Series 90-30 Programmable Logic Controller (PLC) platform. This intelligent, fully programmable module integrates high-performance...

18 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 4

SKU: IC693APU301
Proveedora: General Electric
tipo: Axis Positioning Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The General Electric IC693APU301 is a single-axis Motion Mate Axis Positioning Module (APM) designed for the Series 90-30 Programmable Logic Controller (PLC) platform. This intelligent, fully programmable module integrates high-performance motion control directly with PLC logic, allowing for seamless synchronization between motion tasks and system-wide automation. The module is capable of operating in either Standard mode for integrated logic and motion control or Follower mode for electronic gearing applications.

Features

  • Single-axis control for servo motor applications.
  • Configurable operating modes: Standard and Follower (electronic gearing).
  • High-performance motion control with integrated PLC logic solving.
  • Diagnostic LED indicators: EN1, EN2, STST, OK, and CFG.
  • Compatible with Series 90-30 PLC backplanes.
  • Supports up to three APM modules on CPU 311, 313, and 323; up to eight on CPU 331 and higher.

Applications

  • Flying shears and cut-to-length machinery.
  • Printing press registration and web tension control.
  • Winding and slitting equipment for reel management.
  • Injection molding screw position and velocity regulation.
  • Mining and water treatment pulse-based speed monitoring.

Technical Specifications

Model IC693APU301
Manufacturer General Electric
Series 90-30 PLC
Axis Control Single Axis
Connector Types 24-pin High Density, 25-pin D-Type
Operating Modes Standard, Follower
Weight 0.32 kg
Country of Origin USA

Installation Guidelines

  • Ensure the PLC system power is disconnected before installing or removing the module from the rack.
  • Seat the module firmly into the designated Series 90-30 baseplate slot to ensure proper backplane connection.
  • Use shielded cabling for the 25-pin servo connection to minimize electromagnetic interference (EMI).
  • Route signal cables away from high-voltage power lines and noisy electrical equipment.
  • Verify that the module is correctly configured via the appropriate programming software (e.g., Logicmaster 90-30 or VersaPro) before initiating motion.
  • Ensure adequate ventilation around the PLC rack to maintain operating temperatures within specified limits.

FAQ

What is the difference between the IC693APU301 and IC693APU300?

The IC693APU301 is a single-axis Motion Mate Axis Positioning Module (APM) for servo control, whereas the IC693APU300 is a High-Speed Counter (HSC) module designed for pulse counting applications.

How is the module configured?

Configuration is performed through the PLC programming software, where setup parameters are defined to select between Standard or Follower modes.

What does the Follower mode provide?

Follower mode enables high-performance electronic gearing, allowing the module to function as a slave in continuous master/slave motion applications.
