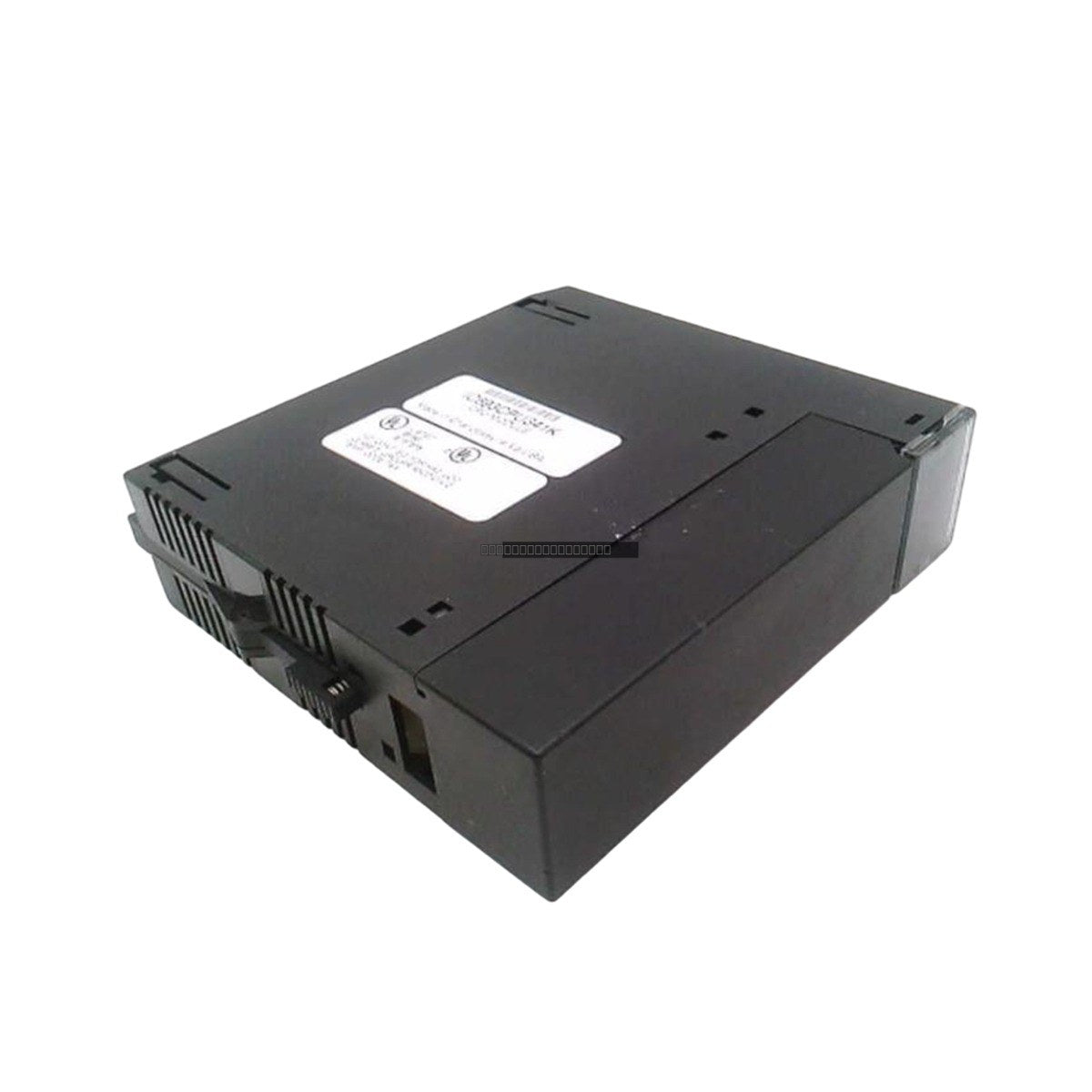

General Electric IC693CPU341 Series 90-30 CPU Module

General Electric IC693CPU341 Series 90-30 CPU Module

The General Electric IC693CPU341 is a high-performance, single-slot CPU module designed for the Series 90-30 Programmable Logic Controller (PLC) platform. As a central processing unit, it serves as the core...

16 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 2

SKU: IC693CPU341
Proveedora: General Electric
tipo: PLC CPU Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The General Electric IC693CPU341 is a high-performance, single-slot CPU module designed for the Series 90-30 Programmable Logic Controller (PLC) platform. As a central processing unit, it serves as the core of the control system, providing efficient logic execution and robust I/O management for industrial automation applications.

Features

  • 80C188XL 20 MHz processor for reliable logic execution.
  • Boolean execution speed of 0.3 milliseconds per 1K of logic.
  • 80 KB of built-in user memory.
  • Supports configuration of up to 5 baseplates (1 CPU baseplate and 4 expansion/remote I/O baseplates).
  • Integrated battery-backed clock for time-stamping and scheduling.
  • Compatible with a wide range of Series 90-30 option modules, including Ethernet, Profibus, and various communication co-processors.

Applications

  • Water and wastewater treatment facilities for pump and chemical dosing control.
  • Power plant auxiliary system management and generator monitoring.
  • Automated assembly lines, robotics, and conveyor system coordination.
  • Traffic and transport signaling systems.

Technical Specifications

Model IC693CPU341
Processor 80C188XL (20 MHz)
User Memory 80 KB
Logic Scan Rate 0.3 ms / 1K logic
Power Requirements 490 mA from +5 VDC supply
Operating Temperature 0 to 60 degC (32 to 140 degF)
Discrete I/O Capacity 512 Inputs / 512 Outputs
Analog I/O Capacity 1024 Input Words / 256 Output Words
System Registers 9999 Words (%R)

Installation Guidelines

  • Ensure the PLC system power is disconnected before inserting or removing the CPU module from the backplane.
  • The module is designed for a single-slot installation directly into the Series 90-30 baseplate.
  • Maintain proper ventilation in the control cabinet to ensure the ambient temperature remains within the 0 to 60 degC range.
  • Use shielded cables for communication ports to minimize EMI interference in industrial environments.
  • Handle the module using ESD-safe practices to prevent damage to sensitive internal components.
  • Verify that the battery is installed and functional to maintain user program memory during power cycles.

FAQ

What is the primary function of the IC693CPU341?

The IC693CPU341 acts as the central processor for the GE Series 90-30 PLC, executing user logic and managing communication with I/O modules across up to five baseplates.

Does this module support analog I/O?

Yes, it supports up to 1024 analog input words and 256 analog output words.

What communication protocols are supported?

The module supports the SNP and SNP-X protocols via its serial port and is compatible with optional communication modules such as Ethernet, Profibus, and GCM/GCM+.

How is the user program protected against power loss?

The module utilizes battery-backed RAM to retain the user program and data. Regular battery maintenance is required to ensure data integrity.
