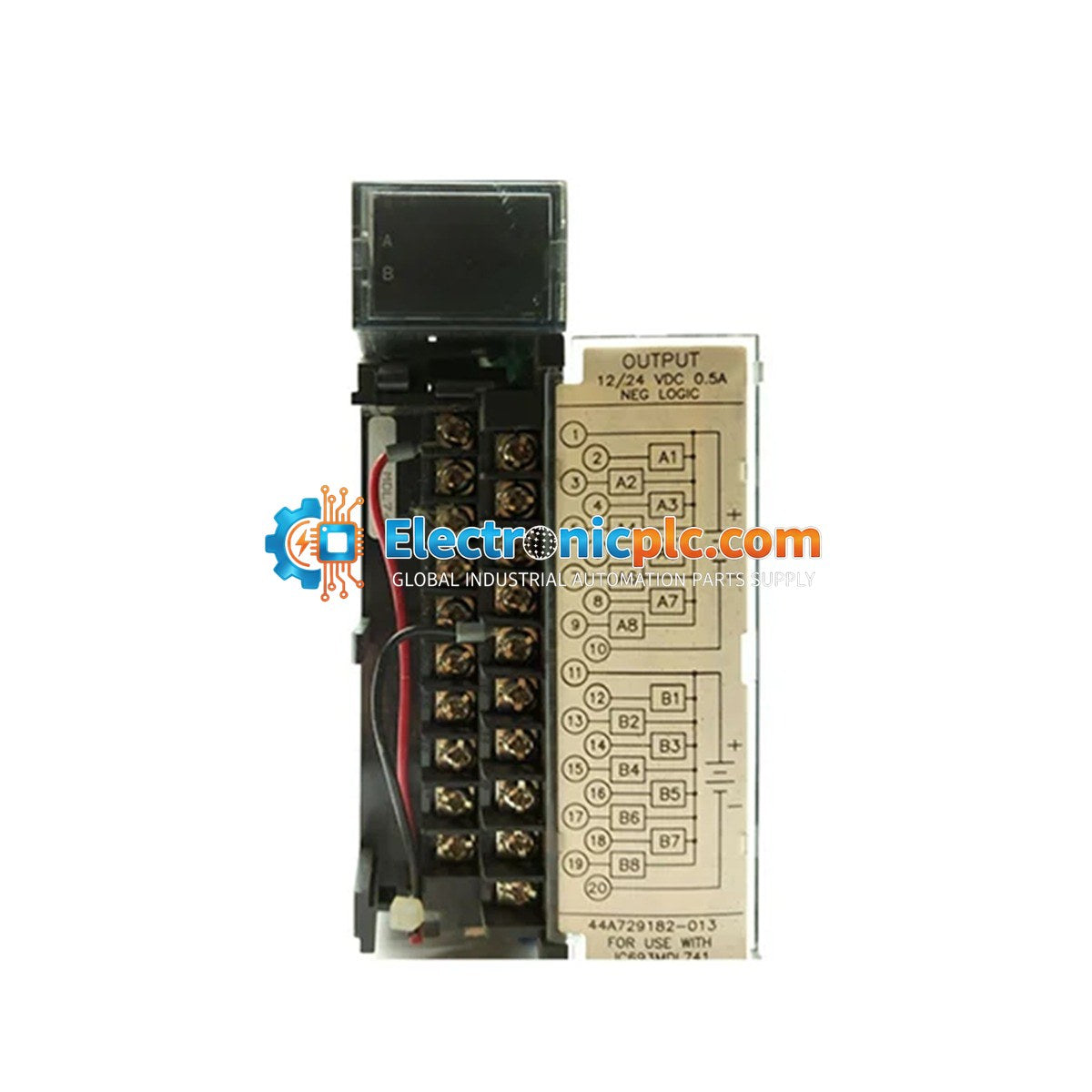

General Electric IC693MDL741 90-30 Series 16-Point Discrete Output Module

General Electric IC693MDL741 90-30 Series 16-Point Discrete Output Module

Description

The IC693MDL741 is a 16-point discrete output module designed for the General Electric Series 90-30 Programmable Logic Controller (PLC) platform. This module provides 12/24 VDC negative logic output capability, making...

15 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 6

SKU: IC693MDL741
Proveedora: General Electric
tipo: Discrete Output Module
Related Series:
