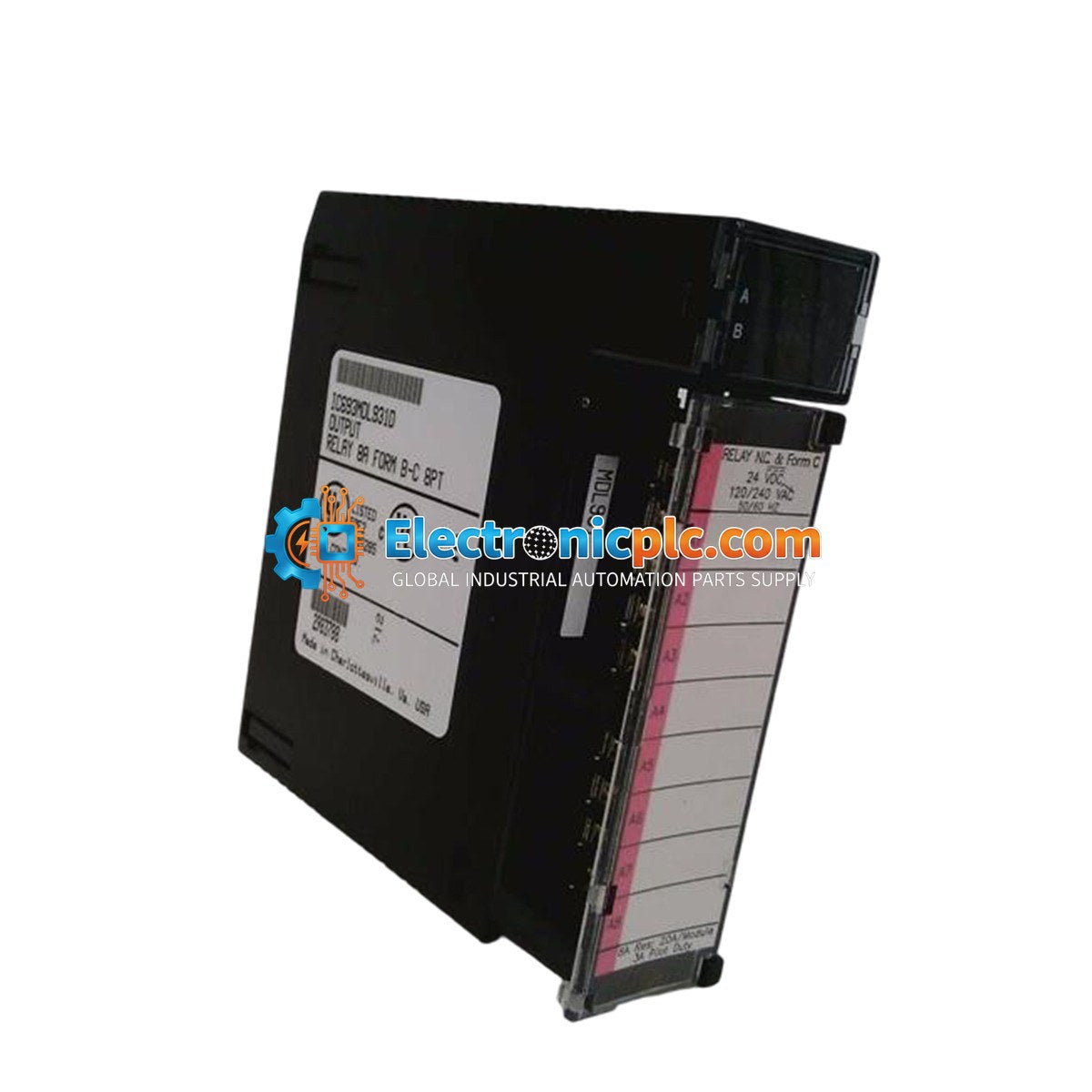

General Electric IC693MDL931 Series 90-30 Isolated Relay Output Module

General Electric IC693MDL931 Series 90-30 Isolated Relay Output Module

Description

The General Electric IC693MDL931 is an 8-point isolated relay output module designed for the Series 90-30 Programmable Logic Controller (PLC) system. This module provides high-flexibility switching for a variety of...

27 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 10

SKU: IC693MDL931
Proveedora: General Electric
tipo: PLC I/O Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The General Electric IC693MDL931 is an 8-point isolated relay output module designed for the Series 90-30 Programmable Logic Controller (PLC) system. This module provides high-flexibility switching for a variety of industrial loads, supporting both AC and DC output voltages. It features 8 isolated relay outputs, configured as 4 normally-closed (NC) and 4 Form C (SPDT) relay circuits, allowing for independent control of diverse field devices such as motor starters, solenoids, and indicators.

Features

  • 8-point isolated relay output module for Series 90-30 PLC systems.
  • Supports 4 normally-closed and 4 Form C relay circuits.
  • High-voltage capability: 5-30 VDC or 5-250 VAC.
  • Maximum load capacity of 8 Amps per output (resistive).
  • Each relay is electrically isolated with a separate common power terminal.
  • Integrated LED status indicators for each point (top row).
  • Color-coded red edge on the door insert to signify high-voltage operation.

Technical Specifications

Product Model IC693MDL931
Outputs per Module 8 isolated outputs
Output Voltage Range 5-30 VDC / 5-250 VAC (50/60 Hz)
Maximum Load 8A resistive per output; 20A max per module
Minimum Load 10 mA
Response Time 15 ms maximum (On/Off)
Isolation 1500V (field to logic); 500V (between groups)
Internal Power Consumption 45mA (5V bus); 100mA (24V relay bus)
Operating Temperature Standard Series 90-30 environmental ratings

Applications

  • Packaging and Material Handling: Conveyor coordination and sensor monitoring.
  • Water and Waste Management: Pump status monitoring and tank level alarms.
  • Manufacturing: AC signaling for injection molding and mining equipment.
  • Building Infrastructure: HVAC monitoring and elevator control systems.

Installation Guidelines

  • Power Down: This module is NOT hot-swappable. Always disconnect backplane power before inserting or removing the module to prevent electrical damage.
  • Mounting: Compatible with any I/O slot in a 5-slot or 10-slot Series 90-30 or RX3i baseplate.
  • Wiring: Refer to the wiring diagram located on the inside of the hinged module door. Note that this is a high-voltage module; ensure proper insulation and separation of field wiring.
  • Fusing: This module does not contain internal fuses. External fusing is required based on the connected load requirements.
  • Grounding: Ensure the baseplate is properly grounded in accordance with standard industrial PLC installation practices to minimize EMI.

FAQ

What is the IC693MDL931?

The GE IC693MDL931 is an 8-point isolated relay output module used in the Series 90-30 PLC family to interface with various field loads.

Does this module require external power?

Yes, the user must provide the appropriate AC or DC power source for the field devices connected to the relay outputs.

Can I swap this module while the PLC is running?

No, the IC693MDL931 does not support hot-swapping. The system power must be cycled off during installation or removal.
