Description

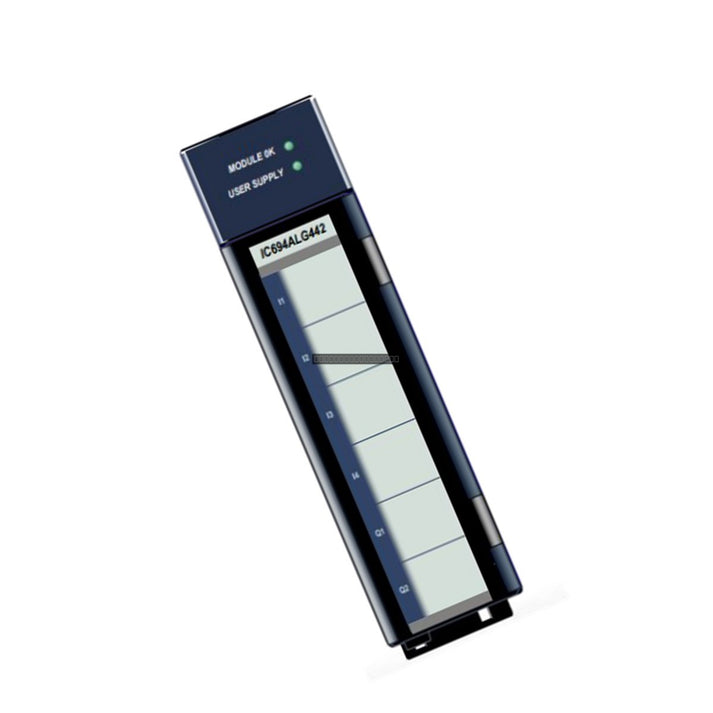

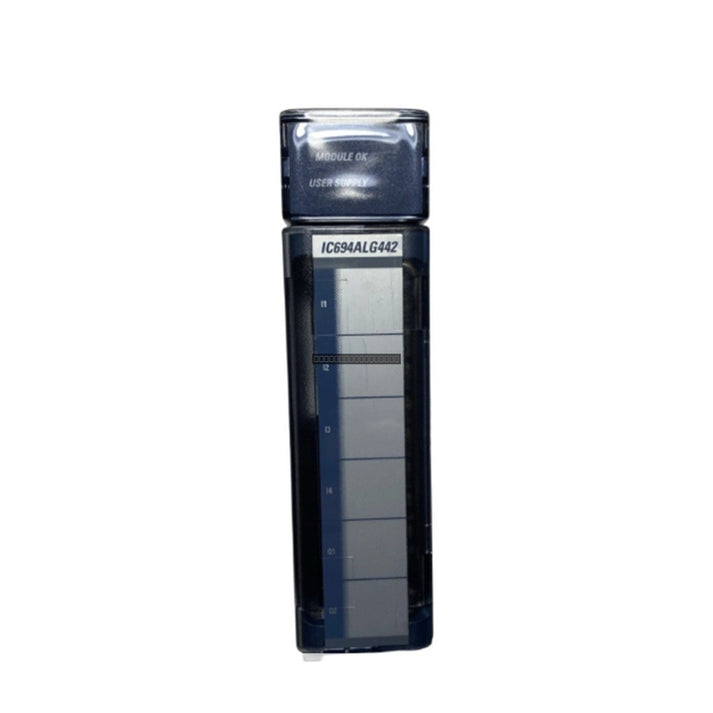

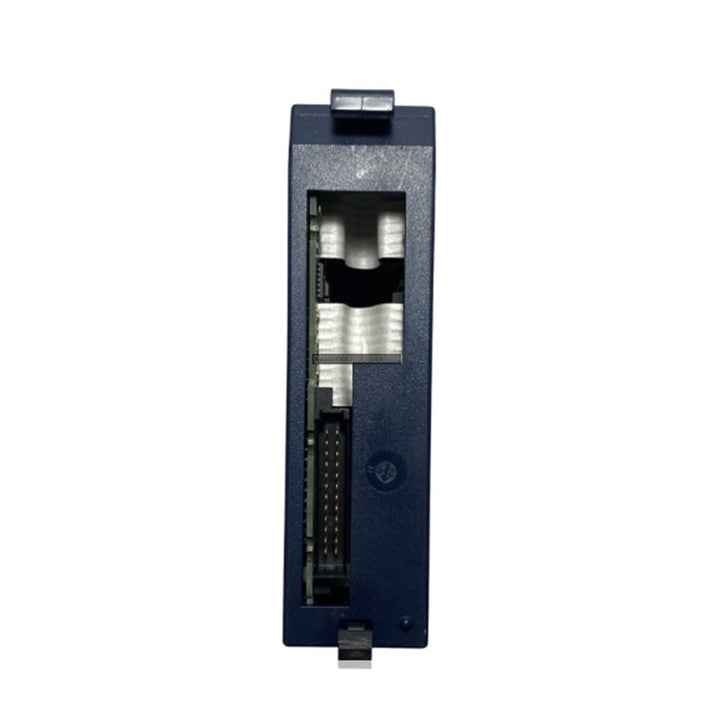

The General Electric IC694ALG442 is a high-performance analog combination module designed for the PACSystems RX3i control platform. This module provides versatile signal processing capabilities by integrating both analog inputs and outputs into a single unit, facilitating efficient I/O configuration for industrial automation and process control applications.

Features

• Integrated analog I/O: Features 4 analog input channels and 2 analog output channels.
• Signal Flexibility: Supports both current and voltage signal types to accommodate diverse field instrumentation.
• PACSystems RX3i Compatibility: Engineered specifically for seamless integration with the RX3i rack-based control system.
• Compact Design: Optimized for high-density I/O requirements in space-constrained control cabinets.
• Reliable Data Acquisition: Designed for precision monitoring and control of process variables in industrial environments.

Applications

This module is typically deployed in PACSystems RX3i systems for monitoring and controlling process loops, including pressure, temperature, flow, and level sensing. It is suitable for use in manufacturing, power generation, and water treatment facilities where mixed-signal analog I/O is required for PLC-based control.

Technical Specifications

Installation Guidelines

• Ensure the PACSystems RX3i rack is powered down before inserting or removing the module.
• Verify that the module is fully seated in the backplane connector to ensure proper communication and power distribution.
• Use shielded twisted-pair cabling for all analog signals to minimize noise and electromagnetic interference (EMI).
• Route signal cables away from high-voltage power lines and inductive loads to prevent signal degradation.
• Ensure adequate ventilation within the cabinet to maintain operating temperatures within the manufacturer's specified range.
• Follow standard ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.

FAQ

What is the primary function of the IC694ALG442?

The IC694ALG442 is an analog combination module for the PACSystems RX3i system, providing 4 analog inputs and 2 analog outputs for monitoring and controlling industrial processes.

Is this module compatible with other GE PLC series?

This specific model is designed for the PACSystems RX3i platform. Compatibility with other legacy systems should be verified against the specific hardware documentation for those platforms.

Does the module support both current and voltage signals?

Yes, the IC694ALG442 is designed to handle both current and voltage signal configurations, providing flexibility for various field device connections.
