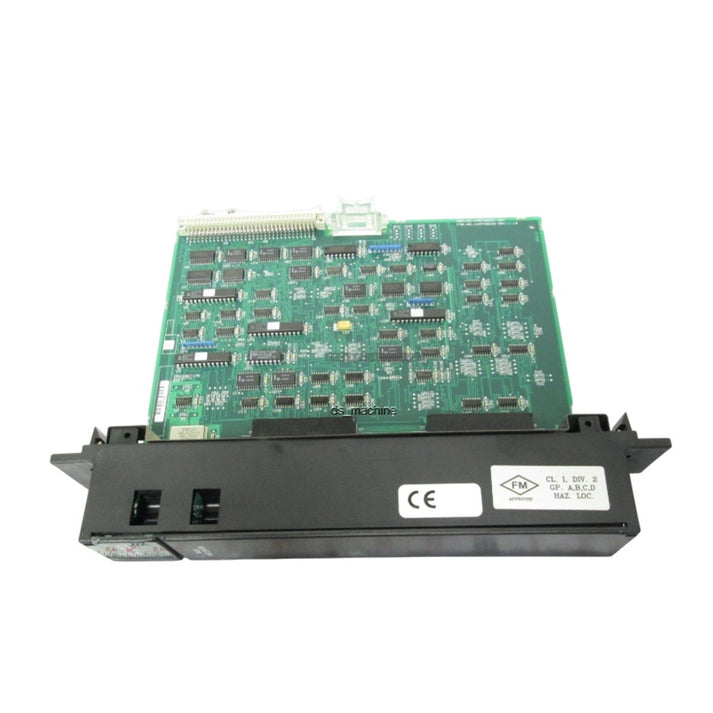

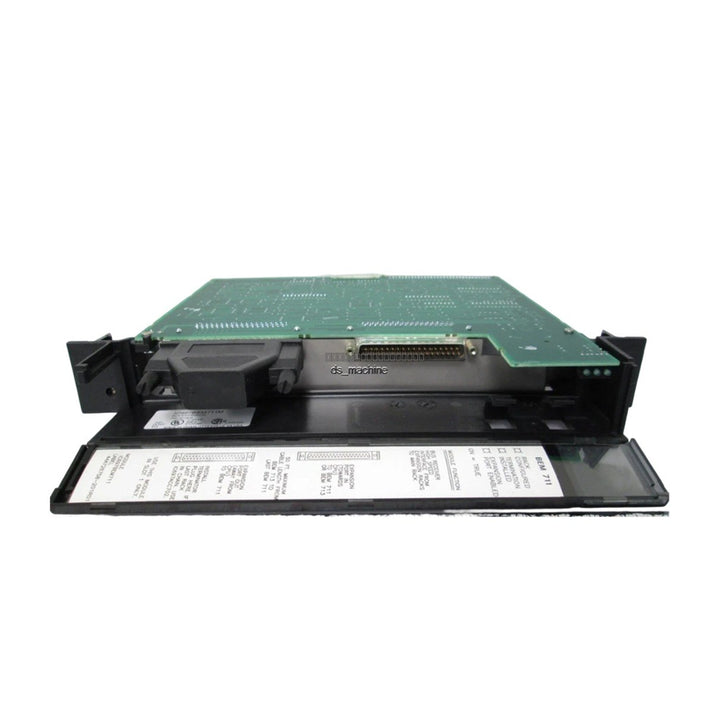

General Electric IC697BEM711 Series 90-70 Bus Expansion Module

General Electric IC697BEM711 Series 90-70 Bus Expansion Module

The General Electric IC697BEM711 is a high-speed parallel Bus Expansion Module (BEM) designed for the Series 90-70 Programmable Logic Controller (PLC) system. This module facilitates the expansion of the PLC...

18 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 1

SKU: IC697BEM711
Proveedora: General Electric
tipo: Bus Expansion Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The General Electric IC697BEM711 is a high-speed parallel Bus Expansion Module (BEM) designed for the Series 90-70 Programmable Logic Controller (PLC) system. This module facilitates the expansion of the PLC system by allowing the connection of up to seven additional expansion racks from the main CPU rack, enabling complex distributed automation across large-scale industrial environments.

Features

  • High-speed parallel bus expansion interface with a 500 Kbytes/sec effective data rate.
  • Supports daisy-chaining up to seven expansion racks.
  • Includes "Hold Last State" functionality to maintain output values during communication loss.
  • Optical isolation between logic and field circuits for enhanced protection against electrical noise and surges.
  • Three integrated LED indicators for monitoring module status, bus activity, and I/O bus terminator presence.
  • Software-configurable design eliminates the need for manual DIP switch settings.

Applications

  • Automotive Manufacturing: Coordinated control of high-density I/O points in assembly and paint lines.
  • Process Industries: Distributed control for oil, gas, chemical, and pulp/paper processing facilities.
  • Water and Wastewater: Management of expansive municipal filtration and treatment networks.
  • High-Volume Manufacturing: Rapid machine control for bottling and machining operations.

Technical Specifications

Model IC697BEM711
Manufacturer General Electric
Series 90-70
Backplane Current Draw 800 mA at 5VDC
Max Cable Length 50 feet (15 meters)
Ports Two (2) 25-pin D-shell connectors
Mounting Series 90-70 CPU baseplate (Slot 1)
Weight 0.42 kg

Installation Guidelines

  • Ensure the PLC system is powered down before inserting or removing the module from the rack.
  • The Bus Receiver Module must always be installed in slot 1 of the expansion rack.
  • Use shielded cables for bus connections to minimize EMI interference.
  • The total daisy-chain cable length across all racks must not exceed 50 feet (15 meters).
  • An I/O Bus Terminator Plug (IC697ACC702) is required at the end of the final expansion rack to ensure proper bus termination.
  • Handle with standard ESD precautions to protect sensitive internal electronics.

FAQ

What is the IC697BEM711?

The IC697BEM711 is a Bus Receiver Module (BRM) designed by GE Fanuc for the Series 90-70 PLC system to extend the I/O bus capacity.

What is the maximum expansion distance?

The total, combined cable length for the expansion daisy chain cannot exceed 50 feet (15 meters).

What is the data transmission speed?

The module supports a 500 Kbytes/sec transfer rate.

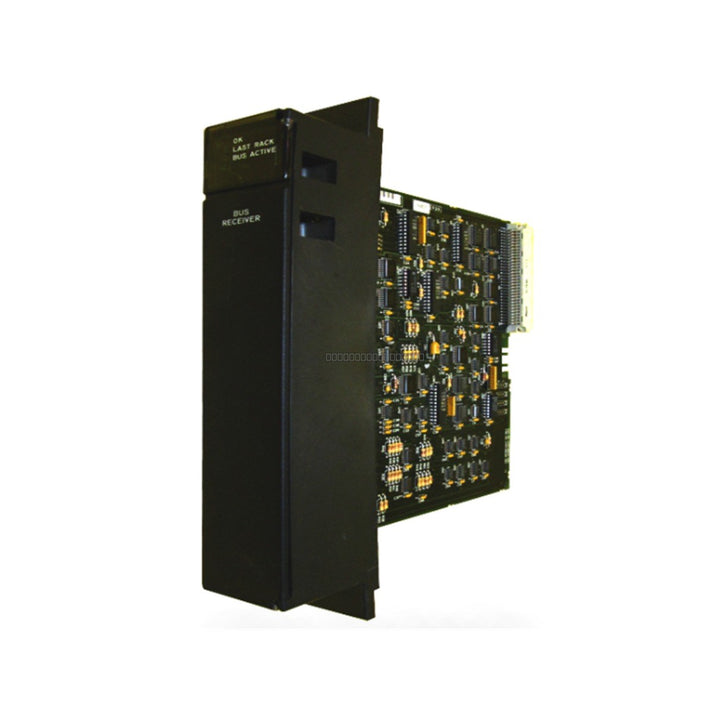

What do the LED indicators signify?

The three LEDs provide status indication for the module health, rack activity status, and the presence of the required I/O bus terminator plug.
