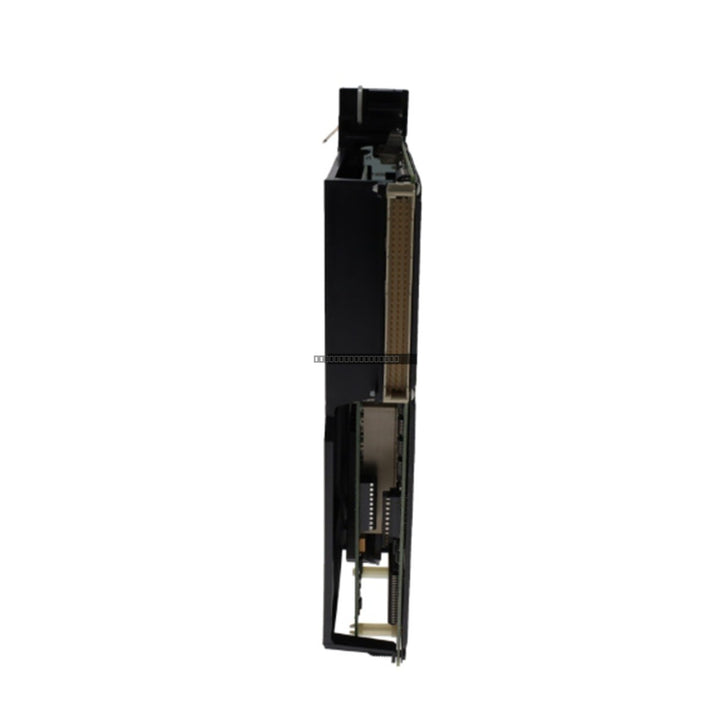

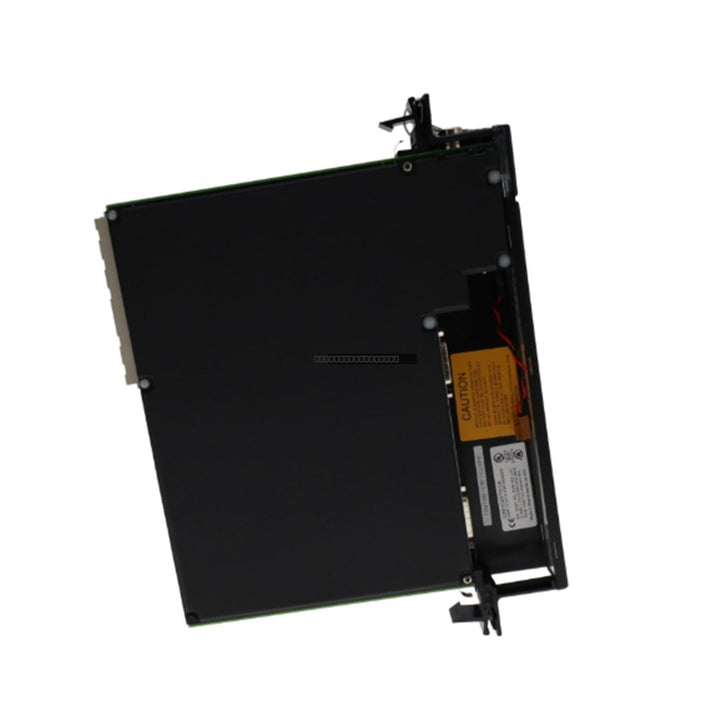

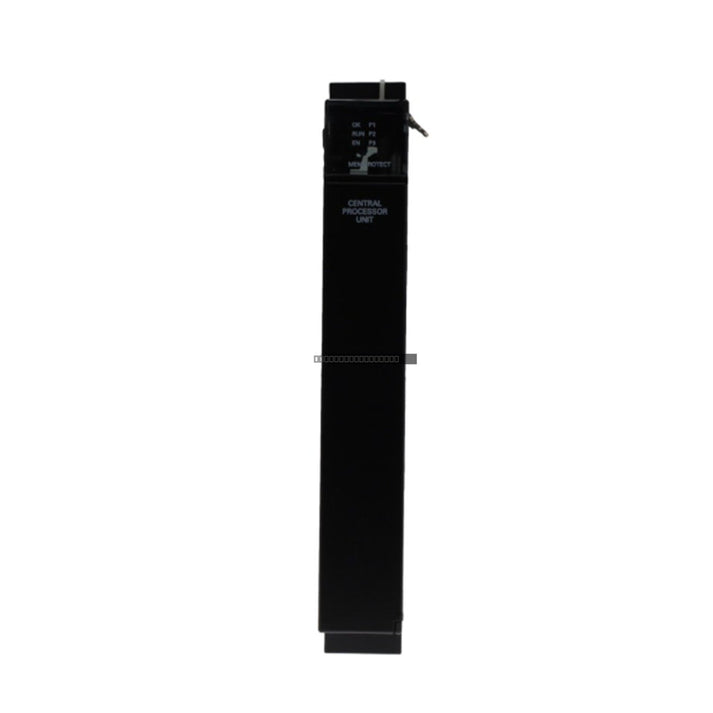

General Electric IC697CGR772 Series 90-70 Hot Standby CPU Module

General Electric IC697CGR772 Series 90-70 Hot Standby CPU Module

The General Electric IC697CGR772 is a high-performance Central Processing Unit (CPU) module designed for the Series 90-70 Programmable Logic Controller (PLC) platform. Engineered for critical industrial environments, this module features...

19 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 7

SKU: IC697CGR772
Proveedora: General Electric
tipo: PLC CPU Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The General Electric IC697CGR772 is a high-performance Central Processing Unit (CPU) module designed for the Series 90-70 Programmable Logic Controller (PLC) platform. Engineered for critical industrial environments, this module features a 96 MHz 80486DX4 microprocessor and supports 32-bit floating-point calculations, making it suitable for complex real-time control of machinery, material handling systems, and process automation.

Features

  • Designed specifically for hot-standby CPU redundancy applications to eliminate single points of failure.
  • Features a 96 MHz 80486DX4 microprocessor with a Boolean execution time of 0.4 microseconds.
  • Equipped with 512 Kbytes of battery-backed fast CMOS RAM.
  • Provides support for up to 2048 discrete inputs, 2048 discrete outputs, and 8000 analog I/O points.
  • Compatible with the full range of IC697 family I/O modules, as well as IC660/IC661 I/O products via bus controllers.
  • Includes a three-position Run/Stop switch and a memory protect keyswitch for enhanced operational security.

Technical Specifications

Model IC697CGR772
Processor 80486DX4 (96 MHz)
Memory 512 KB Battery-backed CMOS RAM
Floating Point Math Supported
Boolean Execution Time 0.4 microseconds
Operating Voltage 5V DC
Operating Temperature 0 to 50 degC
Scan Time 5.9 milliseconds

Applications

  • CPU Redundancy: Enables bumpless transfer and automatic synchronization in high-availability systems.
  • Water & Waste Management: Monitoring pump status and tank level alarms.
  • Manufacturing: Control of injection molding, mining, and food processing lines.
  • Infrastructure: Large-scale HVAC monitoring and elevator control systems.

Installation Guidelines

  • Ensure the PLC rack is powered down before inserting or removing the CPU module to prevent electrical damage.
  • The module occupies a single slot in the IC697 backplane (compatible with IC697CHS750, 790, 791).
  • Ensure proper grounding of the rack assembly to minimize electromagnetic interference (EMI).
  • Handle the module using ESD-safe practices to protect sensitive internal components.
  • Verify that the battery for the CMOS RAM is installed and functional to maintain program memory during power cycles.

FAQs

What is the primary function of the IC697CGR772?

The IC697CGR772 is a CPU module designed for hot-standby redundancy in Series 90-70 PLC systems, providing fault tolerance and high availability for critical industrial processes.

Does this module support floating-point math?

Yes, the IC697CGR772 is capable of 32-bit floating-point calculations, allowing it to handle complex mathematical operations required for advanced process control.

Can this module be used with existing IC697 I/O?

Yes, it is fully compatible with the IC697 family of discrete and analog I/O modules, as well as various specialty and communication modules.
