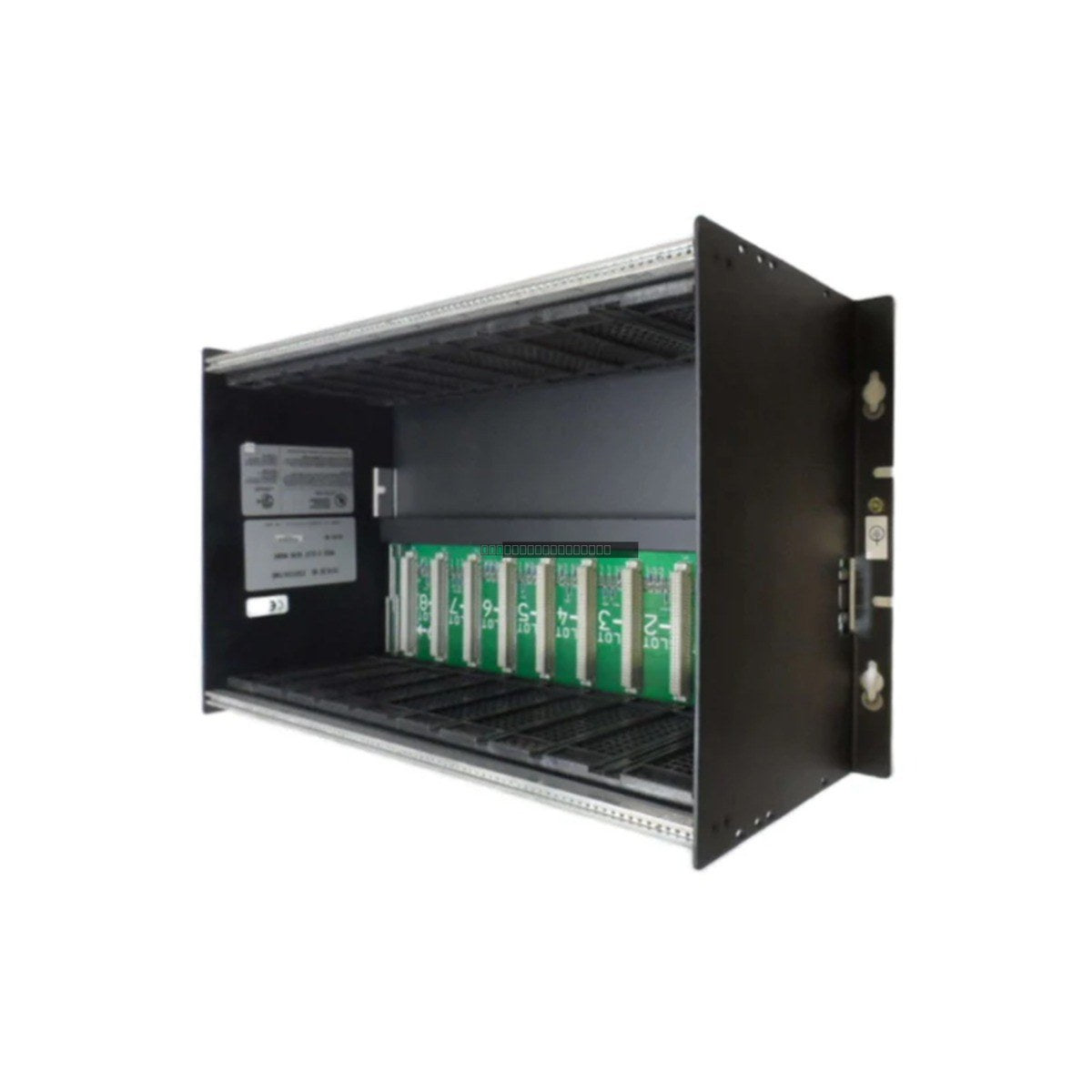

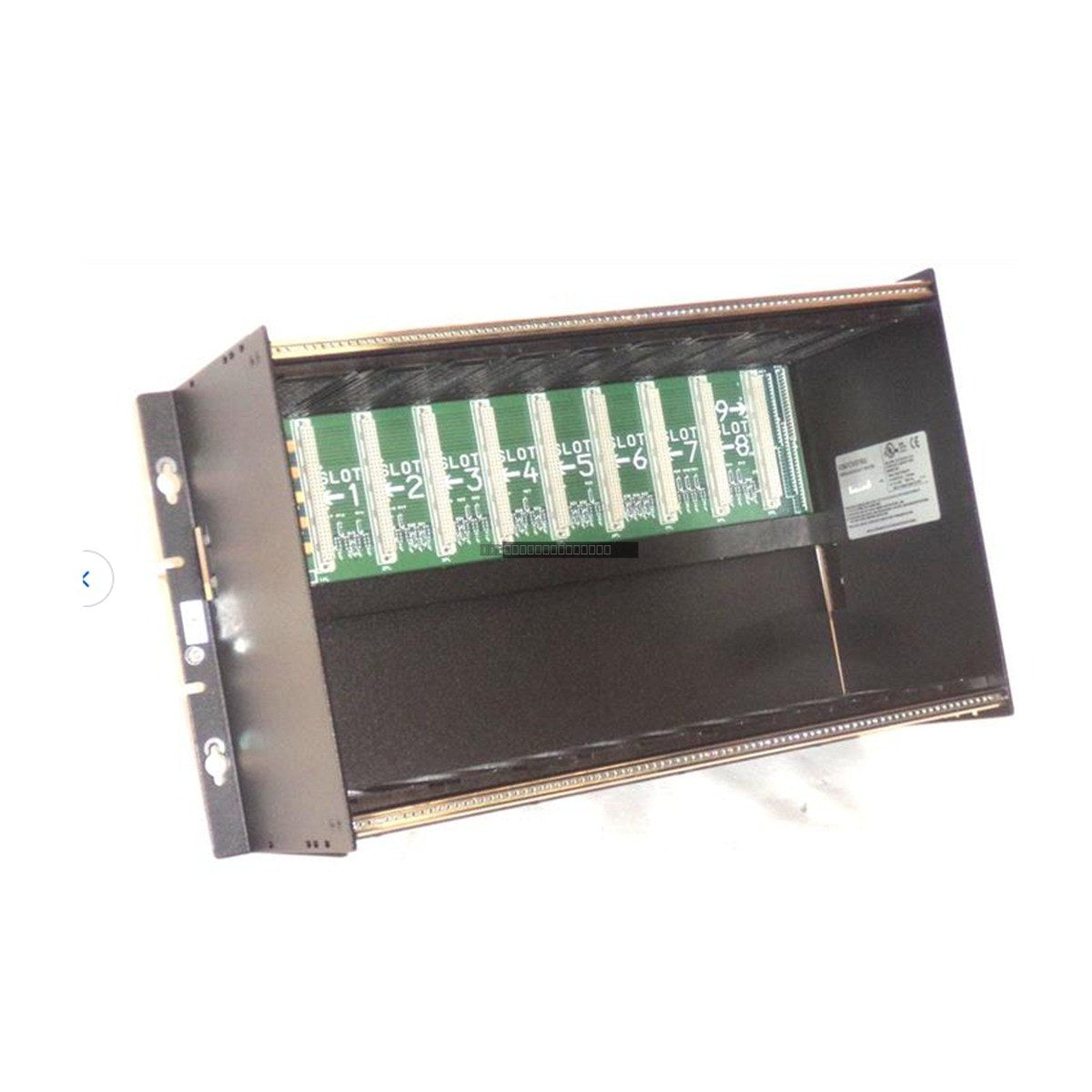

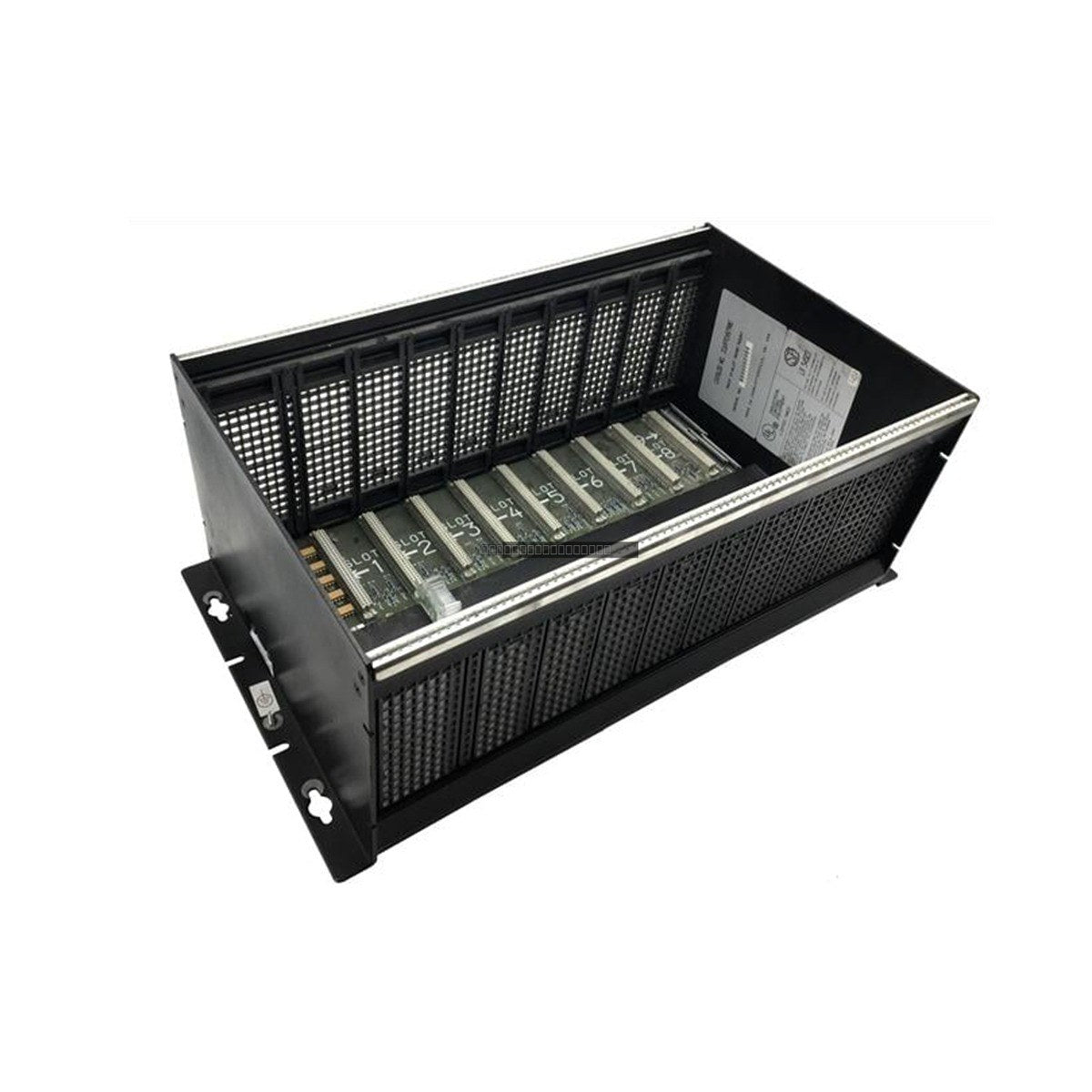

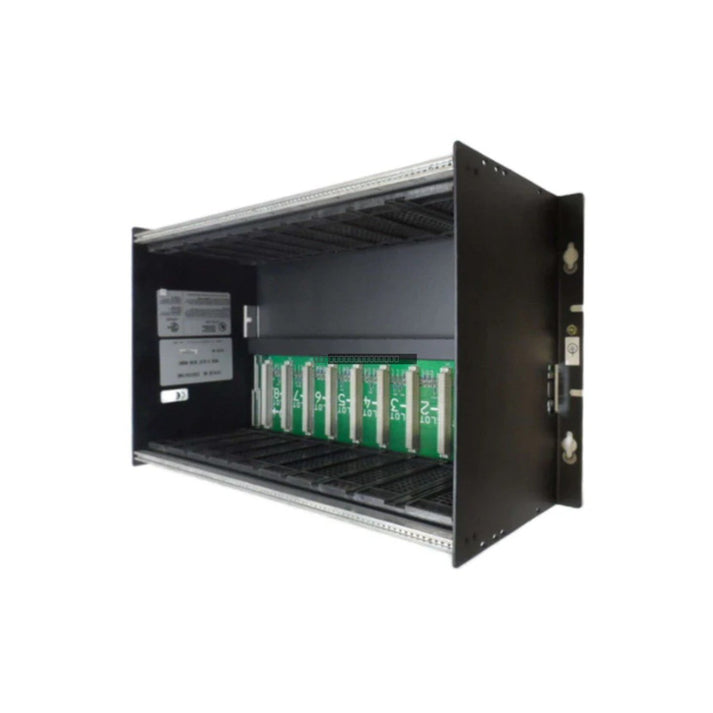

General Electric IC697CHS790 Series 90-70 9-Slot PLC Rack

General Electric IC697CHS790 Series 90-70 9-Slot PLC Rack

The General Electric IC697CHS790 is a robust 9-slot mounting rack designed for the Series 90-70 Programmable Logic Controller (PLC) architecture. This baseplate provides a reliable foundation for CPU, communication, and...

17 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 9

SKU: IC697CHS790
Proveedora: General Electric
tipo: PLC I/O Rack
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The General Electric IC697CHS790 is a robust 9-slot mounting rack designed for the Series 90-70 Programmable Logic Controller (PLC) architecture. This baseplate provides a reliable foundation for CPU, communication, and I/O modules within the IC697 system, supporting flexible, high-density industrial control configurations.

Features

  • Nine (9) dedicated slots for I/O and processor modules, plus one (1) dedicated power supply slot.
  • Compatibility with all standard IC697 PLC module types.
  • Supports system expansion by allowing two racks to be interconnected to share a single power supply unit (requires IC697CBL700 cable kit).
  • Integrated slot sensing technology eliminates the need for physical module jumpers or DIP switches for addressing.
  • Designed for rear-panel mounting in 10-inch deep enclosures.
  • Rack identification configured via four jumpers located on the backplane behind the power supply.

Technical Specifications

Model IC697CHS790
System Series Series 90-70
Total Slots 9 (plus 1 power supply slot)
Power Requirements 7.4 Watts at 5V DC
Current Requirement (I/O Bus) 0.5 Amps
Register Memory 240 Kilobytes
Mounting Rear Mount
Weight 5.34 kg

Installation Guidelines

  • Ensure the rack is mounted in an environment with adequate ventilation; while fans are generally not required, maintain clearance for heat dissipation.
  • Power down the system completely before inserting or removing any I/O or power supply modules to prevent electrical damage.
  • Assign a unique rack number (0 to 7) using the backplane jumpers; the CPU rack must always be designated as Rack 0.
  • When interconnecting multiple racks, ensure the total power consumption does not exceed the capacity of the shared power supply module.
  • Use appropriate ESD-safe handling procedures when installing modules into the rack slots to prevent damage to sensitive backplane components.

FAQ

How do I configure I/O addressing for this rack?

I/O point references and slot addressing are handled entirely through software, such as Logicmaster 90-70 or Proficy Machine Edition. There are no physical DIP switches or jumpers required on the individual I/O modules.

Can I use this rack for turbine control applications?

Yes, the IC697CHS790 serves as a standard backplane for various GE automation systems, including turbine control and monitoring, process manufacturing, and high-speed fluid control networks.

What is the purpose of the leftmost slot?

The leftmost slot is specifically reserved for the installation of a plug-in AC or DC IC697 power supply module.
