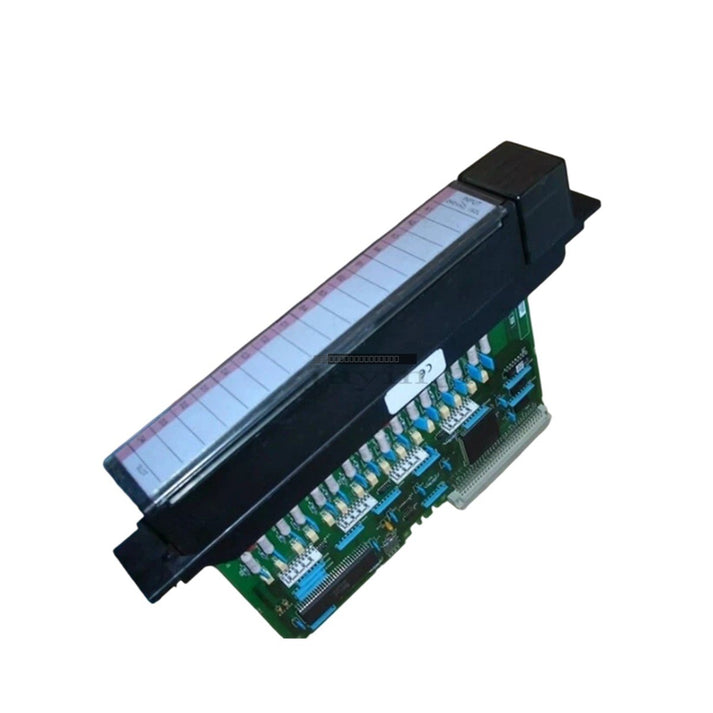

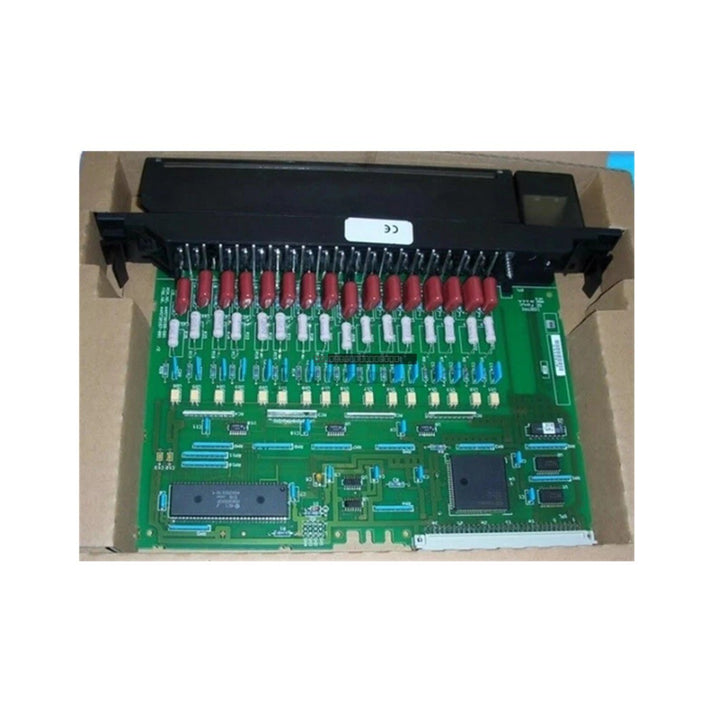

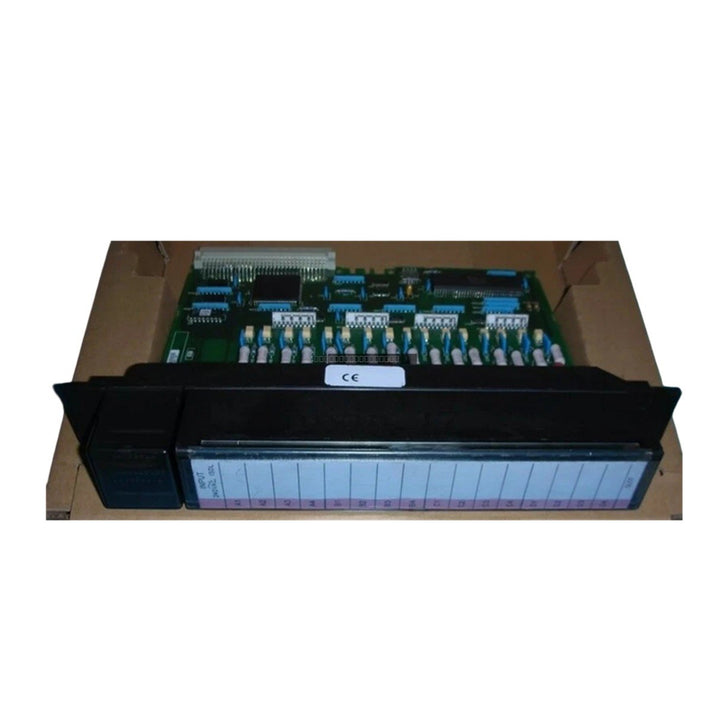

General Electric IC697MDL241 Series 90-70 Discrete Input Module

General Electric IC697MDL241 Series 90-70 Discrete Input Module

The General Electric IC697MDL241 is a 16-point discrete input module engineered for the Series 90-70 Programmable Logic Controller (PLC) platform. This module features individually isolated inputs, allowing for flexible application...

15 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 7

SKU: IC697MDL241
Proveedora: General Electric
tipo: Discrete Input Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The General Electric IC697MDL241 is a 16-point discrete input module engineered for the Series 90-70 Programmable Logic Controller (PLC) platform. This module features individually isolated inputs, allowing for flexible application across different phases of an AC supply. It is designed to meet IEC type 2 current-voltage characteristics and is compatible with a wide range of 2-wire and 3-wire proximity switches.

Features

  • 16 individually isolated input points
  • Compatible with 2-wire and 3-wire proximity switches
  • 20ms input filter for signal stability
  • Integrated LED status indicators for each point on the logic side
  • Designed for high-reliability industrial environments

Technical Specifications

Model IC697MDL241
Rated Voltage 240 VAC, 47-63 Hz
On-state Voltage 160 to 264 VAC
Off-state Voltage 0 to 40 VAC
Isolation 1500V RMS (Input to Backplane)
Input Current 10mA typical (at rated voltage)
Backplane Current Draw 0.25A (from 5VDC bus)

Applications

  • Power Generation and Utilities: Substation monitoring and turbine regulation.
  • Automotive Manufacturing: Robot positioning and fluid dispensing systems.
  • Oil and Gas: Safety-critical fire and gas detection systems.
  • Water Treatment: Pump and valve modulation for flow control.

Installation Guidelines

  • Ensure the PLC rack is powered down before inserting or removing the module.
  • The module is designed for standard Series 90-70 I/O slots.
  • If a mechanical keying block exists on the backplane from a previous module, it can be removed by pushing it upward to unhook the latch.
  • Maintain proper grounding practices for the backplane to ensure isolation integrity.
  • Verify that the proximity switch ON-state characteristics fall within the module's load line requirements to ensure reliable signal detection.

FAQ

What is the primary function of the IC697MDL241?

This module serves as a 16-point isolated AC input interface for the GE Series 90-70 PLC, converting field-level 240V AC signals into logic-level signals for the processor.

Are the inputs isolated?

Yes, all 16 inputs are individually isolated, which allows them to be connected to different phases of an AC power supply without interference.

Is this module compatible with proximity switches?

Yes, the module is designed to be compatible with a broad range of 2-wire and 3-wire proximity switches that meet the specified ON-state current and OFF-state leakage requirements.
