Description

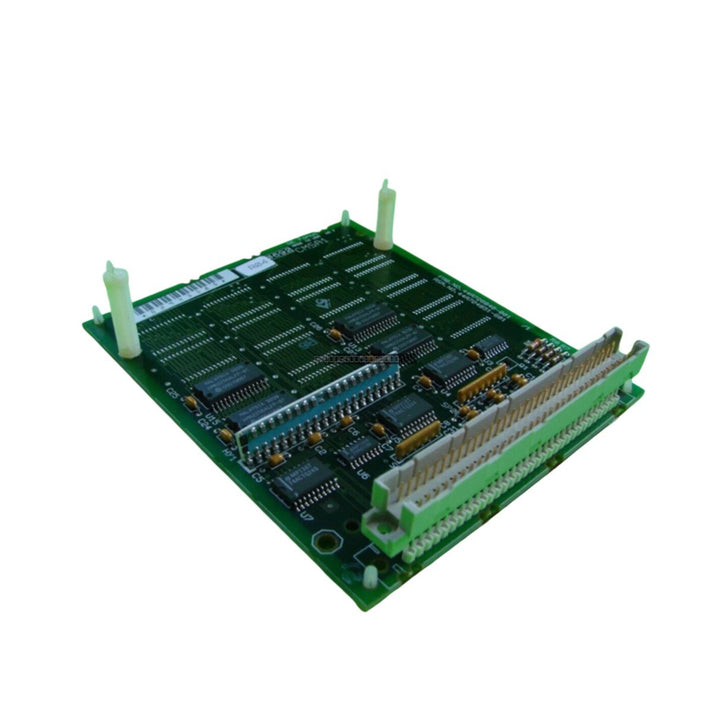

The IC697MEM715 is a memory module designed for the GE Fanuc Series 90-70 programmable logic controller (PLC) system. This module provides essential program and data storage capabilities, ensuring the integrity and accessibility of user logic and configuration parameters within the Series 90-70 architecture.

Features

• Designed for integration with GE Fanuc Series 90-70 PLC systems.
• Supports reliable program and data storage for complex control applications.
• Utilizes a lithium battery for non-volatile memory retention.
• Supports daughterboard operations to extend system functionality.
• Provides a nominal memory retention period of 6 months without external power.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack power is disconnected before installing or removing the memory module to prevent electrical damage.
• Handle the module by the edges to avoid electrostatic discharge (ESD) damage to the internal circuitry.
• Insert the module firmly into the designated slot on the Series 90-70 backplane, ensuring proper alignment with the connector pins.
• Verify that the lithium battery is properly seated and connected to maintain memory retention during power-off states.
• Check for proper seating and latching before restoring power to the rack.

FAQ

What is the primary function of the IC697MEM715?
This module serves as a memory storage device for the Series 90-70 PLC, allowing for the retention of user programs and operational data.

How long does the memory stay retained without power?
Under nominal conditions, the integrated lithium battery provides approximately 6 months of data retention when the PLC is not powered.

Is this module compatible with other GE series?
The IC697MEM715 is specifically engineered for the Series 90-70 platform and is not intended for use in other GE PLC series.
