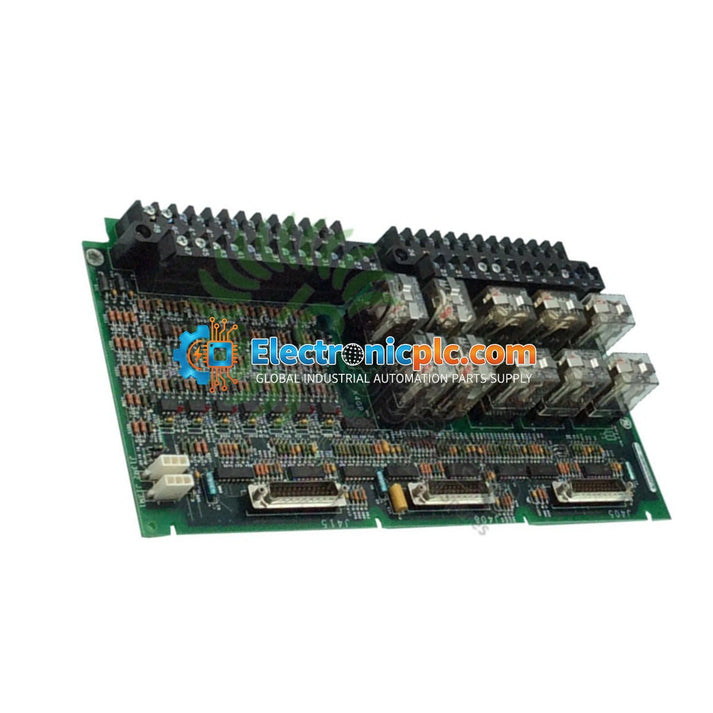

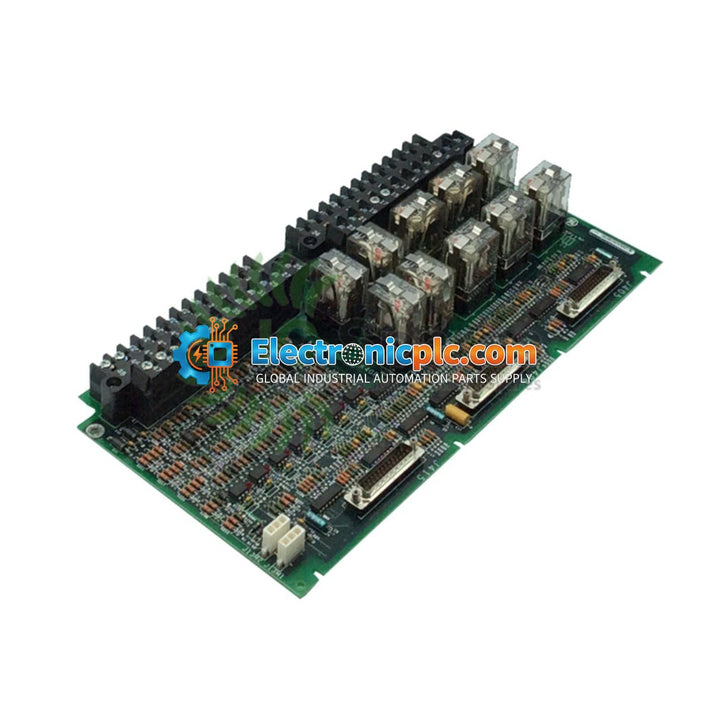

General Electric IS200ECTBG2A Exciter Contact Terminal Board

General Electric IS200ECTBG2A Exciter Contact Terminal Board

Description

The General Electric IS200ECTBG2A is an Exciter Contact Terminal Board designed for use within the EX2100 Excitation Control System. This terminal board serves as a critical interface component, facilitating the...

28 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 6

SKU: IS200ECTBG2A
Proveedora: General Electric
tipo: Terminal Board
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The General Electric IS200ECTBG2A is an Exciter Contact Terminal Board designed for use within the EX2100 Excitation Control System. This terminal board serves as a critical interface component, facilitating the connection and management of contact-based signals within the excitation control architecture. It is engineered to ensure reliable signal processing and robust connectivity for demanding industrial power generation environments.

Features

  • Designed specifically for the GE EX2100 series excitation control systems.
  • Provides reliable contact interface management for exciter control operations.
  • Supports a contact wetting voltage of +70 V DC.
  • Features high-level electrical isolation between inputs and the backplane.
  • Wide operating temperature range suitable for harsh industrial settings.

Applications

This terminal board is primarily utilized in power plant excitation control systems, specifically within the EX2100 series. It is essential for monitoring and managing contact inputs that regulate exciter performance and protection sequences.

Technical Specifications

Product Model IS200ECTBG2A
Manufacturer General Electric
System Series EX2100
Power Supply 24 V DC
Power Consumption <= 4 W
Contact Wetting Voltage +70 V DC
Isolation 500 V DC input-to-backplane
Operating Temperature -40 degC to +85 degC
Storage Temperature -55 degC to +90 degC
Humidity 5 - 95 % RH non-condensing

Installation Guidelines

  • Ensure the control system is powered down before installing or removing the IS200ECTBG2A board to prevent electrical damage.
  • Handle the module using proper ESD (Electrostatic Discharge) precautions to protect sensitive internal circuitry.
  • Verify that all terminal connections are secure and properly torqued according to standard industrial wiring practices.
  • Ensure adequate ventilation in the cabinet to maintain operating temperatures within the specified -40 degC to +85 degC range.
  • Route signal cables away from high-voltage power lines to minimize electromagnetic interference (EMI) and ensure signal integrity.

FAQ

What is the primary function of the IS200ECTBG2A?

The IS200ECTBG2A is an Exciter Contact Terminal Board used in the EX2100 series to manage and interface contact signals within the excitation control system.

Is this board compatible with other GE systems?

This module is specifically designed for the GE EX2100 Excitation Control System. It is recommended to verify system compatibility by checking your specific controller hardware revision.

What are the environmental requirements for this board?

The board is designed for industrial environments, supporting an operating temperature range of -40 degC to +85 degC and non-condensing humidity levels up to 95%.
