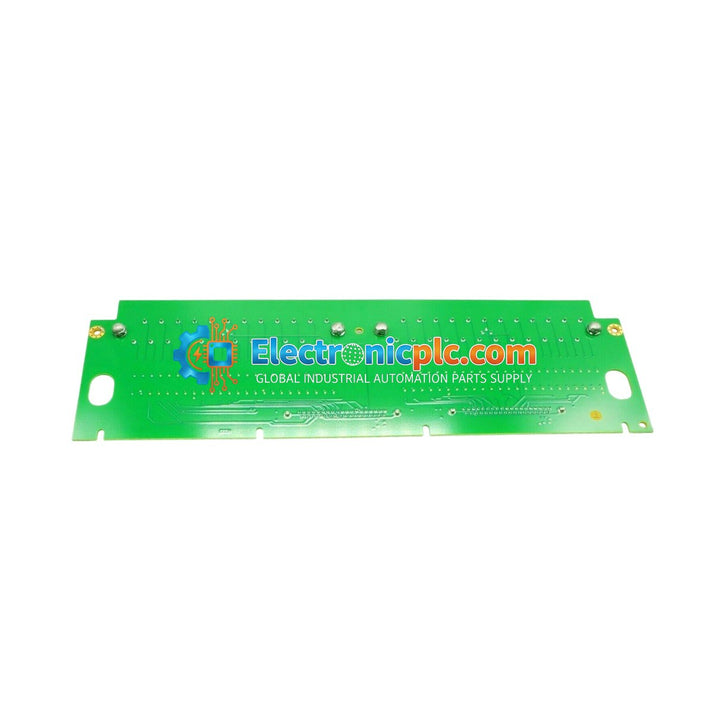

GE Fanuc IS200TBTCH1C Mark VIe Thermocouple Input Terminal Board

GE Fanuc IS200TBTCH1C Mark VIe Thermocouple Input Terminal Board

Description

The IS200TBTCH1C is a high-density Thermocouple Input Terminal Board designed for the General Electric Mark VIe distributed control system. This board serves as the primary interface between field-mounted thermocouple sensors...

24 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 7

SKU: IS200TBTCH1C
Proveedora: GE FANUC
tipo: Terminal Board
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

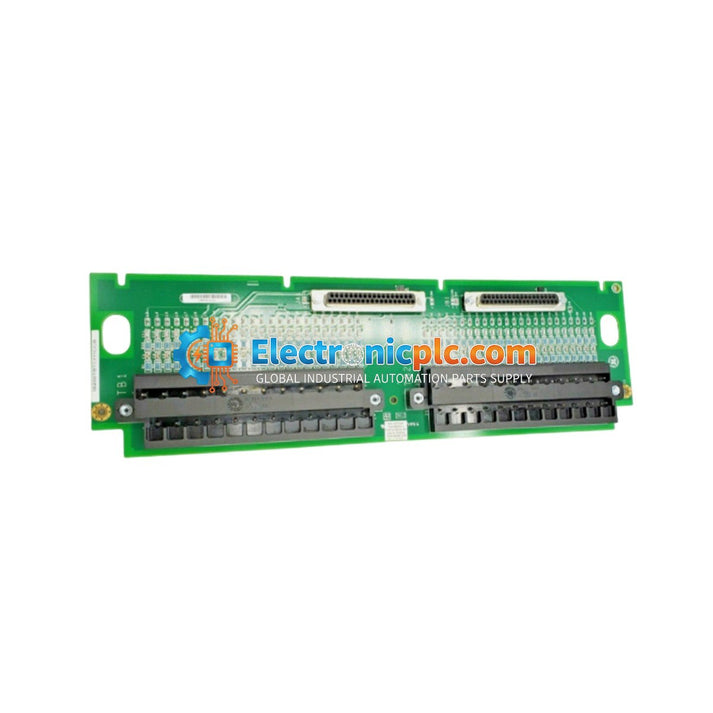

The IS200TBTCH1C is a high-density Thermocouple Input Terminal Board designed for the General Electric Mark VIe distributed control system. This board serves as the primary interface between field-mounted thermocouple sensors and the system's I/O processor packs. It is engineered to support mission-critical turbine control applications, providing reliable signal acquisition for 24 independent channels. The board is compatible with multiple thermocouple types, including E, J, K, S, and T, and supports flexible system architectures ranging from simplex to triple modular redundant (TMR) configurations.

Features

  • Supports 24 independent thermocouple input channels.
  • Compatible with thermocouple types E, J, K, S, and T.
  • Direct interface for PTCC I/O packs via onboard J-type connectors.
  • Supports Simplex, Dual, and TMR system configurations.
  • Integrated shield terminal strips for improved noise immunity and signal integrity.
  • Accommodates field wiring up to 12 AWG via barrier-type terminal blocks.

Applications

The IS200TBTCH1C is specifically designed for use in GE Mark VIe control systems, primarily found in power generation, turbine control, and heavy industrial process monitoring where high-precision temperature measurement and system redundancy are required.

Technical Specifications

Model IS200TBTCH1C
Series Mark VIe
Input Channels 24
Supported Thermocouples E, J, K, S, T
Input Span -8 mV to +45 mV
Operating Temperature 0 to 45 deg C
Wiring Capacity Up to 12 AWG
System Compatibility PTCC I/O Packs

Installation Guidelines

  • Ensure the control system power is disconnected before installing or removing the terminal board or associated I/O packs.
  • Mount the board securely within the designated Mark VIe cabinet rack.
  • Utilize the dedicated shield terminal strips on the left side of the terminal blocks to ground cable shields, reducing the risk of electromagnetic interference (EMI).
  • Ensure proper seating of PTCC I/O packs into the board connectors to maintain reliable signal path continuity.
  • Maintain ambient operating temperatures within the specified 0 to 45 deg C range to ensure long-term component reliability.

FAQ

Is the IS200TBTCH1C compatible with all Mark VIe I/O packs?

This board is specifically designed to interface with PTCC I/O packs. Please verify your specific system configuration and I/O pack requirements before installation.

Does this board support TMR configurations?

Yes, the IS200TBTCH1C is engineered to support Simplex, Dual, and Triple Modular Redundant (TMR) configurations, allowing for high-availability control architectures.
