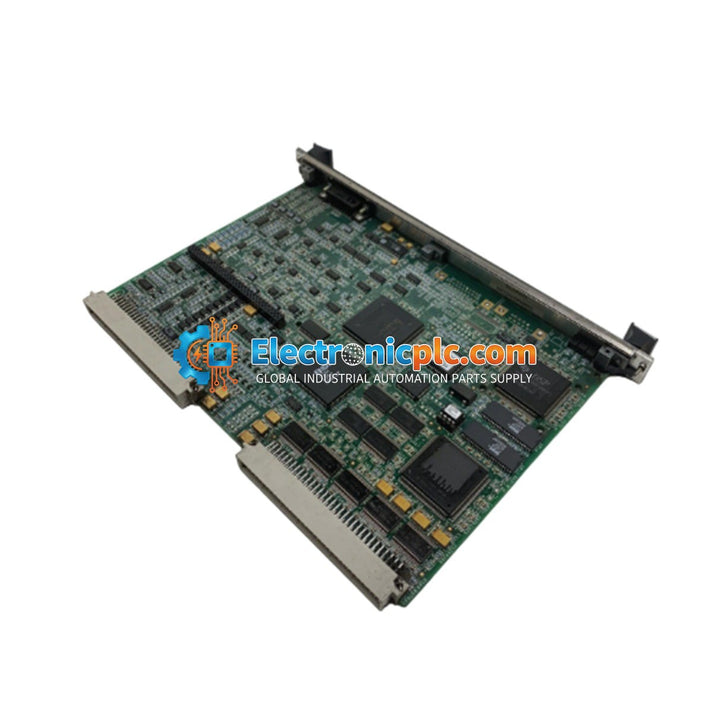

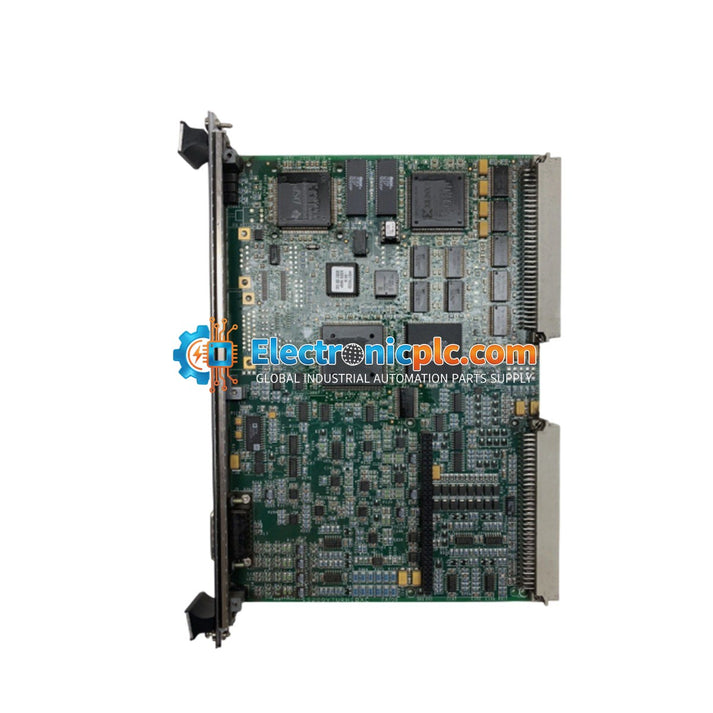

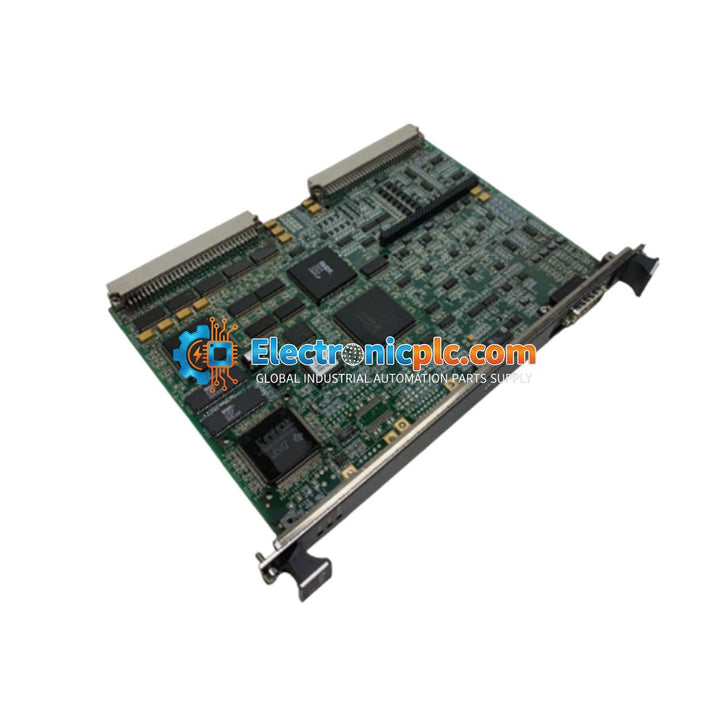

GE Fanuc IS200VTURH1BAA Mark VI Primary Turbine Protection Card

GE Fanuc IS200VTURH1BAA Mark VI Primary Turbine Protection Card

Description

The IS200VTURH1BAA is a Primary Turbine Protection Card designed for the GE Speedtronic Mark VI control system. This module plays a critical role in turbine safety by executing autonomous trip...

28 la gente está viendo esto ahora mismo

Disponibilidad: En existencias

SKU: IS200VTURH1BAA
Proveedora: GE FANUC
tipo: Turbine Protection Card
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The IS200VTURH1BAA is a Primary Turbine Protection Card designed for the GE Speedtronic Mark VI control system. This module plays a critical role in turbine safety by executing autonomous trip logic to prevent mechanical damage. It monitors turbine-specific parameters in real-time, facilitating rapid emergency shutdowns when safety thresholds are exceeded. The card is engineered for high-reliability applications, including thermal power plants, gas turbine installations, and heavy industrial refineries, ensuring asset protection and operational continuity.

Features

  • System Integration: Designed specifically for the Mark VI VME-style control rack architecture.
  • Safety Logic: Executes deterministic, high-speed trip logic isolated from non-critical control functions.
  • Revision Structure: Features a three-fold revision configuration (Rating B, A, and artwork A) for enhanced reliability.
  • Compatibility: Maintains full backward compatibility with earlier iterations of the VTUR series, supporting seamless drop-in replacement.
  • Manufacturing Quality: Produced as a standard assembly, meeting rigorous industrial quality standards for critical control hardware.

Applications

This module is utilized in GE Speedtronic Mark VI control systems for:

  • Gas turbine emergency overspeed protection.
  • Thermal power plant turbine safety monitoring.
  • Heavy industrial refinery rotating equipment protection.
  • Critical trip loop management in power generation facilities.

Technical Specifications

Model IS200VTURH1BAA
Series Mark VI Speedtronic
Product Type Primary Turbine Protection Card
Operating Temperature 0 to 60 deg C
Revision B, A, A
Assembly Type Normal Assembly
Compatibility Mark VI VME-style racks

Installation Guidelines

  • ESD Precautions: Always use an anti-static wrist strap and grounded work surface when handling the PCB to prevent damage to sensitive electronic components.
  • Power Down: Ensure the control rack is powered down or the specific slot is isolated before inserting or removing the module.
  • Seating: Ensure the card is fully seated in the VME backplane connector and that the front panel locking levers are securely engaged.
  • Environment: Maintain the cabinet environment within the specified 0 to 60 deg C range and ensure adequate ventilation to prevent thermal degradation.
  • Grounding: Verify that the rack chassis is properly grounded to mitigate EMI and ensure signal integrity for protection loops.

FAQ

Is the IS200VTURH1BAA compatible with older VTUR boards?

Yes, this module is engineered for backward compatibility with the first two iterations of the VTUR series, allowing for drop-in replacement in legacy Mark VI racks.

What is the primary function of this card?

The card serves as a primary turbine protection module, responsible for monitoring critical turbine parameters and triggering emergency shutdowns to prevent mechanical failure.
